SKU:WSAL24161

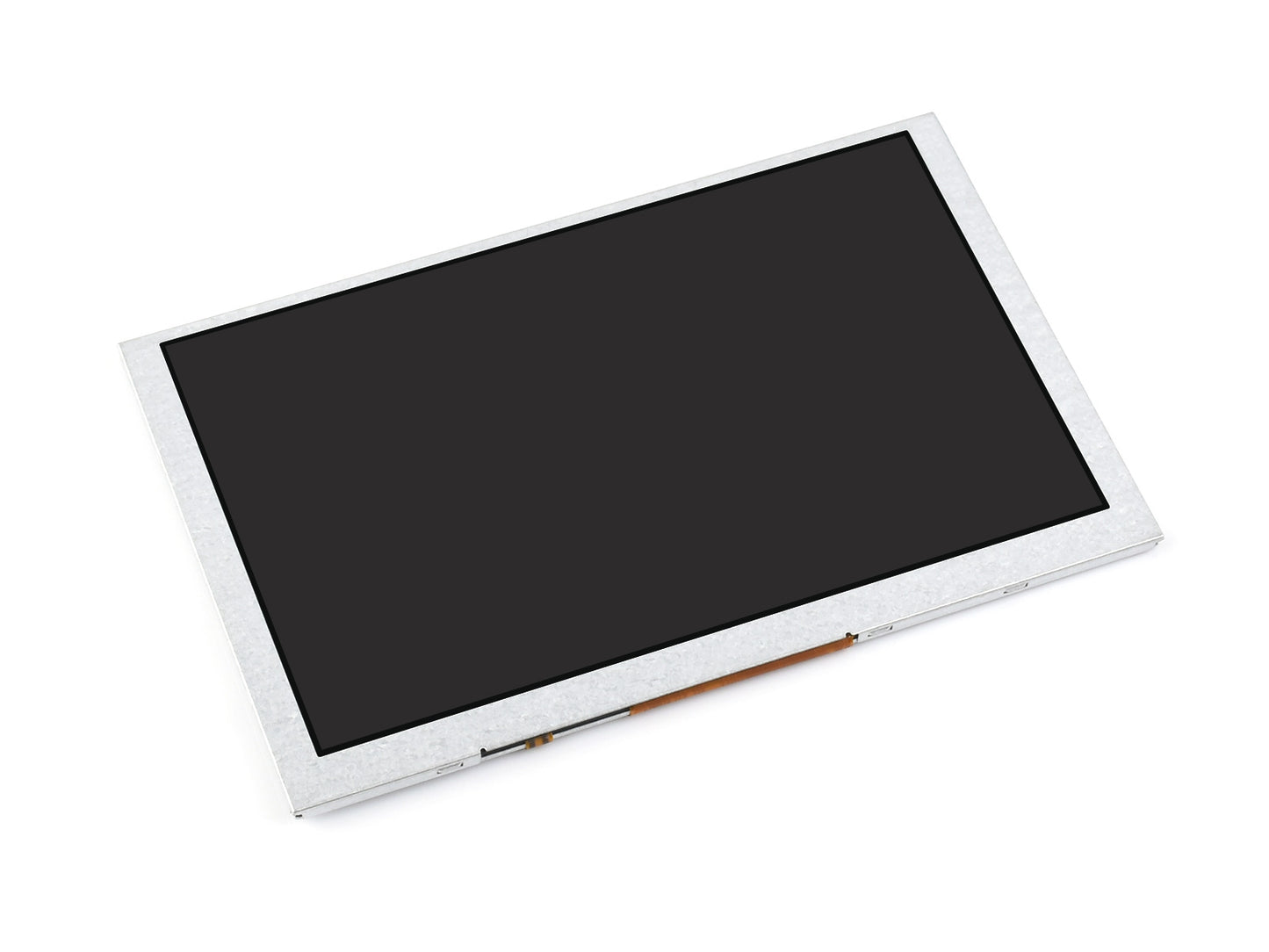

5inch DSI Display, 800 × 480, IPS, Thin and Light Design, Touch Function Optional

Name: 5inch DSI Display, 800 × 480, IPS, Thin and Light Design, Touch Function Optional
Brand: WaveShare
SKU: WSAL24161
Price: 14895.64 HUF
Availability: InStock

14.896 Ft

14.896 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

5inch DSI Display, 800 × 480, IPS, Thin and Light Design, Touch function Optional

5″ DSI Dispaly/Touch Display

Integrated Structure | Thin and Light Screen Design

Size5″
Resolution800×480
Display InterfaceDSI
Display PanelIPS
Viewing Angle160°
Touch TypeCapacitive (optional)
Touch Points5-Point (optional)
Touch InterfaceI2C (optional)
Touch PanelToughened Glass(optional)
ConsumptionLow Power

Certification 1RoHS2.0
Certification 2CE

Version Options

50H-800480-IPSIPS Display

50H-800480-IPS-CT IPS Touch Display

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* some CM3/3+/4 base boards require extra adapter cable

Integrated Structure Design

DSI one-cable communication for embedding engineering applications quickly Provide secondary development resources to help simple development

Working with Raspberry Pi 4B via DSI interface

Working with Raspberry Pi 3B+ via DSI interface

for reference only, the Raspberry Pi boards are not included.

Thinner and more space saving

Integrate the driver circuit into an FPC, only needs 5mm thickness space

IPS Display Panel

Excellent Display Performance With 160° Wide Viewing Angle

5-Point Capacitive Touch

Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with I2C signal, support 5-point touch

* This function is only available on the Touch Display version, the actual touch points depends on the operating system

Adjustable Brightness Via Software

Product show

Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/50H-800480-IPS

DSI Thin & Light Display Selection

PART NUMBER	Resolution	Display Interface	Display Panel	Touch Interface	Touch Panel	Display size(mm)	Product size(mm)
43H-800480-IPS	800×480	DSI	IPS	-	-	95.04×53.86	105.42×67.07
43H-800480-IPS-CT				I2C	G+G	95.04×53.86	106.10×67.80
43H-800480-IPS-CT-B				I2C	G+G	95.04×53.86	112.40×75.10
43H-800480-QLED			QLED	-	-	95.04×53.86	105.42×67.07
43H-800480-QLED-CT			QLED	I2C	G+G	95.04×53.86	106.10×67.80
50H-800480-IPS			IPS	-	-	108.00×64.80	120.70×75.80
50H-800480-IPS-CT			IPS	I2C	G+G	108.00×64.80	127.70×87.45
