SKU:WSAL33137

7.3inch E6 Full Color E-Paper With Solid Wood Photo Frame For Raspberry Pi Zero, Ultra-long Standby, 800 × 480 Resolution, Batt. and Zero 2 WHC board are Optional

7.3″ Full color E-paper Display

7.3″ Full color E-paper Display with Solid Wood Photo Frame for Raspberry Pi

• Size7.3″
• Resolution800 × 480
• Viewing Angle>170°
• Display ColorE6 Full Color
• RTC ChipDS3231
• UPSUninterruptible Power
• Display PanelE-paper
• ExperiencePaper-like
• Display AdvantageEye Care, No Blue Light
• EnvironmentAmbient Light Required
• Display TypePassively Reflective
• HAT+ StandardImproves Interoperability

Version Options

RPi-Zero-PhotoPainter-ACCEthe e-paper PhotoPainter only, without mainboard

RPi-Zero2W-PhotoPainter with Raspberry Pi Zero 2 WHC, pre-assembled inside the device

Features At A Glance

• Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation
• Supports six primary colors and employ Dithering technology to create vivid and saturated full color images
• No backlight, keeps displaying last content for a long time even when power down
• Onboard high-precision RTC chip for accurate time control
• Simple solid wood photo frame, elegant and beautiful
• Rotatable stand and hook hanger on the back, not limited to usage scenarios
• Open source code, more freedom to customize functions
• Adopts Raspberry Pi HAT+ standard
  • Improves interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
• Onboard UPS circuit
  • I2C bus communication, supports real time monitoring of Batt. voltage, current, power, and remaining capacity, etc.
  • Onboard Batt. protection circuits: over charge/discharge protection, over current protection, and short circuit protection, more safe and stable
  • Onboard charge indicator for monitoring the Batt. operating status

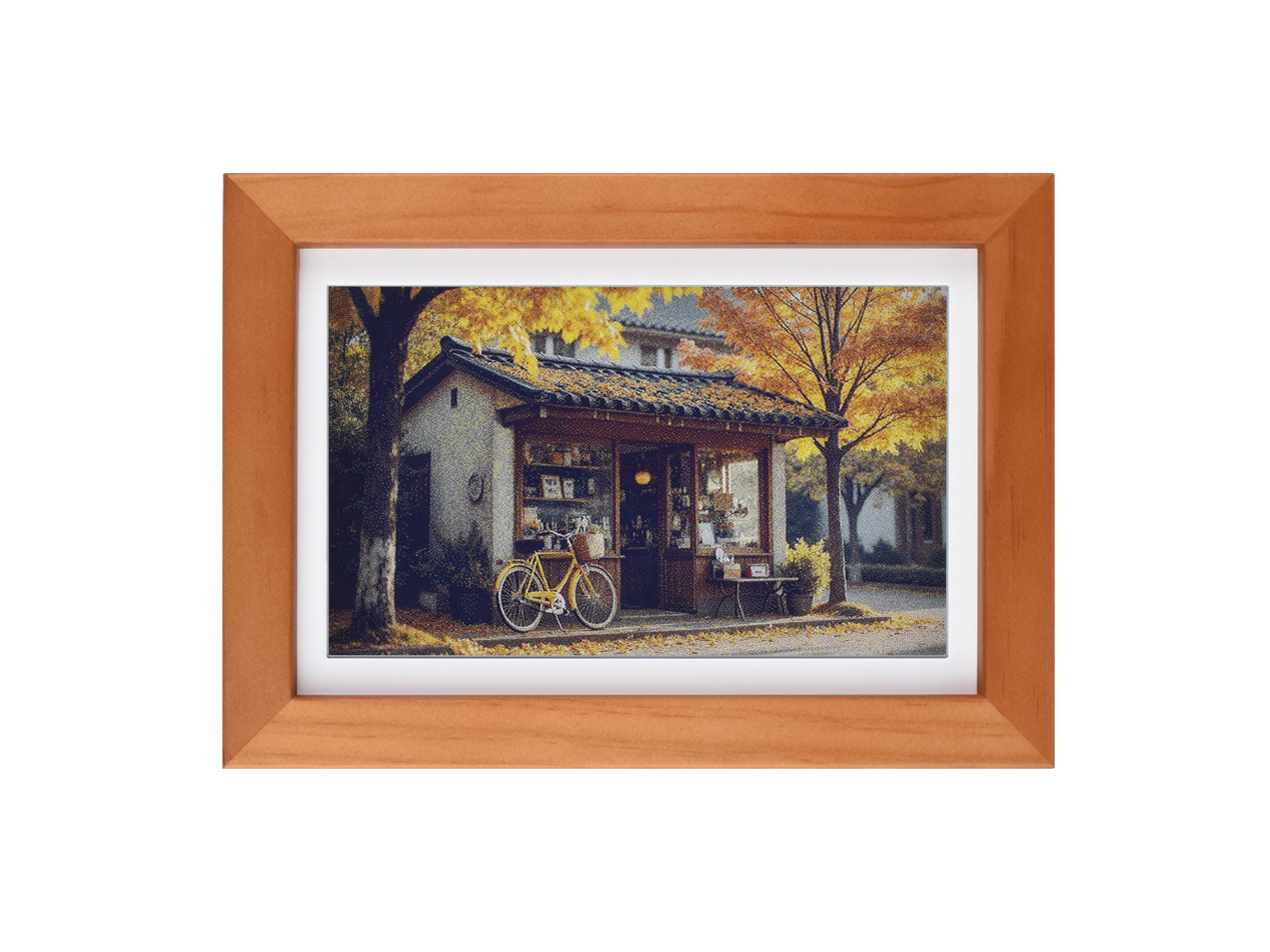

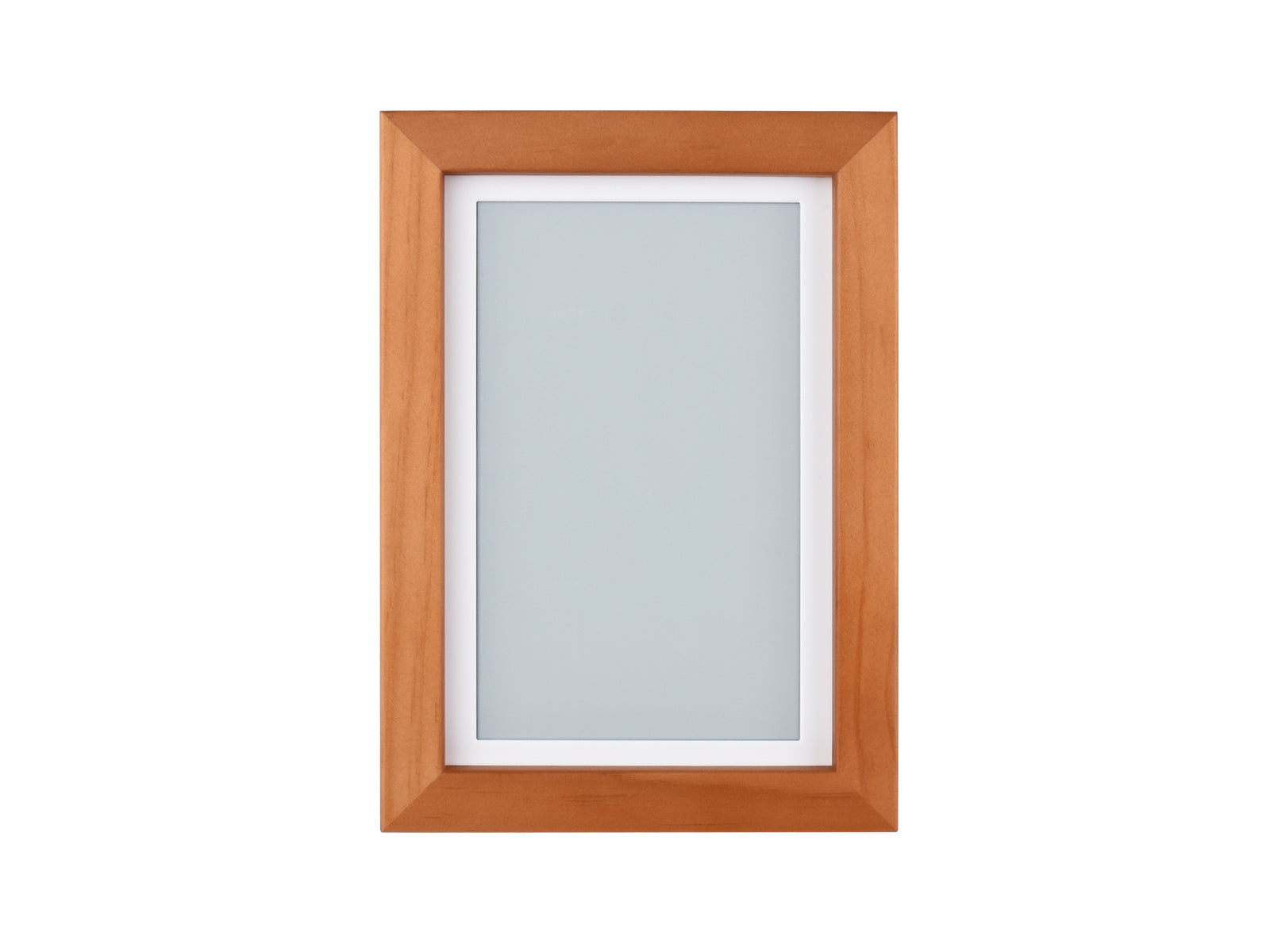

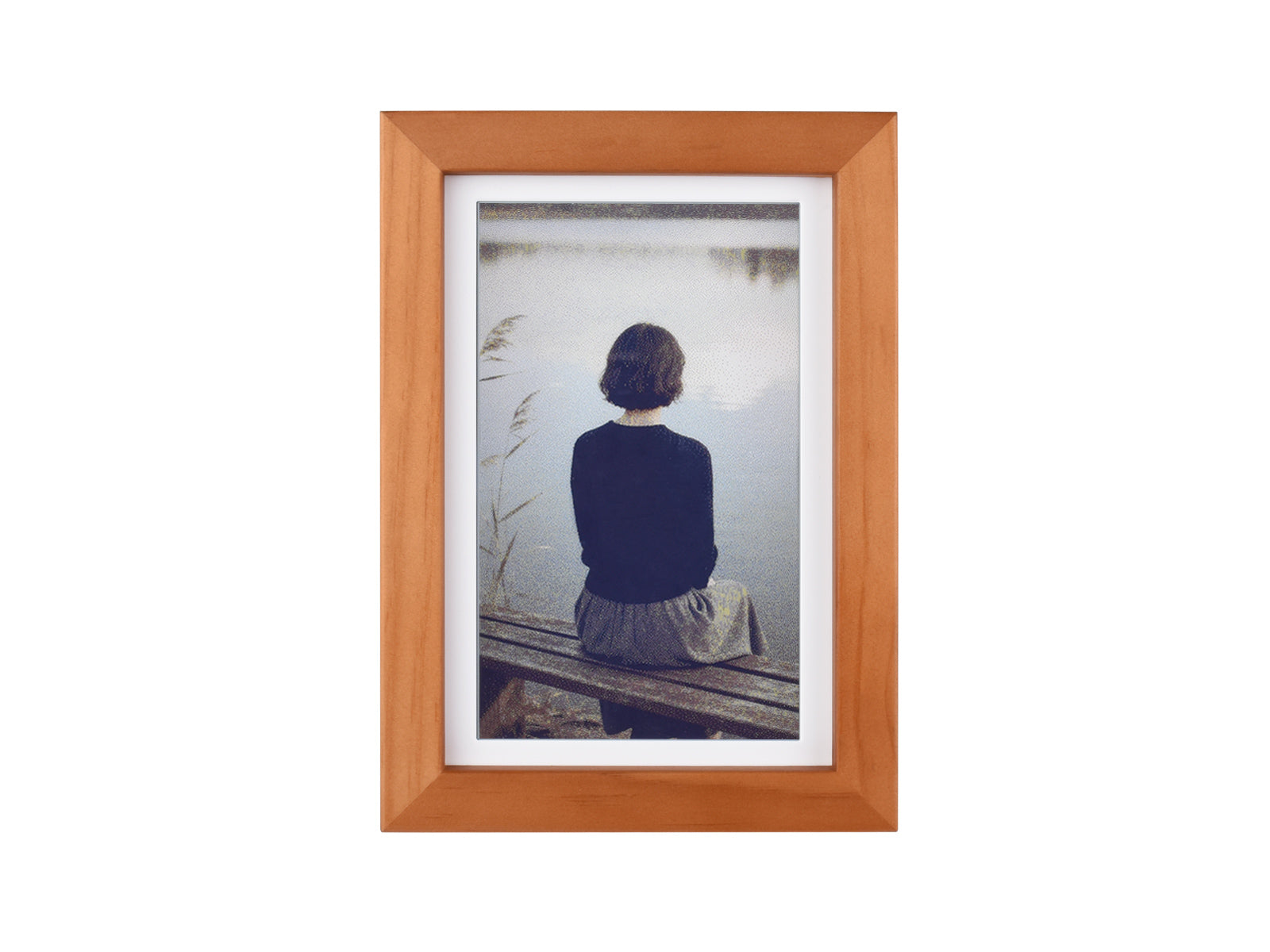

Simple solid wood photo frame

High-quality solid wood frame and white edge, simple and elegant

Multi-functional stand

Stable placement, suitable for multiple scenarios

Supports Local Text-to-Image Generation

Supports Loading Offline AI Large Models, Enabling Text-to-Image Generation Without Network Access, Provides Pre-built Image, Execution Scripts, and AI Model Setup Steps

With Script Execution

Send Keywords Directly

Note: To use local text-to-image generation, the device must be connected to the mainboard.

Wall-mount hook design

Easy to hang on the wall, more efficient use of space

Supports simultaneous charging and discharging and uninterrupted power supply

It is able to charge the batt. and provide power output at the same time from external power supply. Automatically switch over to batt. output if external power supply is unavailable, keeps the system running without any trouble

Real time monitoring of module operating status

monitoring the batt. voltage, current, power, and remaining capacity via I2C. When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

More Details

Onboard UPSEnsures timely data storage during unexpected power loss

Ultra-wide viewing angleSide viewing is also clear

E-paper displayNo blue light & more eye-care

Multi-functional standFor different scenarios

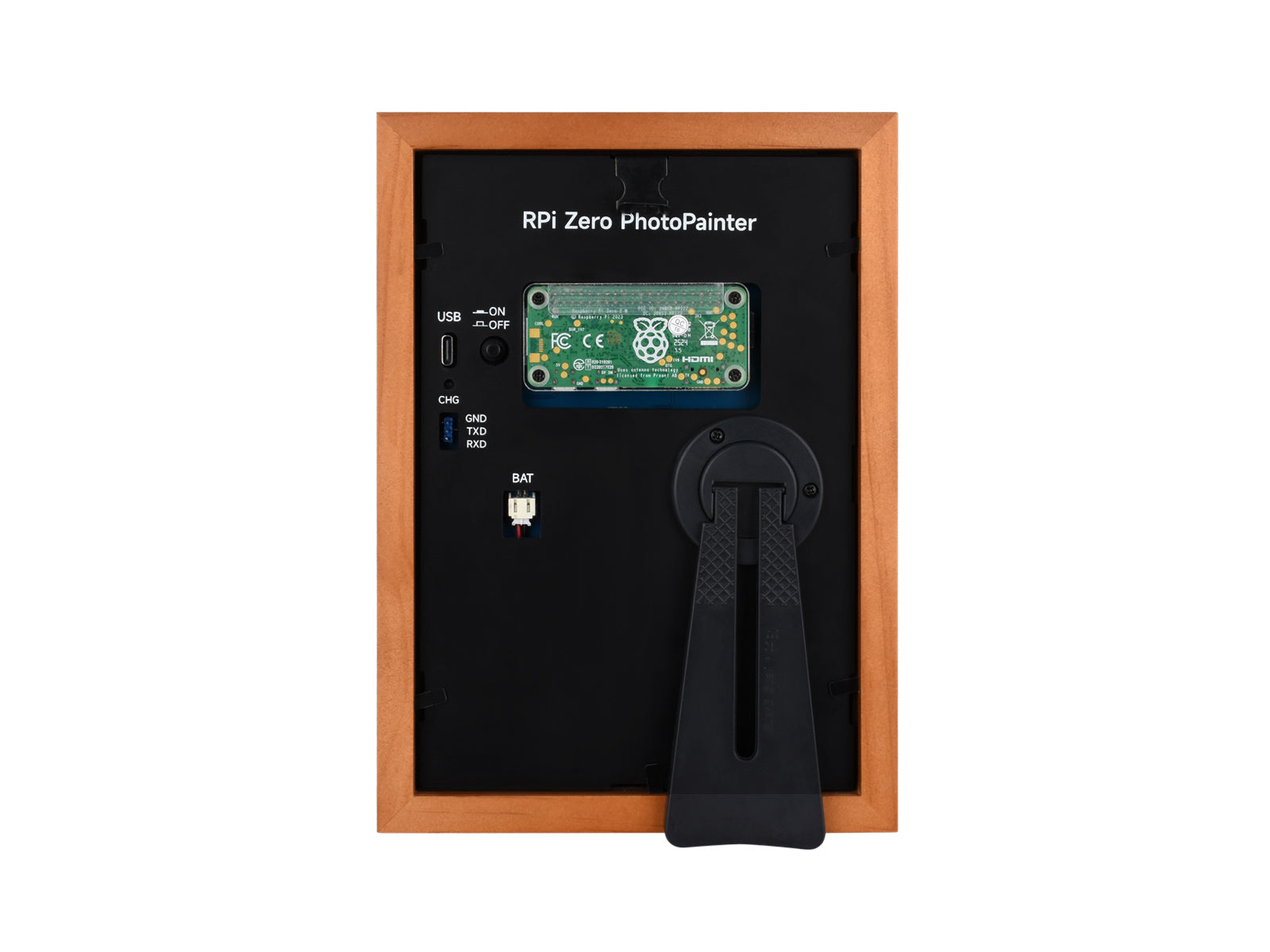

What's On Board

1. Raspberry Pi 40PIN headerfor connecting to the Raspberry Pi Zero series boards
2. USB Type-C portfor entire circuit power supply and Batt. charging
3. Power buttonfor entire circuit power supply ON/OFF (excluding Batt. charging)
4. Charging indicatorfor indicating Batt. charging status
5. Serial port debugging headerAdapting Raspberry Pi UART pin header, for controlling the Raspberry Pi without an internet connection
6. Lithium Batt. headerPH2.0 connector for 3.7V Lithium Batt., supports charging and discharging

7. INA219Voltage/current monitor
8. RTC chipDS3231 high precision RTC chip
9. RTC Lithium Batt. portfor rechargeable Lithium Batt. with JST SH1.0 2PIN header (3V)
10. E-paper display interface
11. EEPROM
12. ETA6003Batt. charge/discharge chip
13. SCT12A0DHKRVoltage boost chip

Minimalist design with modern aesthetics

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/RPi_Zero_PhotoPainter

Lieferumfang

RPi-Zero-PhotoPainter-ACCE

* the RTC batt. and 3.7V Lithium batt. are optional.

1. RPi Zero PhotoPainter x1
2. OPTIONAL RTC batt. (2PIN JST connector) and 3.7V 1500mA Lithium batt. x1
3. Acrylic plate x1
4. Screen protective film x1
5. 3PIN squid cable x1
6. CH343 USB UART Board (Type-C) x1
7. Hook hanger (total 2PCS, 1PCS assembled) x1
8. Triangle opening tool x1
9. Screws and copper standoffs pack x1

RPi-Zero2W-PhotoPainter

• the RTC batt. and 3.7V Lithium batt. are optional.
• Some accessories in the package are pre-assembled before shipment.

1. RPi Zero PhotoPainter x1
2. Raspberry Pi Zero 2 WHC x1
3. 64GB TF card x1
4. Card reader x1
5. OPTIONAL RTC batt. (2PIN JST connector) and 3.7V 1500mA Lithium batt. x1
6. Acrylic plate x1
7. Screen protective film x1
8. Zero-HEATSINK x1
9. Thermal tapes 3PCS x1
10. Mini cross wrench sleeve x1
11. Screwdriver x1
12. 3PIN squid cable x1
13. CH343 USB UART Board (Type-C) x1
14. Hook hanger (total 2PCS, 1PCS assembled) x1
15. Triangle opening tool x1
16. Screws and copper standoffs pack x1
