SKU:WSAL30537

The 7.5inch NFC-Powered e-Paper V2 version has replaced the NFC solution, and the APP has been updated accordingly.

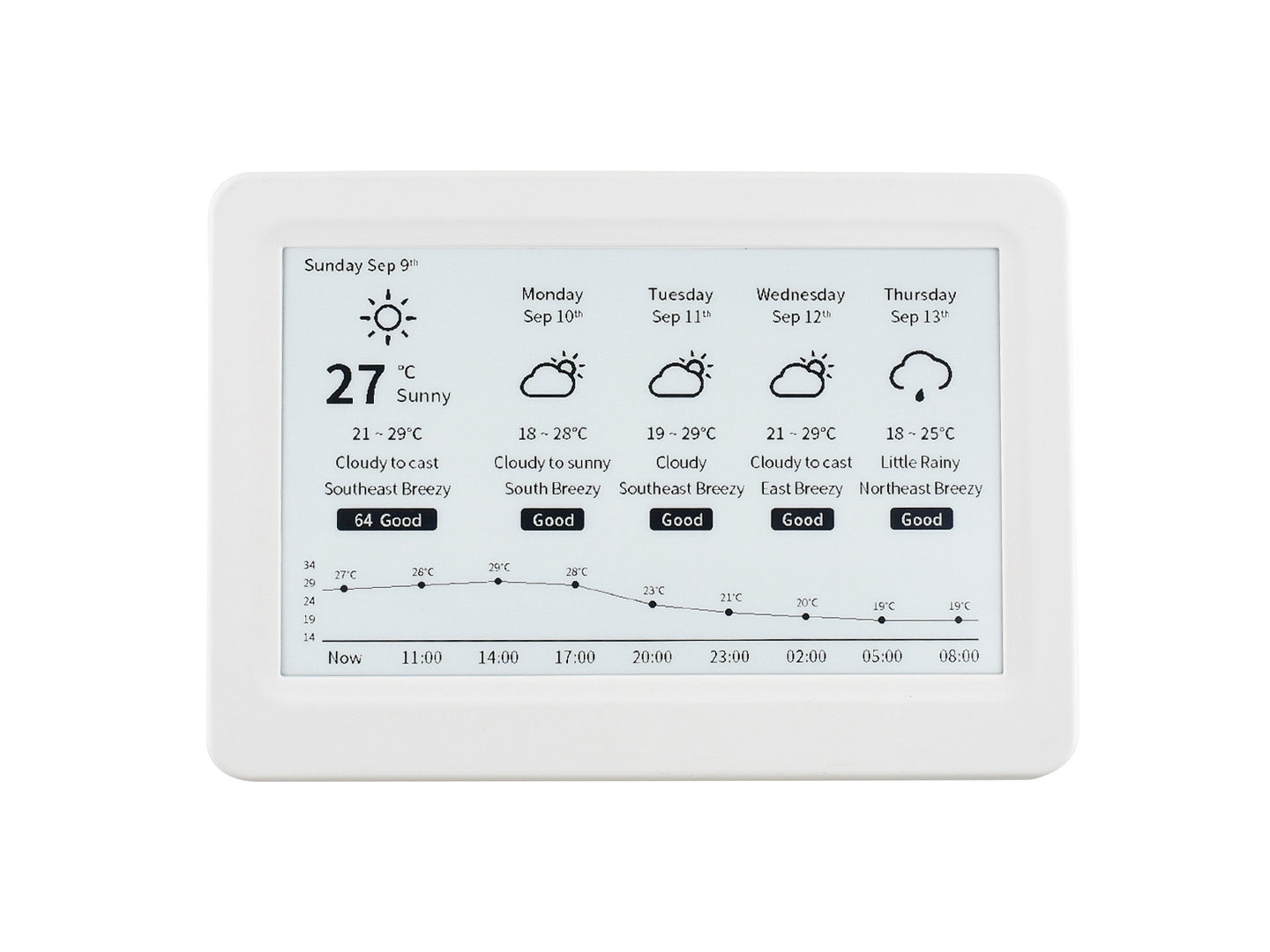

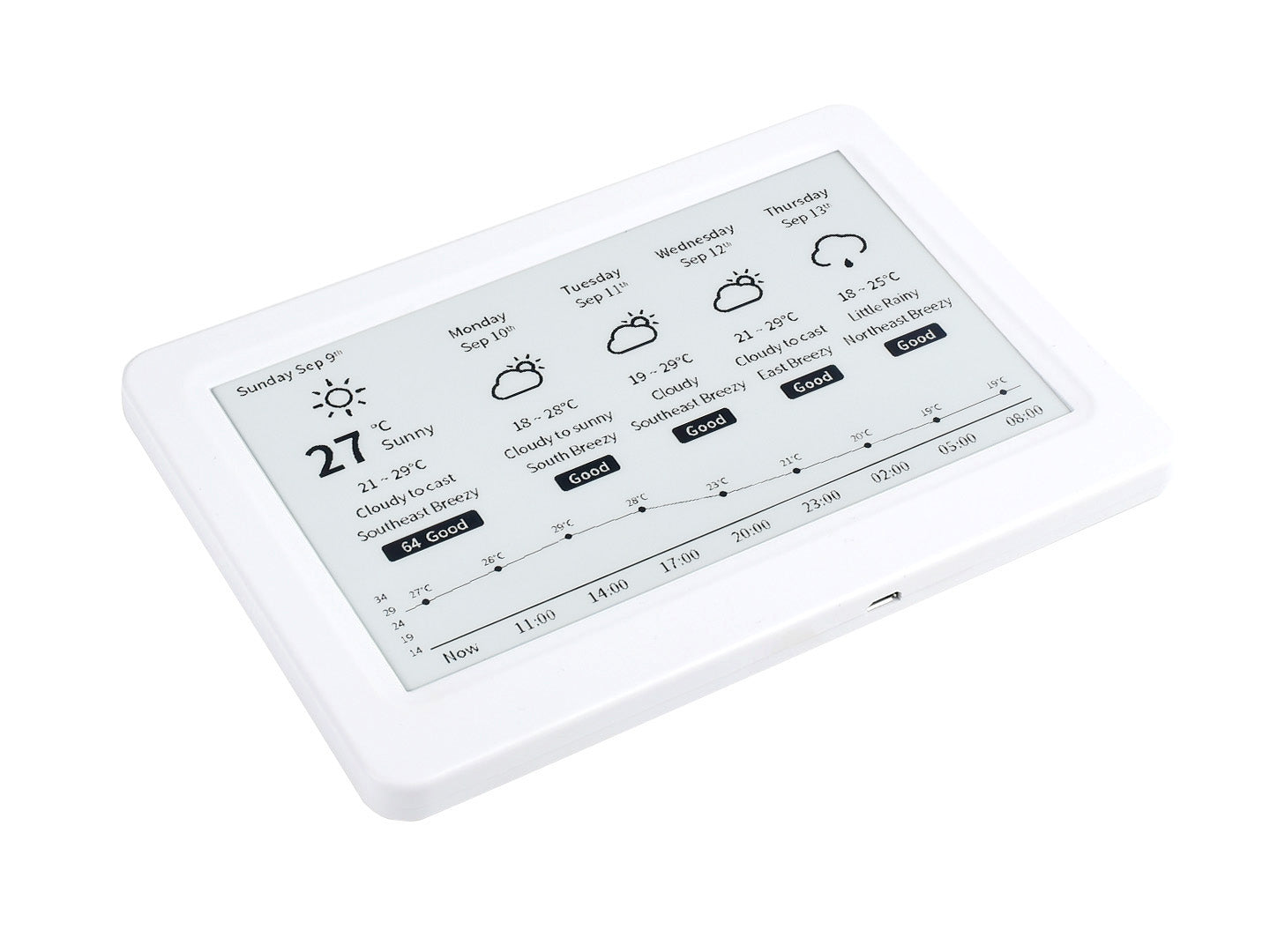

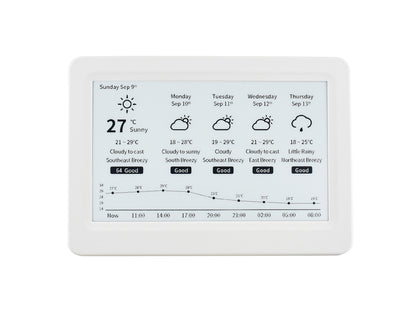

7.5inch Passive NFC-Powered e-Paper V2, No Battery, Wireless Powering & Data Transfer

7.5" NFC-Powered e-Paper V2

Adopts novel passive NFC technologyNo battery required, no more battery life trouble

Wireless NFC-Powered Display Refreshing

Passive NFC solution, No Battery Required, No messy wiring, stable operation

How it works

To refresh the display content, use a smart phone with NFC function, or an NFC reader, close to the e-Paper for both wireless powering and data transfer

* the specific APP or NFC reader is required for refreshing the e-paper screen.

Refreshing Example

Refreshed by ST25R3911B NFC Board

This product requires higher NFC power for refreshing due to its large size, therefore, it is better to use the ST25R3911B NFC Board solution. Recommended evaluation kit: 7.5inch NFC e-Paper Eval Kit. If a smart phone is used for refreshing, please make sure it has enough NFC output power, otherwise it may not be working.

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Specifications

Power supply	Wireless	Grey scale	2
Display color	Black / White	Refresh time	5s (data transfer time is not included)
Dot pitch	0.205mm×0.204mm	Display size	163.2mm×97.92mm
Resolution	800×480 pixels	Outline dimension	195.84mm×137.68mm
Viewing angle	>170°

Outline dimensions

Phone Brand Compatibility

Note: The following list includes only some tested phone models. It does not mean the APP only supports these models. For more compatibility details, please refer to the WIKI page.

Phone Brand	Compatibility
iPhone	√
Huawei (Android)	√
Honor	√
VIVO	√
Xiaomi	√
Redmi	√
OPPO	√
Samsung	Not supported
Google	Not supported

Resources & Services

Wiki:www.waveshare.com/wiki/7.5inch_NFC-Powered_e-Paper

NFC Sensing Position Reference

• 1.54inch NFC-Powerede-Paper
• 2.13inch NFC-Powerede-Paper
• 2.7inch NFC-Powerede-Paper
• 2.9inch NFC-Powerede-Paper
• 4.2inch NFC-Powerede-Paper
• 7.5inch NFC-Powerede-Paper

Lieferumfang

Note: The ST25R3911B NFC Board is not included. It is recommended to purchase the 7.5-inch NFC e-Paper Eval Kit for convenient NFC image refreshing tests.

7.5inch NFC-Powered e-Paper V2 x1
