SKU:WSAL24693

7″ Touch Display Kit for Raspberry Pi Zero, with IPS display Expansion Board, 1024×600, 5-point Capacitive Touch

7″ Touch Display Kit

Based On Raspberry Pi Zero

Designed for Raspberry Pi Zero Series

Specially Designed Connectors for Pi Zero, Easy to Build All-in-one Mini Computer

* for reference only, the Raspberry Pi Zero is NOT included.

Specifications

Zero connectors	Mini HDMI port, USB Micro male port ×2 (1× HUB, 1× Power supply)
Display	7inch 1024 × 600 pixels, 5-point capacitive touch
NETWORKING	100M Ethernet RJ45 port
USB	USB 2.0 port ×2
Audio	Headphone jack, 4PIN speaker header
Power Input	USB Type-C Interface, 5V

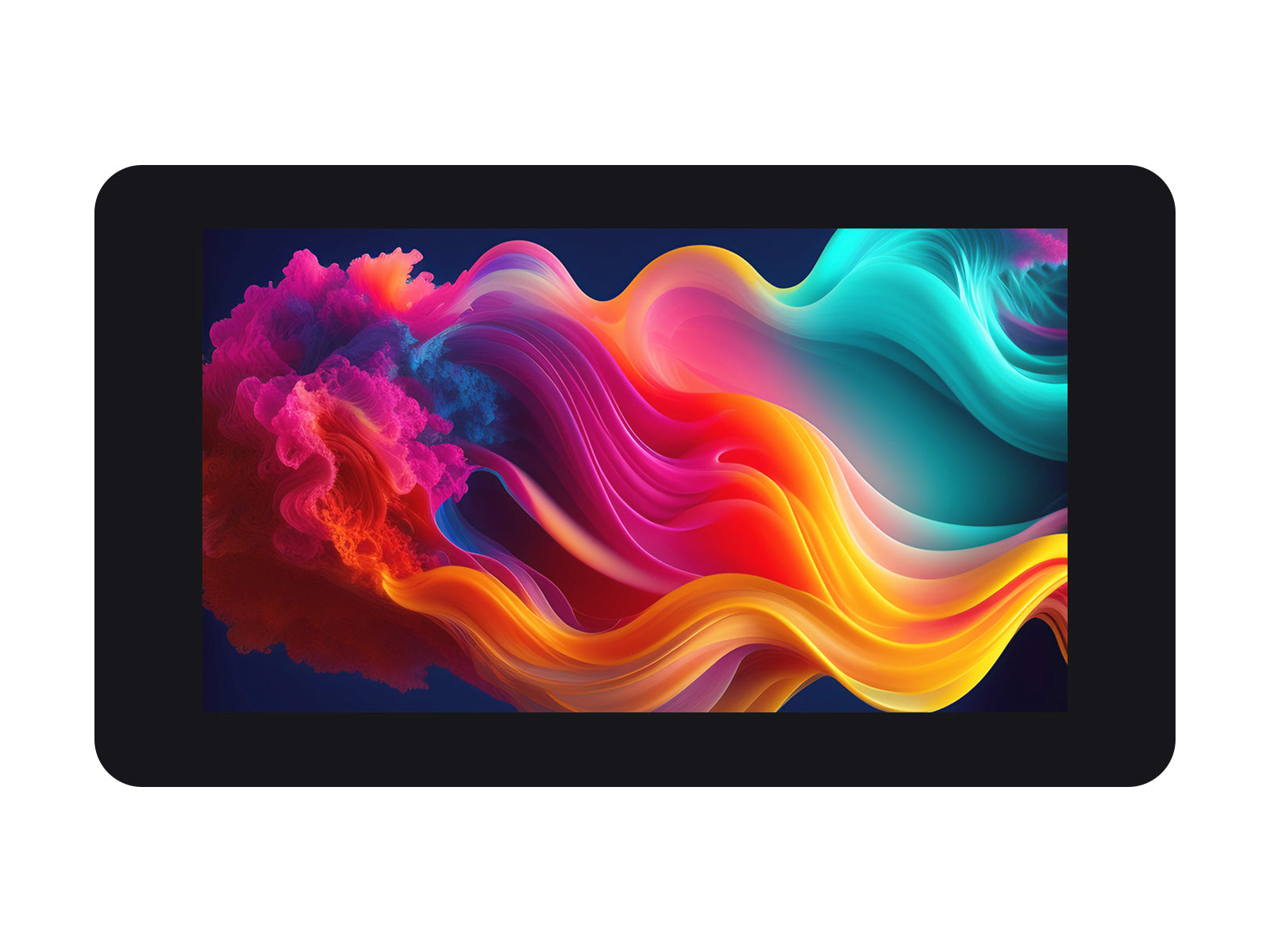

7inch High Resolution Display

Onboard 7″ 1024 × 600 Pixels Display, for clearer details

IPS diaplay panel

170° viewing angle, fast response, precise and natural colorNo Ripples on Touch, Better Touch Experience

5-point Capacitive Touch

7inch capacitive touch screen, supports 5-point touch*making human-computer interaction more convenient

* the actual number of touch points depends on the software and system

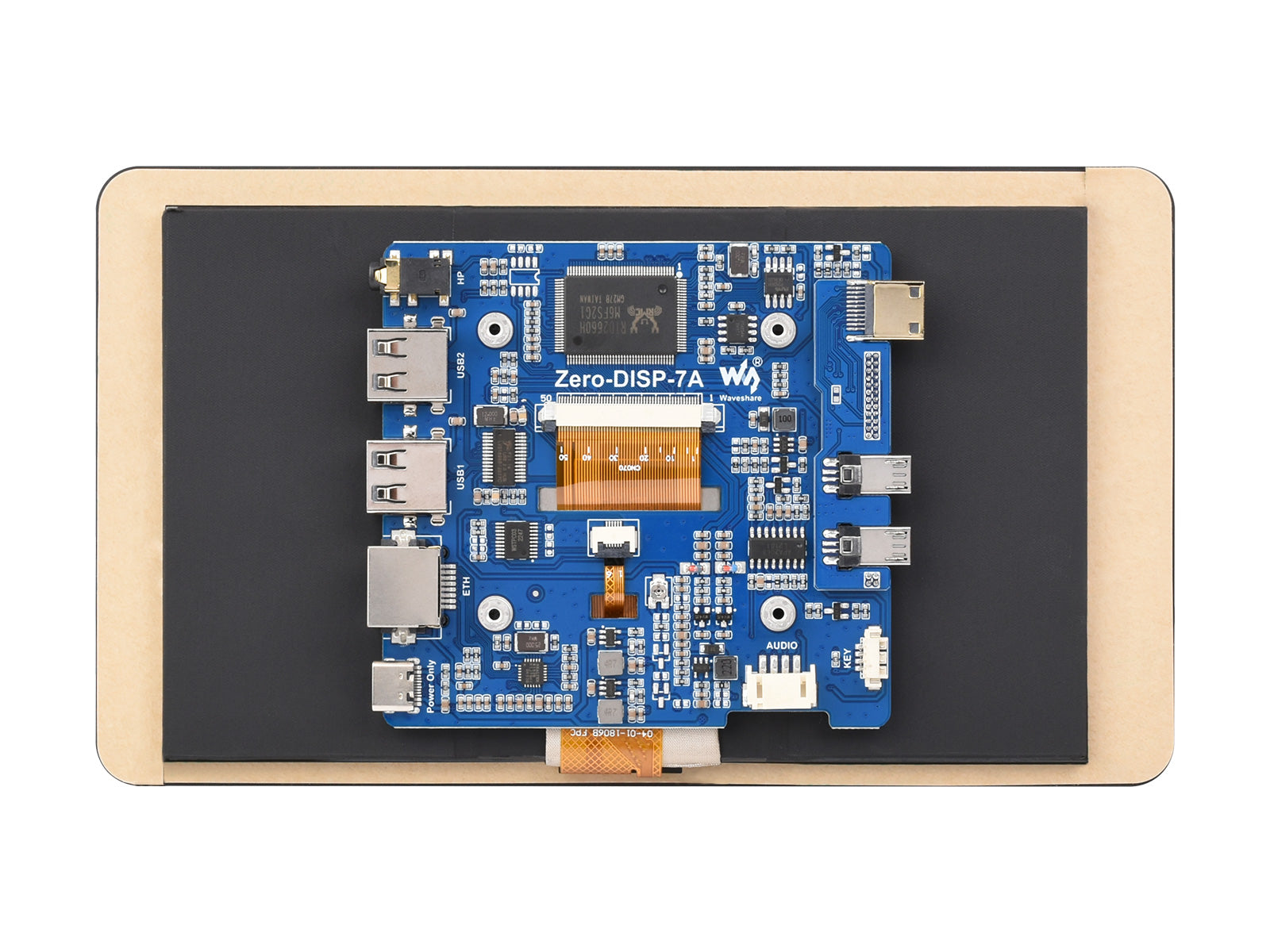

Interface introduction

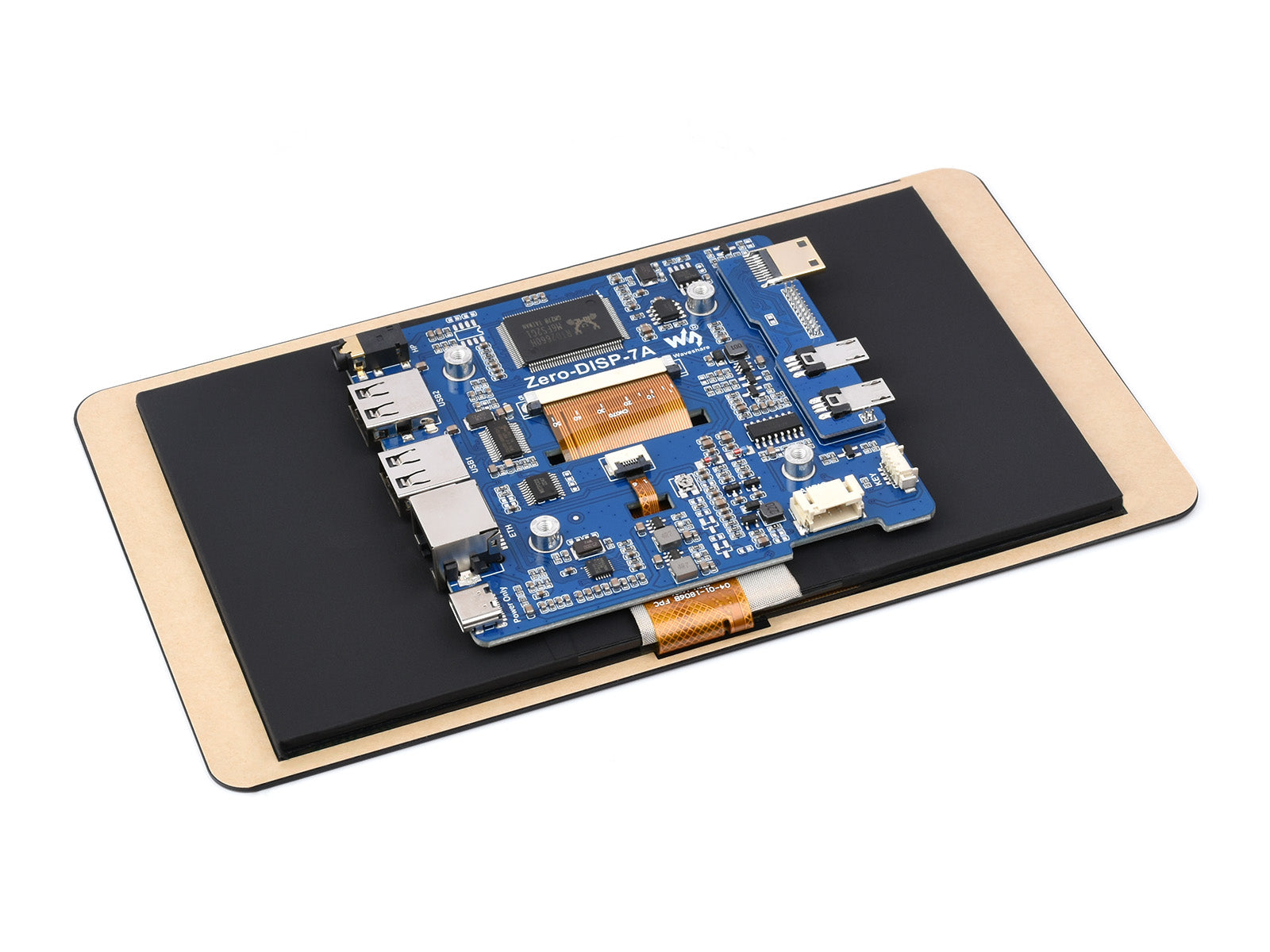

Product show

Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Zero-DISP-7A

Lieferumfang

1. Zero-DISP-7A ×1
2. Button board ×1
3. Button board cable ~9cm ×1
4. White nylon spacer (4PCS) ×1

1

2

3

4
