SKU:WSAL23261

Cooling Fan Expansion Board For RDK X3 Development Board, With 40PIN GPIO Adapter Header

Cooling Fan Expansion Board For RDK X3

Aluminium heatsink + Cooling fan

Dual cooling design, stackable with other expansion boards

Specifications

Supported	RDK X3 Development Board
Power supply	DC 5V input
Rated speed	5000 ± 10% RPM

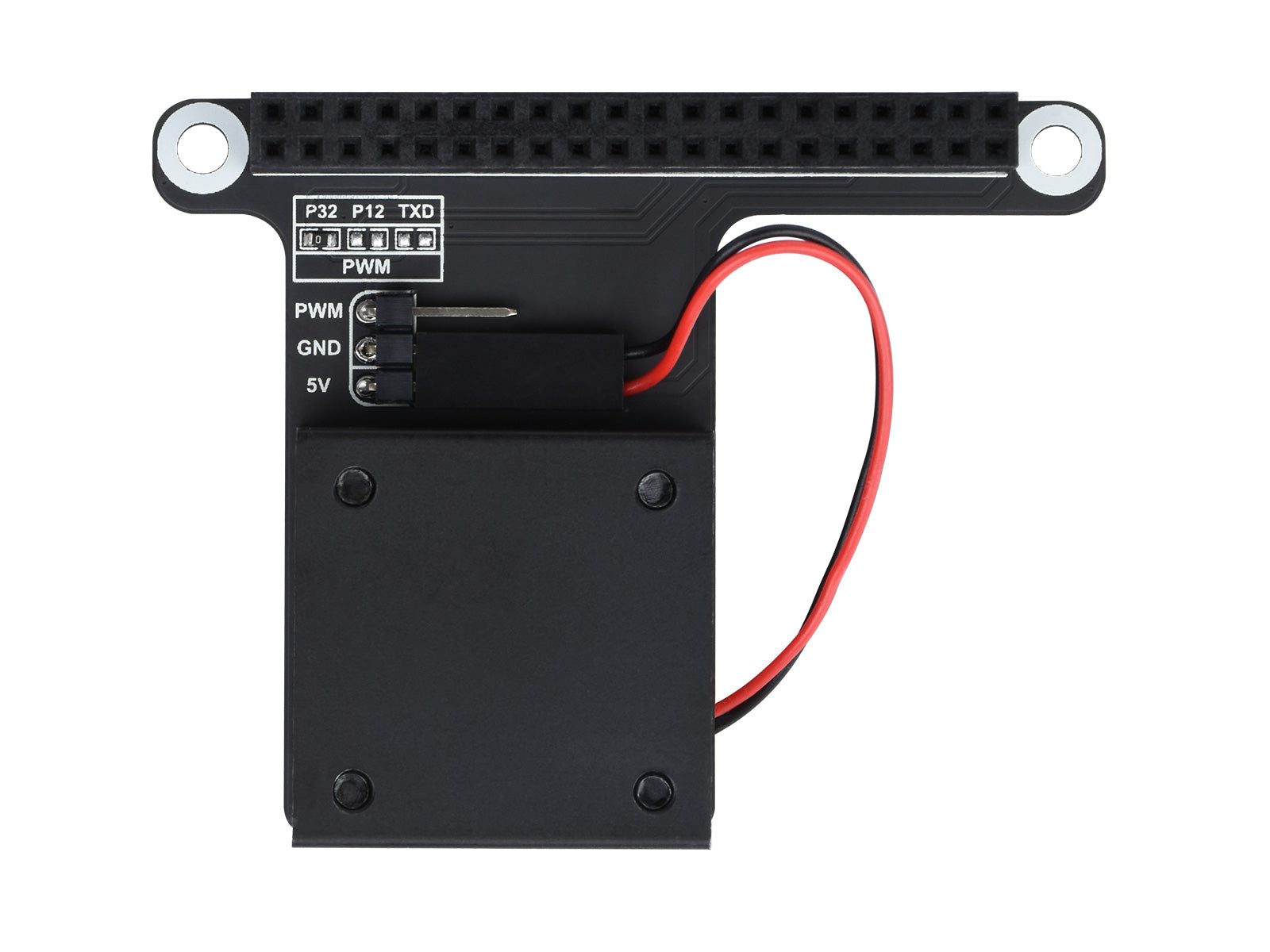

General	Reserved IO control interface
interface	2.54 mm pitch header
Dimensions	65.00 × 49.90 mm

Designed for RDK X3 Development Board

Perfectly matches the dimensions and mounting holes of RDK X3, easy to use

Dual cooling design

Adopts Aluminium heatsink + Cooling fan design for better Heat Dissipation

With thermal silicone pad

Cooling solution comparing

Easy to Stack External Expansion Boards

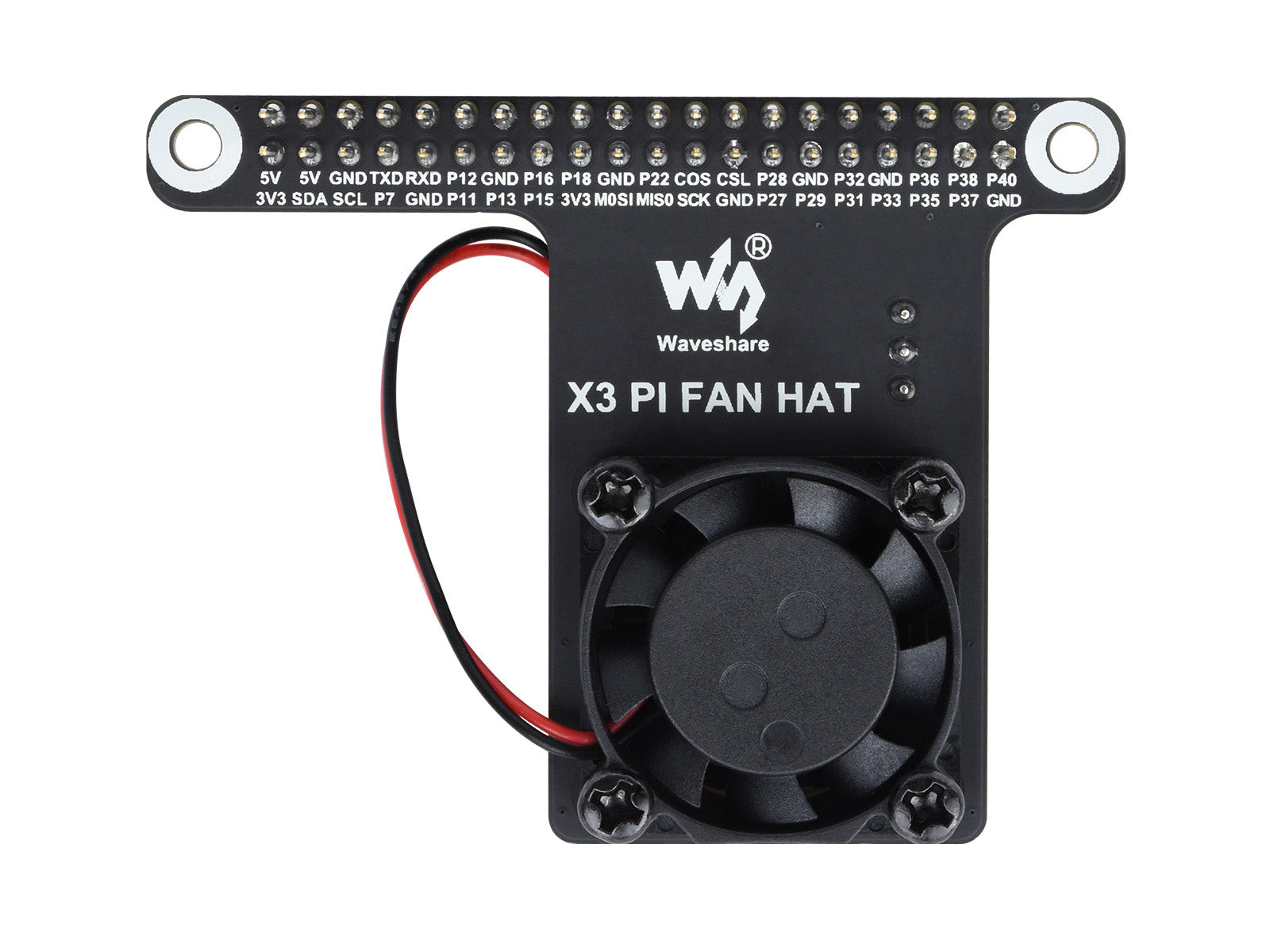

Standard 40PIN GPIO stackable header, with clear silkscreen labels for easier wiring and peripheral expansion

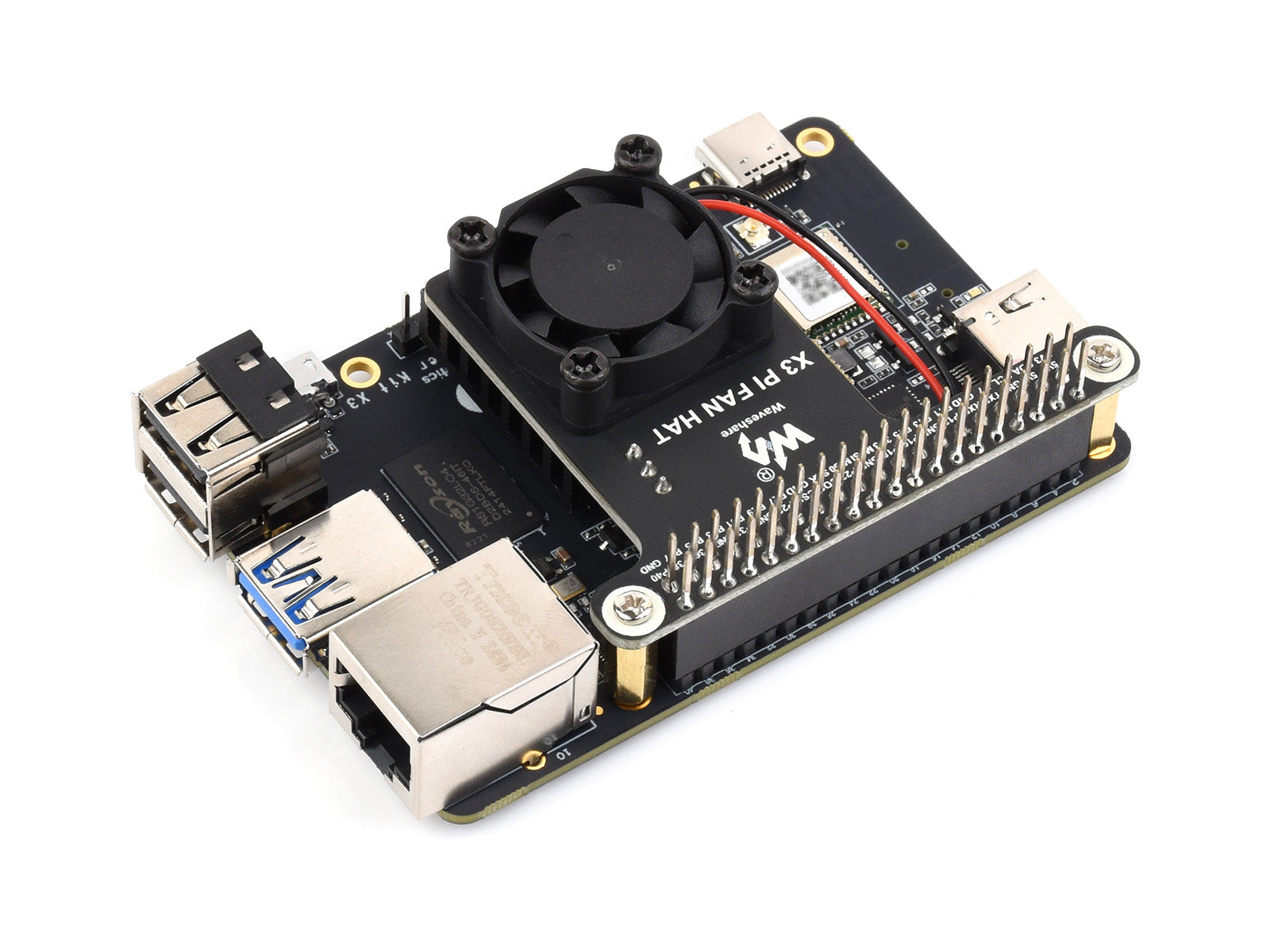

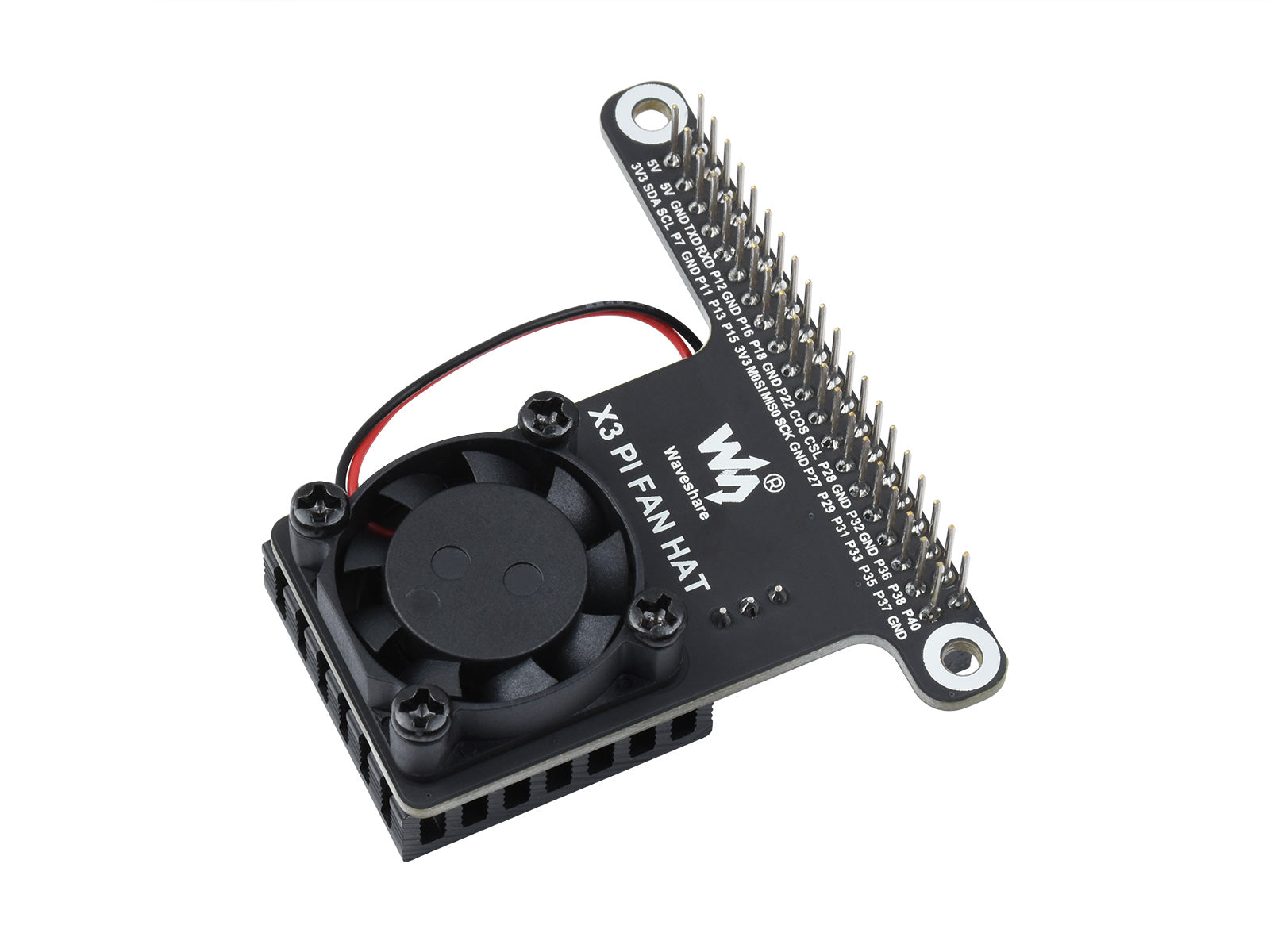

Product show

Outline dimensions

Lieferumfang

X3 PI FAN HAT x1
