SKU:WSAL23363
CSI Adapter for RDK X3 Development Board, 24PIN To 15PIN CSI Adapter Board
Regulärer Preis
1.801 Ft
Verkaufspreis
1.801 Ft
Regulärer Preis
0 Ft
Einzelpreis
pro
Sale
Ausverkauft
Steuer enthalten.
Versand wird an der Kasse berechnet.
Abholverfügbarkeit konnte nicht geladen werden

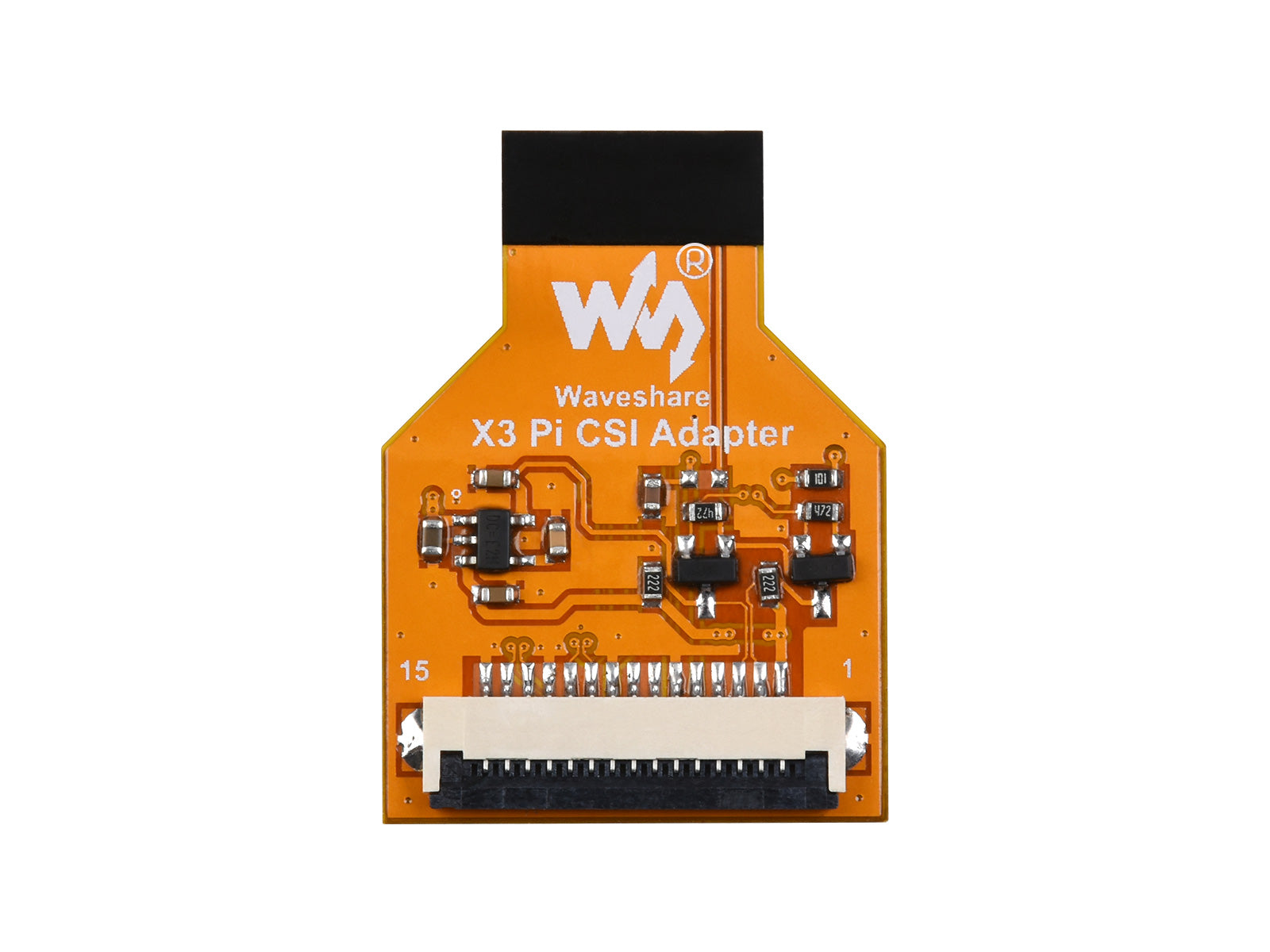

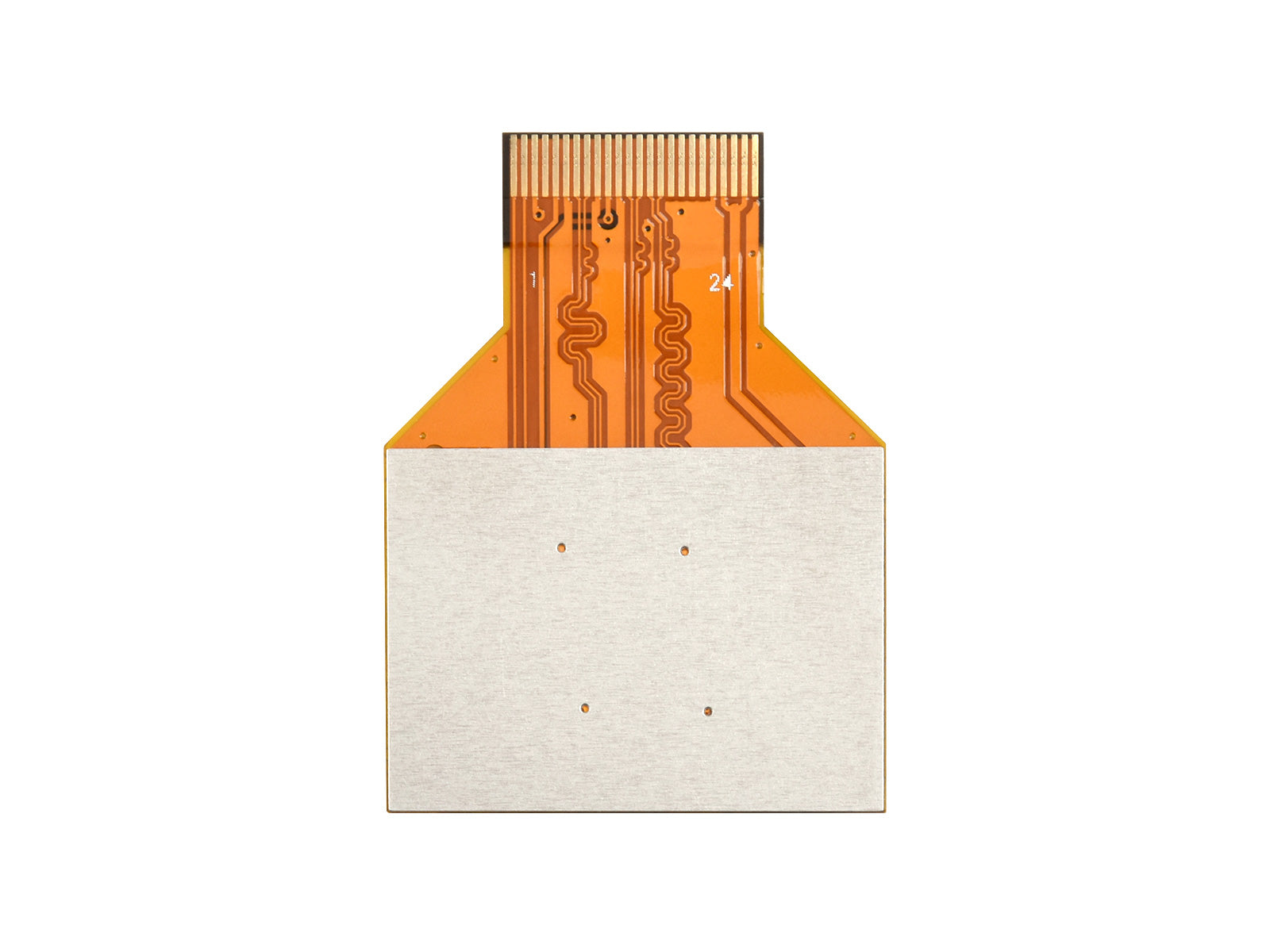

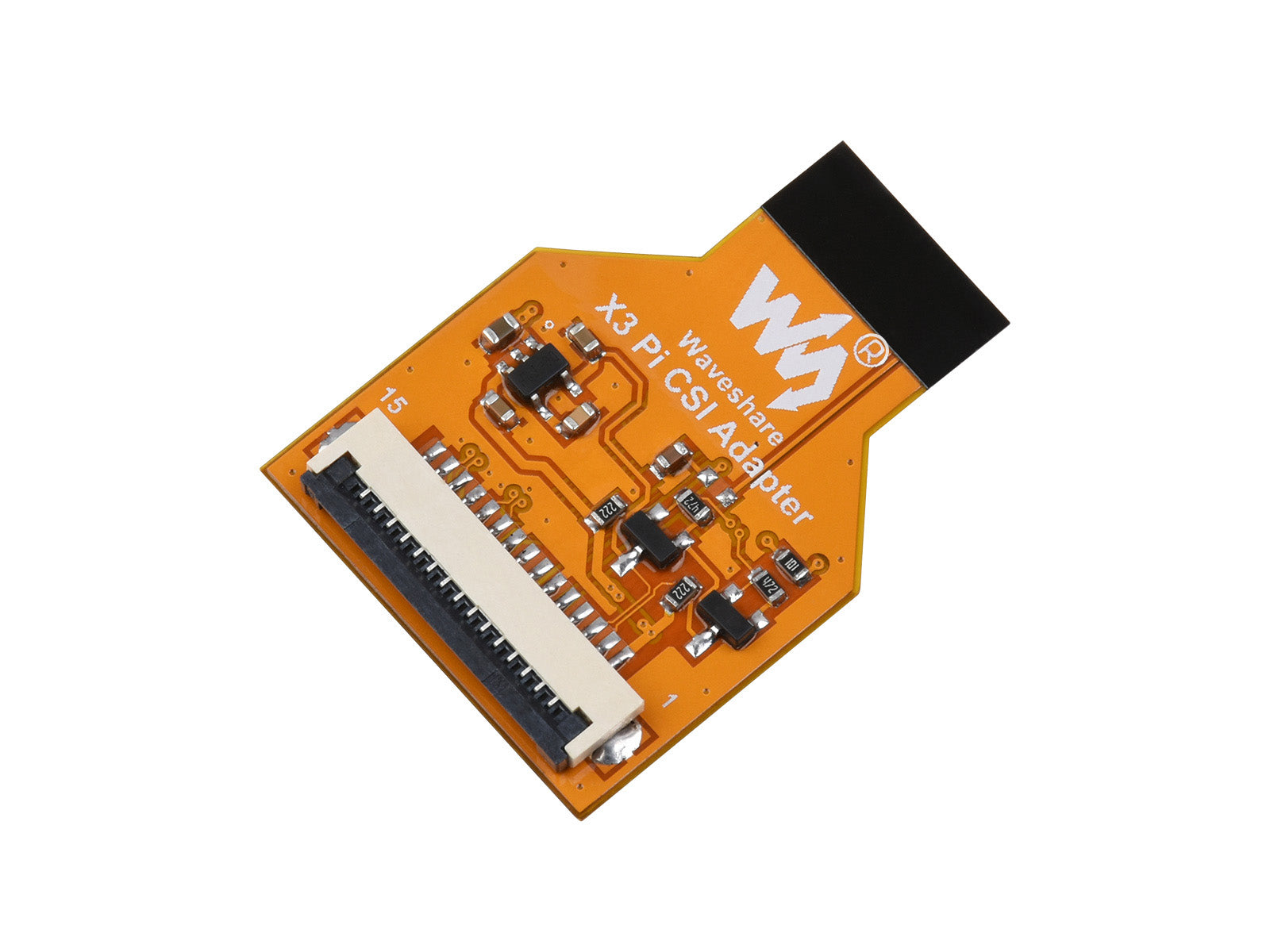

CSI Adapter for RDK X3 Development Board, 24PIN To 15PIN CSI Adapter Board
CSI Camera Adapter for RDK X3
24PIN To 15PIN, Supports RDK X3 Development Board
Suitable for adapting Raspberry Pi CSI interface cameras
Supports RDK X3 Development Board
Suitable for adapting OV5647, IMX219, IMX477 and other camera modules with Raspberry Pi CSI interface
* for reference only, the RDK X3, CSI camera, and FFC cable are NOT included.This product does not support the Raspberry Pi HQ Camera.
Supported Camera Models
| Model | IR filter | Aperture | Focal Length (mm) | Field of view (diagonal) | Dimensions (mm) | Features |
|---|---|---|---|---|---|---|
| 5MP OV5647 camera modules | ||||||
| RPi Camera (B) | integrated | 2 | 6 | 60.6° | 32×32 | - |
| RPi Camera (D) | N/A | 2.8 | 3.4 | 66° | 25×24 | - |
| RPi Camera (E) | N/A | 2.8 | 3.21 | 69.8° | 25×24 | - |
| RPi Camera (F) | N/A | 2 | 3.6 | 50° | 25×24 | - |
| RPi Camera (G) | integrated | 2.35 | 3.15 | 160° | 25×24 | - |
| RPi Camera (H) | N/A | 2.35 | 3.15 | 160° | 25×24 | - |
| RPi Camera (I) | integrated | 2 | 1.55 | 185° | 32×32 | - |
| RPi Camera (M) | integrated | 2 | 0.87 | 200° | 25×24 | - |
| RPi FPC Camera | integrated | 2.8 | 3.21 | 69.8° | 300×16 | Mini Size |
| RPi FPC Camera (B) | integrated | 2.4 | 3.89 | 72.9° | 35×16 | Mini Size |
| RPi IR-CUT Camera | integrated | 2 | 3.6 | 50° | 31×32 | IR-CUT |
| RPi IR-CUT Camera (B) | integrated | 1.4 | 8 | 40° | 31×32 | IR-CUT |
| OV5647-70 5MP OIS Camera | N/A | 2.8 | 3.2 | 70° | 19×19 | Optical image stabilization |
| 8MP IMX219 camera modules | ||||||
| IMX219-77 Camera | integrated | 2 | 2.85 | 79.3° | 25×24 | - |
| IMX219-77IR Camera | N/A | 2 | 2.85 | 79.3° | 25×24 | - |
| IMX219-120 Camera | integrated | 2 | 1.79 | 120° | 25×24 | - |
| IMX219-160 Camera | integrated | 2.35 | 3.15 | 160° | 25×24 | - |
| IMX219-160IR Camera | N/A | 2.35 | 3.15 | 160° | 25×24 | - |
| IMX219-160 IR-CUT Camera | integrated | 2.7 | 1.75 | 160° | 79.7×30.4 | IR-CUT |
| IMX219-170 Camera | integrated | 2.4 | 2.2 | 170° | 32×32 | - |
| IMX219-200 Camera | integrated | 2 | 0.87 | 200° | 25×24 | - |
| 12.3MP IMX477 camera modules | ||||||
| IMX477 12.3MP Camera | integrated | - | - | - | 38×38 | - |
| IMX477-160 12.3MP Camera | integrated | 2.2 | 2.75 | 160° | 25×24 | - |

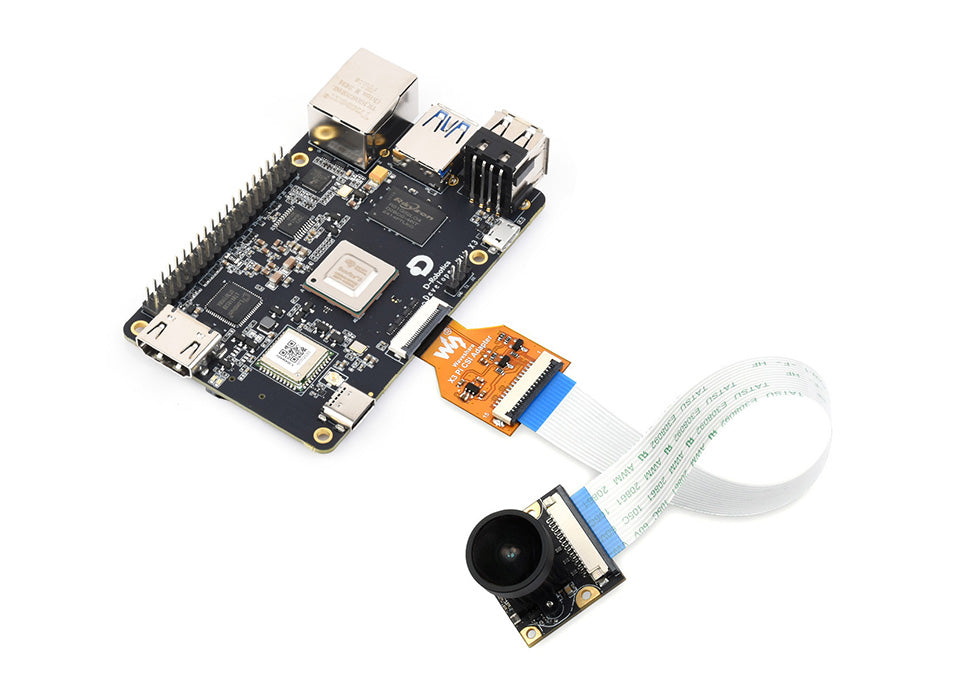

product show
Outline dimensions
Lieferumfang
X3 Pi CSI Adapter x1
