SKU:WSAL26462

Ctrl C/V Shortcut Keyboard For Programmers, 3-Key Development Board, Adopts RP2040 Microcontroller Chip, Programmable Key Function, Dual Type-C Ports, Plug And play Without Driver

Ctrl C/V shortcut keyboardRP2040 3-key development board

Available in basic and plus versions

Version Options

RP2040-Keyboard-3 Basic version, acrylic cover plates

RP2040-Keyboard-3-PLUS Plus version, CNC metal case

Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• Dual Type-C ports (choose one of two), plug and play, driver free
• The default function of three keys is "Ctrl", "C", and "V", programmable for other functions. Comes with two-layer black keycaps without character for customized use.
• Utilizes hot-swappable technology, allowing users to replace the switches
• Adopts dustproof blue switch by default, providing more pronounced tactile feedback and mechanical feeling
• The keys come with RGB LED and the backlight color can be customized according to your needs

Onboard dual Type-C ports

dual Type-C ports (choose one of two), plug and play without driver, Portable and more convenient

Utilizes hot-swappable technology

Allowing users to replace the switches

Dustproof Blue Switch

provides more pronounced tactile feedback and mechanical feeling

Total travel	4.00mm	Activation point travel	2.20±0.6mm
Actuation force	50±10gf	Tactile force	60±10gf
Tactile travel	1.80mm	Initial force	30gf Min
Bottom-out force	65gf Max

Compatible with multiple software

suitable for software of office work, programming, design, and editing, enhancing work and study efficiency

RGB lighting effects

Users can customize LED backlight according to preferences and usage habits

Customizable key functions

The default function of the keyboard is "Ctrl"+"C/V", programmable for other key functions. Comes with dual-layer black keycaps, allows inserting DIY labels or stickers between the layers

*for reference only, the actual product may vary.

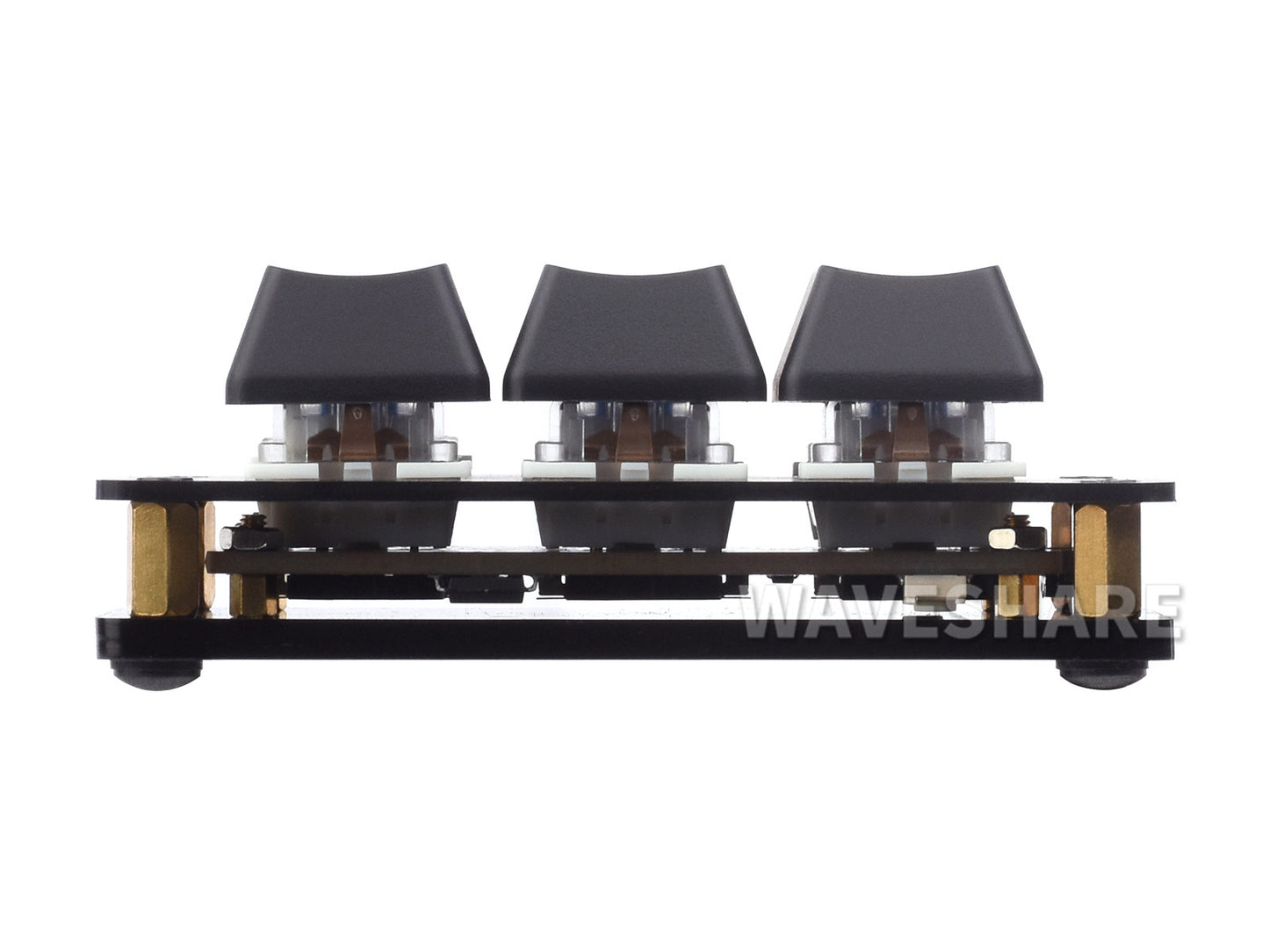

Product Show

* for reference only, please refer to the Package Content for detailed part list

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/RP2040-Keyboard-3

Lieferumfang

RP2040-Keyboard-3

1. RP2040-Keyboard-3 x1
2. Double-layer black keys x3

1

2

RP2040-Keyboard-3-PLUS

1. RP2040-Keyboard-3-PLUS x1
2. Double-layer black keys x3

1

2
