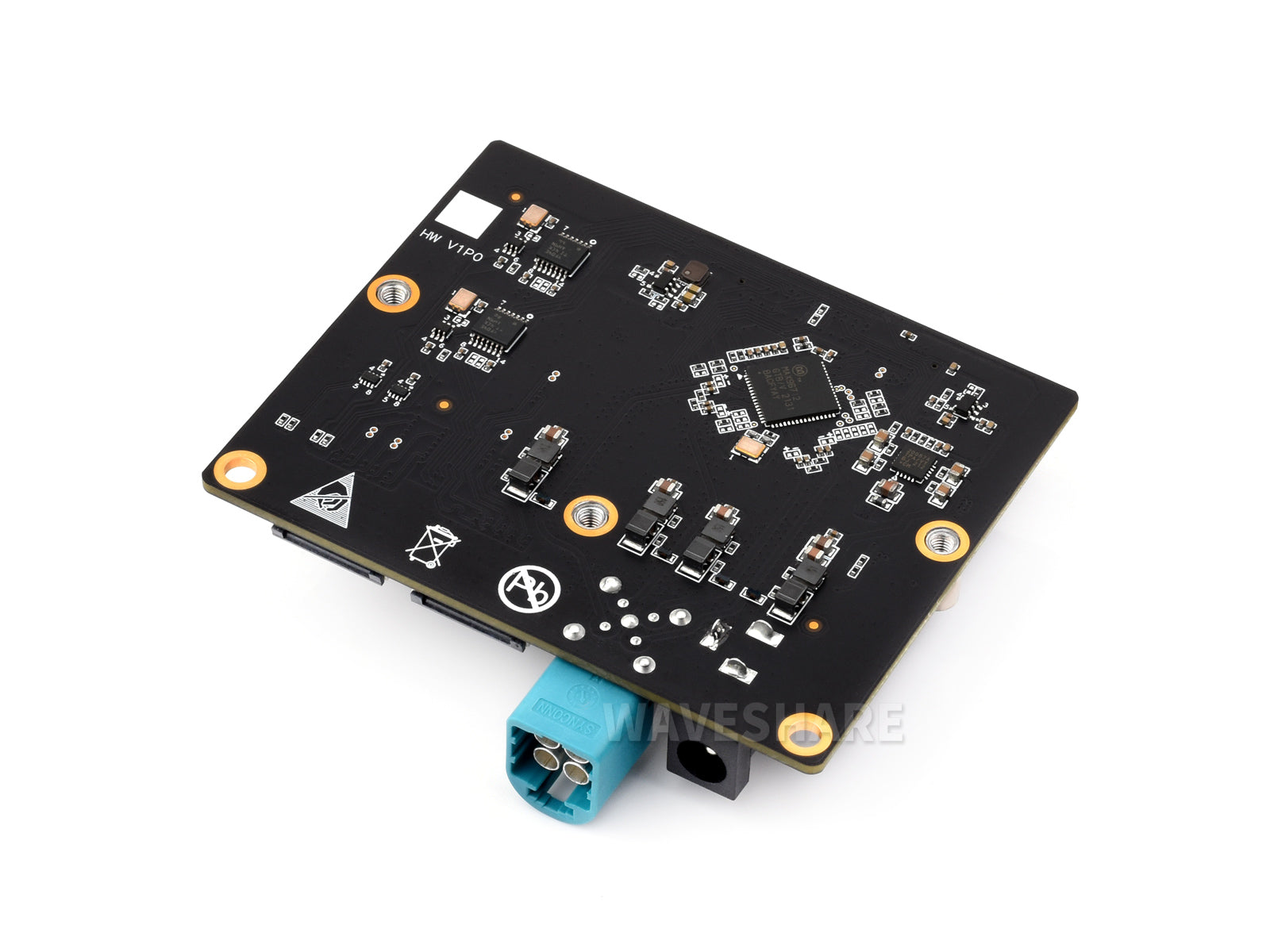

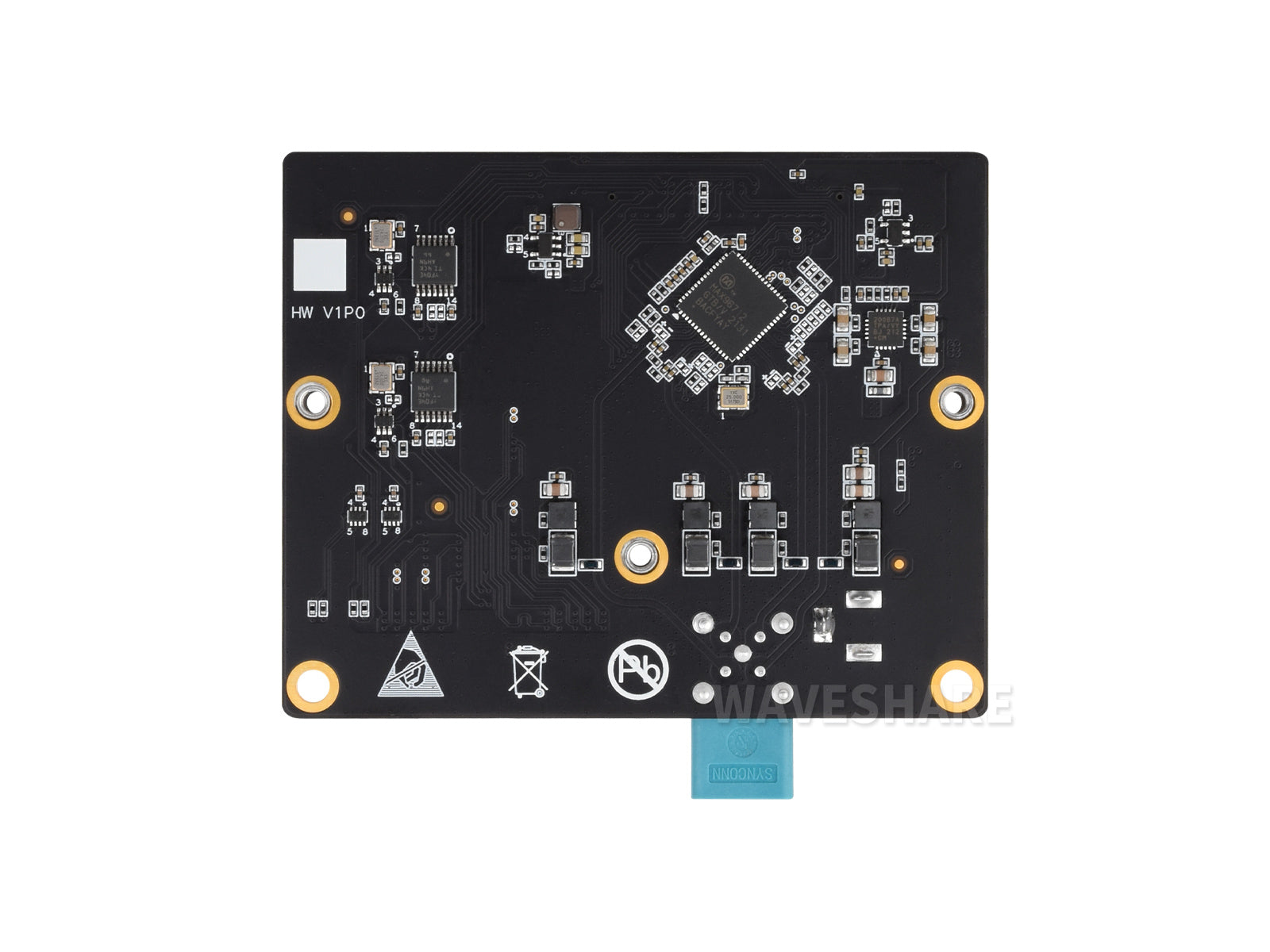

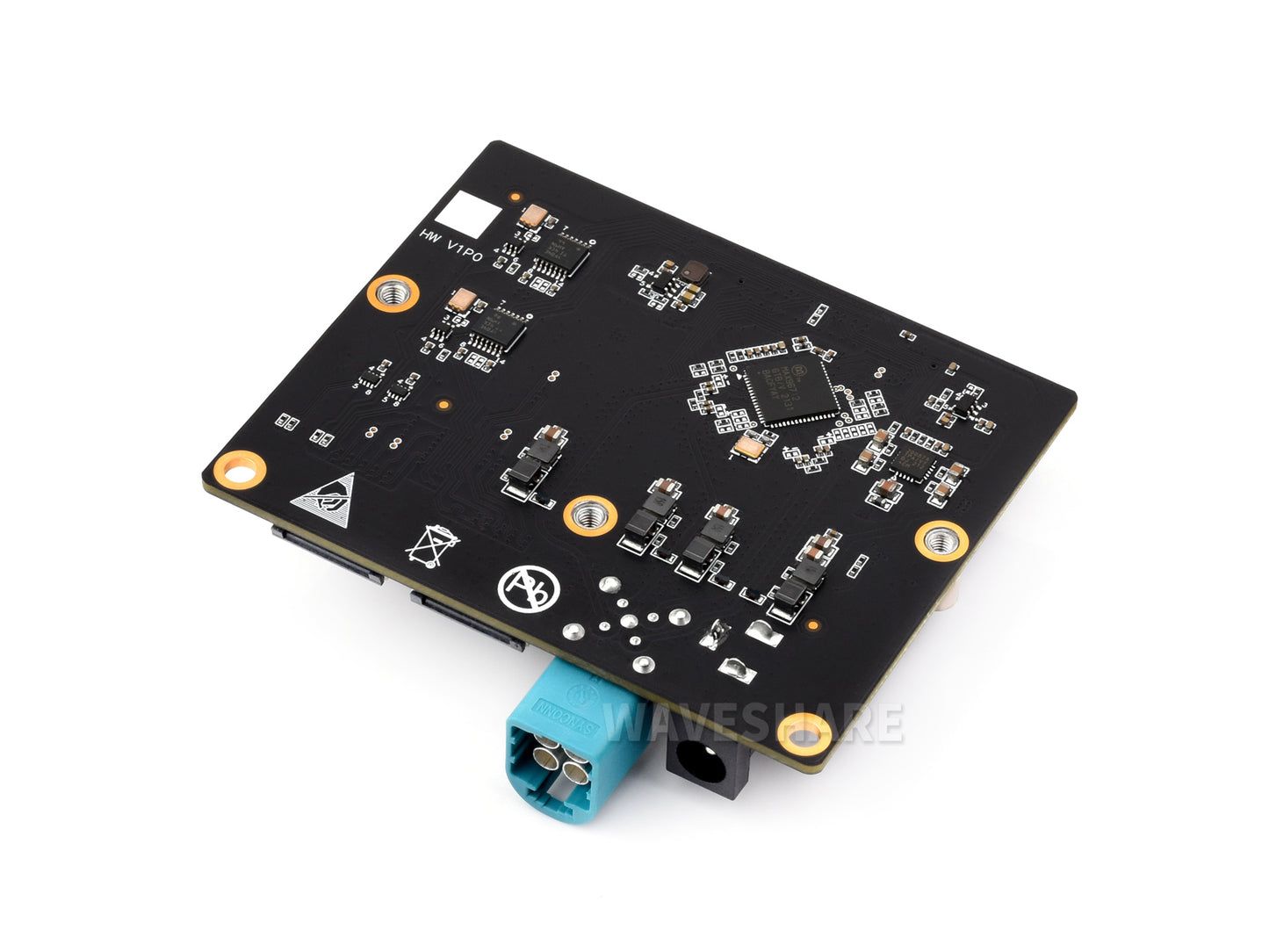

D-Robotics RDK S100 Camera Expansion Board, Designed For RDK S100 Development Kit, Suitable For Multiple Visual Development Scenarios

RDK S100 Camera Expansion Board

onboard MIPI + GMSL interfaces, Suitable For RDK S100 Development Kit

This module is specifically designed for the RDK S100 development board, and converts the camera interface into two MIPI interfaces and one GMSL interface. Supports connecting to MIPI visual cameras and GMSL industrial cameras. It is suitable for various visual development scenarios and offers a plug-and-play hardware expansion solution for image acquisition, object detection, and other algorithm verification tasks, accelerating the deployment of robotic vision systems.

Specifications

Deserializer	Maxim MAX96712
MIPI interface	2 × 22PIN MIPI CSI-2
GMSL connector	Fakra-Mini 4in1
External power supply	12V DC (only required when the power from main board is insufficient)
Board supported	RDK S100 Development Kit

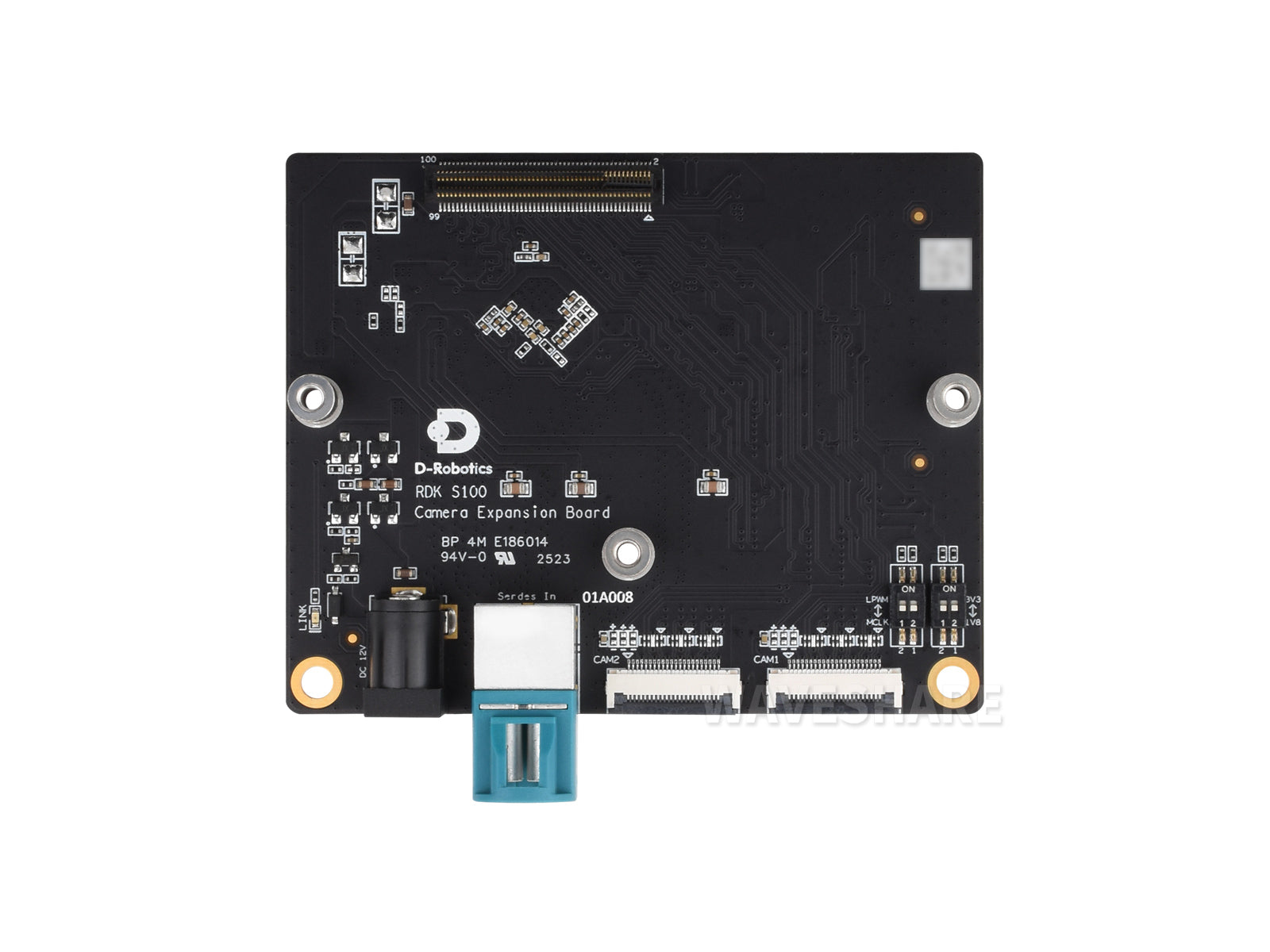

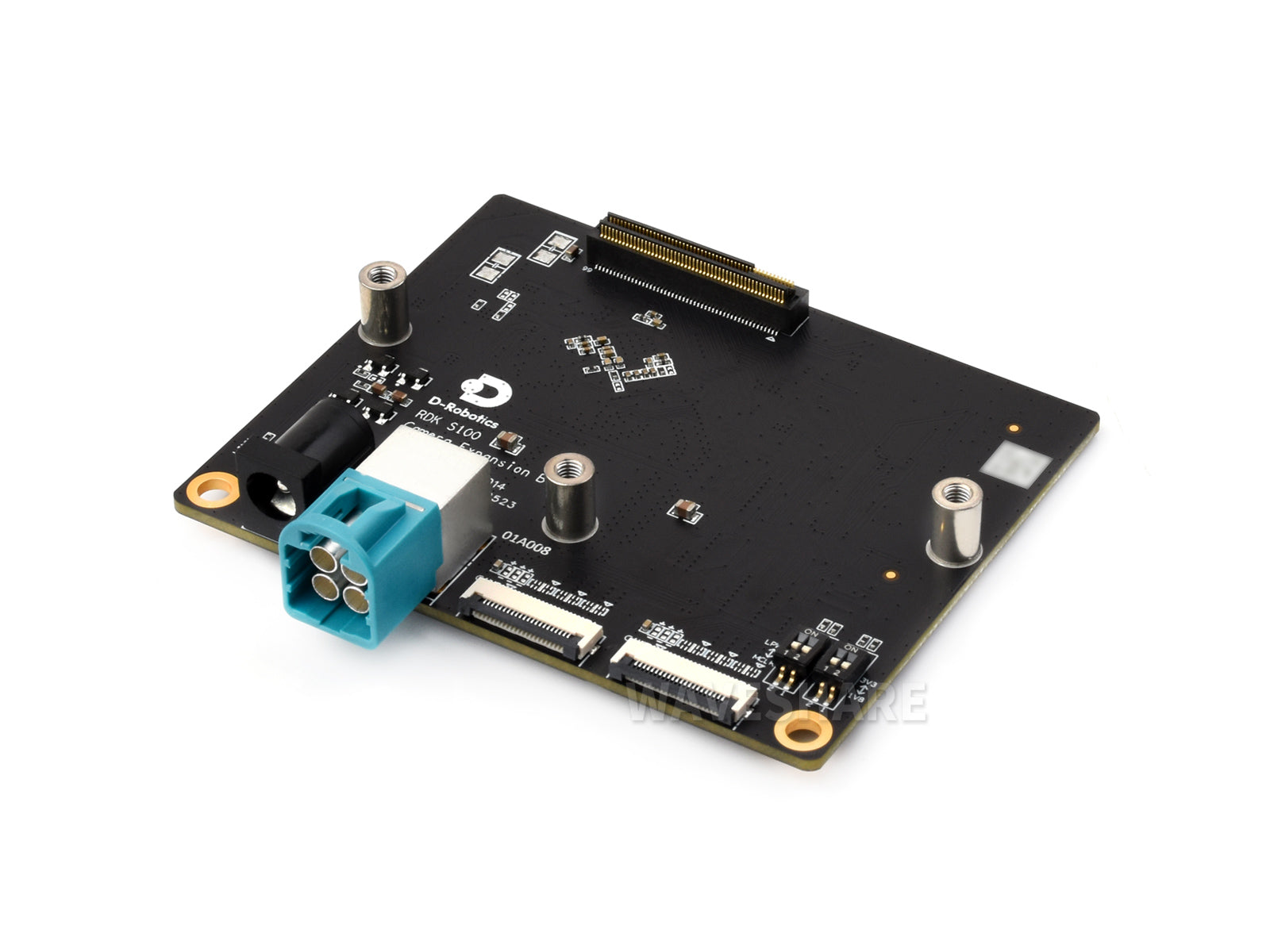

What's On Board

1. Camera expansion board 100PIN connectorfor connecting to the RDK S100 development board
2. DIP switchesfor switching the logic level of the MIPI cameras

3. 2 × 22PIN MIPI CSI connector
4. Fakra-Mini 4in1 port
5. External power supply DC jack

outline dimensions

Certificate of Authorization

Waveshare is the official distributor of D-Robotics RDK series and related products

Resources & Services

Wiki:www.waveshare.com/wiki/RDK_S100_Camera_Expansion_Board

Lieferumfang

RDK S100 Camera Expansion Board x1
