SKU:WSAL29471

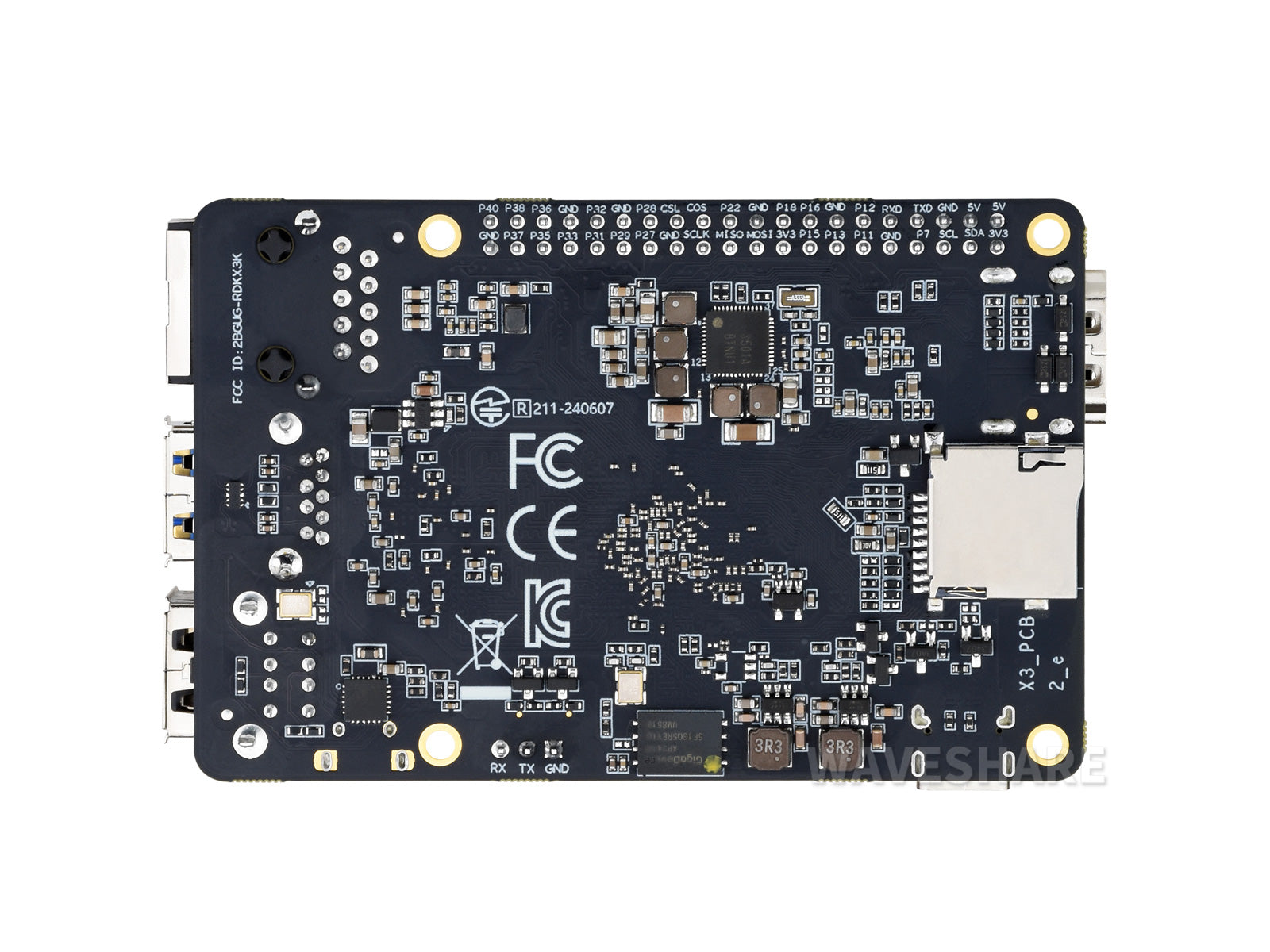

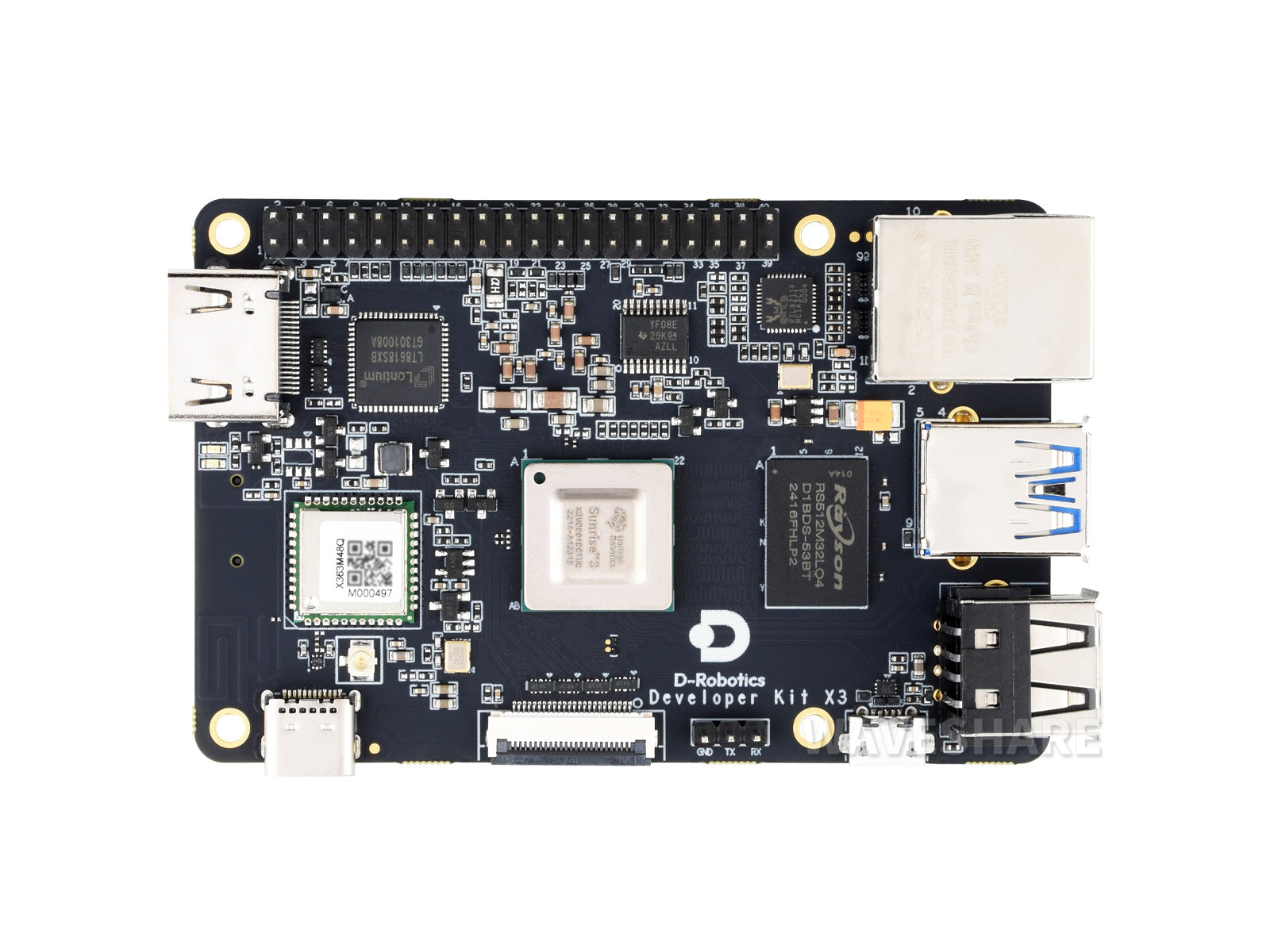

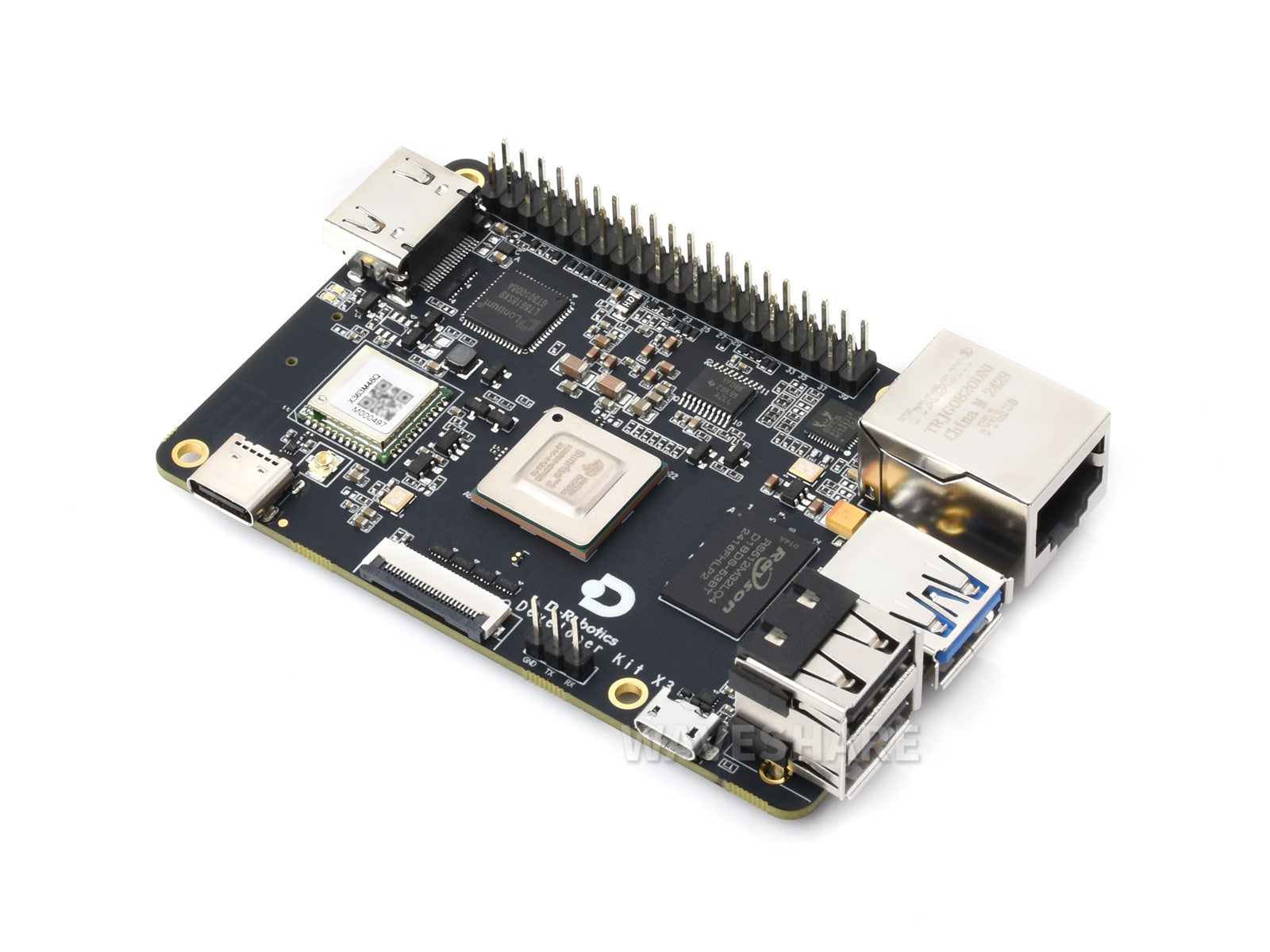

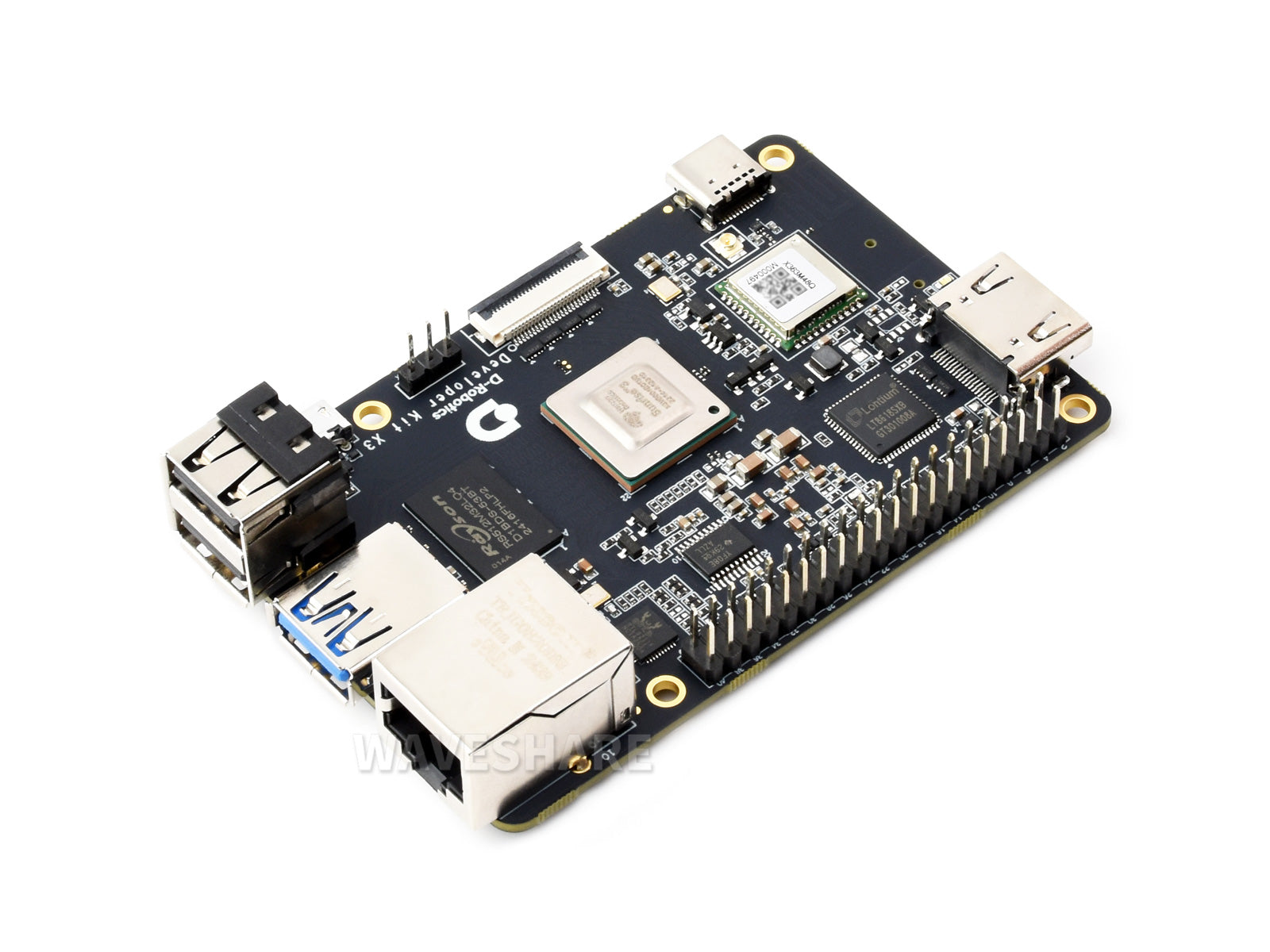

D-Robotics RDK X3 Development Board, Quad-core ARM Cortex-A53 Processer, 5Tops Edge Inference Capabilities, Options For 2GB/4GB RAM
Abholverfügbarkeit konnte nicht geladen werden
The RDK X3 series encompasses the RDK X3 and RDK X3 Module, delivering exceptional 5Tops edge inference capabilities. Their standardized dimensions and interfaces seamlessly integrate with generic products, empowering developers to rapidly deploy intelligent products and robotic solutions.
| Kit | RDK X3 board only | Basic Kit | Developer Kit |
| RDK X3 2GB/4GB | √ | √ | √ |
| Basic Kit Accessories Pack:(RDK Case A, UART module, 64GB TF card, card reader, 4PIN cable, 5V 3A Type-C Power Supply) | √ | √ | |
| IMX219-77 Camera + CSI Adapter | √ |
RDK X3 2GB/4GB Basic KitThis kit includes RDK X3 (options for 2GB/4GB RAM), with accessories pack including RDK Case A, UART Module, 64GB TF Card, Card Reader, 4PIN cable, and 5V 3A Type-C Power Supply (with US/EU/UK plug adapters), to help users get started quickly.
RDK X3 2GB/4GB Developer KitOn the basis of the Basic Kit, this kit is equipped with IMX219-77 Camera (8MP, 79.3° FOV, with FFC cable) and RDK X3 CSI Adapter, suitable for applications that require image capture and visual development.
| CPU | Quad-core ARM® Cortex® A53@1.5G |
|---|---|
| BPU Brain Processing Unit ™ | Dual-core Bernoulli Arch, 5Tops |
| RAM | 2GB/4GB LPDDR4 RAM |
| Storage | TF card slot |
| Multimedia | H.265 (HEVC) Encoding and Decoding Main profile, L5.14K@60fps, JPEG Encoding and Decoding 16Mpixels |
| Sensor | MIPI CSI 2lane x 2 |
| USB Host | USB Type-A 3.0 x 1, USB Type-A 2.0 x 2 |
| USB Device | Mirco USB 2.0 x 1 |
| Display | 1 x HDMI1.4 (up to 1080p60) |
| Wired network | RJ45 Gigabit Ethernet port |
| Wireless network | Wi-Fi 2.4/5GHz with 802.11 b/g/n support, Bluetooth 4.2 |
| Others | 40PIN GPIO × 1 (PCM signal aligned to Raspberry Pi); Debug UART x 1 |
| Power input | USB Type-C port, 5V 3A |
| System support | Ubuntu 20.04/22.04 |
| Dimensions | 85 × 56 × 20 (mm) |
| Operating Temperature | -25°C ~ 95 °C |
| Certifications | CE, MIC, SRRC |
We provide a variety of development kits, ranging from various sensors to multiple controller modules, and diverse forms of robots (unmanned vehicles, wheeled robots, robotic arms, etc.), to help expedite the implementation of your robot solutions.
A selection of applications from various categories within NodeHub, ranging from sensor configuration to robot application development are available. Everything you need is here, so feel free to explore and use them.
Traffic Light Detection
Visual-inertial Odometry
Humanoid Robotic Soccer Control
Toy Car Line-following Control
Deep Learning Line-following Car
RDK Platform encompasses a diverse range of hardware, software, algorithms, solutions, and development tools
Making Robotics Development as Simple as Building with Blocks
Waveshare is the official distributor of D-Robotics RDK series and related products
Lieferumfang
RDK X3
OPTIONS RDK X3 x1
RDK X3 2GB/4GB Basic Kit
- OPTIONS RDK X3 2GB/4GB x1
- RDK-Case-A (with accessories) ×1
- TF card 64GB x1
- Card reader x1
- UART module x1
- 4PIN cable ×1
- 5V 3A Type-C power supply (with US/EU/UK plug adapters) ×1
RDK X3 2GB/4GB Developer Kit
- OPTIONS RDK X3 2GB/4GB x1
- RDK-Case-A (with accessories) ×1
- UART module x1
- 4PIN cable ×1
- IMX219-77 Camera (with FFC cable) ×1
- TF card 64GB x1
- Card reader x1
- X3 Pi CSI Adapter x1
- 5V 3A Type-C power supply (with US/EU/UK plug adapters) ×1
