SKU:WSAL32092

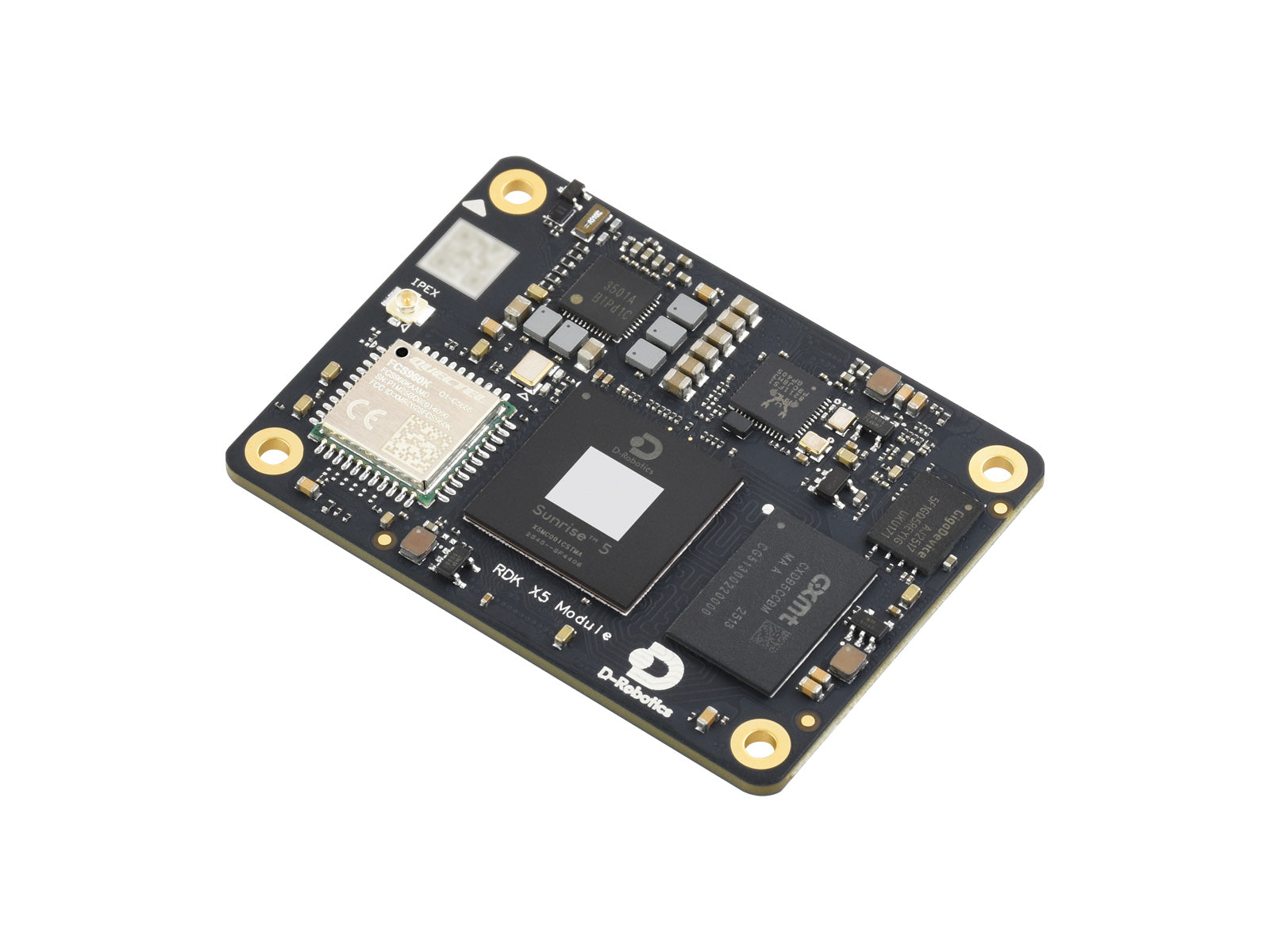

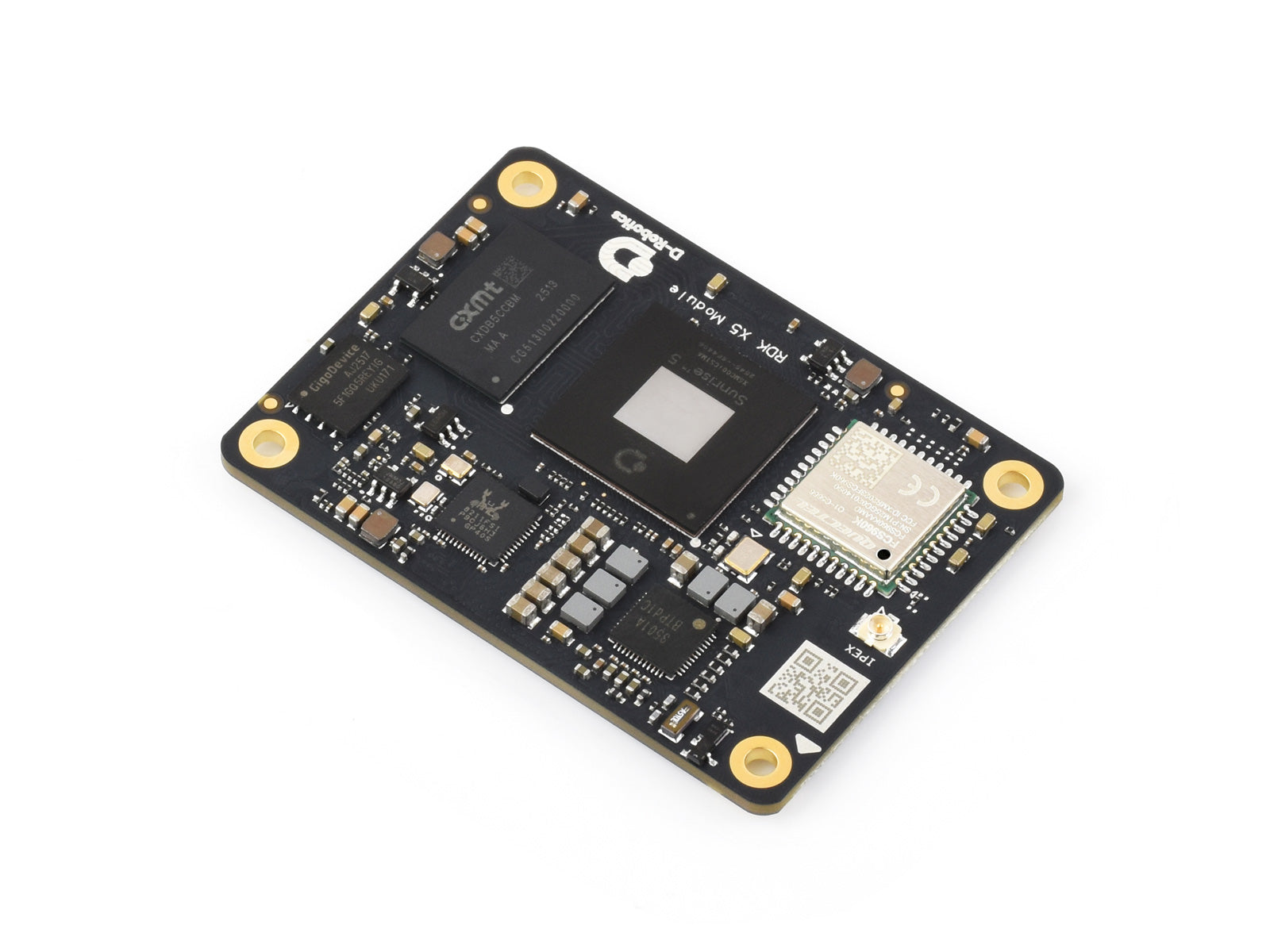

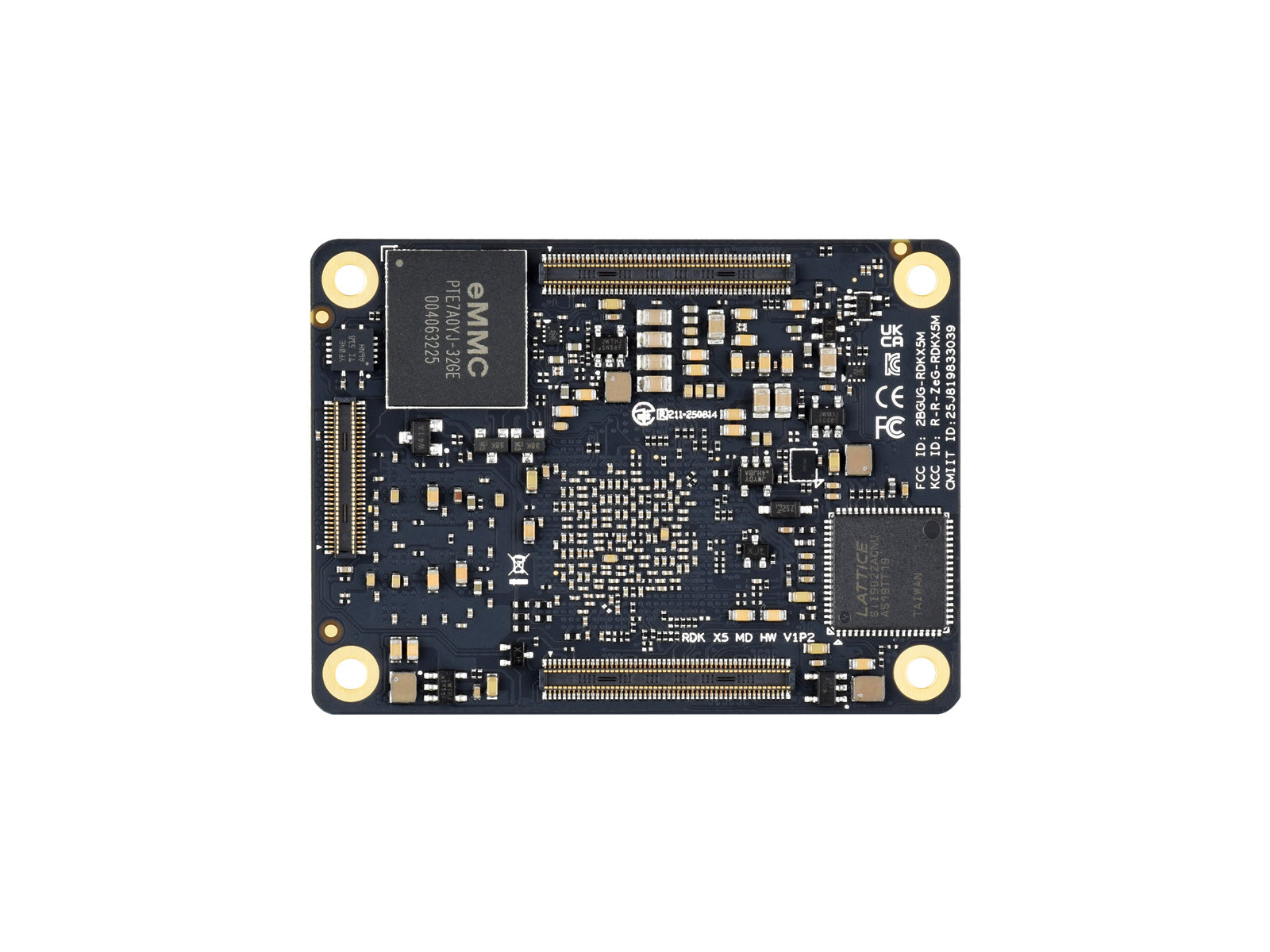

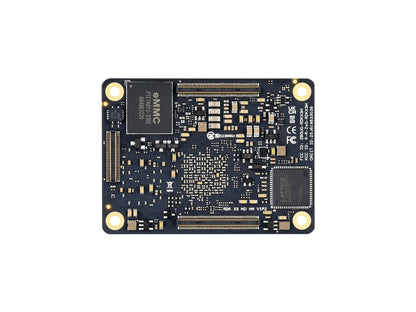

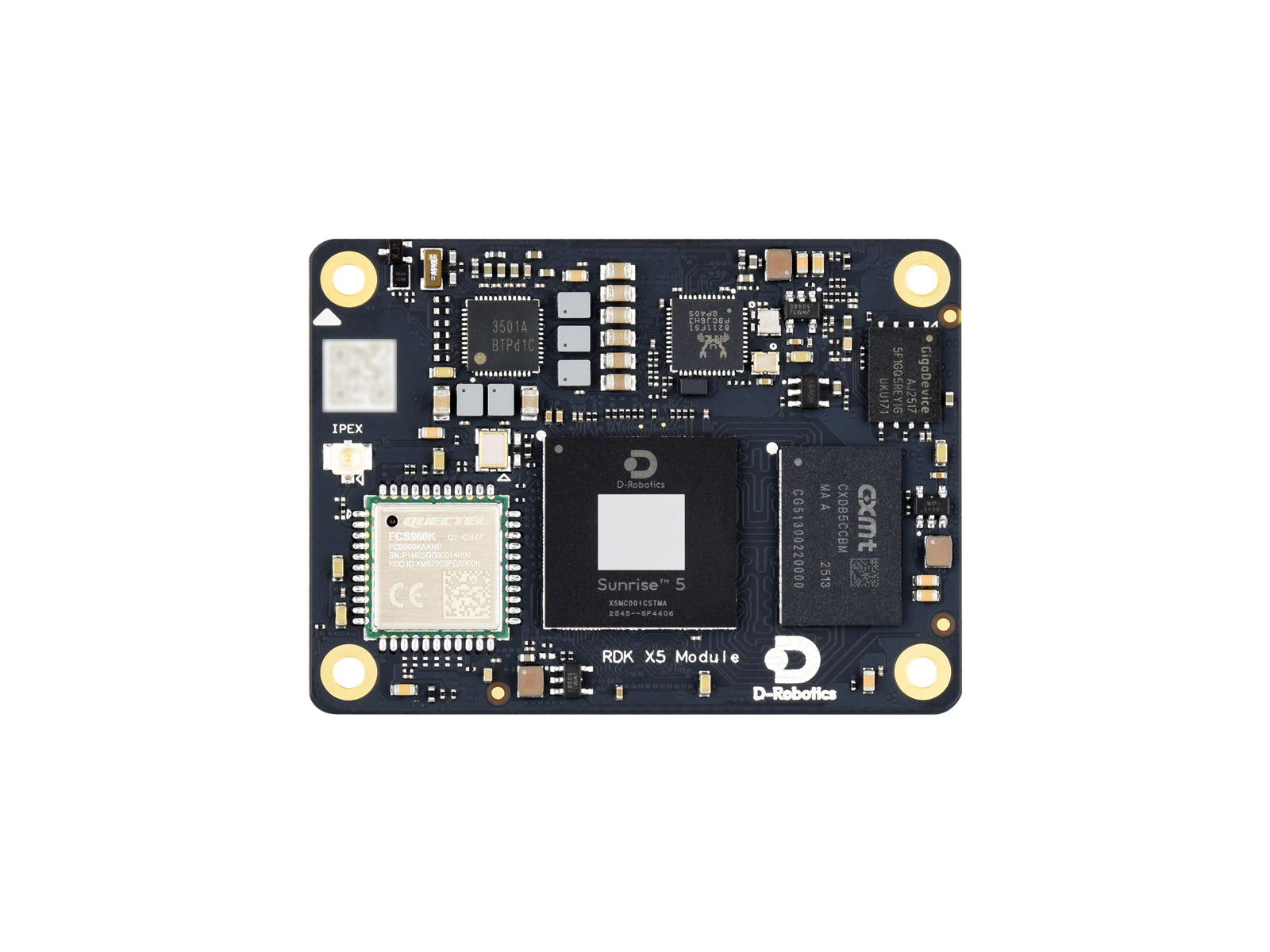

D-Robotics RDK X5 AI Module, 10 TOPS Computing Power, Integrated Octa-core Cortex A55 CPU, Options For Wireless / RAM / eMMC
Abholverfügbarkeit konnte nicht geladen werden
10 TOPS AI Computing Power
The RDK X5 AI Module is powered by the D-Robotics X5 AI system-on-chip (SoC), offering high integration, powerful performance, and outstanding energy efficiency to provide core computing power support for various intelligent applications. The module features a Bayesian-architecture single-core BPU (Neural Network Processor), enabling real-time pixel-level video segmentation, structured video analysis and attention-based visual perception, accurately capturing dynamic scene details. It also integrates an Octa-core Cortex A55 CPU along with a HiFi5 DSP that supports voice wake-up, delivering strong multi-core collaborative processing capabilities to meet complex task requirements. Built-in professional Image Signal Processor (ISP), supports Wide Dynamic Range (WDR) / High Dynamic Range (HDR) processing as well as 3DNR noise reduction technology, effectively enhancing camera image clarity and color reproduction. Equipped with H.265 / H.264 / MJPEG video codecs and a 3D GPU supporting OpenGL ES 3.1 / 3.0 / 2.0 / 1.1, it easily handles high-definition video encoding/decoding and graphics rendering tasks. The module also features an integrated power management IC, DC-DC converter, provides options for LPDDR4 RAM and eMMC storage, to ensure stable system operation. It supports a variety of interfaces including HDMI, Gigabit Ethernet, USB 3.0, MIPI CSI, and MIPI DSI for diverse peripheral connectivity. And optional for dual-band (2.4GHz / 5GHz) wireless module, supports Wi-Fi 6 and Bluetooth 5.4 protocols. Onboard high-performance antenna and external antenna connector, ensuring stable and high-speed wireless communication, making it suitable for mobile scenarios and long-range data transmission.
| CPU | Octa-core Cortex A55 64-bit SoC @1.5GHz |
|---|---|
| BPU | 10 TOPS |
| RAM | Options for 2GB / 4GB / 8GB LPDDR4 |
| Storage | Options for 0GB (Lite) / 8GB / 16GB / 32GB / 64GB eMMC Flash Memory |
| Connectivity | Optional dual-band (2.4GHz / 5.0GHz) Wi-Fi and Bluetooth 5.4, with onboard and external antenna options |
| Supports Gigabit Ethernet port | |
| 1 x USB 3.0 port, 1 x USB 2.0 port | |
| 8 × UART, 7 × I2C, 4 × SPI, 4 × 10-bit ADC, 2 × I2S, 2 × PDM, 8 × PWM, 8 × LPWM | |
| SD card interface for SD card | |
| Display | 1 x HDMI port (supports 1080p@60) |
| 1 x MIPI DSI (4-lane) interface (supports 2560 × 1440p@60) | |
| Image | 2 × MIPI CSI (4-lane) camera interfaces |
| Multimedia | 4Kp60 H.264 / H.265 (Codec), MJPEG (Codec) |
| Power Input | 5V 5A DC |
| Operating Temperature | -20°C ~ 60°C |
Octa-core Cortex A55 64-bit processor, BPU 10 TOPS AI computing power
On-board dual-band Wi-Fi and Bluetooth module, supports Bluetooth 5.4 and Wi-Fi 6, enabling seamless connectivity anytime and anywhere
* for reference only, the antenna is NOT included, please purchase separately.
| Model | Wireless | RAM | eMMC Flash |
|---|---|---|---|
| RDK X5 MD | 1 = Yes0 = No | 02 = 2GB04 = 4GB08 = 8GB | 000 = 0GB (Lite) 008 = 8GB 016 = 16GB032 = 32GB064 = 64GB |
| Example: RDK X5 MD 102016, RDK X5 Module with onboard wireless, 2GB RAM, and 16GB eMMC Flash | |||
| RDK X5 MD | 1 | 02 | 016 |
| Part Number | Wireless | RAM | eMMC |
|---|---|---|---|
| RDK X5 MD 002016 | NO | 2GB | 16GB |
| RDK X5 MD 004032 | NO | 4GB | 32GB |
| RDK X5 MD 104000 | YES | 4GB | 0GB (Lite) |
| RDK X5 MD 104032 | YES | 4GB | 32GB |
| RDK X5 MD 108032 | YES | 8GB | 32GB |
| RDK X5 MD 108064 | YES | 8GB | 64GB |
* for higher RAM or storage requirements, please contact our sales team for more information
TheRDK X5 MD Carrier Board is the official D-Robotics baseboard designed for the RDK X5 MD series modules, adapting various hardware interfaces and allowing users to quickly test and verify project functions, accelerating product deployment
* for reference only, please refer to the package content for detailed part list.
Lieferumfang
OPTIONS RDK X5 MD Module x 1
