SKU:WSAL32210

Dedicated All-in-one 3007 Cooling Fan For Raspberry Pi Compute Module 4 CM4, Speed Adjustable, With Thermal Tapes, Options For 5V / 12V Power Supply

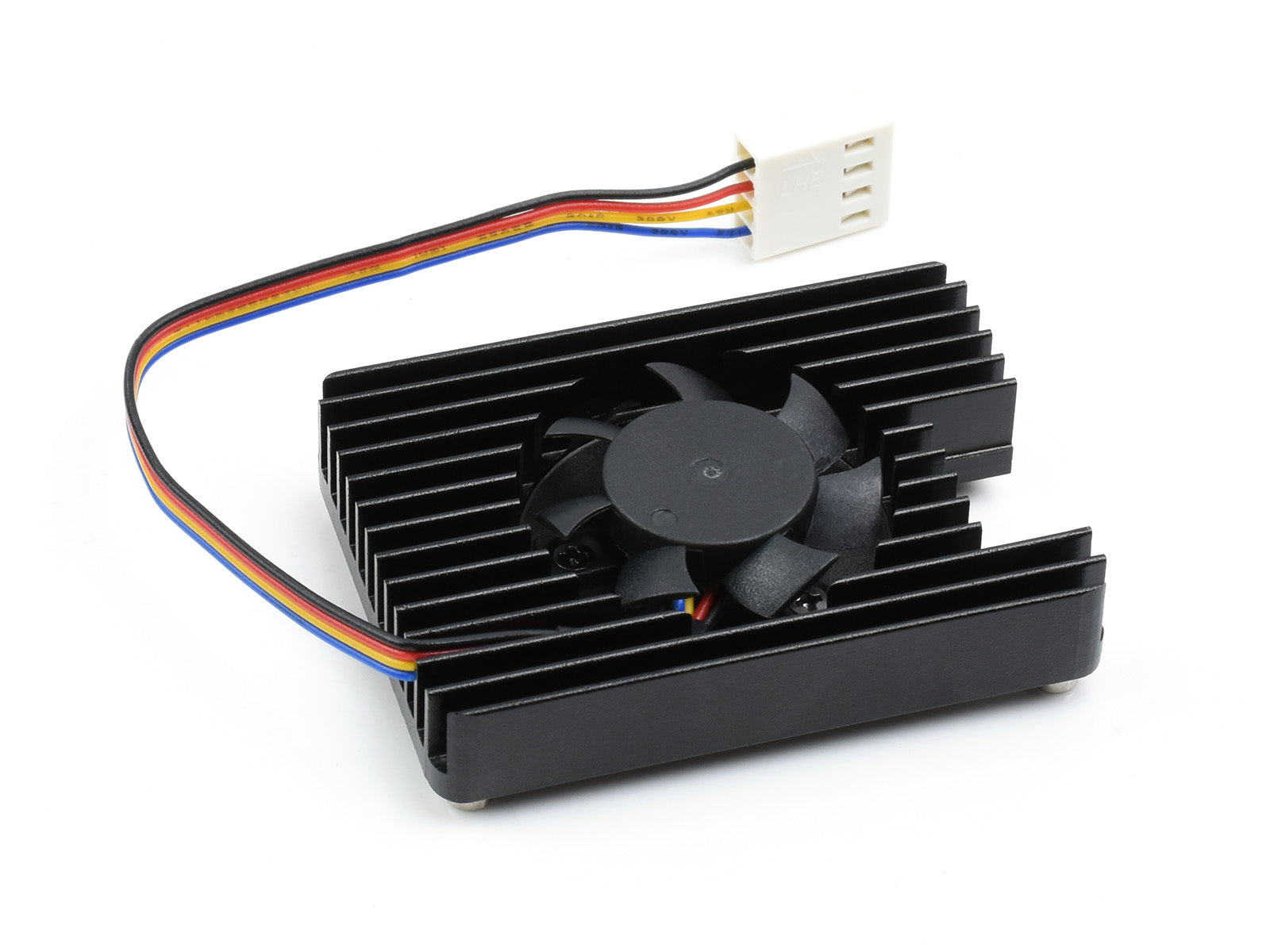

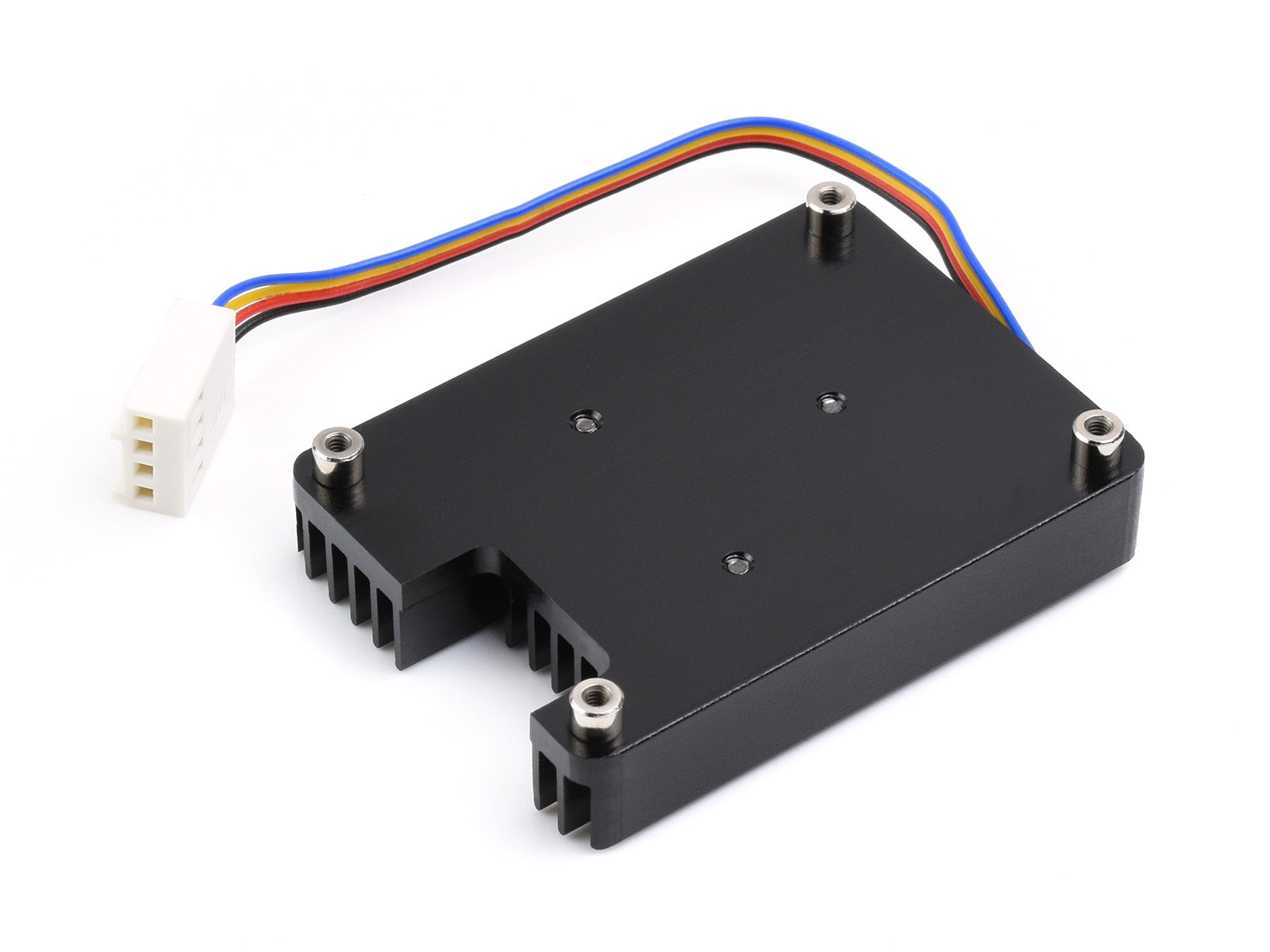

3007 Cooling Fan For CM4

All-in-one, More convenient, Space efficient

Low Noise, More Practical, With Thermal Tapes

Specifications

Model	3007-B-5V	3007-B-12V
Rated speed	8000 ± 10%RPM
Rated power	1.6W (5V, 0.32 ± 0.02A)	1.62W (12V, 0.135±0.02A)
General	Low-profile, PWM speed adjustment
Interface	4-wire PWM speed-adjustable fan header
Cable Length	125 ± 10mm

Tailored For Raspberry Pi CM4

Matching With The CM4 On Size And Mounting Holes, Fast Heat Dissipation

Proper Space For Antenna Section

Antenna is not included, please purchase it separately if you need

Using With CM4 Base Board

Compute module 4, Compute Module 4 IO Board and Compute Module 4 PoE Board are NOT included, please purchase separately

* Please check the power supply voltage of the baseboard fan header before purchase.

comparing CM4 Cooling Solutions

Outline dimensions

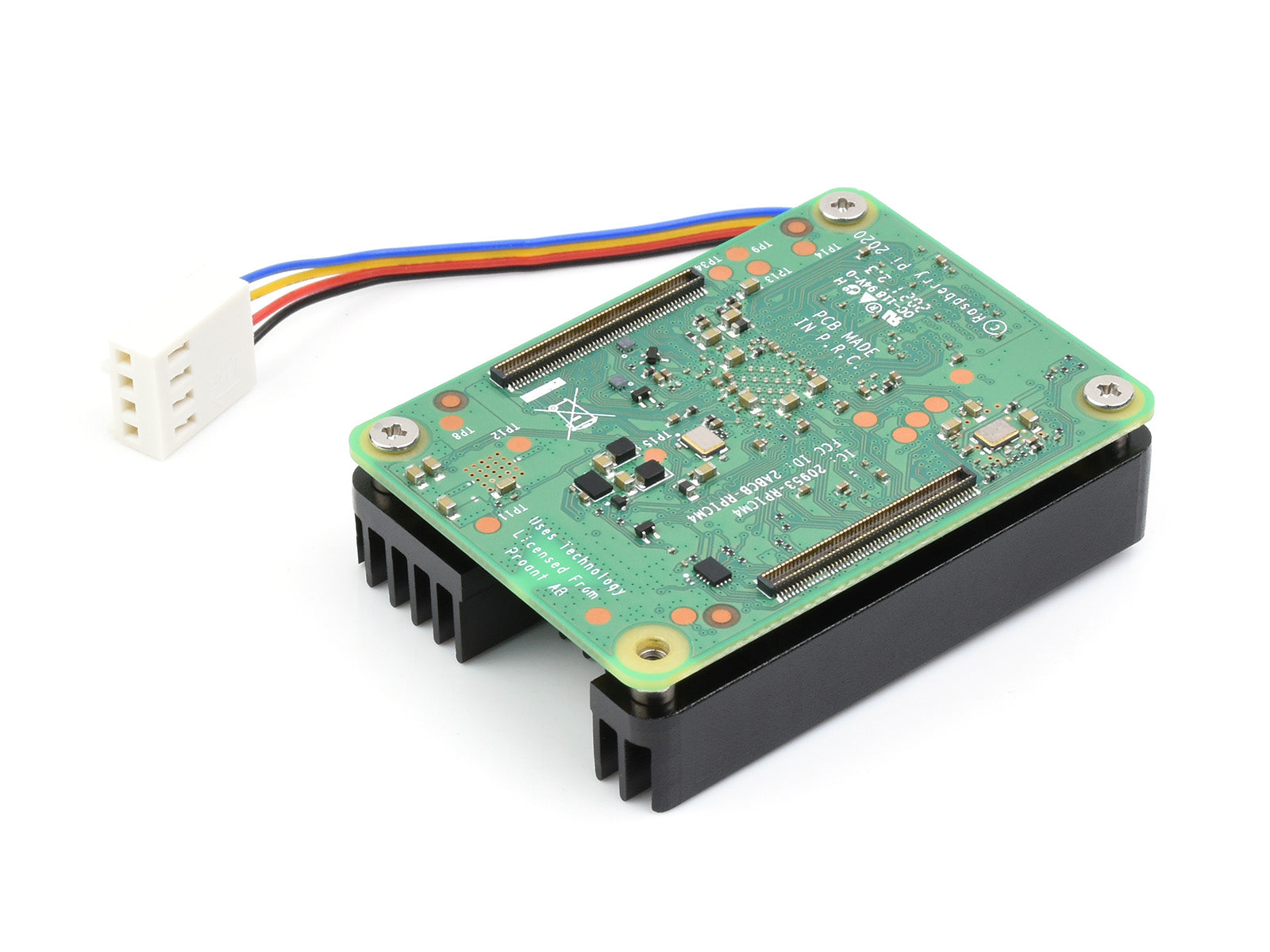

Install FAN to CM4

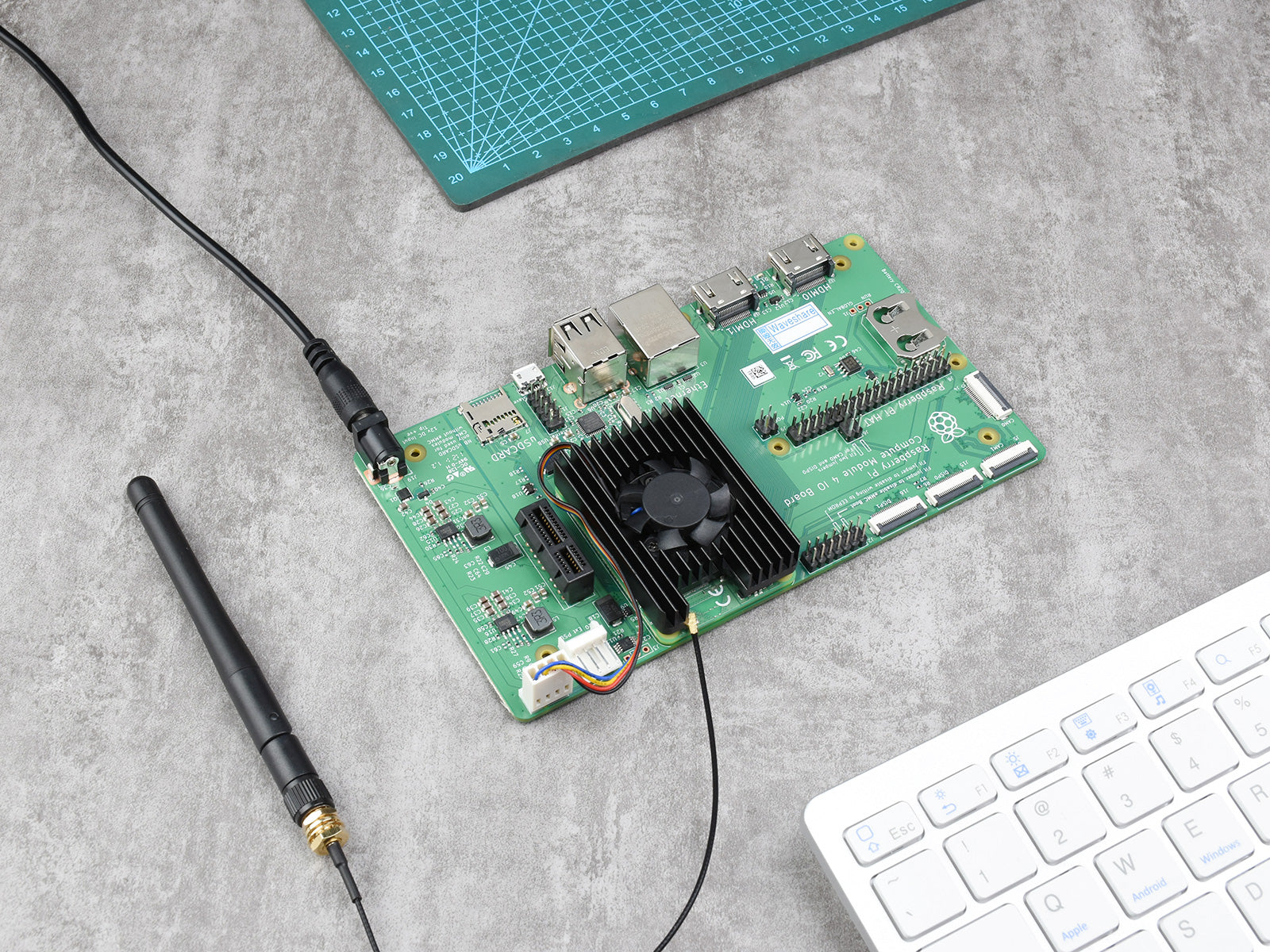

Install FAN to CM4 + Base Board

Lieferumfang

1. OPTIONS CM4-FAN-3007-B x1
2. Screws and thermal tapes x1

1

2
