SKU:WSAL24142

Dedicated Cooling fan for Jetson Nano, Built-in Speed-Adjustable Fan, Compatible With JETSON NANO MINI

Dedicated Cooling fan for Jetson Nano

compatible with Jetson Nano, Built-in speed-adjustable fan, with elastic bracket and height-limited screws

Specifications

Module support	NVIDIA Jetson Nano module
Power supply	DC 5V input
Structure	Embedded fan, aluminum alloy enclosure
Electrical parameter	0.65W (5V/0.13A)
Cable length	37±3mm
Fan	PWM speed-adjustable, 5500±10%RPM

Attaching To The Module

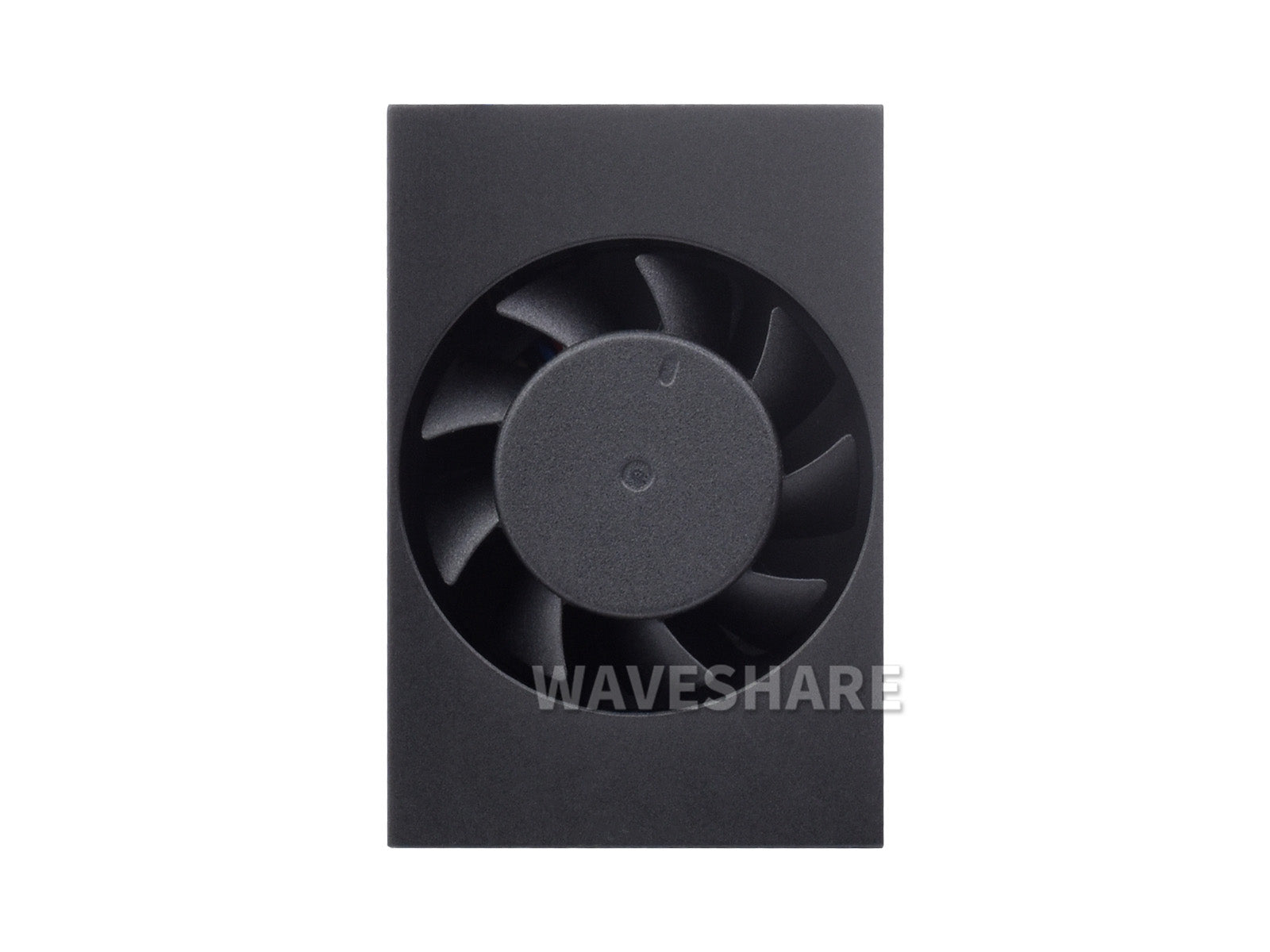

front view

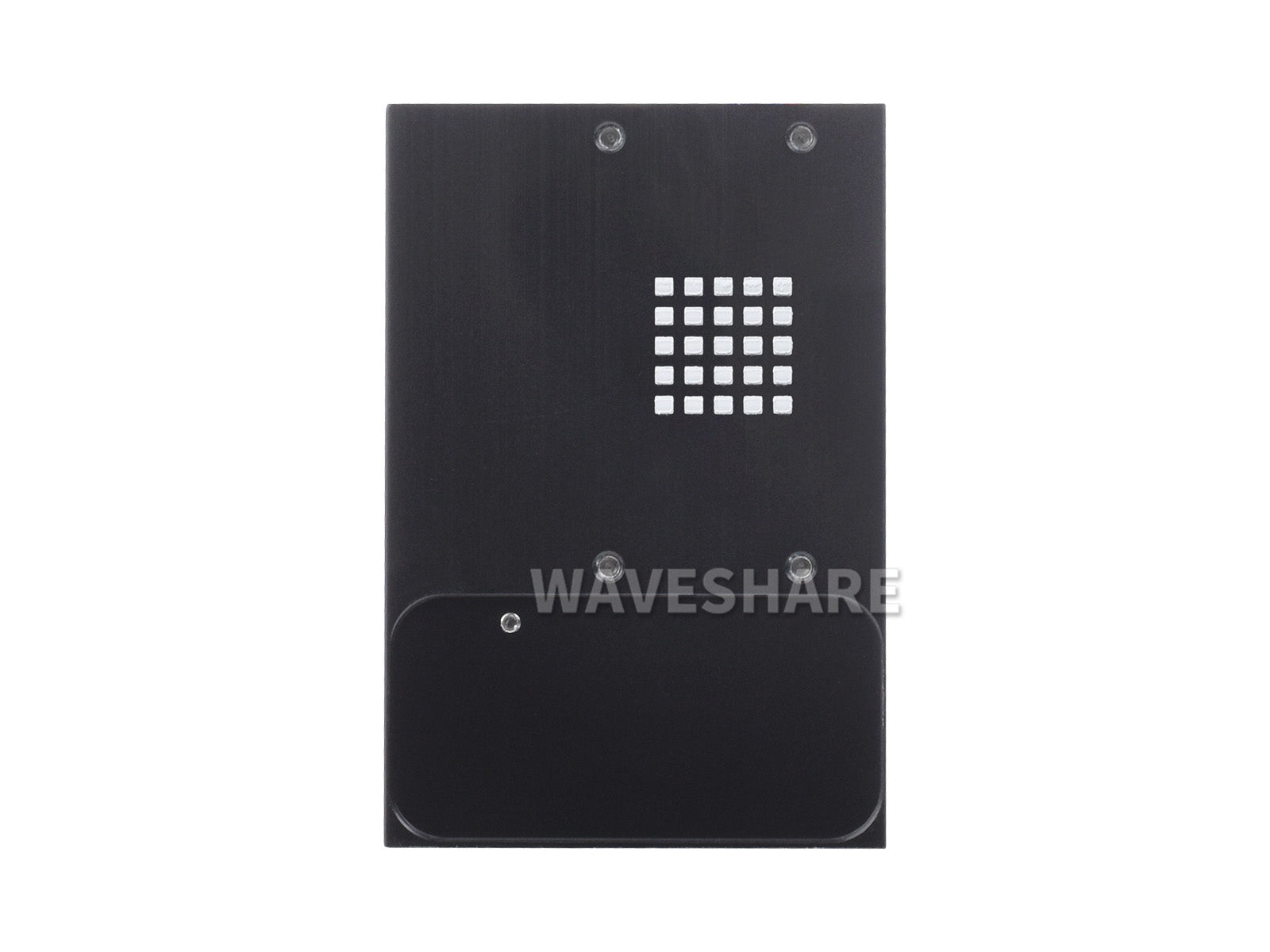

back view

Reserved Silicone Grease

please don't touch the silicone grease when opening the package

Application Examples

* for reference only, the Jetson Nano Module,JETSON-IO-BASE-A base board, and JETSON NANO MINI kit are NOT included

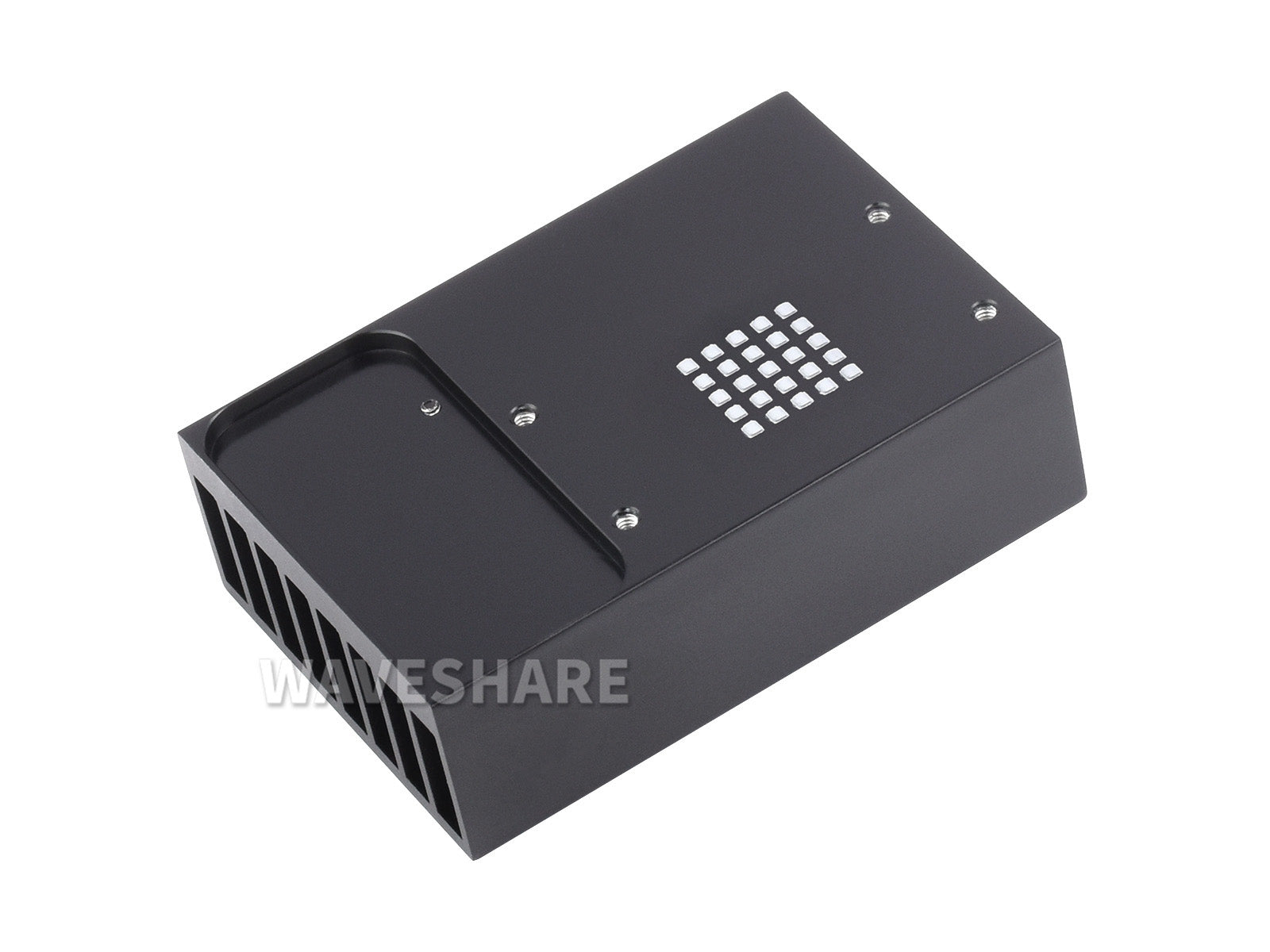

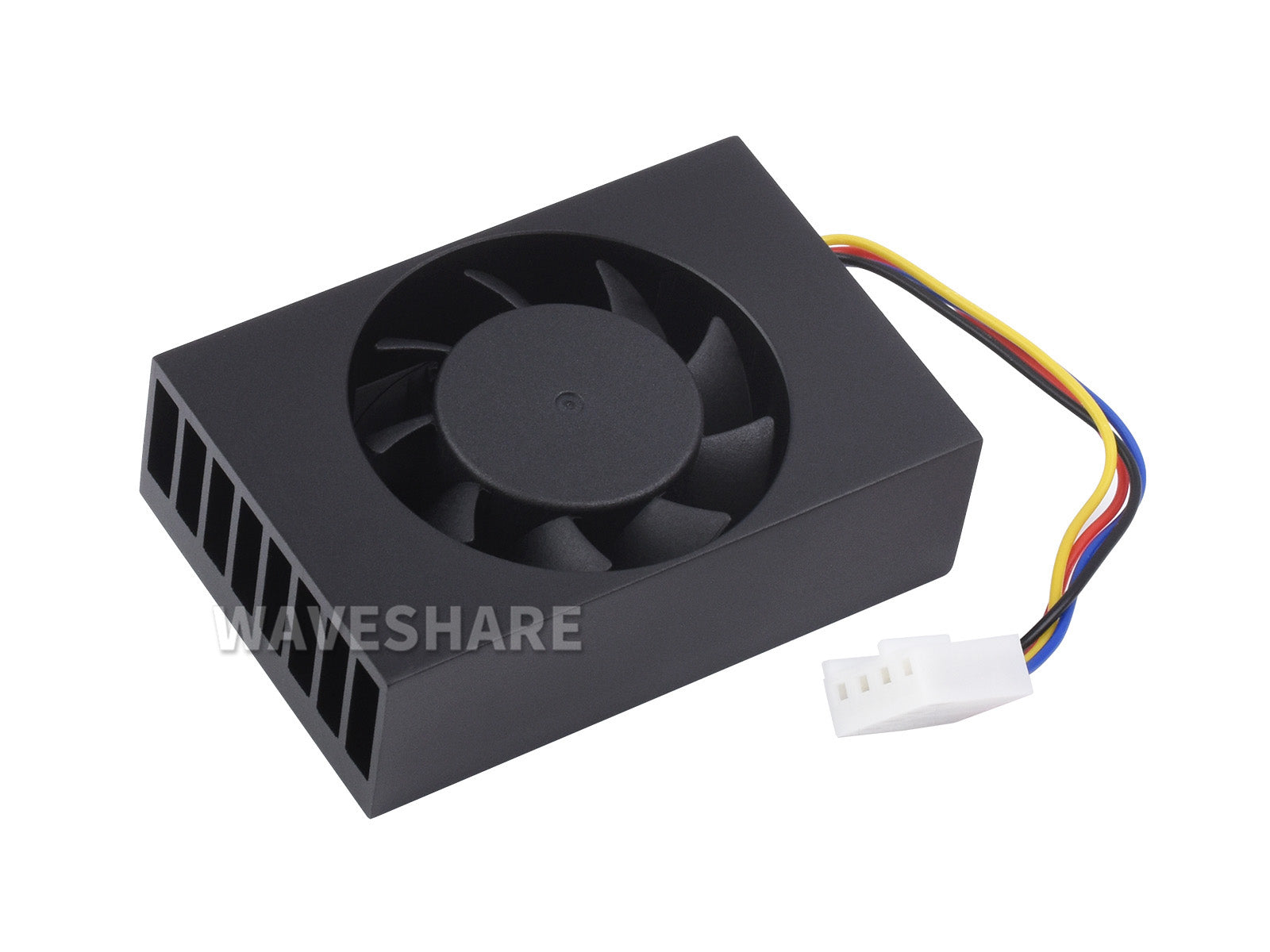

Product show

Outline dimensions

Lieferumfang

1. NANO-FAN-PWM x1
2. Elastic bracket and height-limited screws x1

1

2
