SKU:WSAL22983

Dedicated Cooling fan for Jetson TX2 NX

Dedicated Cooling fan for Jetson TX2 NX

compatible with Jetson TX2 NX module, speed-adjustable fan, with elastic bracket and height-limited screws

Specifications

Module support	NVIDIA Jetson TX2 NX module
Power supply	DC 5V input
Structure	Embedded fan, aluminum alloy enclosure
Electrical parameter	0.65W (5V/0.13A)
Cable length	37±3mm
Fan	PWM speed-adjustable, 5500±10%RPM

Attaching To The Module

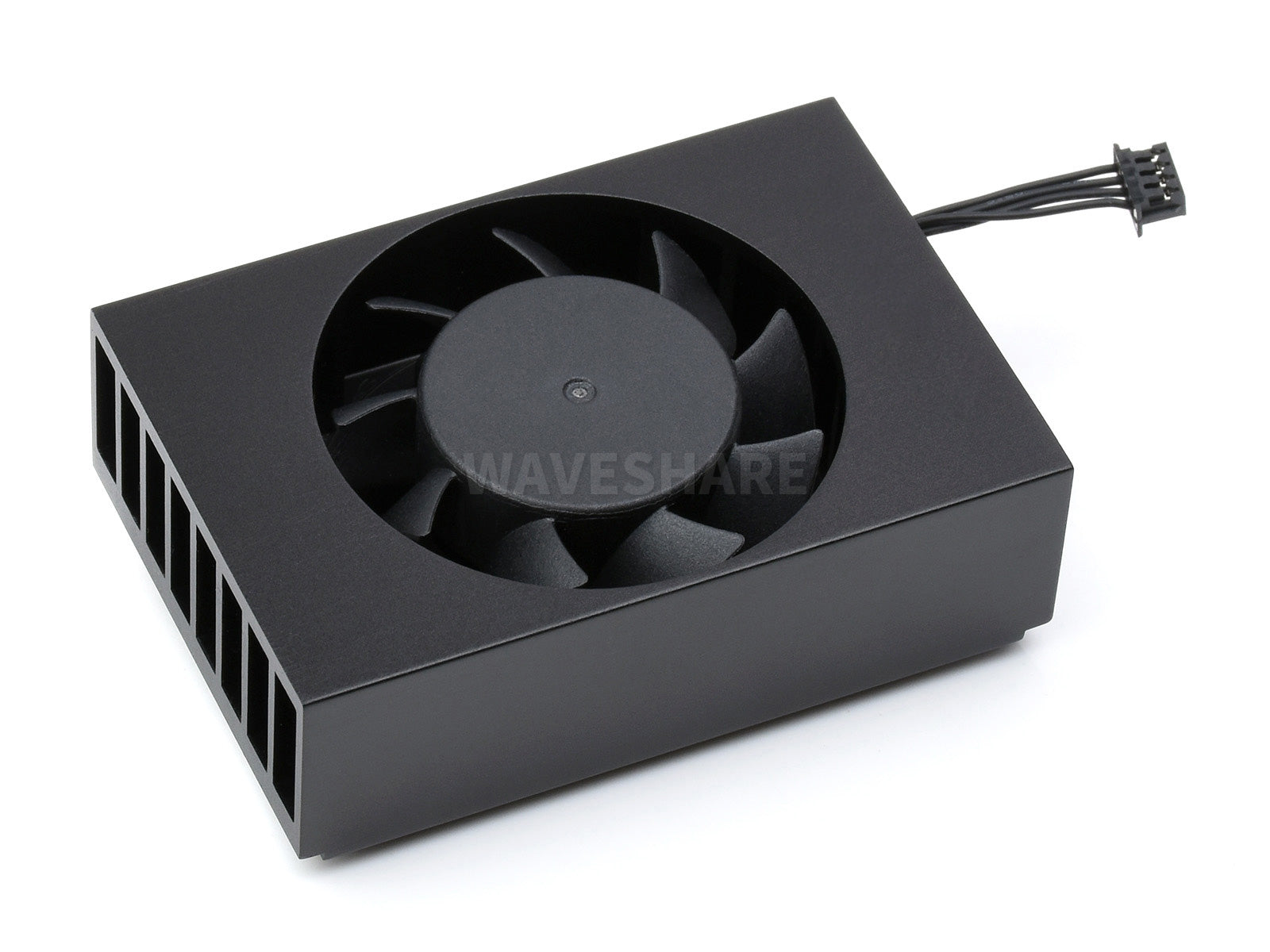

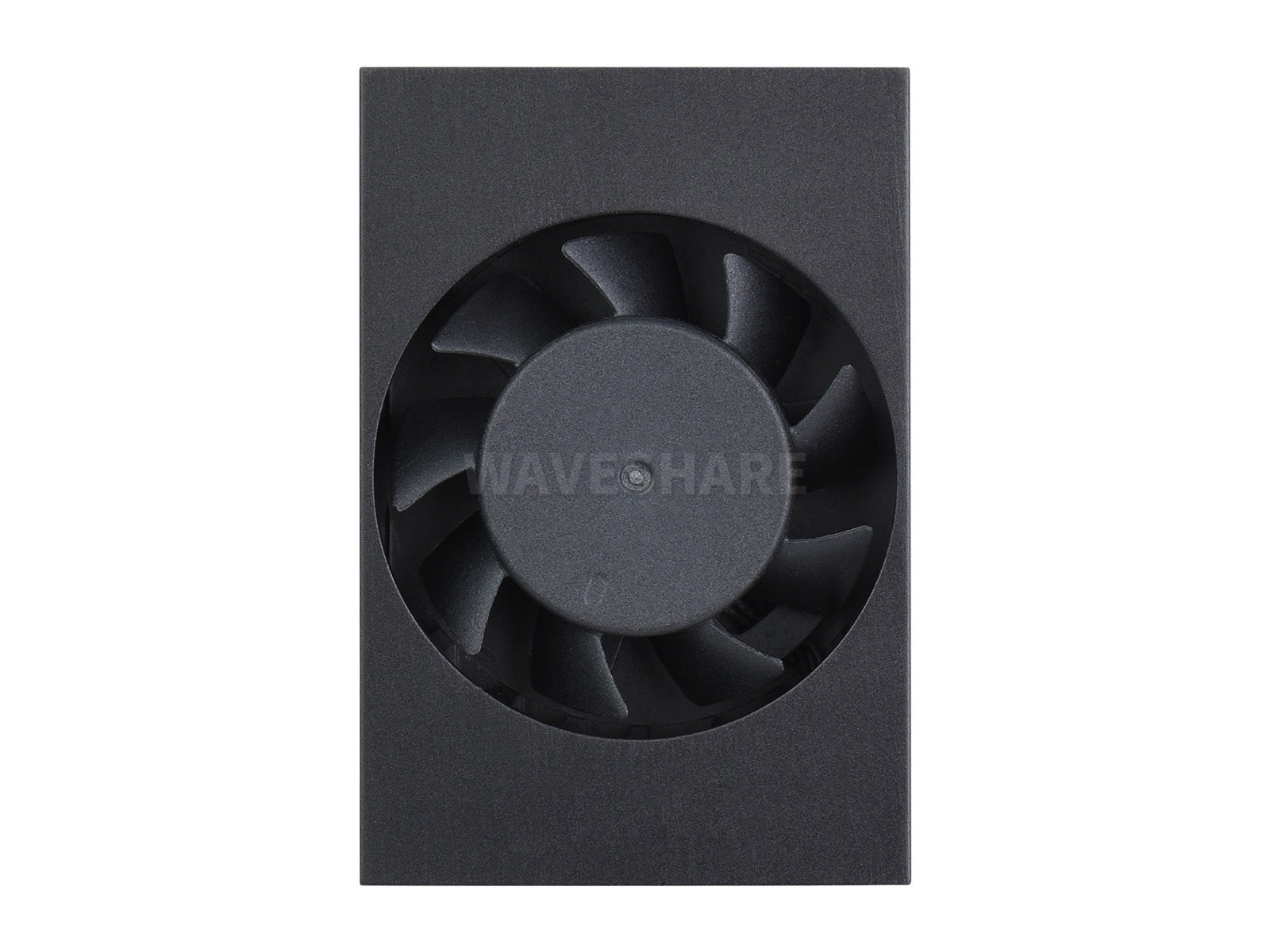

front view

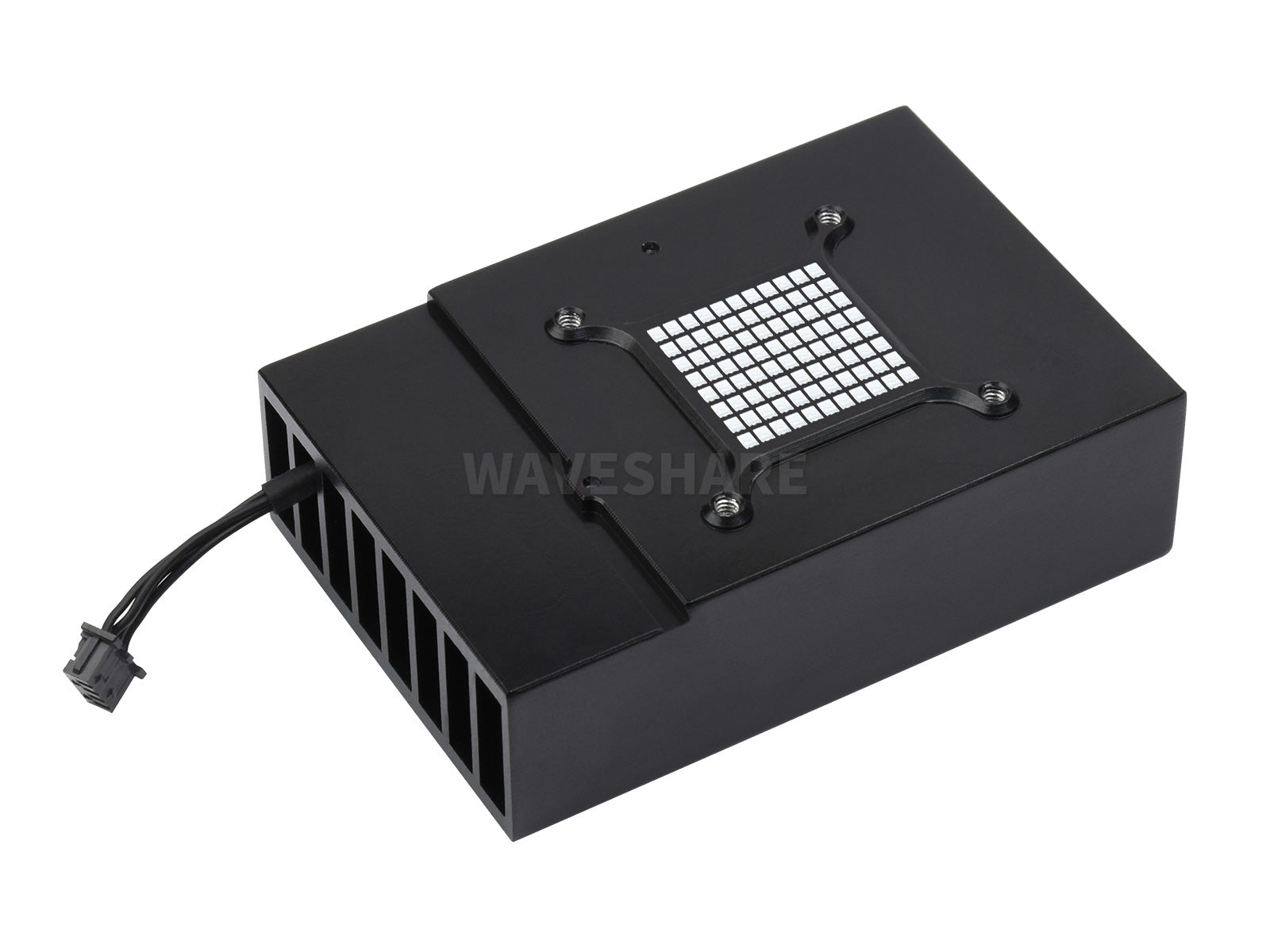

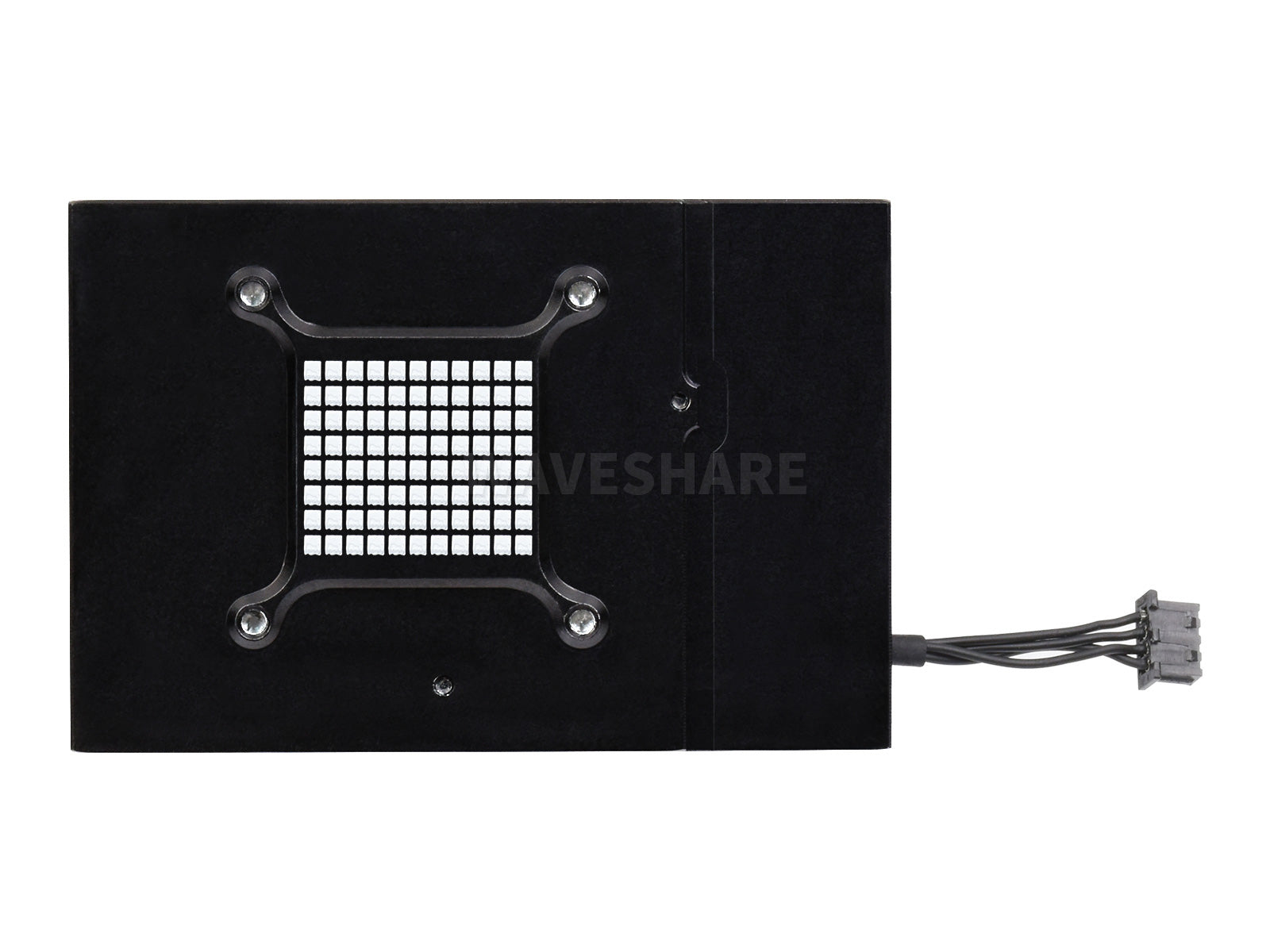

back view

Reserved Silicone Grease

please don't touch the silicone grease when opening the package

Outline dimensions
