SKU:WSAL11092

Kurzbeschreibung: Temperature-Humidity Sensor, DHT22 (AM2302) Onboard

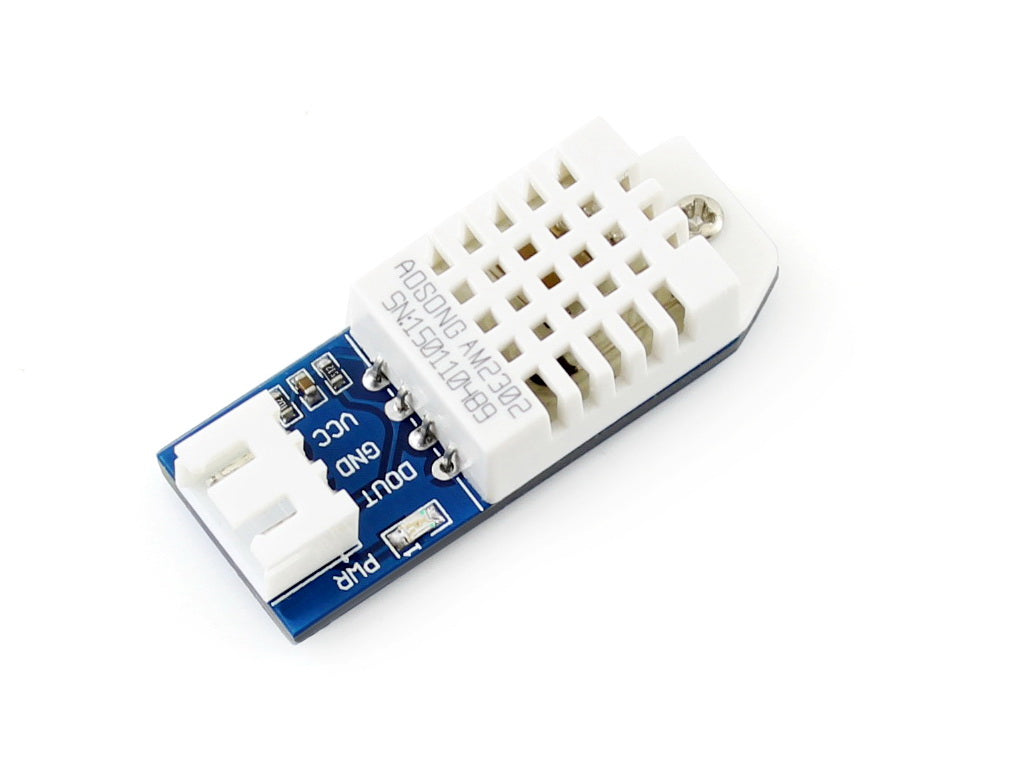

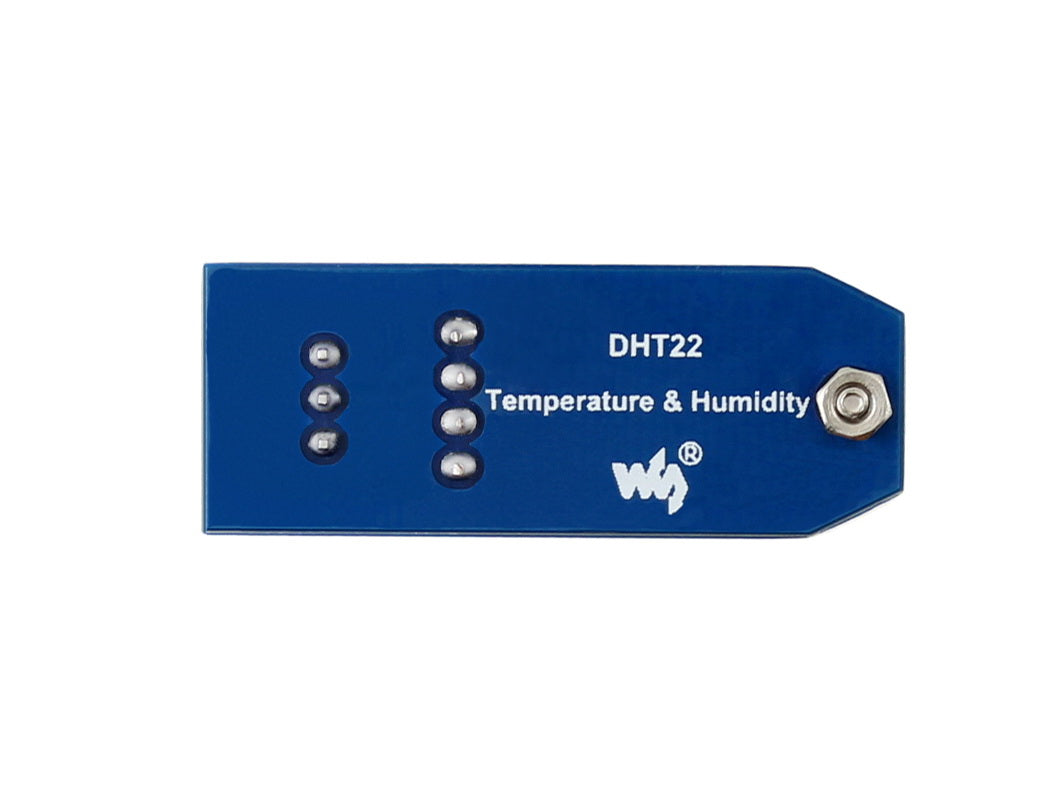

Temperature-Humidity Sensor, DHT22 Onboard

Overview

This is a calibrated digital temperature and humidity module with onboard sensor DHT22, which features higher accuracy and wider measuring range than DHT11.

It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.

Specifications

• Temperature
  • Resolution : 0.1°C
  • Accuracy : ±0.5℃
  • Measuring range : -40°C ~ 80°C
• Humidity
  • Resolution : 0.1%RH
  • Accuracy : ±2%RH (25°C)
  • Measuring range : 0%RH ~ 99.9%RH
• Operating voltage : 3.3V ~ 5.5 V
• Recommended storage condition
  • Temperature : 10°C ~40°C
  • Humidity : 60%RH or below

Applications

• Weather station
• Humidity controller
• Test & detection device

How to Use

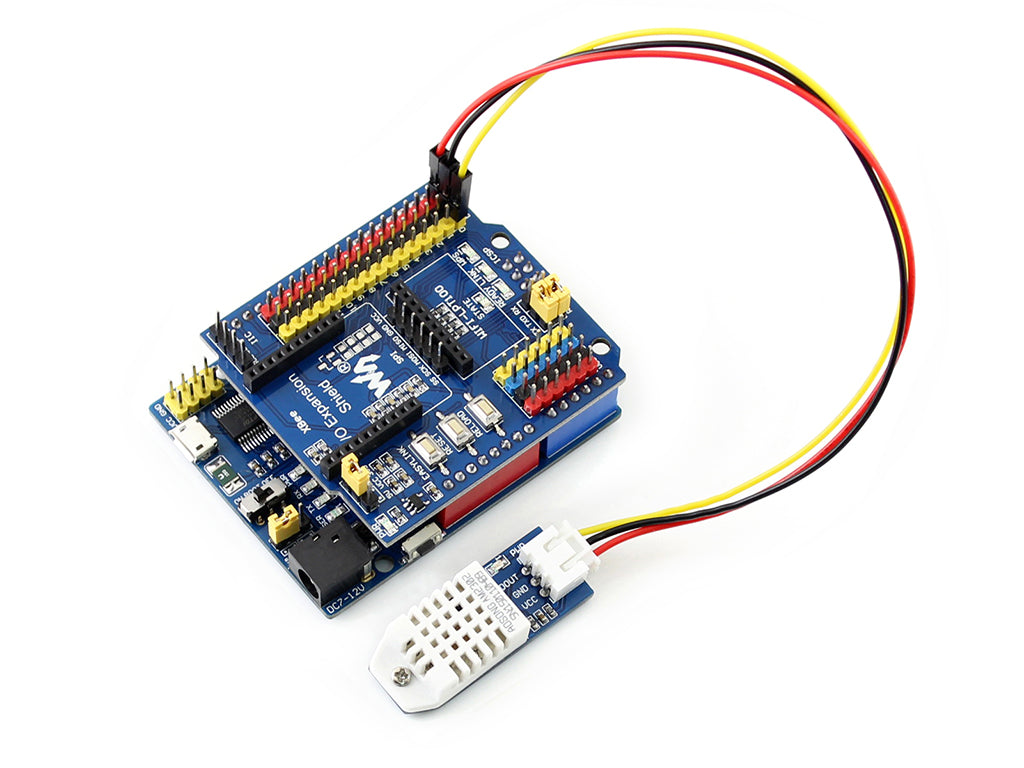

In the case of working with a MCU:

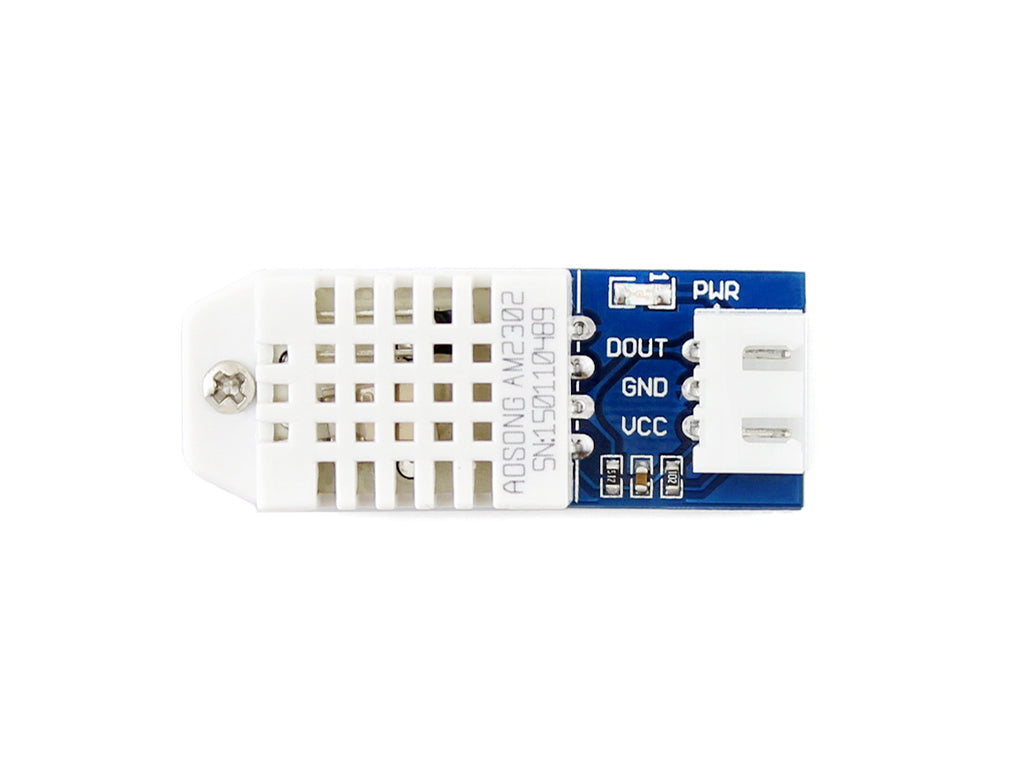

• VCC ↔ 3.3V ~ 5.5V
• GND ↔ GND
• DOUT ↔ MCU.IO

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/DHT22_Temperature-Humidity_Sensor

Lieferumfang

1. DHT22 Temperature-Humidity Sensor x1
2. XH2.54 3-pin wire x1
