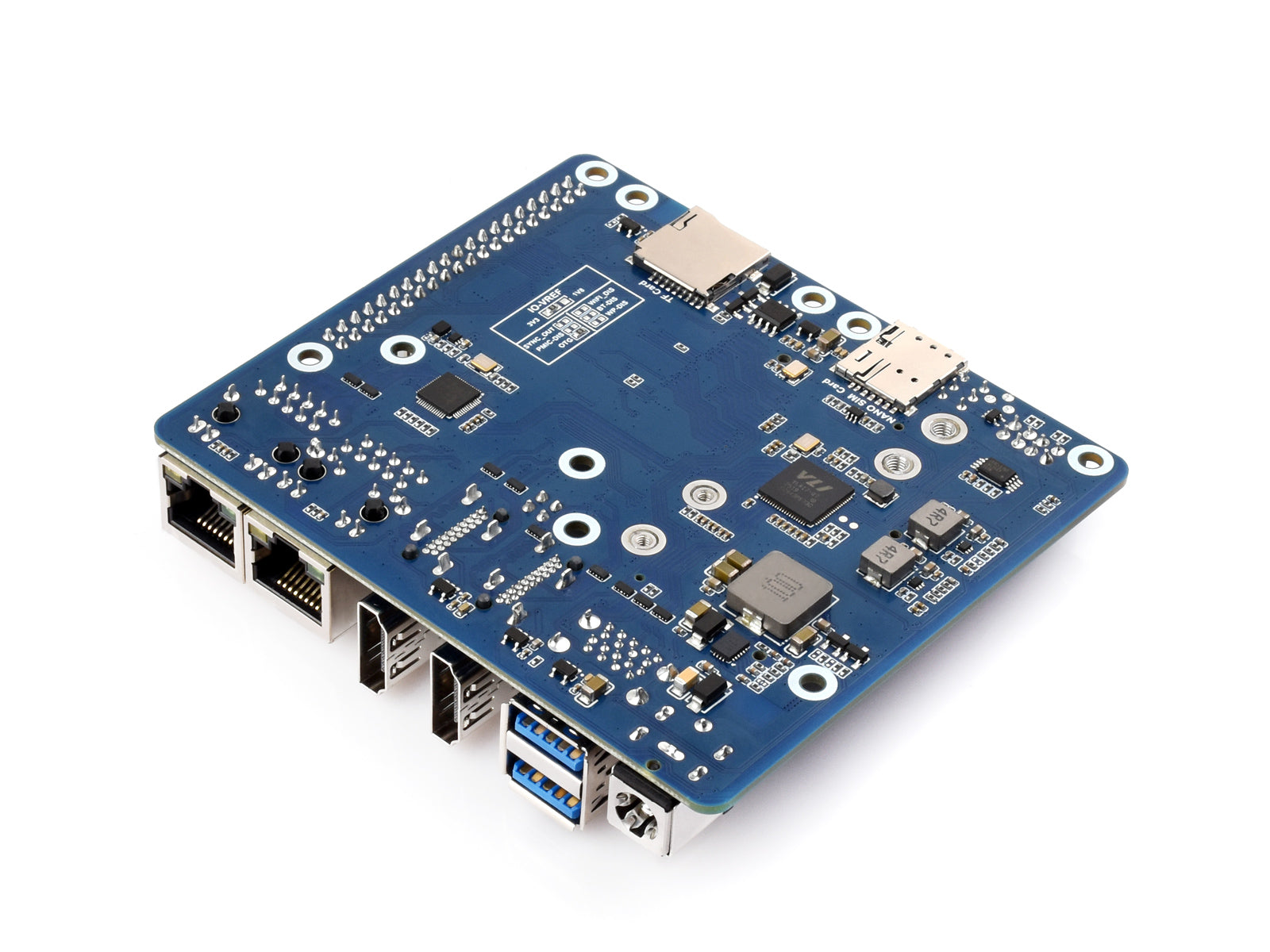

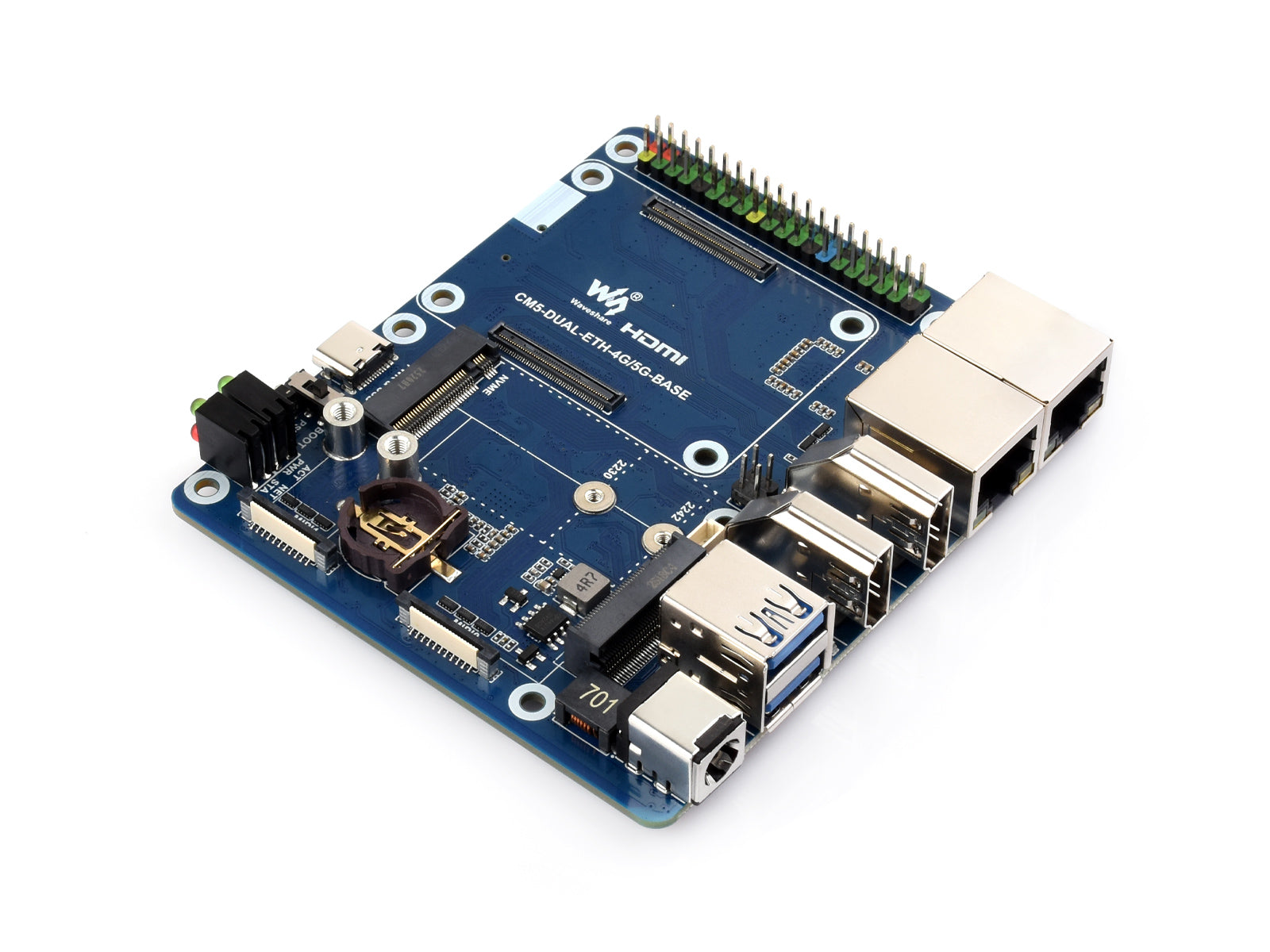

Dual Ethernet Base Board For Raspberry Pi CM5, Supports 4G / 5G Module, Dual 4K Display Outputs And Dual MIPI Interfaces, Onboard 40PIN GPIO Header And Dual USB 3.2 Gen1 Ports, PoE Module Support
Abholverfügbarkeit konnte nicht geladen werden
Designed for Raspberry Pi Compute Module 5
CM5-DUAL-ETH-4G/5G-BASEthe base board only
CM5-DUAL-ETH-4G/5G-BOX-Athe base board + metal case + cooling fan + power supply
| CM5 socket | Suitable for all variants of Compute Module 5 |
|---|---|
| Networking | 1000M Ethernet RJ45 port × 12500M Ethernet RJ45 port × 1 |
| Connector | Raspberry Pi 40PIN GPIO header |
| USB | USB 3.2 Gen1 × 2 |
| MIPI | 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector) |
| Video | HDMI port × 2, supports dual 4K display outputs |
| M.2 | M.2 M KEY (PCIe Gen2/3 x 1) |
| M.2 (4G / 5G) | M.2 M KEY, supports connecting 4G / 5G communication module |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan Header | 5V, 4PIN JST-SH PWM fan connector |
| Power Input | 7V~36V wide voltage range DC jack, 5V 5A Type-C port |
| Dimensions | the base board: 99.60 × 87.00 (mm) the case: 104.80 × 90.00 × 29.70 (mm) |
Check the Compute Module 5variants
| CM5 Base Board | Interface count and specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PoE | GigabitETH | 40PINGPIO | PCIe | USB① | MIPI | HDMI | RTC | FanHeader② | PowerInput | Features | ||
 NANO A | √ | 3.0×1 | ×2 | SH1.0 | √ | 5V | CM5 sized | |||||
 NANO B | ×1 | √ | 16PIN PCIe | 3.0×1 | ×2 | √ | SH1.0 | √ | 5V | CM5 sized | ||
 mini Base A | ×1 | √ | 16PIN PCIe | 3.0×22.0×2 | ×2 | ×2 | ML/CR1220 | √ | 5V | mini size | ||
 mini Base B | ×1 | √ | M.2 M KEY | 3.0×22.0×2 | ×2 | ×2 | ML/CR1220 | √ | 5V | mini size, onboard EEPROM and encryption chip | ||
 Mini Dual Gigabit | ×2 | √ | 3.0×1 | SH1.0 | √ | 5V | dual ETH | |||||
 Dual ETH A | 1G ×1 2.5G ×1 | √ | M.2 M KEY | 3.0×12.0×2 | ×2 | ×2 | ML/CR1220 | √ | 7V~36V | dual ETH, onboard EEPROM and Encryption chip | ||
 Dual ETH B | 1G ×1 2.5G ×1 | √ | M.2 M KEY | 3.0×12.0×1 | ×2 | ×1 | SH1.0 | √ | 5V | dual ETH ports | ||
 Dual ETH 4G/5G | 1G ×1 2.5G ×1 | √ | M.2 M KEY | 3.0×2 | ×2 | ×2 | ML/CR1220 | √ | 7V~36V | dual ETH and 4G/5G support | ||
 PoE Base | √ | ×1 | √ | M.2 M KEY | 3.0×22.0×2 | ×2 | ×2 | ML/CR1220 | √ | 5V | USB×4 | |
 Raspberry Pi official | ③ | ×1 | √ | M.2 M KEY | 3.0×2 | ×2 | ×2 | ML/CR1220 | √ | 5V | Official IO base board | |
 IPCBOX-CM5 | 1G ×1 2.5G ×1 | M.2 M KEY | 3.0×12.0×3 | ×1 | SH1.0 | √ | 7V~36V | dual ETH, 4G/5G support,RS485/RS232,Encryption chip,EEPROM,CAN,digital inputs,digital outputs,audio,an buzzer | ||||
 CM5 Dual ETH Multi-function | 1G ×1 2.5G ×1 | M.2 M KEY | 3.0×12.0×2 | ×2 | ×1 | SH1.0 | √ | 7V~36V | dual ETH, 4G/5G support,RS485,Encryption chip,digital input,relay,and buzzer | |||
| Note | ① USB 3.0 is equivalent to USB 3.2 Gen1.② Unless otherwise specified, the Fan header usually is JST-SH type connector.③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). | |||||||||||
standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO headersuitable for Compute Module 5 Lite / eMMC series module
* for reference only, please refer to the package content for detailed part list
compatible with communication modules with M.2 B KEY interface
* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2,SIM8200EA-M2, and SIM8262E-M2.
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the package content for detailed part list
* Only supports the NVMe Protocol Solid State Drives.
Features multiple interfaces including ETH / MIPI / HDMI / Micro SD / USB / M.2 B KEY / M KEY , for easy to use
each cut-out is completely aligned with the connector
comes with cooling fan, combined with the airflow vent, better heat dissipation
* for reference only, please refer to the package content for detailed part list
Wall Mount Holes On Two Sides, handy for mounting.Reserved Rail-mount buckle mounting holes on the Back for Rail-mount Installation
* for reference only, the rail-mount buckle is not included, please purchase separately if needed

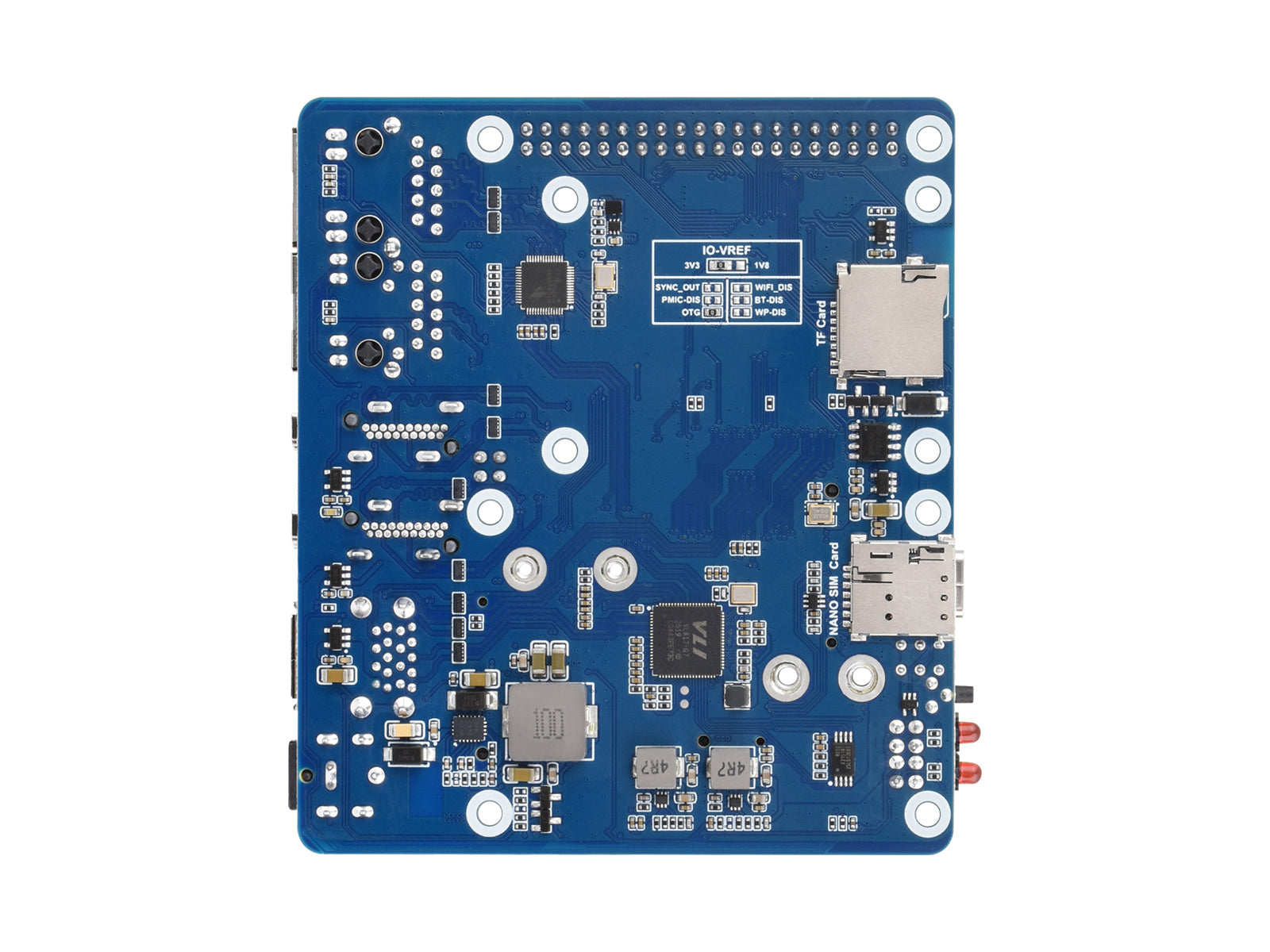

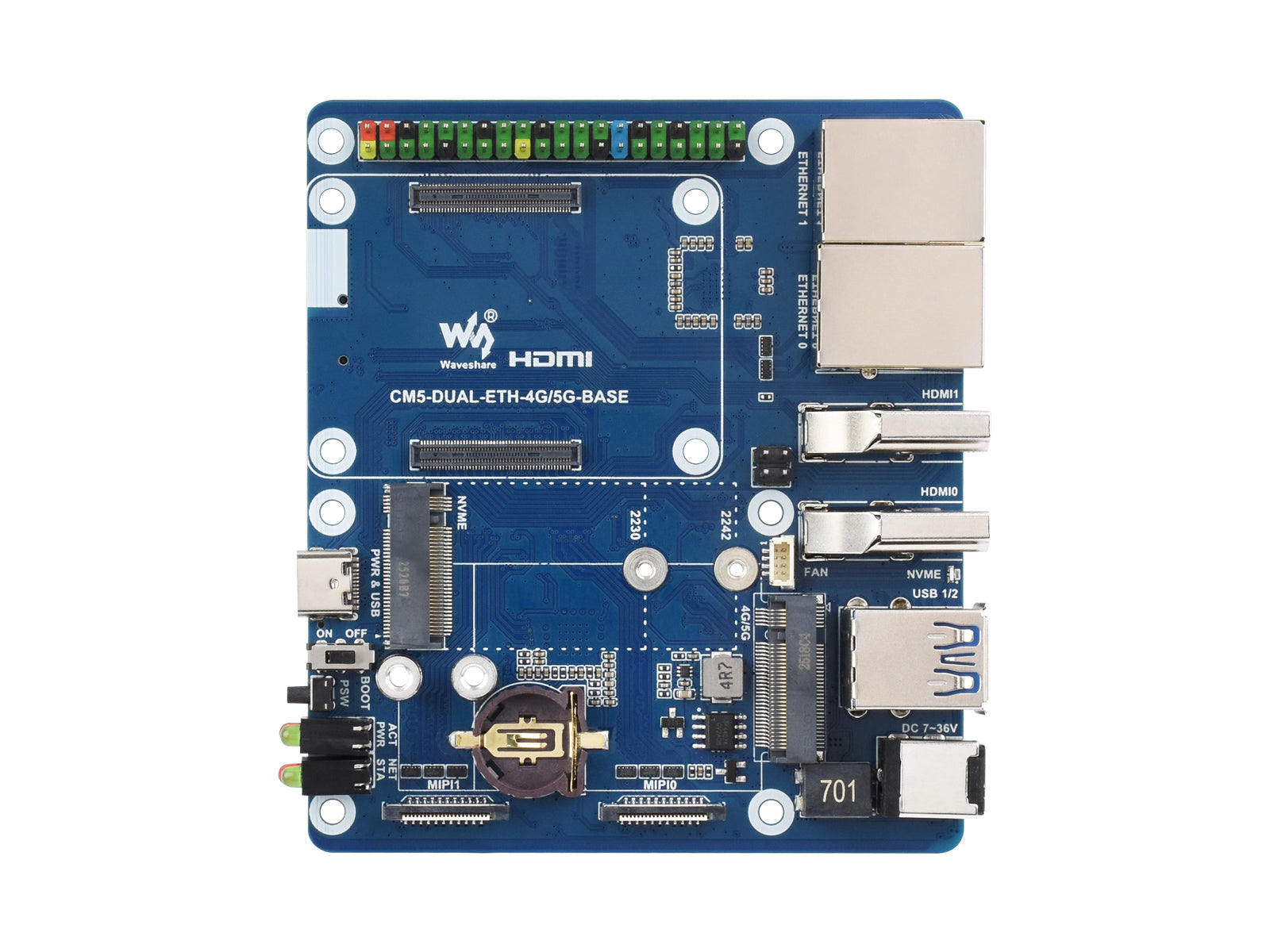

- CM5 socketsuitable for all variants of Compute Module 5
- 40PIN GPIO headersuitable for connecting to various HAT / HAT+ modules
- M.2 M keysupports 2242 / 2230 NVMe Solid State Drives or AI modules
- Programmingused for eMMC burning or USB OTG
- BOOT switchswitch to ON: burning mode switch to OFF: system normal startup mode
- PSW power buttonLong press to force power off, short press to soft power off or on
- System indicators
- M.2 M key status indicators
- RTC battery holdersupports CR / ML 1220 button cell
- Dual MIPI interfacesfor connecting to DSI displays or CSI cameras
- DC power jackDC 5.5 2.1 jack, supports DC 7V ~ 36V power supply
- M.2 B keysupports connecting 4G/5G communication module
- Dual USB 3.2 Gen1 portsUSB 3.2 Gen1 Type-A ports, up to 5Gbps
- FAN headerfor connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector
- M.2 M key status indicatorkeeps blinking when NVMe drive is reading / writing
- Dual HDMI portssupports dual 4K outputs
- PoE headerfor connecting PoE module, supports PoE power supply through 1000M Ethernet port using PoE switch
- 1000M Ethernet RJ45 portsupports 10M / 100M / 1000M network connections
- 2500M Ethernet RJ45 portsupports 10M / 100M / 1000M / 2500M network connections
- USB to 2500M Ethernet chip
- IO-VREF selectionCM5 IO logic level: 3.3V (default) or 1.8V
- Other function pinsHardware disable function, write protection and chip address selection
- TF card slotfor connecting a TF card with pre-burnt image (Lite variant ONLY)
- NANO SIM card slot
- USB3.0 HUB
Suitable for Raspberry Pi applications in remote communication or other industrial situations
* for reference only, the displayandcamera module are not included, please purchase separately if needed
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
