SKU:WSAL31897

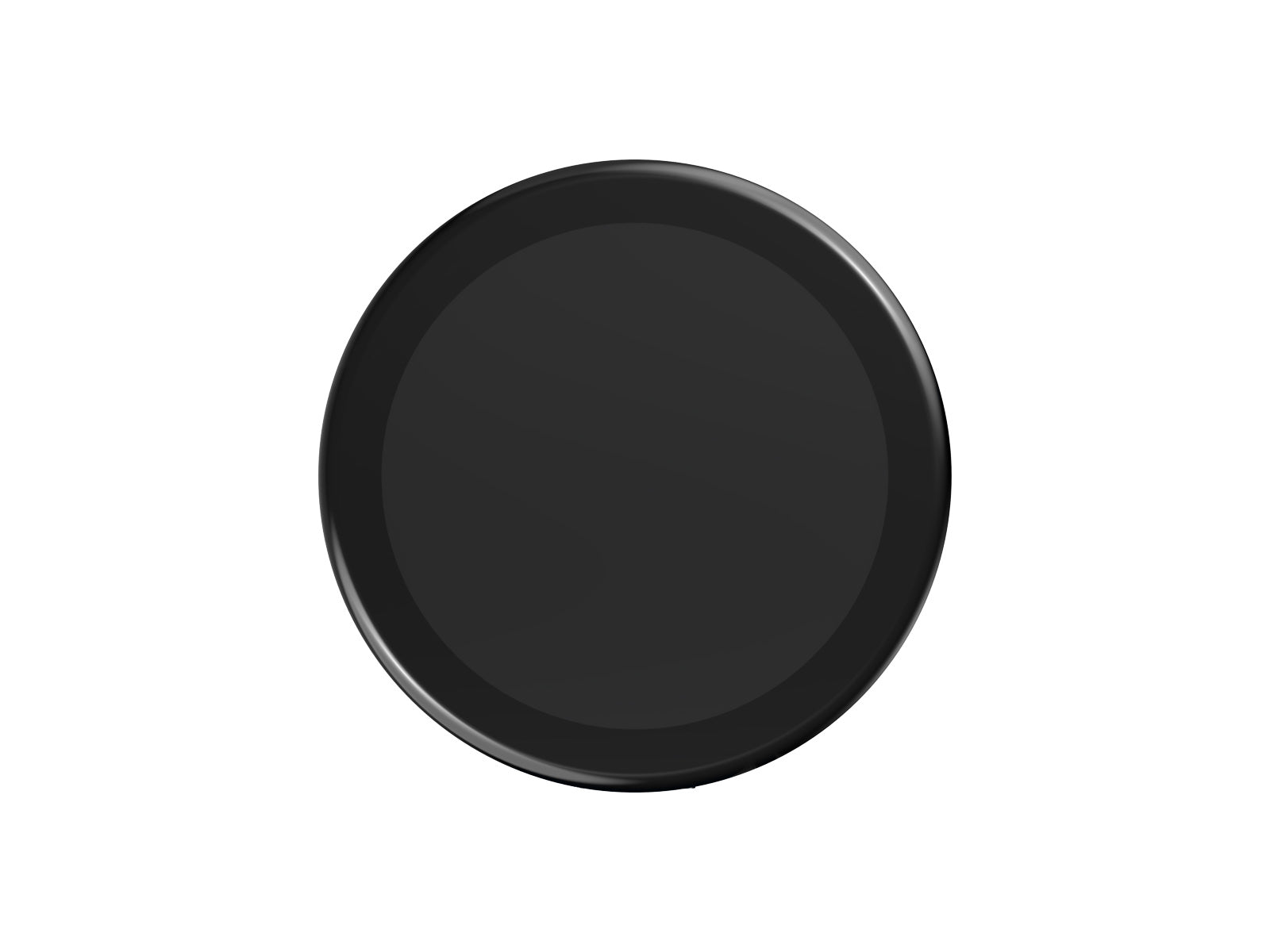

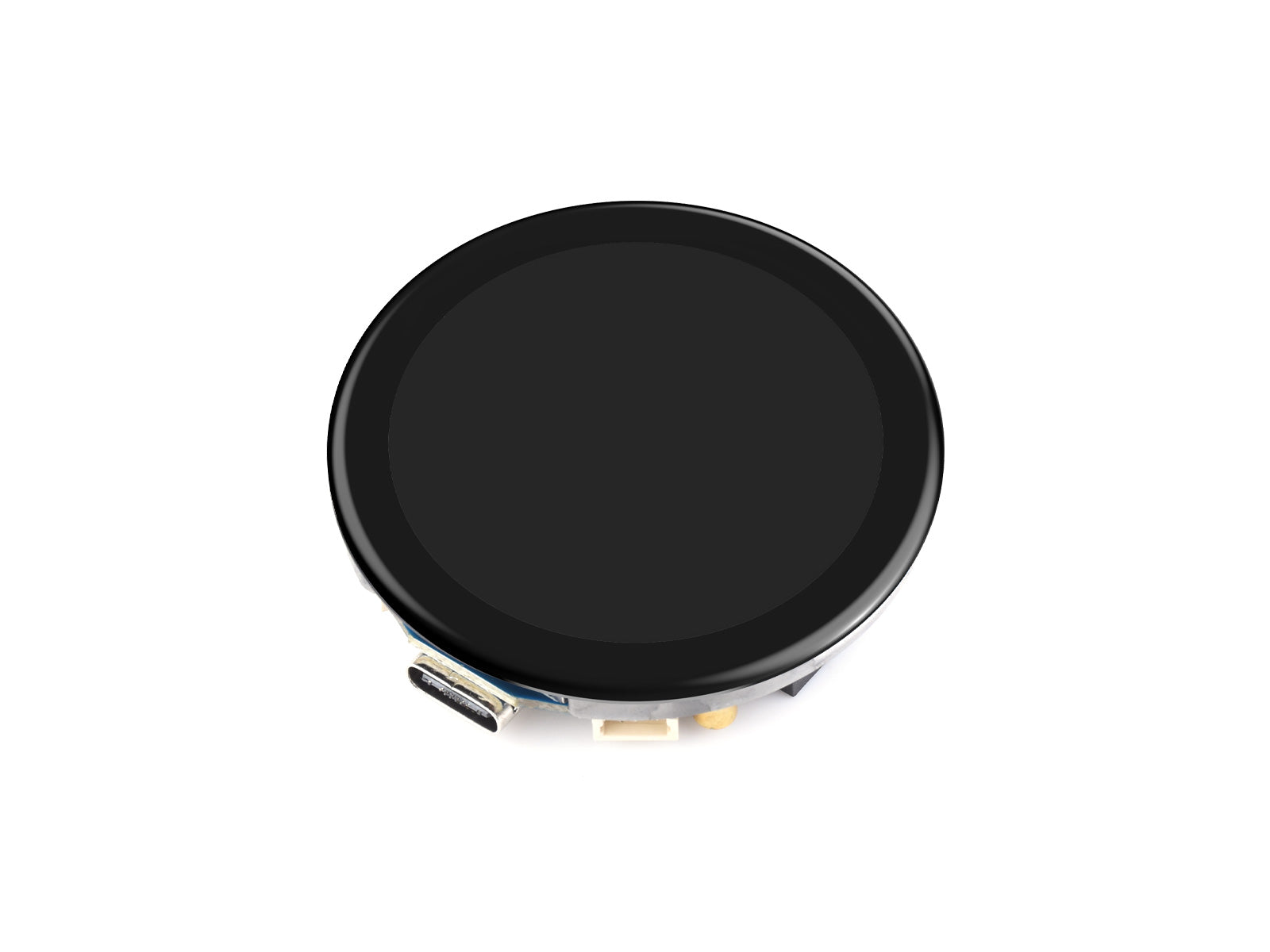

ESP32-C6 1.43inch AMOLED Round Touch Display Development Board, 160MHz RISC-V Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Microphone Array, ESP32 With Display

ESP32-C6-Touch-AMOLED-1.43

Embedded with CO5300 Display Driver and FT6146 Capacitive Touch Chip

Version Options

ESP32-C6-Touch-AMOLED-1.43Standard version, without case

ESP32-C6-Touch-AMOLED-1.43-B with protective case

Features

TheESP32-C6-Touch-AMOLED-1.43 is a high-performance, highly integrated MCU board designed by Waveshare, integrates high-capacity Flash. Onboard 1.43inch AMOLED capacitive touch display, highly integrated RTC chip, 6-axis IMU, TF card slot, low power audio encoding and decoding chips, dual MIC circuit, Lithium battery header, and so on. Reserved USB, UART, I2C, and GPIO interfaces for flexible expansion, which makes it easy for you to develop and integrate into the products quickly.

• Equipped with ESP32-C6 high-performance 32-bit RISC-V processor with clock speed up to 160 MHz
• Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Built-in 512KB HP SRAM, 16KB LP SRAM, 320KB ROM and 16MB Flash memory
• Onboard 1.43inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
• Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Equipped with dual microphones array, supporting richer voice interaction functions, suitable for accurate speech recognition and near-field / far-field voice wake-up applications
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip for RTC functionality requirement
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
• Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
• Onboard UART and I2C SH1.0 4PIN connectors, reserved two 2 × 4PIN 2.54mm pitch headers
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
• Optional for CNC metal case, with clear and colorful label on the back, nice looking and easy to carry

AMOLED parameters

Display Panel	AMOLED	Display Size	1.43 inch
Resolution	466 × 466 pixels	Display Colors	16.7M
Brightness	350 cd/㎡	Contrast Ratio	60000:1
Communication Interface	QSPI	Driver IC	CO5300
Touch	Supported	Touch IC	FT6146

Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operation

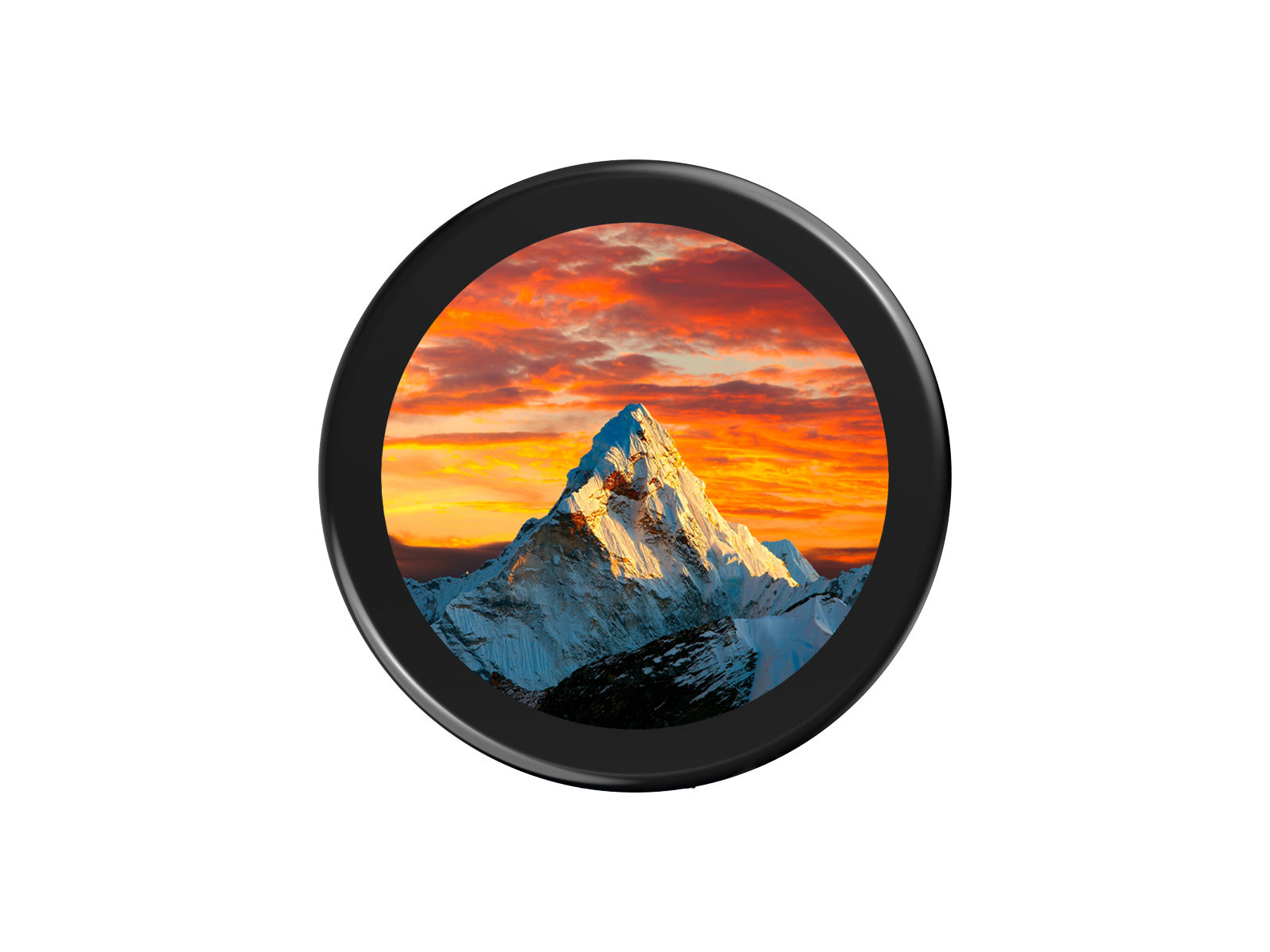

Adopts AMOLED screen

The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

Onboard audio encoding and decoding chips

Supports high-quality audio processing, providing clear and high-quality audio input and output

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, tutorials to help you easily get started

ESP32-C6 suitable for AIoT applications

Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor

WIFI 6 and BLE 5 support

Supports WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

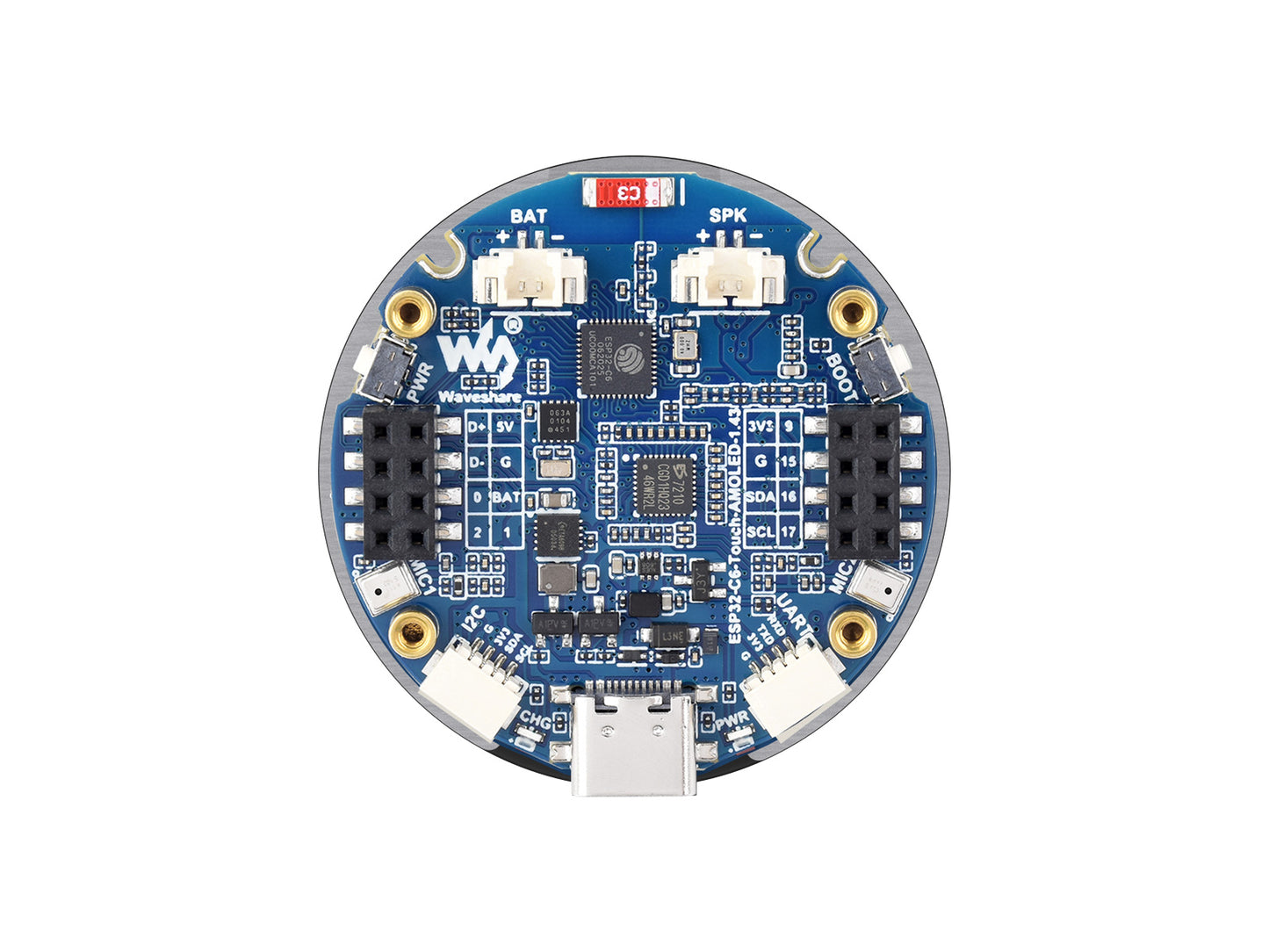

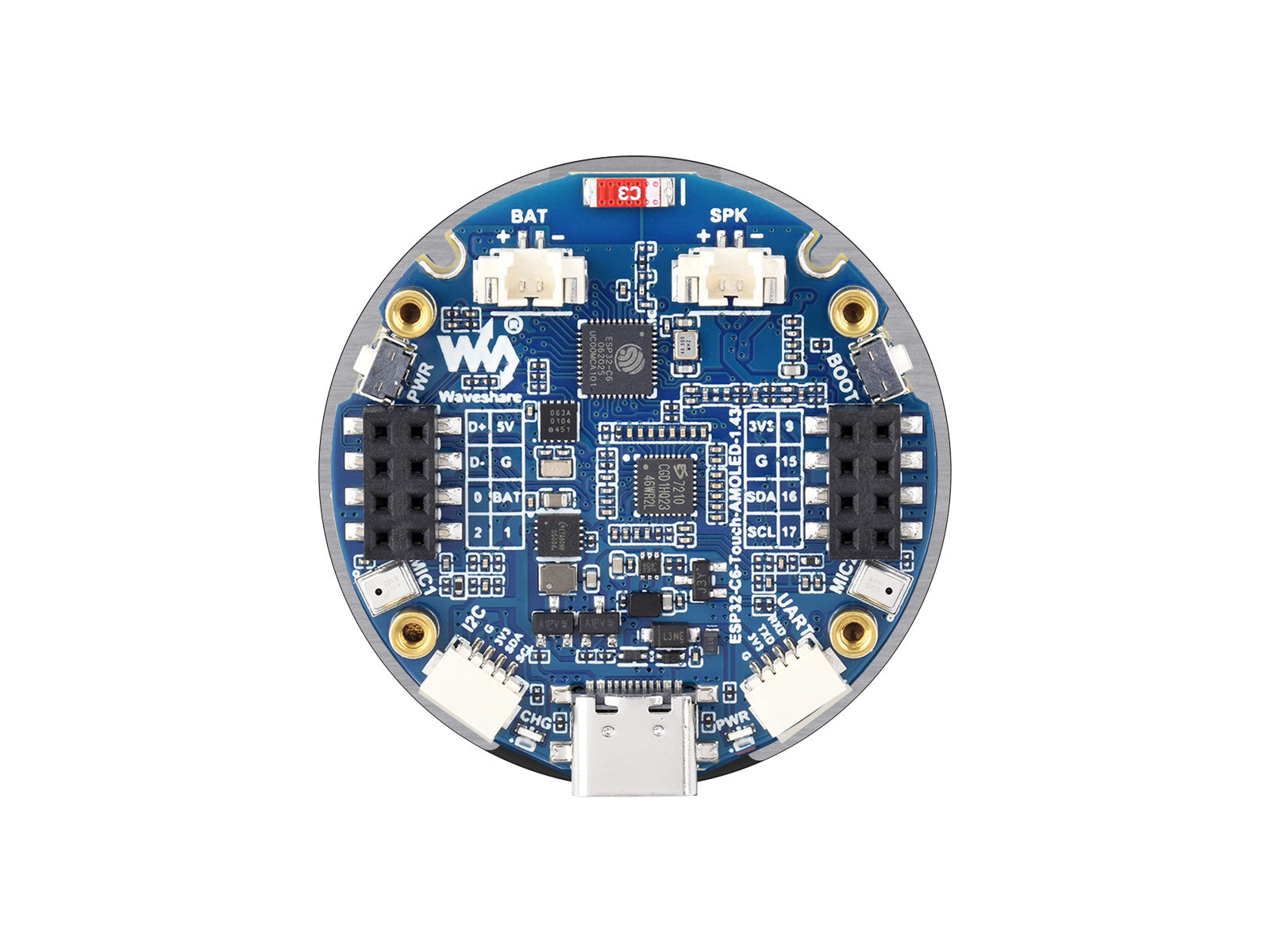

What's On Board

1. ESP32-C6 RISC-V 32-bit single-core processor, up to 160MHz operating frequency, with 2.4GHz Wi-Fi 6 and BLE 5 support
2. Onboard antenna Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
3. ES7210 ADC audio decoding chipHigh-performance and low-power audio ADC, supporting multi-channel microphone input
4. MX1.25 2PIN Lithium battery header for 3.7V Lithium battery, supports charging and discharging
5. MX1.25 2PIN speaker header Audiot signal output, supports connecting external speakers
6. Dual microphonesDual microphones array, supporting richer voice interaction functions
7. SH1.0 4PIN I2C headerStandard I2C bus interface for easy expansion with sensors and other devices
8. SH1.0 4PIN UART headerfor debugging or data communication with other modules
9. PWR button for power supply ON/OFF when powered by Lithium battery, driver required

10. BOOT button Press and hold the BOOT button, then power up again to enter download mode
11. PCF85063 RTC chip
12. Two 2 × 4PIN headers (2.54mm pitch) for external module expansion
13. Type-C portfor program burning and log printing
14. W25Q128JVSI16MB Flash
15. ES8311 DAC audio encoding chipHigh-performance and low-power audio DAC
16. QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
17. TCA9554PWR 8-bit I2C GPIO expander chip
18. TF card slot Supports FAT32-formatted TF cards for data expansion

outline dimensions

without case

with protective case

Resources & Services

Wiki:www.waveshare.com/wiki/ESP32-C6-Touch-AMOLED-1.43

ESP32 LCD Selection

Model	Core Configuration			display				onboard resources						Peripheral interfaces
	CPU	PSRAM	Flash	pixels	Interface	Display	Touch	IMU	RTC	TF	Speaker	mic	batteryheader
AMOLED display
ESP32-S3-Touch-AMOLED-2.41	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header
ESP32-S3-Touch-AMOLED-2.41-B	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header, with case
ESP32-C6-Touch-AMOLED-2.16	ESP32-C6	-	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.16	ESP32-S3R8	8MB	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.06	ESP32-S3R8	8MB	32MB	410 × 502	QSPI	CO5300	FT3168	√	√	√	√	√	√	I2C, UART, and USB reserved pads
ESP32-C6-Touch-AMOLED-2.06	ESP32-C6	-	16MB	410 × 502	QSPI	CO5300	FT3168	√	√	-	√	√	√	I2C, UART, and USB reserved pads
ESP32-S3-Touch-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	FT3168	√	-	√	-	-	√	40PIN header
ESP32-S3-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	-	√	-	√	-	-	√	40PIN header
ESP32-C6-Touch-AMOLED-1.8	ESP32-C6	-	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, USB pads
ESP32-S3-Touch-AMOLED-1.8	ESP32-S3R8	8MB	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-AMOLED-1.75	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75C	ESP32-S3R8	8MB	32MB	466 × 466	QSPI	CO5300	CST9217	√	-	-	√	√	√	I2C, UART, USB, GPIO pads
ESP32-C6-Touch-AMOLED-1.64	ESP32-C6	-	16MB	280 × 456	QSPI	CO5300	FT6146	√	-	√	-	-	√	22PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.64	ESP32-S3R8	8MB	16MB	280 × 456	QSPI	CO5300	FT3168	√	-	√	-	-	√	2 × 11PIN headers (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43-B	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.43	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601/C05300	FT3168/FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-S3-Touch-AMOLED-1.43-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601/C05300	FT3168/FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-S3-Touch-AMOLED-1.32	ESP32-S3-PICO-1-N8R8	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
LCD display
ESP32-Touch-LCD-3.5	ESP32-D0WDR2-V3	2MB	16MB	320 × 480	SPI	ST7796	FT6336	-	√	√	√	√	√	32PIN GPIO header
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.49	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-Touch-LCD-3.49B	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-LCD-3.16	ESP32-S3R8	8MB	16MB	320 × 820	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, USB headers
ESP32-S3-Touch-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	CST328	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	-	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	GT911	√	√	√	-	-	√	20PIN header
ESP32-S3-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	-	√	√	√	-	-	√	20PIN header
ESP32-S3-Touch-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	GT911	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1B	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	CST816	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	-	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-Touch-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-Touch-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-Touch-LCD-1.85C	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85C-BOX	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	-	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-LCD-1.83	ESP32-S3R8	8MB	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.83	ESP32-C6	-	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	CST816T	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-C6-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	-	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-S3-Touch-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	CST816	√	√	-	-	-	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	-	√	√	-	-	-	√	SH1.0 12PIN header
ESP32-S3-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	JD9853	AXS5106L	-	-	√	-	-	√	22PIN header
ESP32-S3-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-LCD-1.47B	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	√	-	√	-	-	√	18PIN header
ESP32-C6-Touch-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	JD9853	AXS5106L	√	-	√	-	-	√	22PIN header
ESP32-C6-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-Touch-LCD-1.46B	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-S3-Touch-LCD-1.46	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-C6-LCD-1.3	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	-	-	-	√	2.54mm 12PIN header
ESP32-C6-LCD-1.3-M	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	-	-	-	√	2.54mm 12PIN header
ESP32-S3-LCD-1.3	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header
ESP32-S3-LCD-1.3-B	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case
ESP32-S3-LCD-1.3-C	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case and prism cube
ESP32-S3-Touch-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	CST816	√	-	-	-	-	√	SH1.0 12PIN header
ESP32-S3-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	-	√	-	-	-	-	√	2 × 20PIN header (1.27mm pitch)
ESP32-C3-LCD-0.71	ESP32-C3FH4	-	4MB	160 × 160	SPI	GC9D01	-	-	-	-	-	-	√	12PIN GPIO pads
ESP32-S3-LCD-0.85	ESP32-S3	8MB	8MB	128 × 128	SPI	GC9107	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-GEEK	ESP32-C6	-	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO
ESP32-S3-GEEK	ESP32-S3R2	2MB	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO

Lieferumfang

ESP32-C6-Touch-AMOLED-1.43

1. ESP32-C6-Touch-AMOLED-1.43 x1
2. 1217 8Ω 2W cavity speaker ×1
3. SH1.0 4PIN cable ~100mm ×2

1

2

3

ESP32-C6-Touch-AMOLED-1.43-B

1. ESP32-C6-Touch-AMOLED-1.43 with case x1
2. 1217 8Ω 2W cavity speaker ×1
3. SH1.0 4PIN cable ~100mm ×2

1

2

3
