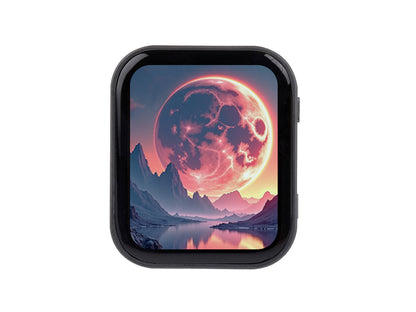

ESP32-C6 1.83inch Touch Display Development Board, 240 × 284, Onboard Audio Codec Chip, Built-in Microphones And Speaker, Supports Wi-Fi 6 And BLE 5

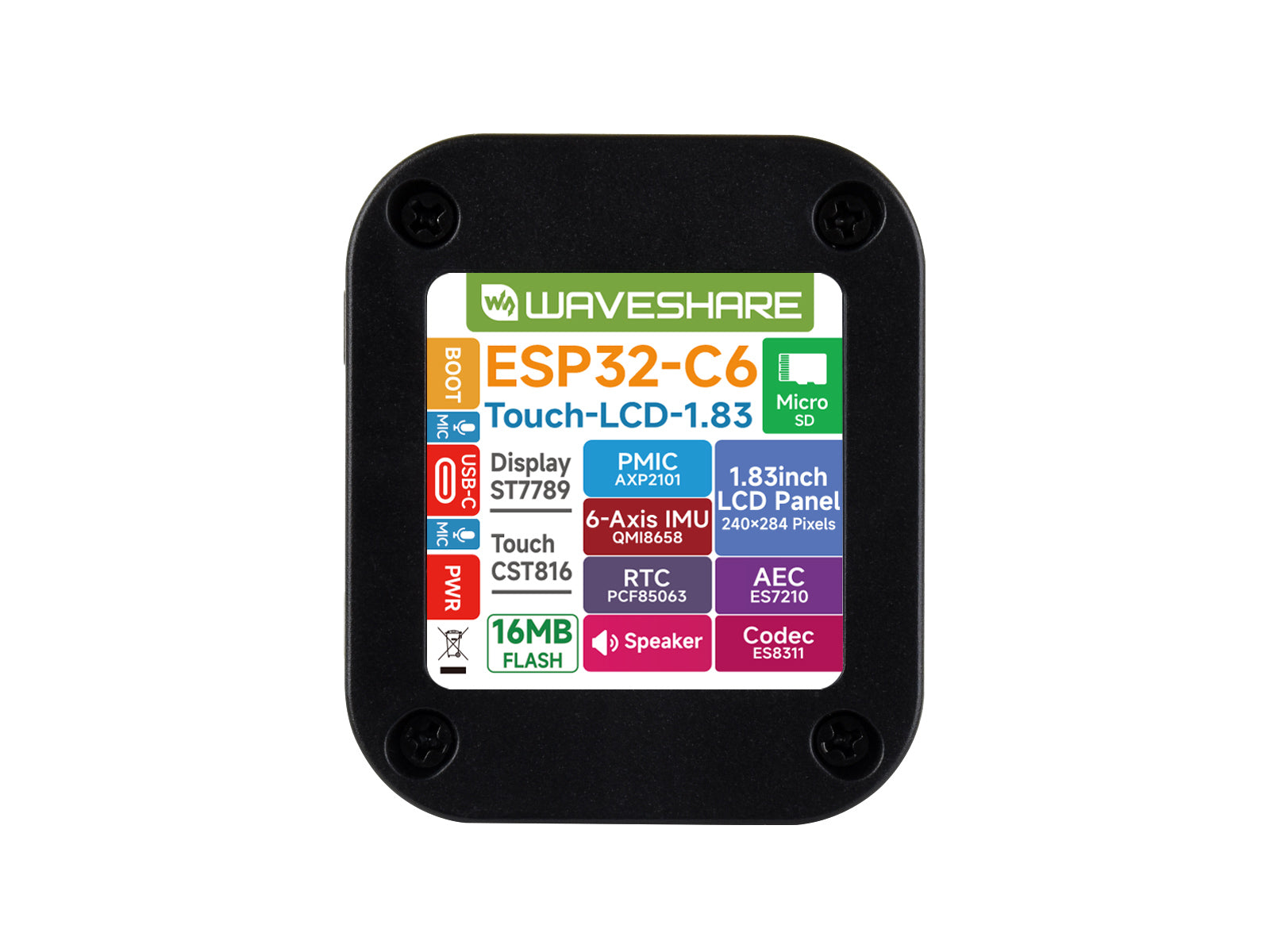

ESP32-C6-Touch-LCD-1.83 is a low-cost, high-performance microcontroller development board designed by Waveshare. Tiny size with onboard 1.83inch capacitive LCD display, Lithium Batt. recharge chip, audio codec IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, and so on, specifically designed for the prototype development and function verification of wearable AI voice-interaction agent applications.

Key features include:

• Equipped with a high-performance RISC-V 32-bit processor with up to 160MHz operating frequency and a low-power RISC-V 32-bit processor with up to 20MHz operating frequency
• Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Onboard 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM and external 16MB Flash memory
• Type-C port, easier to use
• Onboard 1.83inch capacitive touch display, 240 × 284 resolution, 65K color
• Built-in ST7789P display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
• Onboard PCF85063 RTC chip, powered by Lithium batt. through AXP2101 chip for uninterrupted power supply
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
• Equipped with dual microphone array with noise reduction and echo cancellation circuit, suitable for near/far-field wake-up
• Onboard ES8311 audio codec chip, microphones, and speaker
• Adapting GPIO, I2C, USB and UART pads for external devices connection and debugging, enabling flexible peripheral configuration
• Supports accurate control such as flexible clock and independent module power setting to realize low power consumption in different scenarios
• High touch screen transmittance, fast response and long lifetime
