ESP32-P4-WIFI6 7inch 5-Point Touch Display Development Board, Based On ESP32-P4 And ESP32-C6, 1024 × 600 Resolution, Supports Wi-Fi 6 / Bluetooth 5 (LE), Optional For OV5647 Camera

ESP32-P4-WIFI6 7inch Touch Display Development Board

High-performance development board based on ESP32-P4 and ESP32-C6

Rich Human-machine Interfaces

Version Options

ESP32-P4-WIFI6-Touch-LCD-7B Standard version

ESP32-P4-WIFI6-Touch-LCD-7B-C with OV5647 camera

Features

ESP32-P4-WIFI6-Touch-LCD-7B is a high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. Equipped with 7inch 1024 × 600 touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed communication. The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 TF card slot, dual microphones (supports echo cancellation), speaker header and RTC battery holder, etc.
• Adapting 2*12 GPIO header with 17 x remaining programmable GPIOs
• Onboard RS485, CAN, I2C, and UART headers for easy communication with industrial equipments
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Display Specifications

Model	7inch IPS touch display
Resolution	1024 × 600
Comm Interface	Supports RGB565, RGB666, RGB888
Display Panel	IPS
Touch Type	Capacitive touch
Touch Chip	GT911
Brightness	350cd/m²
Contrast Ratio	600:1
Viewing Angle	160°
Outline Dimension (H×V)	99.17 × 164.28 (mm)
Display Area (H×V)	86.42 × 154.58 (mm)
Color	16.7M

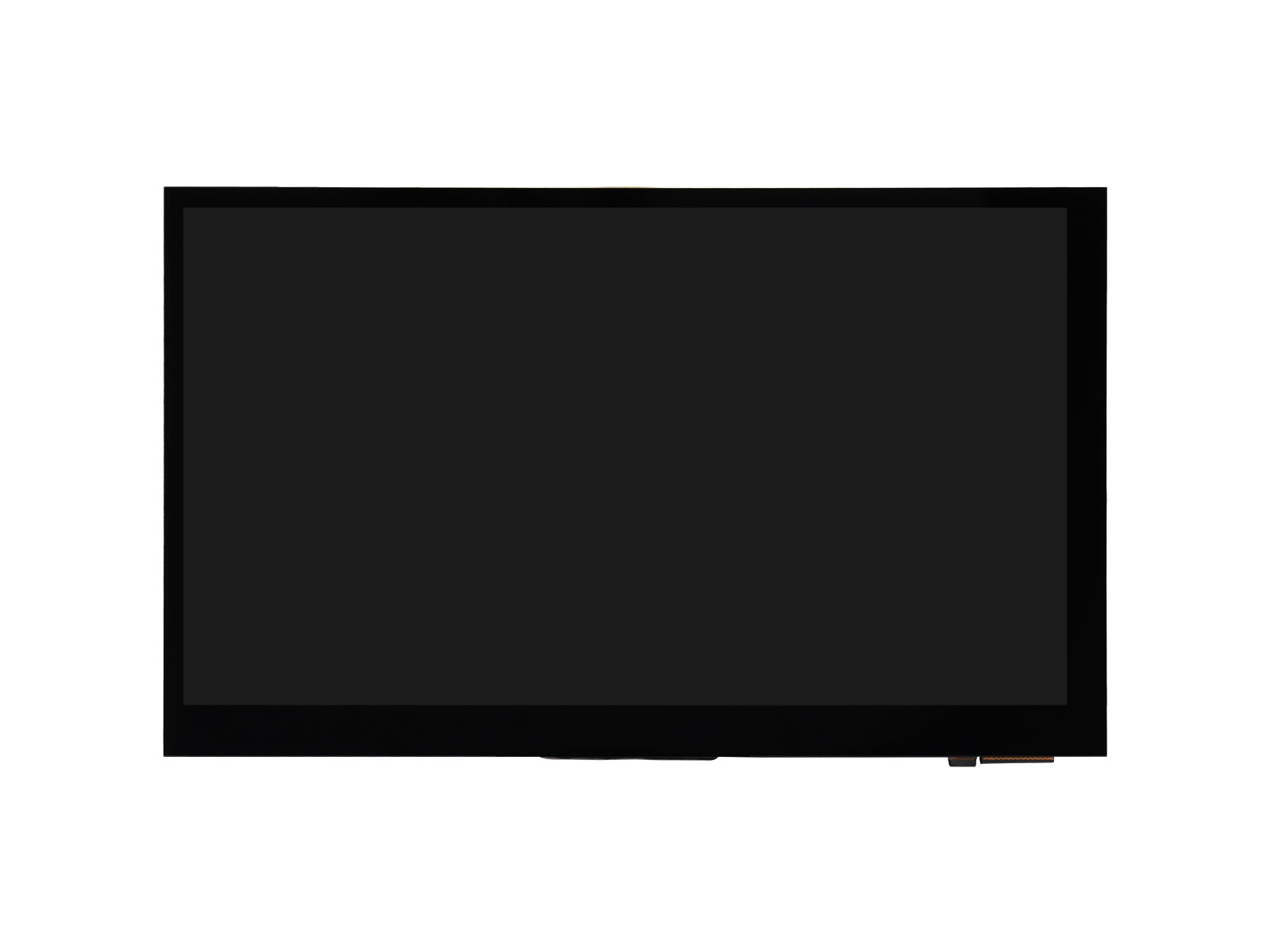

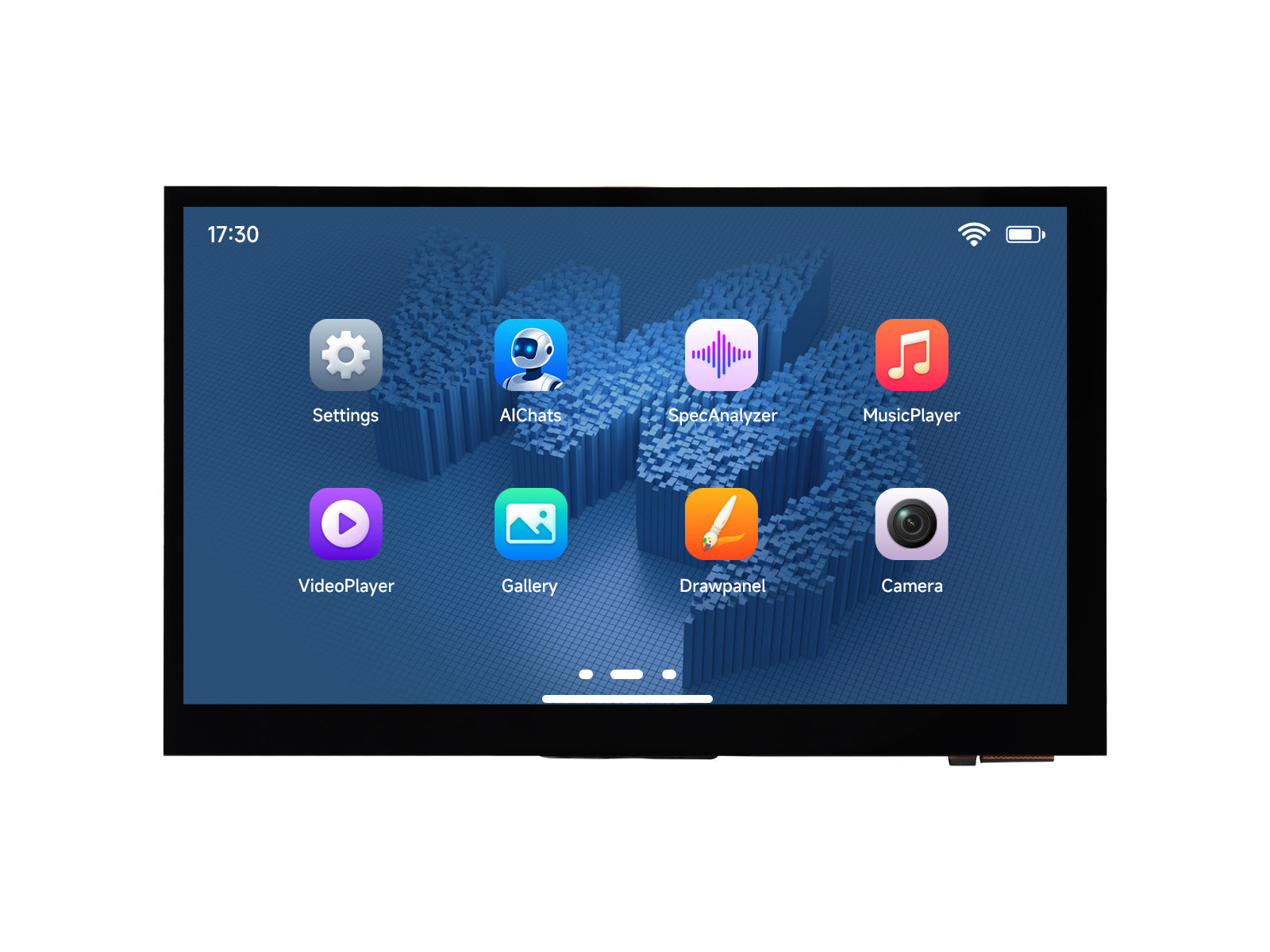

7inch IPS touch screen

160° wide viewing angle, Excellent display performance, high contrast

Capacitive 5-point touch

Supports 5-point sensitive touch, seamlessly combining intuitive operation with rapid response for efficient and convenient development

Supports expanding multiple peripherals

Supports the expansion of multiple peripherals via CAN, RS485, UART and I2C interfaces

Audio input / output

Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meet daily audio application scenarios

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

Highly integrated & powerful performance

Adopts ESP32-P4-Core module, with built-in ESP32-P4 and 32MB Nor Flash

Wi-Fi 6 and Bluetooth module

onboard ESP32-C6-MINI module extends 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4, using SDIO interface protocol for stable connection and efficient transmission

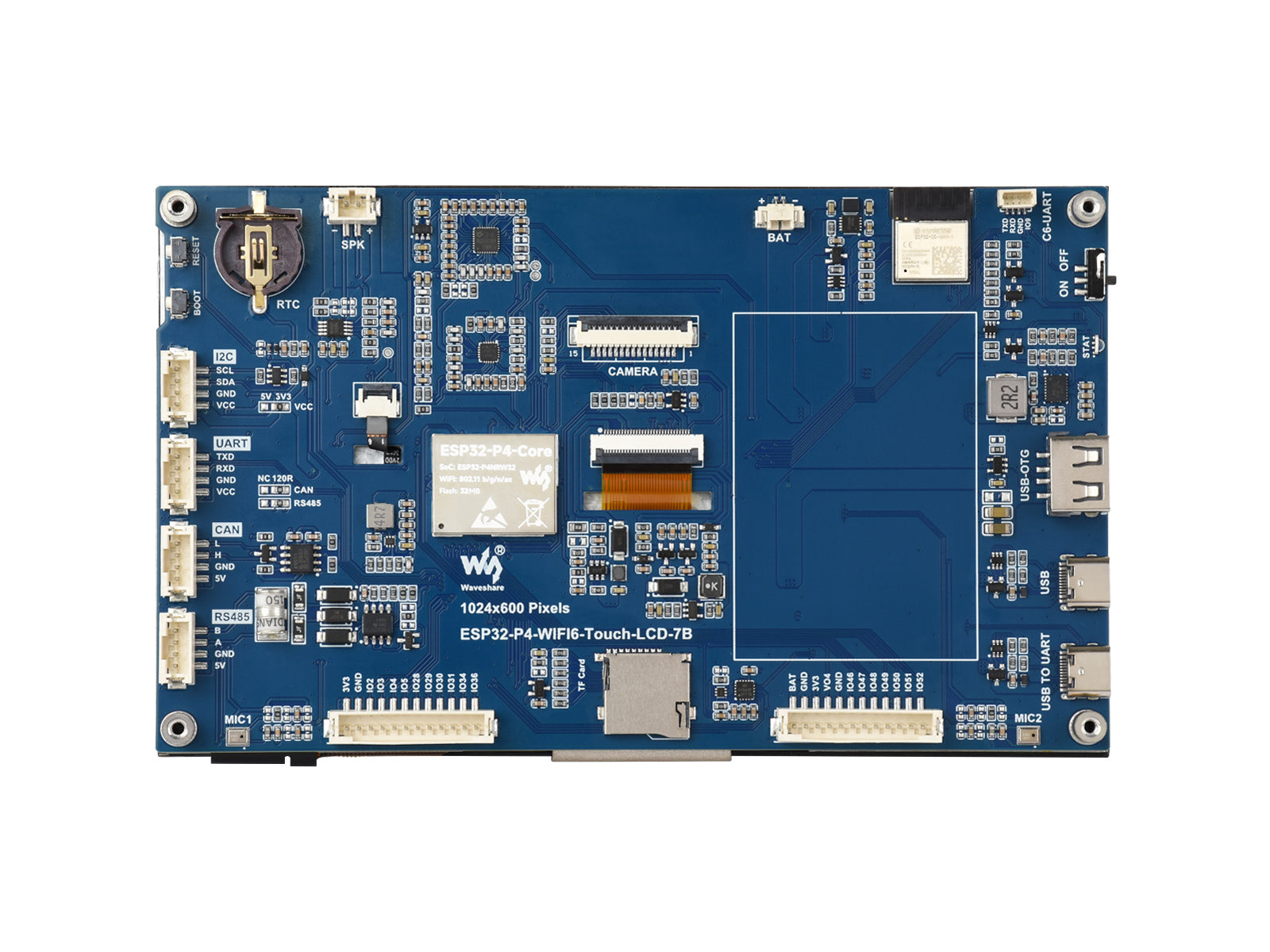

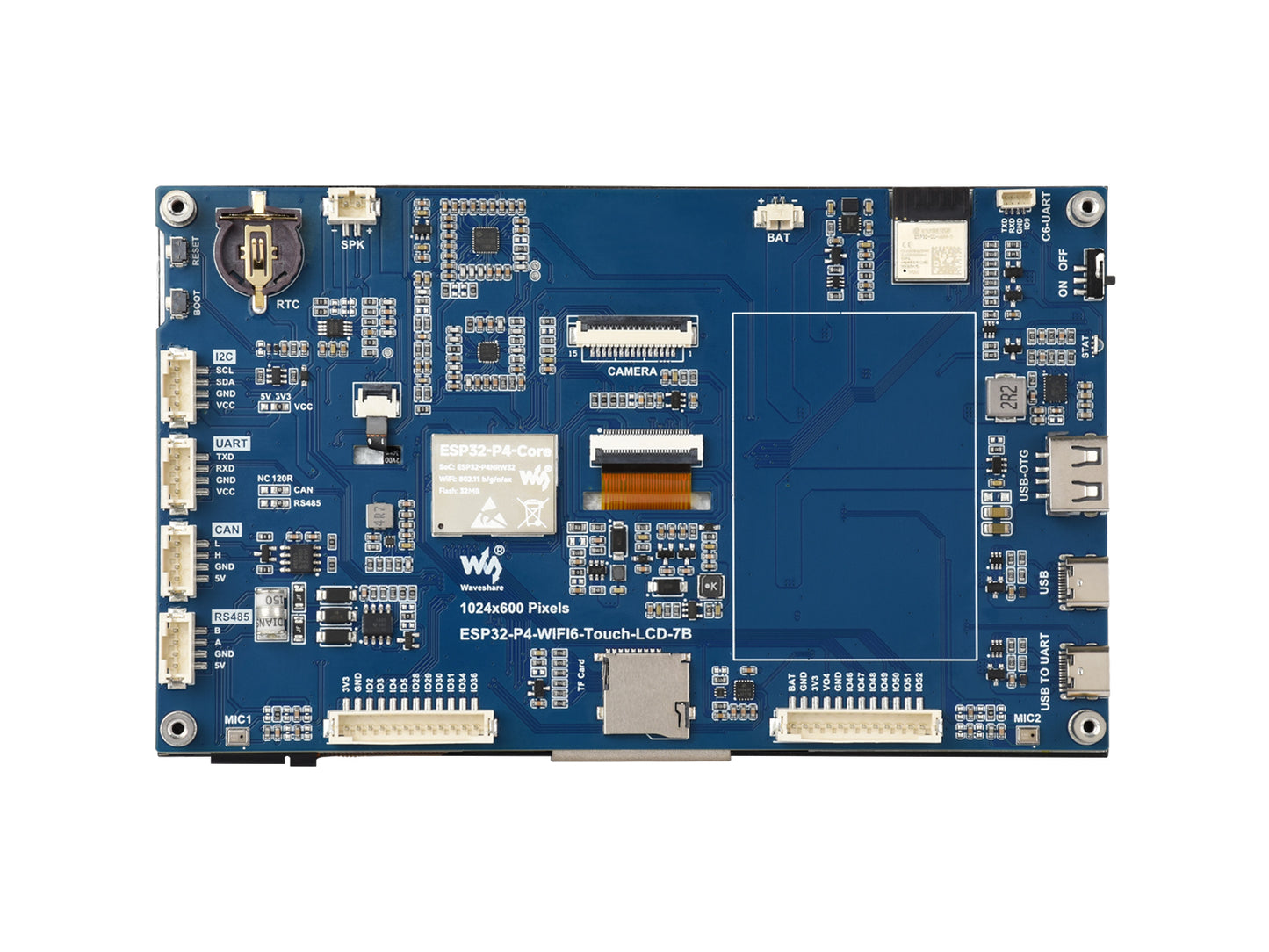

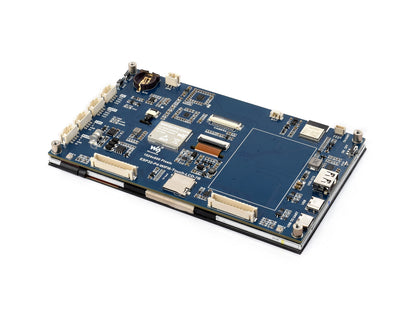

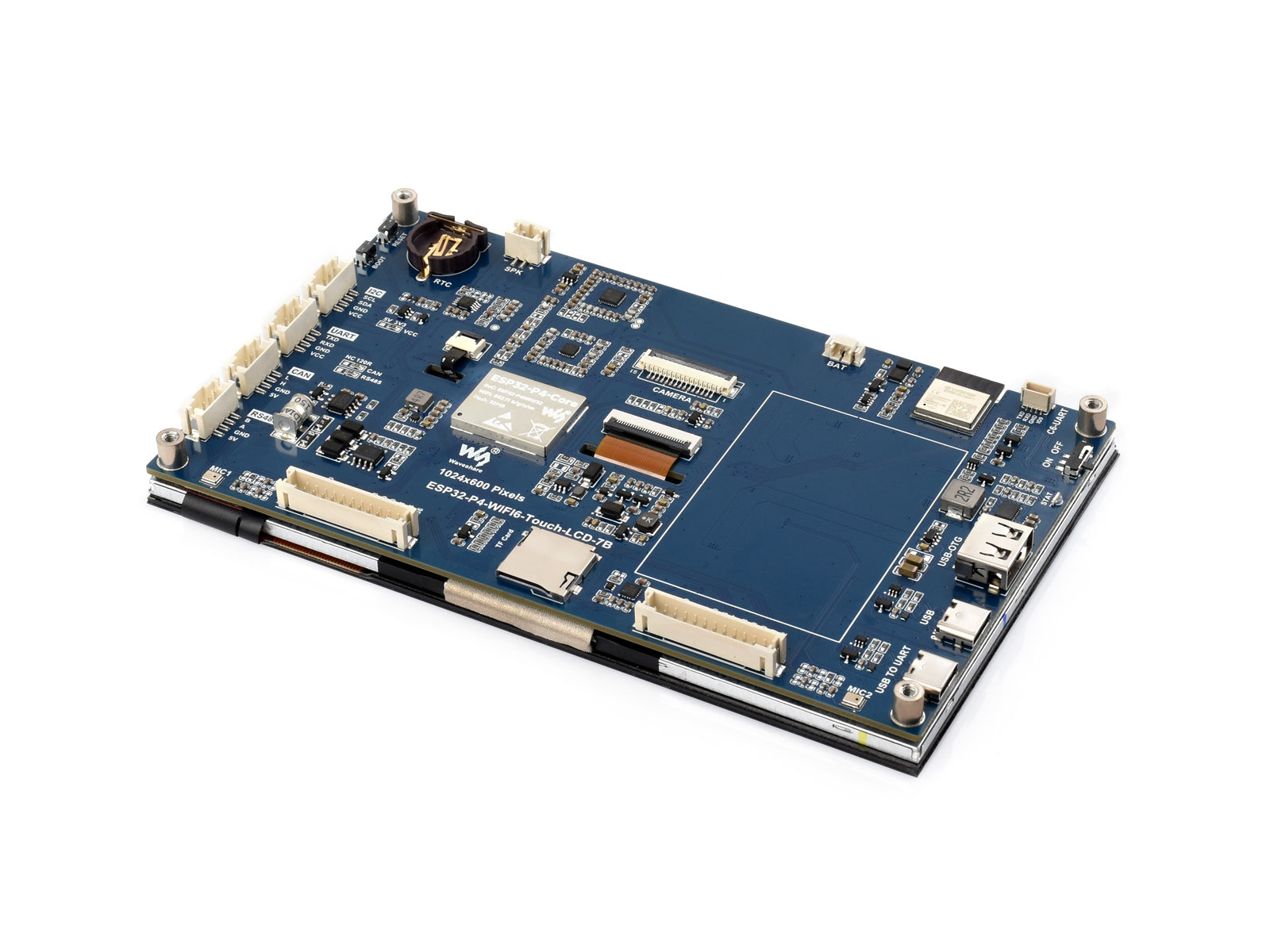

What's On Board

1. ESP32-P4-Core integrated ESP32-P4NRW32 and 32MB Nor Flash
2. ESP32-C6-MINI-1 module SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE)
3. ESP32-C6 UART header
4. ES8311 low-power audio codec chip for audio encoding and decoding
5. ES7210 echo cancellation chip Echo cancellation algorithm chip, used to eliminate echo and improve audio capture accuracy
6. MIPI DSI LCD interface for connecting MIPI 7inch LCD
7. Touch panel connector
8. MIPI-CSI (2-lane) camera interface 15Pin pitch 1.0mm connector for connecting MIPI (2-lane) cameras, supports RPi FPC Camera (B)/RPi Camera (B) and other cameras
9. MX1.25 battery interface (forward polarity)
10. PH 2.0 speaker header (non-polarized)
11. RTC battery holder 1220 size (12mm diameter*2mm thickness), supports only rechargeable 3V~3.3V Batt.
12. Power supply ON/OFF switch
13. LED operating status indicator
14. Type-A port USB OTG 2.0 High Speed port

15. Type-C USB1.1 FS port for power supply, programming burning, and debugging
16. USB TO UART Type-C port for power supply, programming burning, and debugging
17. RESET button
18. BOOT button Press it when powering on or resetting to enter download mode
19. PH2.0 4PIN I2C header for connecting to I2C devices
20. PH2.0 4PIN UART header for connecting to UART devices
21. PH2.0 4PIN CAN header for connecting to CAN devices
22. PH2.0 4PIN RS485 header for connecting to RS485 devices
23. Onboard microphones Microphone inputs with echo cancellation
24. PH2.0 12PIN GPIO headers with 17 x programmable GPIOs and power supply pins
25. TF card slot SDIO 3.0 interface protocol
26. Reserved space for placing rechargeable battery

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/ESP32-P4-WIFI6-Touch-LCD-7B

Lieferumfang

ESP32-P4-WIFI6-Touch-LCD-7B

1. ESP32-P4-WIFI6-Touch-LCD-7B x1
2. USB Type-A dual-plug cable x1
3. USB Type-A to Type-C cable ~1m x1
4. Speaker x1
5. SH1.0 4PIN cable ~150mm x1
6. PH2.0 12PIN cable ~200mm x2
7. PH2.0 4PIN cable ~200mm x4

1

2

3

4

5

6

7

ESP32-P4-WIFI6-Touch-LCD-7B-C

1. ESP32-P4-WIFI6-Touch-LCD-7B x1
2. RPi FPC Camera (C) x1
3. Camera foam pad x1
4. USB Type-A dual-plug cable x1
5. USB Type-A to Type-C cable ~1m x1
6. Speaker x1
7. SH1.0 4PIN cable ~150mm x1
8. PH2.0 12PIN cable ~200mm x2
9. PH2.0 4PIN cable ~200mm x4

1

2

3

4

5

6

7

8

9
