SKU:WSAL27932

ESP32-S3 1.69inch Display Development Board, 32-Bit 240MHz LX7 Dual-Core Processor, 240×280 Pixels, Supports WiFi/Bluetooth, Compact size, Accelerometer And Gyroscope Sensor, Micro LCD Display With ESP32-S3

ESP32-S3-LCD-1.69

Embedded with ST7789V2 Display Driver Chip, SPI Communication

Version Options

ESP32-S3-LCD-1.69without touch control

ESP32-S3-Touch-LCD-1.69 with touch control

Features

ESP32-S3-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, embedded with 240MHz dual-core processor, tiny size, with onboard 1.69inch 262K LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), WiFi/Bluetooth antenna, RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Type-C connector, keeps it up to date, easier to use
• Onboard 1.69inch 240×280 pixels 262K display for clear color pictures
• Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
• Onboard RST, BOOT and a programmable PWM button for easy custom function development
• Onboard 3.7V MX1.25 lithium battery recharge/discharge header
• Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

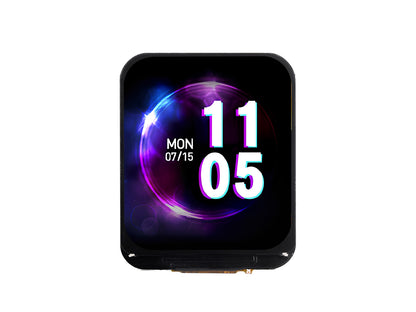

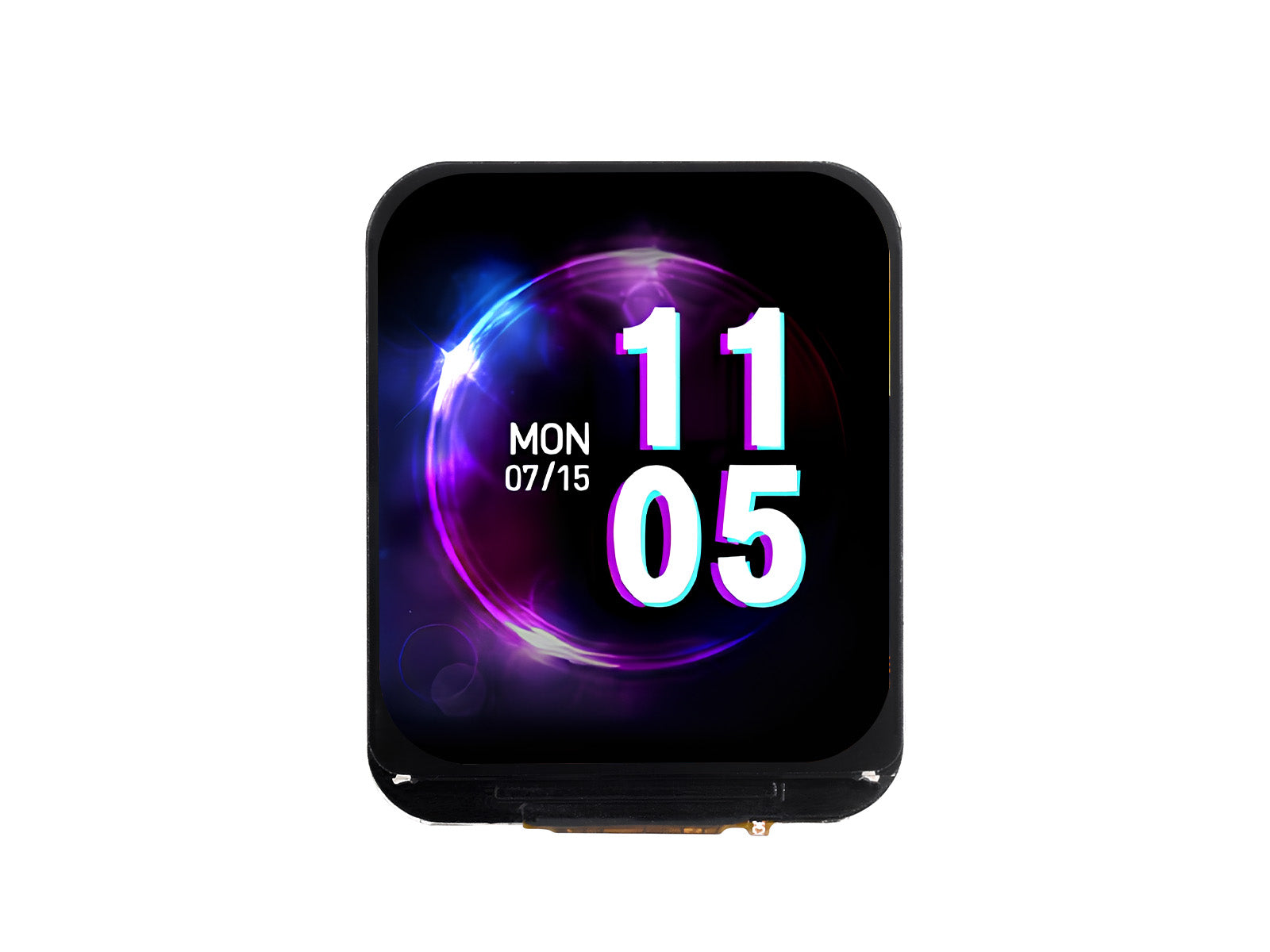

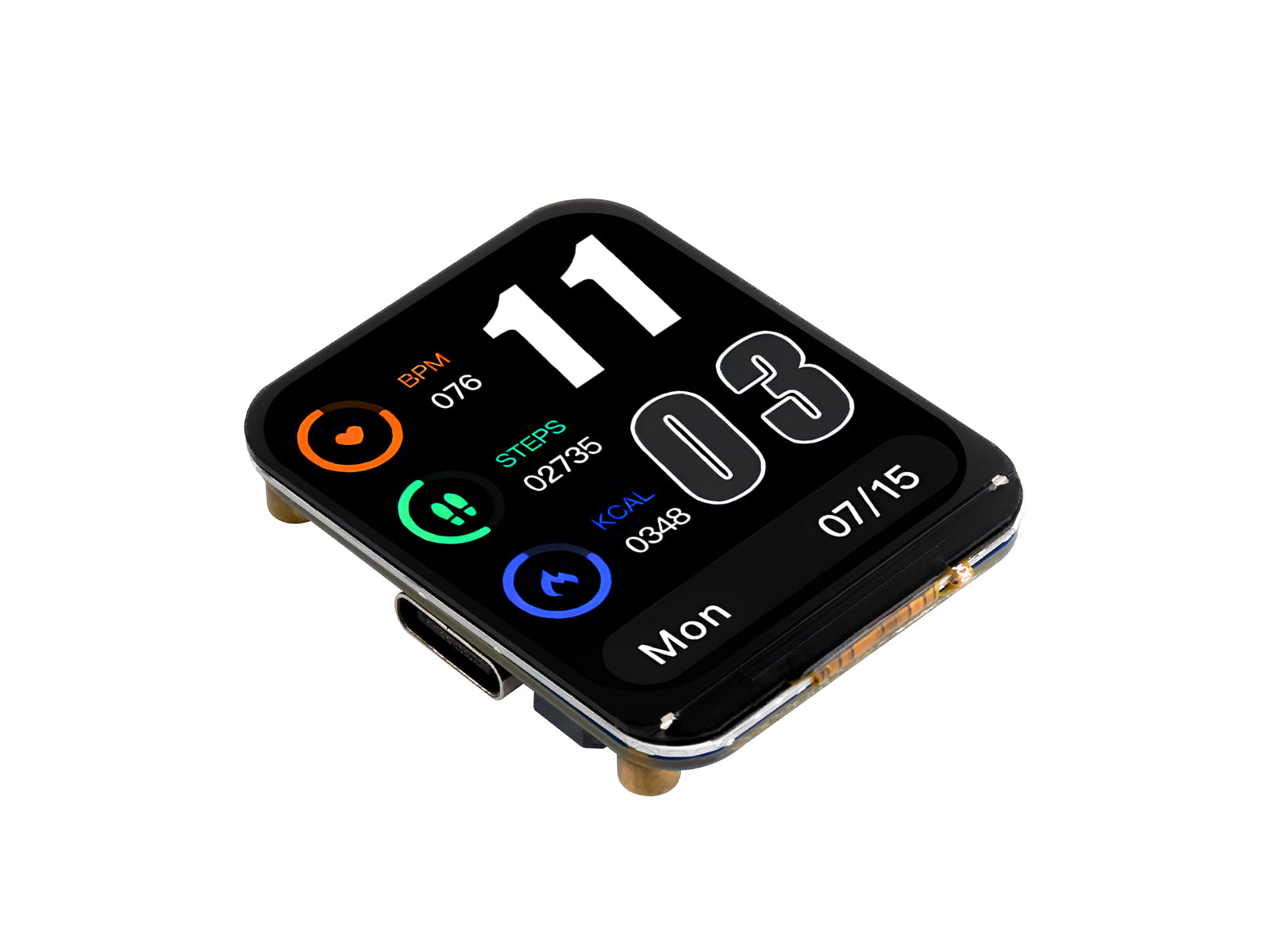

Onboard 1.69inch LCD Screen

IPS Panel, 240×280 Resolution, 262K Color, Suitable for various application scenarios

WIFI And Bluetooth Support

supports 2.4 GHz Wi-Fi (802.11 B/G/N) and Bluetooth 5 (LE), Onboard Antenna

Application examples

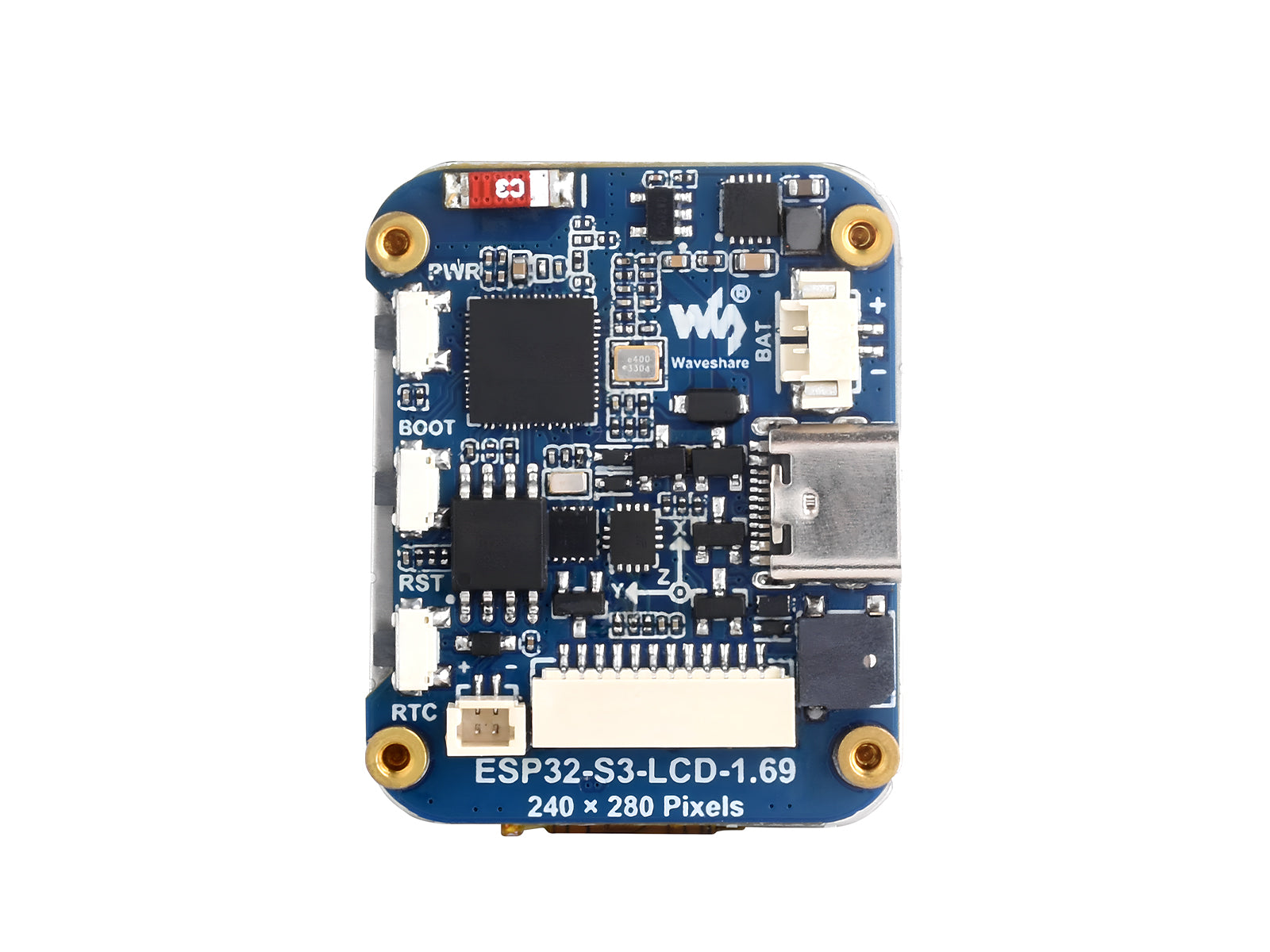

What's On Board

1. ESP32-S3R8 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM
2. W25Q128JVSIQ 16MB NOR-Flash
3. PCF85063 RTC chip
4. QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
5. ETA6098 high-efficiency Lithium battery recharge manager
6. MX1.25 battery header MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
7. USB Type-C connector for programming and log printing

8. Buzzer sound-producing peripheral
9. RTC battery header for connecting rechargeable RTC battery, supports charging and discharging
10. Onboard antenna supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
11. PWM button supports battery power supply control, single-press, double-press, multi-press and long-press operations
12. BOOT button
13. RST Reset button
14. 12PIN header

Pin Definition

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/ESP32-S3-LCD-1.69

Lieferumfang

1. ESP32-S3-LCD-1.69 x1
2. SH1.0 12PIN cable x1
