SKU:WSAL30733

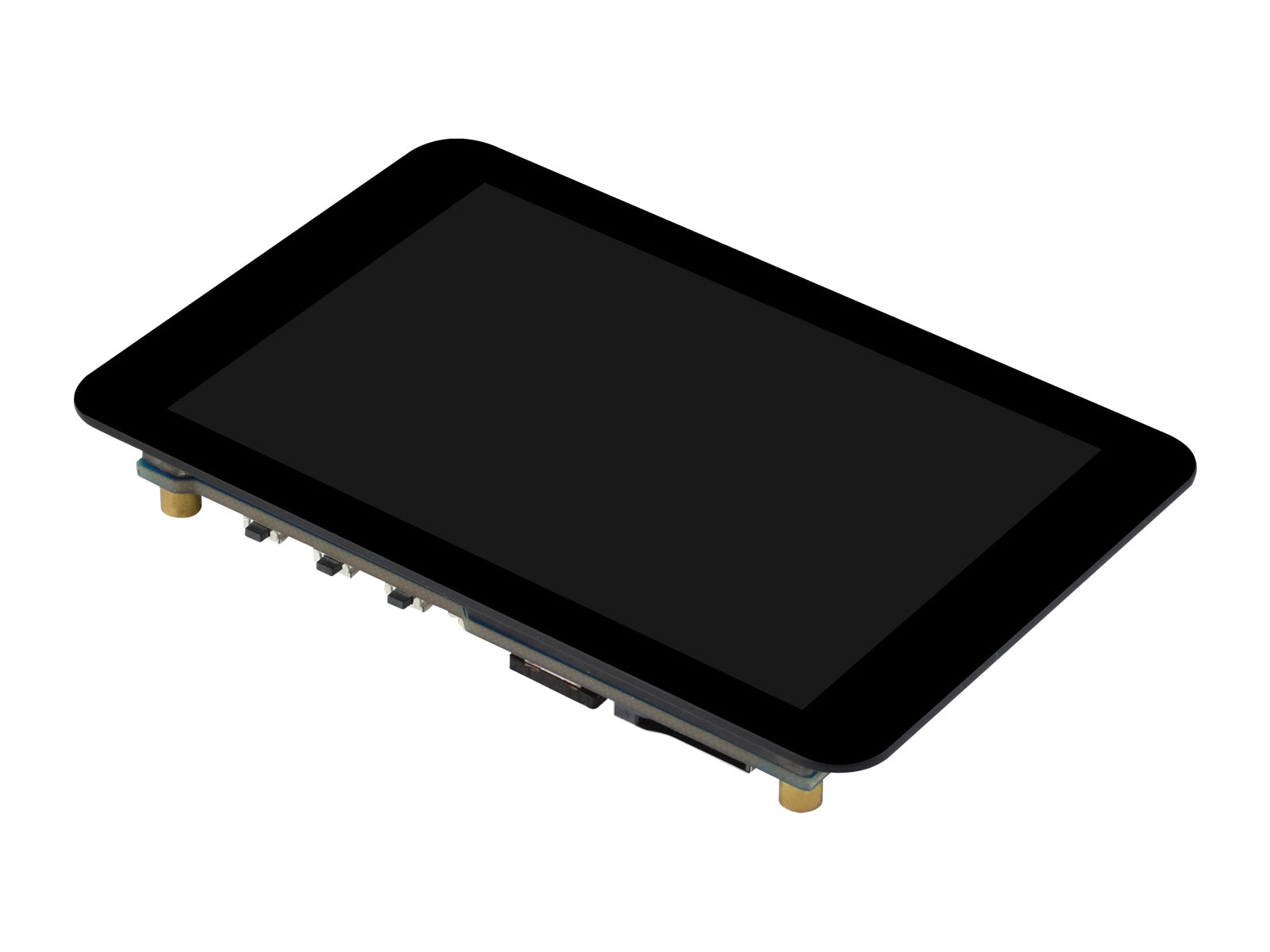

ESP32-S3 3.5inch Capacitive Touch Display Development Board, 320×480 Pixels, IPS Panel, 262K Color, Onboard Camera Interface, Supports Wi-Fi and Bluetooth 5, ESP32 With Display

ESP32-S3-Touch-LCD-3.5

Integrated audio input and output, enabling AI interaction and offline voice control

Version Options

ESP32-S3-Touch-LCD-3.5Standard version, without case

ESP32-S3-Touch-LCD-3.5-C with case and OV5640 camera

Features

ESP32-S3-Touch-LCD-3.5 is a high-performance, highly integrated MCU board designed by Waveshare. Onboard 3.5inch capacitive touch IPS display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate into the products quickly.

Key features include:

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Type-C connector, improving device compatibility, easier to use
• Onboard 3.5inch capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color
• Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
• Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
• Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
• Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
• Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640
• Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

Capacitive touch

Suitable for various smart device development, enabling human-machine interaction

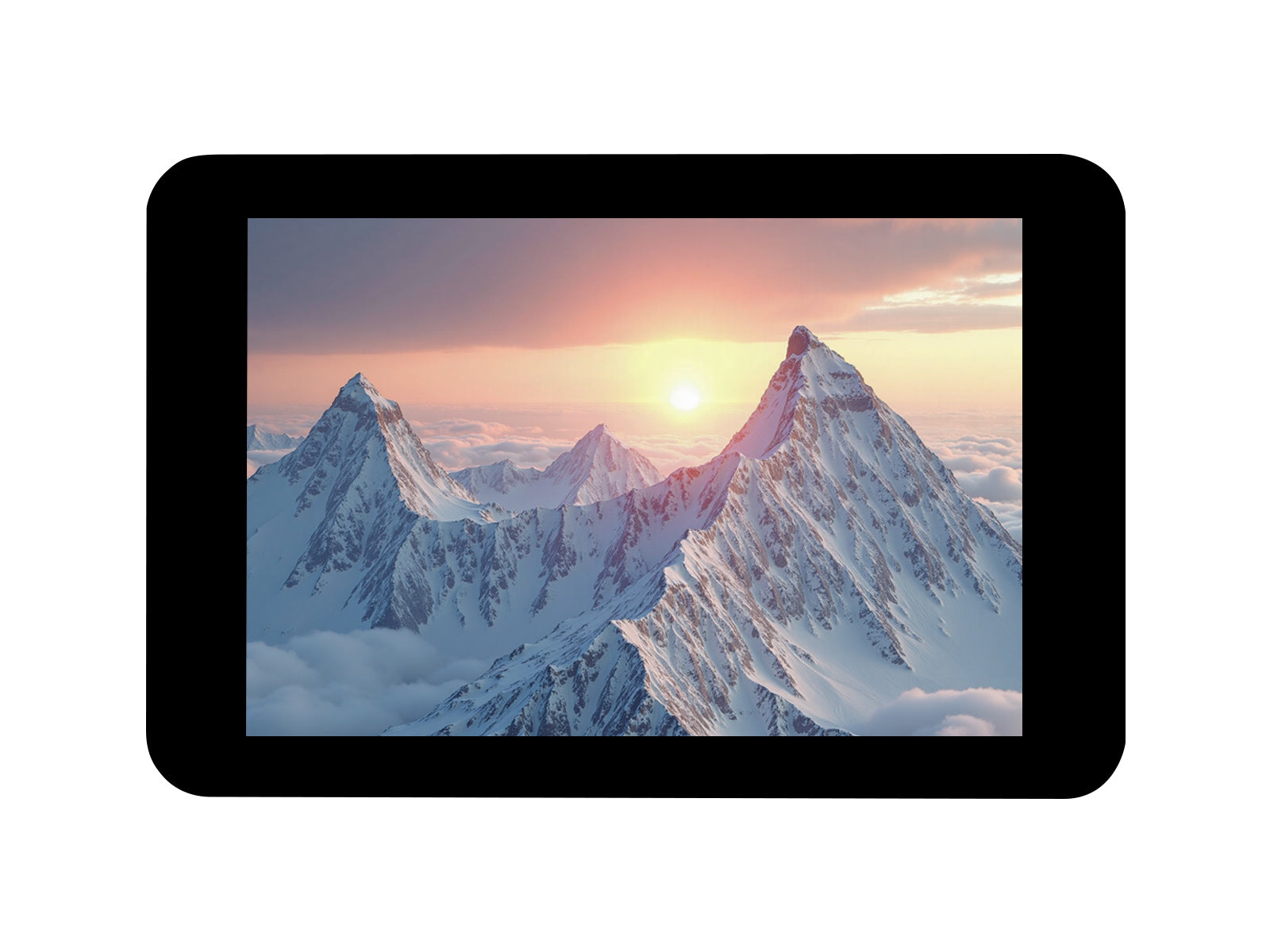

IPS Display Panel

Excellent display performance, 262K color, wide viewing angle

Onboard audio codec

Supports high-quality audio processing, providing clear and high-quality audio input and output

Supports OV2640 / 0V5640 and other mainstream cameras

Optional for OV5640 5MP camera module, suitable for image capture, video monitoring and other applications to meet different needs

* The OV5640 5MP camera module is only included in the ESP32-S3-Touch-LCD-3.5-C version.

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

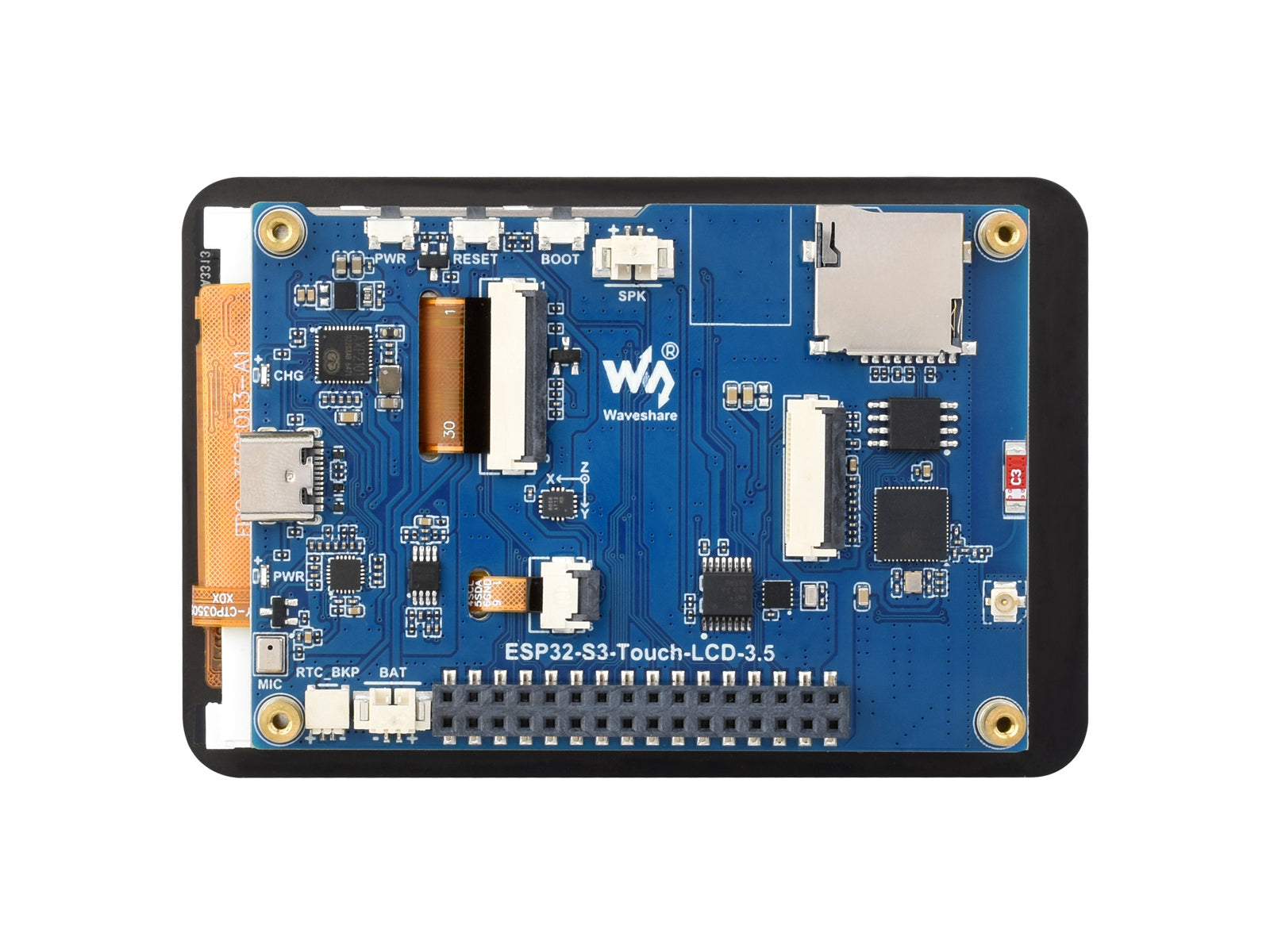

What's On Board

1. ESP32-S3R8 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM
2. Onboard antenna
3. W25Q128JVSIQ 16MB NOR-Flash
4. Camera interface Supports mainstream cameras such as OV5640 / OV2640
5. TF card slot
6. IPEX 1 antenna connector Reserved connector, enabled via resoldering an onboard resistor
7. MX1.25 speaker header
8. BOOT button
9. RESET button
10. PWR button
11. AXP2101 Highly integrated power management IC

12. Charge indicator
13. USB Type-C port
14. ES8311 Low power audio codec chip
15. Power supply indicator
16. Microphone
17. SH1.0 RTC battery headerfor connecting rechargeable RTC battery
18. MX1.25 Lithium battery header MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
19. 2.54mm pitch GPIO header Adapting available IO function pins for easy expansion
20. PCF85063 RTC chip
21. QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

Pin Definition

outline dimensions

ESP32-S3-Touch-LCD-3.5

ESP32-S3-Touch-LCD-3.5-C

Resources & Services

Wiki:www.waveshare.com/wiki/ESP32-S3-Touch-LCD-3.5

ESP32 LCD Selection

Model	Core Configuration			display				onboard resources						Peripheral interfaces
	CPU	PSRAM	Flash	pixels	Interface	Display	Touch	IMU	RTC	TF	Speaker	mic	batteryheader
AMOLED display
ESP32-S3-Touch-AMOLED-2.41	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header
ESP32-S3-Touch-AMOLED-2.41-B	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header, with case
ESP32-C6-Touch-AMOLED-2.16	ESP32-C6	-	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.16	ESP32-S3R8	8MB	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.06	ESP32-S3R8	8MB	32MB	410 × 502	QSPI	CO5300	FT3168	√	√	√	√	√	√	I2C, UART, and USB reserved pads
ESP32-C6-Touch-AMOLED-2.06	ESP32-C6	-	16MB	410 × 502	QSPI	CO5300	FT3168	√	√	-	√	√	√	I2C, UART, and USB reserved pads
ESP32-S3-Touch-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	FT3168	√	-	√	-	-	√	40PIN header
ESP32-S3-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	-	√	-	√	-	-	√	40PIN header
ESP32-C6-Touch-AMOLED-1.8	ESP32-C6	-	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, USB pads
ESP32-S3-Touch-AMOLED-1.8	ESP32-S3R8	8MB	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-AMOLED-1.75	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75C	ESP32-S3R8	8MB	32MB	466 × 466	QSPI	CO5300	CST9217	√	-	-	√	√	√	I2C, UART, USB, GPIO pads
ESP32-C6-Touch-AMOLED-1.64	ESP32-C6	-	16MB	280 × 456	QSPI	CO5300	FT6146	√	-	√	-	-	√	22PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.64	ESP32-S3R8	8MB	16MB	280 × 456	QSPI	CO5300	FT3168	√	-	√	-	-	√	2 × 11PIN headers (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43-B	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.43	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601/C05300	FT3168/FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-S3-Touch-AMOLED-1.43-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601/C05300	FT3168/FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-S3-Touch-AMOLED-1.32	ESP32-S3-PICO-1-N8R8	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
LCD display
ESP32-Touch-LCD-3.5	ESP32-D0WDR2-V3	2MB	16MB	320 × 480	SPI	ST7796	FT6336	-	√	√	√	√	√	32PIN GPIO header
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.49	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-Touch-LCD-3.49B	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-LCD-3.16	ESP32-S3R8	8MB	16MB	320 × 820	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, USB headers
ESP32-S3-Touch-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	CST328	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	-	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	GT911	√	√	√	-	-	√	20PIN header
ESP32-S3-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	-	√	√	√	-	-	√	20PIN header
ESP32-S3-Touch-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	GT911	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1B	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	CST816	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	-	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-Touch-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-Touch-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-Touch-LCD-1.85C	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85C-BOX	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	-	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-LCD-1.83	ESP32-S3R8	8MB	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.83	ESP32-C6	-	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	CST816T	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-C6-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	-	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-S3-Touch-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	CST816	√	√	-	-	-	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	-	√	√	-	-	-	√	SH1.0 12PIN header
ESP32-S3-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	JD9853	AXS5106L	-	-	√	-	-	√	22PIN header
ESP32-S3-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-LCD-1.47B	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	√	-	√	-	-	√	18PIN header
ESP32-C6-Touch-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	JD9853	AXS5106L	√	-	√	-	-	√	22PIN header
ESP32-C6-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-Touch-LCD-1.46B	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-S3-Touch-LCD-1.46	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-C6-LCD-1.3	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	-	-	-	√	2.54mm 12PIN header
ESP32-C6-LCD-1.3-M	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	-	-	-	√	2.54mm 12PIN header
ESP32-S3-LCD-1.3	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header
ESP32-S3-LCD-1.3-B	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case
ESP32-S3-LCD-1.3-C	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case and prism cube
ESP32-S3-Touch-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	CST816	√	-	-	-	-	√	SH1.0 12PIN header
ESP32-S3-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	-	√	-	-	-	-	√	2 × 20PIN header (1.27mm pitch)
ESP32-C3-LCD-0.71	ESP32-C3FH4	-	4MB	160 × 160	SPI	GC9D01	-	-	-	-	-	-	√	12PIN GPIO pads
ESP32-S3-LCD-0.85	ESP32-S3	8MB	8MB	128 × 128	SPI	GC9107	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-GEEK	ESP32-C6	-	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO
ESP32-S3-GEEK	ESP32-S3R2	2MB	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO

Lieferumfang

ESP32-S3-Touch-LCD-3.5

1. ESP32-S3-Touch-LCD-3.5 x1
2. 6Ω 1W speaker x1

1

2

ESP32-S3-Touch-LCD-3.5-C

ESP32-S3-Touch-LCD-3.5 with case and OV5640 camera x1
