SKU:WSAL26956

ESP32-S3 Development Board, 32-bit LX7 Dual-core Processor, Integrates GC9A01 Display Driver Chip, With 1.28inch IPS Round LCD, 240×240 Resolution, Supports WiFi/Bluetooth, Round Display, With CNC Metal Case

ESP32-S3-LCD-1.28-B

Embedded GC9A01 Display Driver Chip, adopts CNC metal case

Features

ESP32-S3-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

• Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
• Type-C connector, keeps it up to date, easier to use

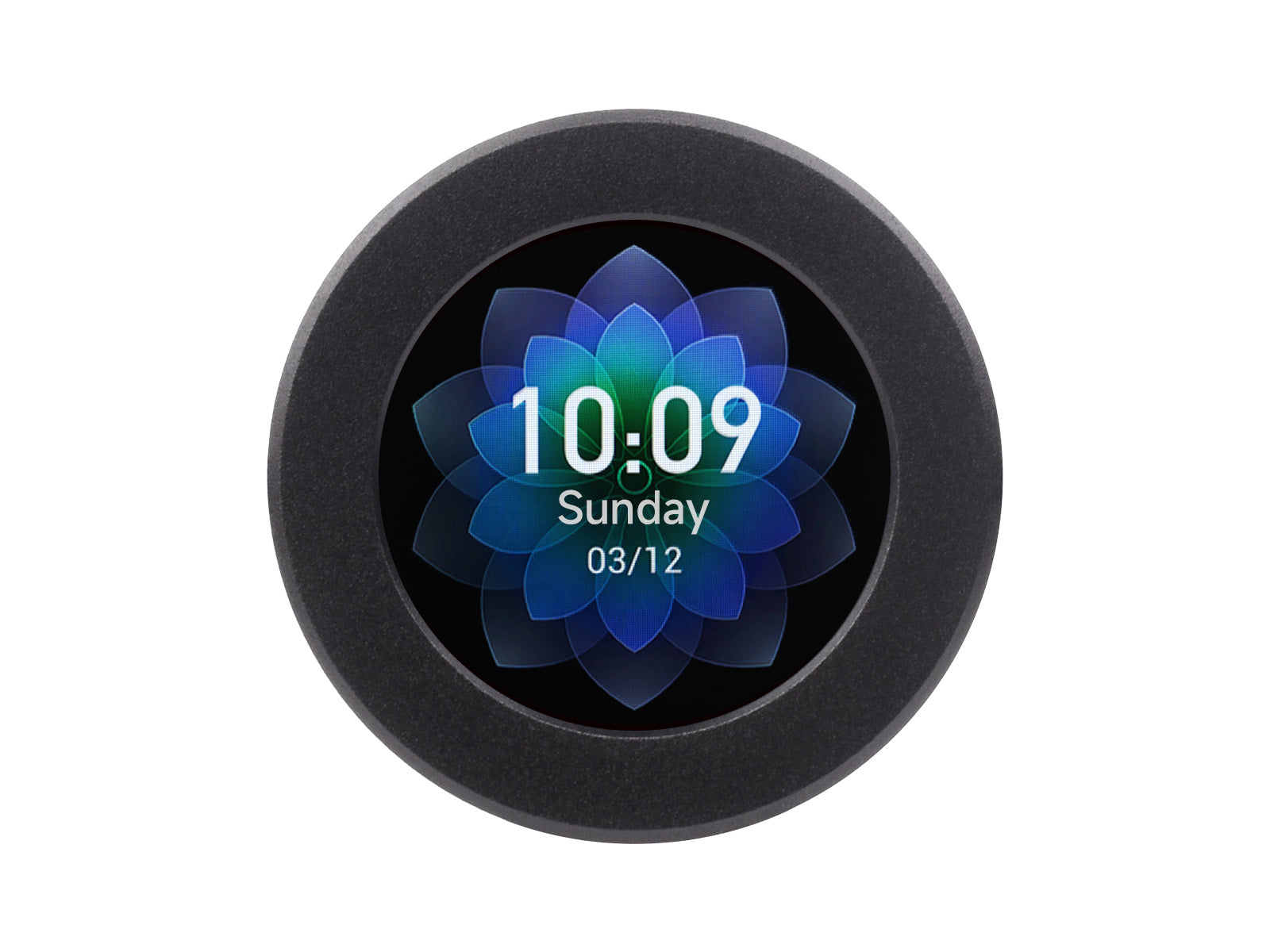

• Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
• Adopts CNC metal case with Acrylic dull-polish bottom plate
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
• Onboard 3.7V lithium battery recharge/discharge header and GPIO headers
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions

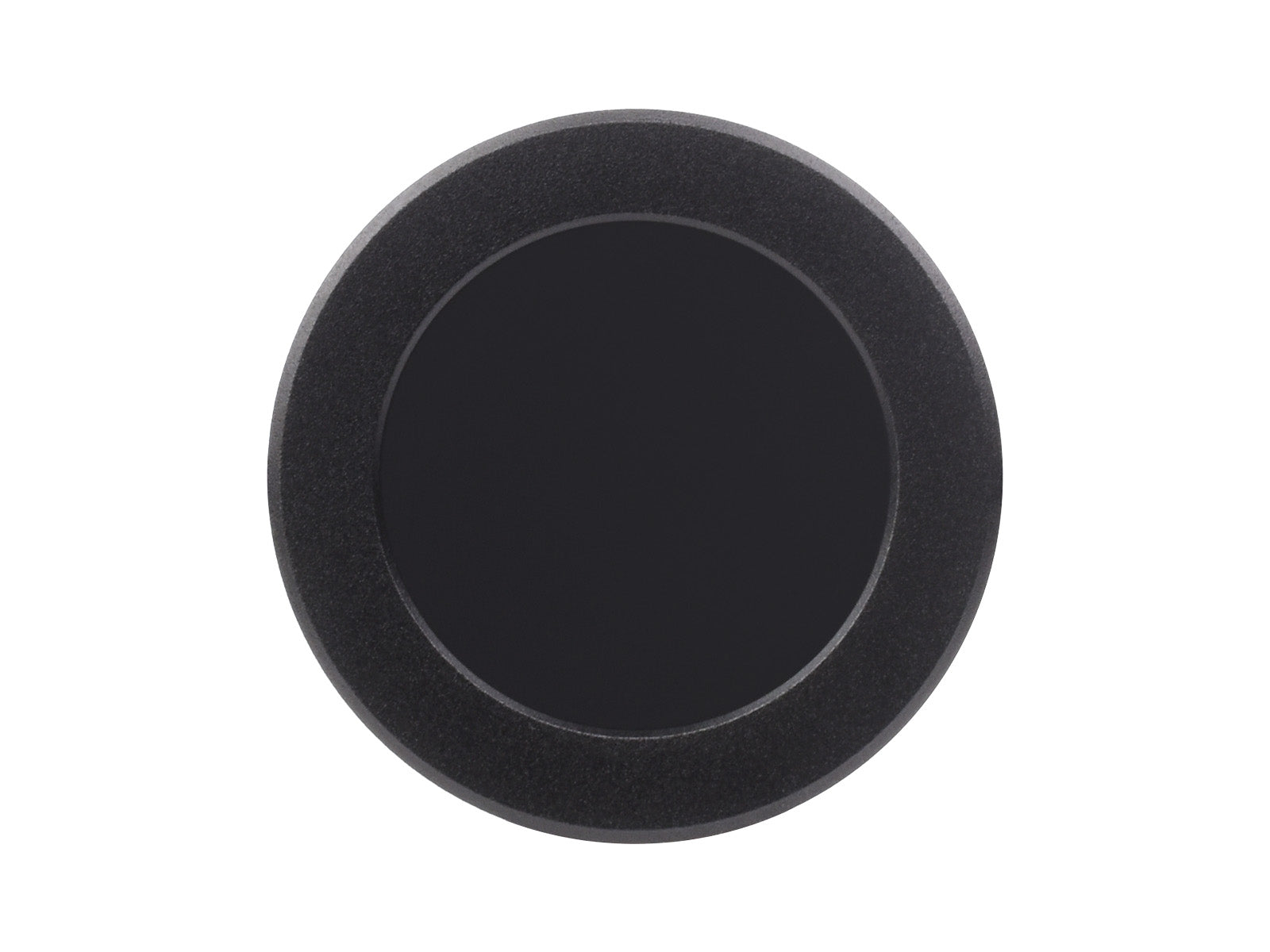

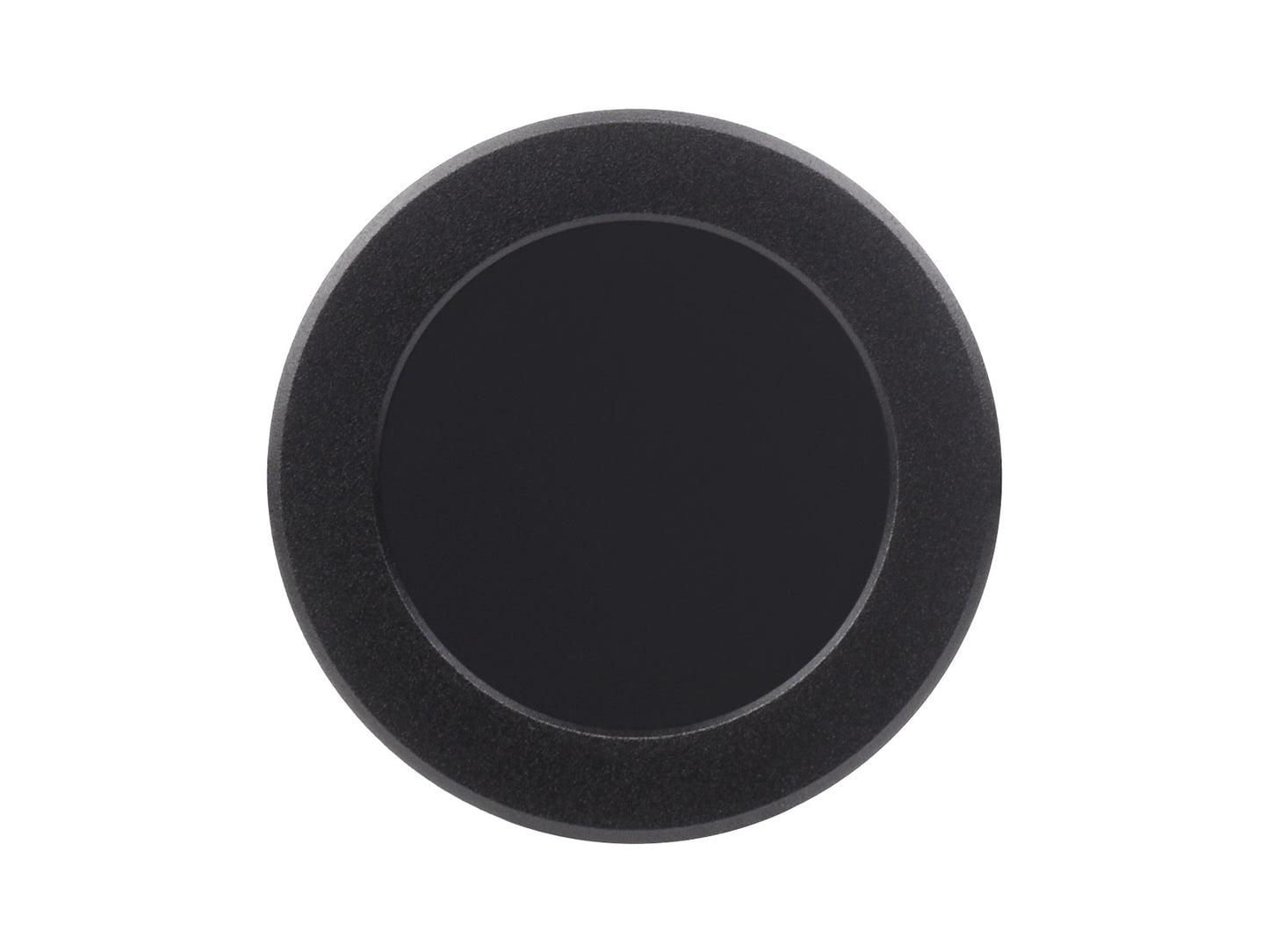

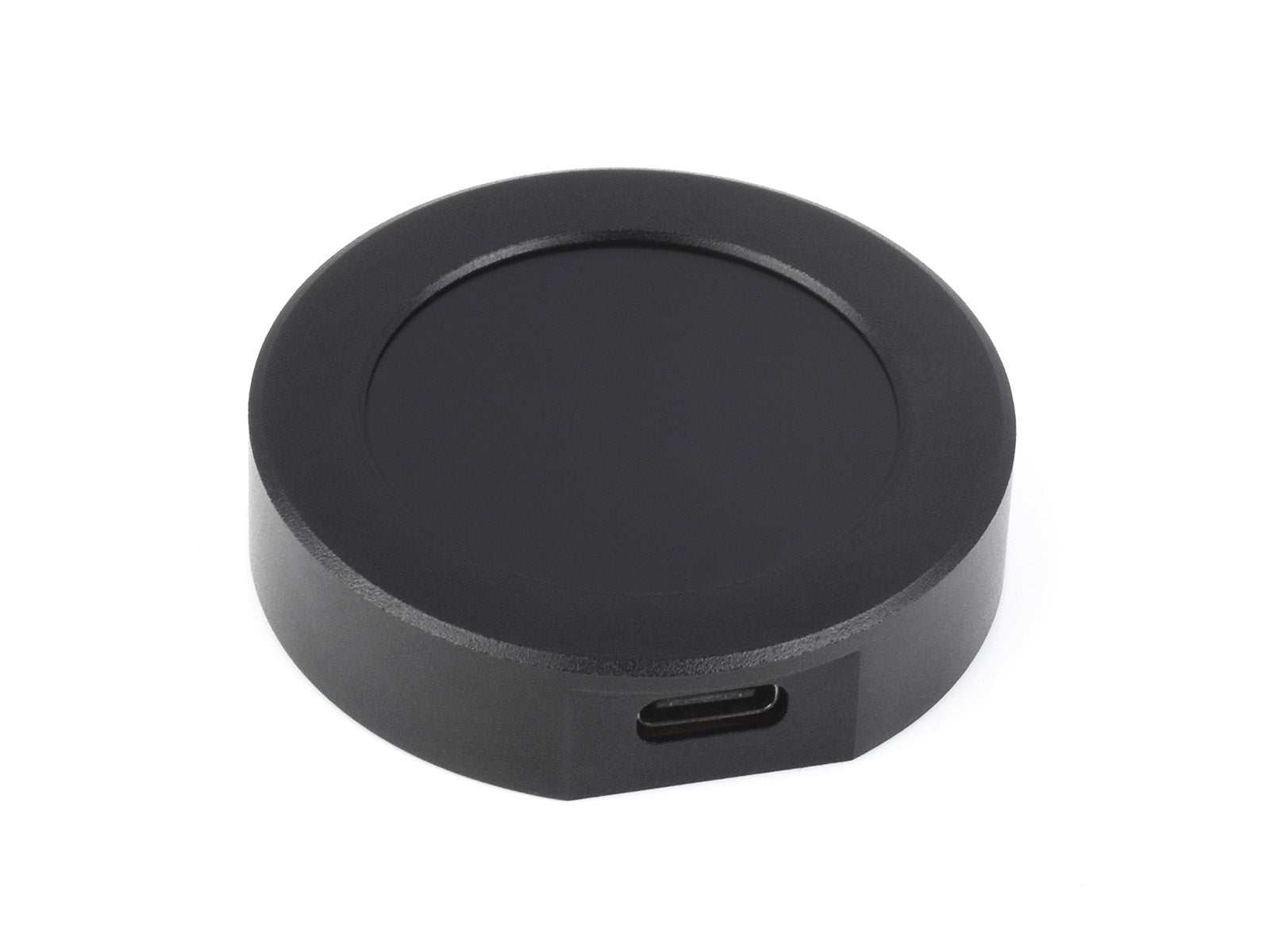

CNC metal case

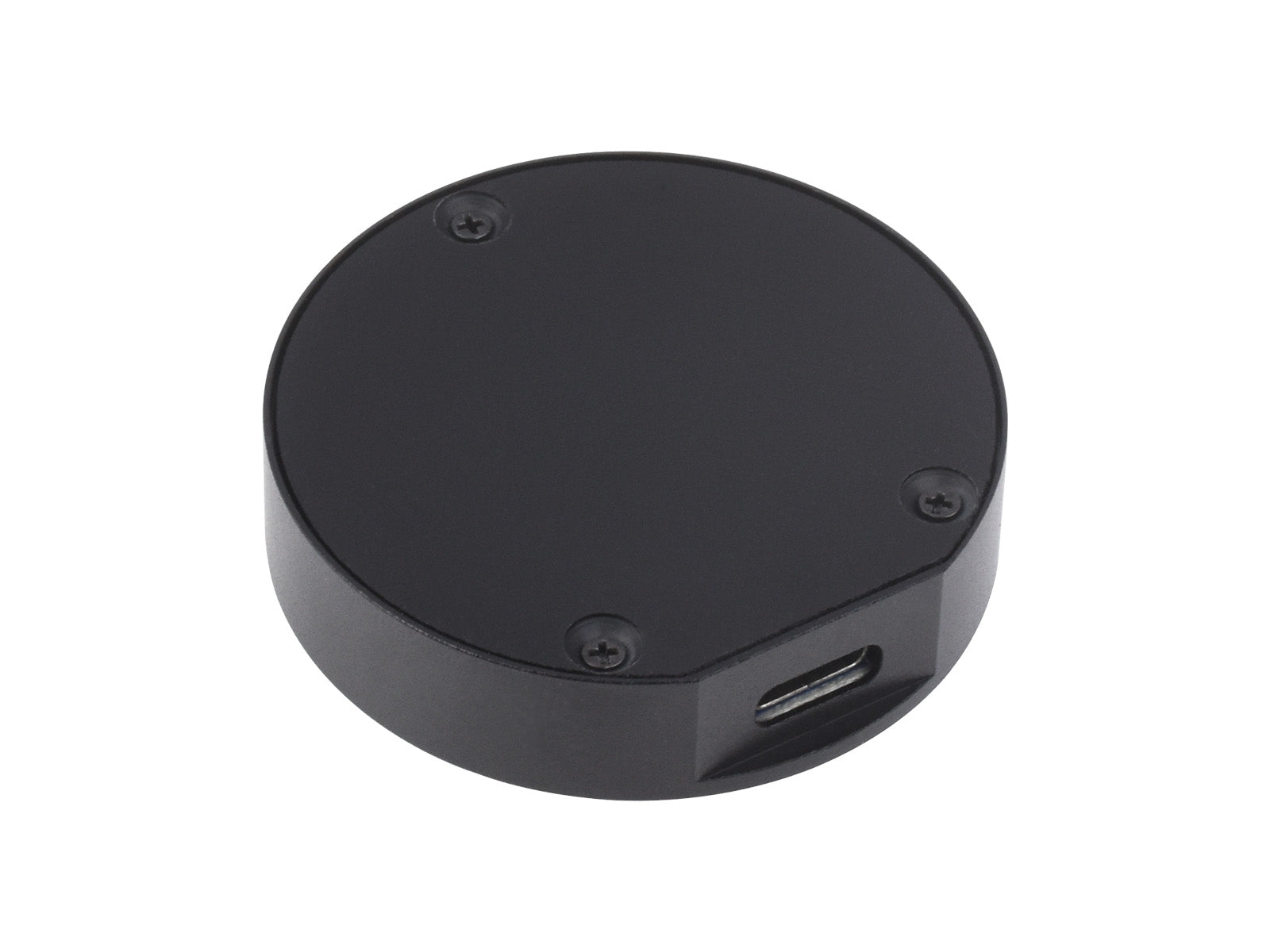

Adopts CNC metal case with Acrylic dull-polish bottom plate

30 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board

1. ESP32-S3R2 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
2. W25Q128JVSIQ 16MB NOR-Flash
3. QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
4. ME6217C33M5G 800mA output, low dropout, high rejection rate
5. CH343P USB to UART chip
6. ETA6096 high-efficiency Lithium battery recharge manager

7. 1.27mm pitch headers Adapting multiple GPIO pins
8. BOOT button Press it before resetting to enter download mode
9. RESET button
10. MX1.25 battery header MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
11. USB Type-C connector for programming and log printing
12. 2.4GHz ceramic antenna

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/ESP32-S3-LCD-1.28

Lieferumfang

1. ESP32-S3-LCD-1.28-B x1
2. Screwdriver x1
