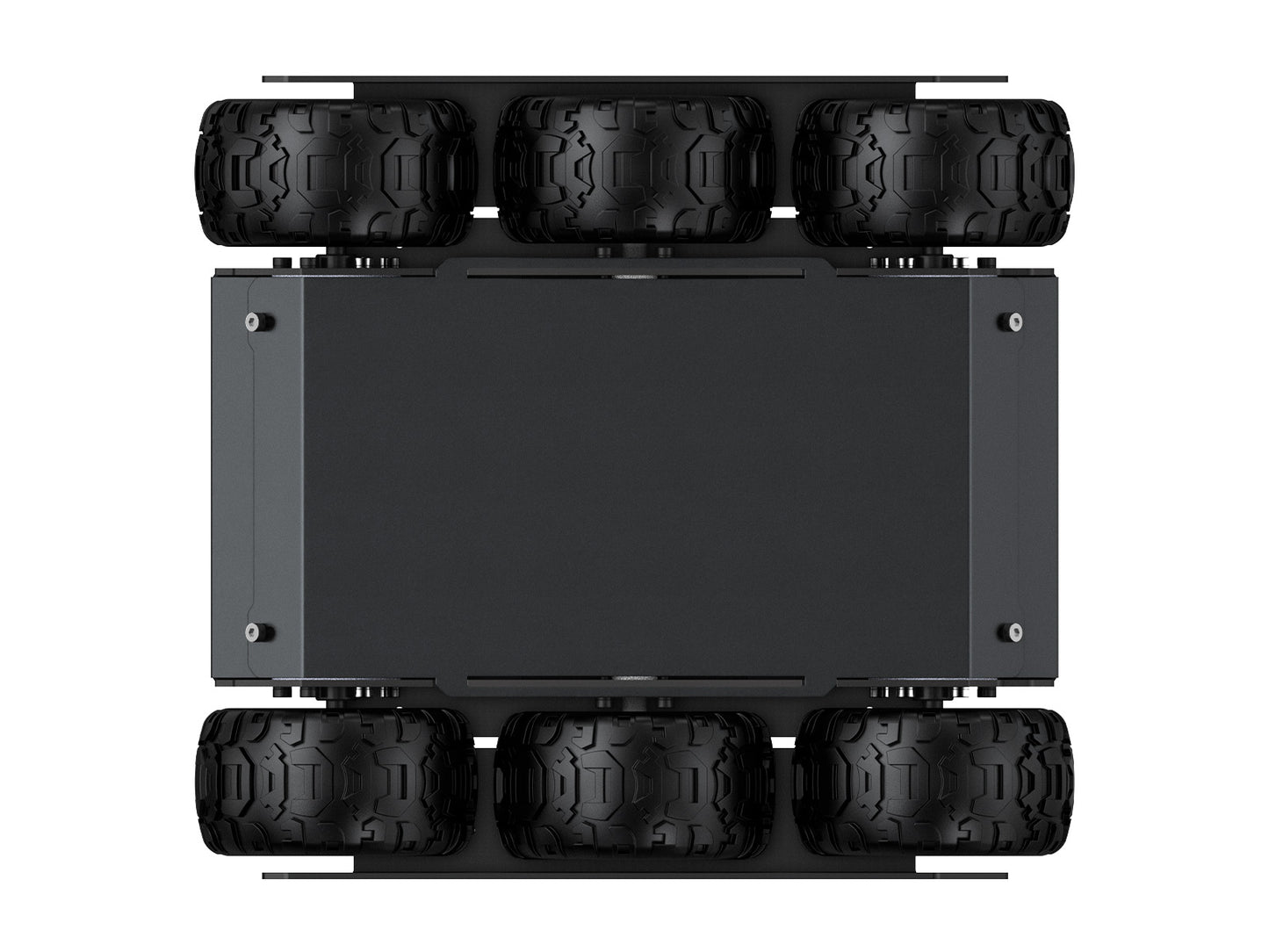

Flexible And Expandable 6x4 Off-Road UGV, With Extension Rails and ESP32 Slave Computer, 6 wheels 4WD Mobile Robot Chassis

TheUGV02 series is a 6 wheels × 4WD mobile robot chassis, which features superb off-road crossing ability and shock-absorbing performance, open source all code for secondary development. It supports multiple host computers (Raspberry Pi, Jetson Nano, Jetson Orin Nano, etc), the host computer can communicate with the ESP32 slave computer through the serial port. The design of 6 wheels × 4WD increases the contact area with the ground and load capacity, and provides strong power. Built in 3S UPS power supply module, supports 3 x 18650 Li batteries (in series, NOT included), which provides uninterruptible power for the robot and supports charging and power output at the same time. Built in multi-functional robot driver board, based on ESP32, with onboard WIFI and Bluetooth, for driving serial bus servos, outputting PWM signal, expanding TF card slot, etc.

TheUGV02 adopts flexible rubber tires which greatly reduce the impact of complex terrains, can easily meet the needs of heavy loads, shock absorption, and off-road. Also, it comes with 2 x 1020 European standard profile rails, provides more possibilities for secondary development.
