SKU:WSAL15154

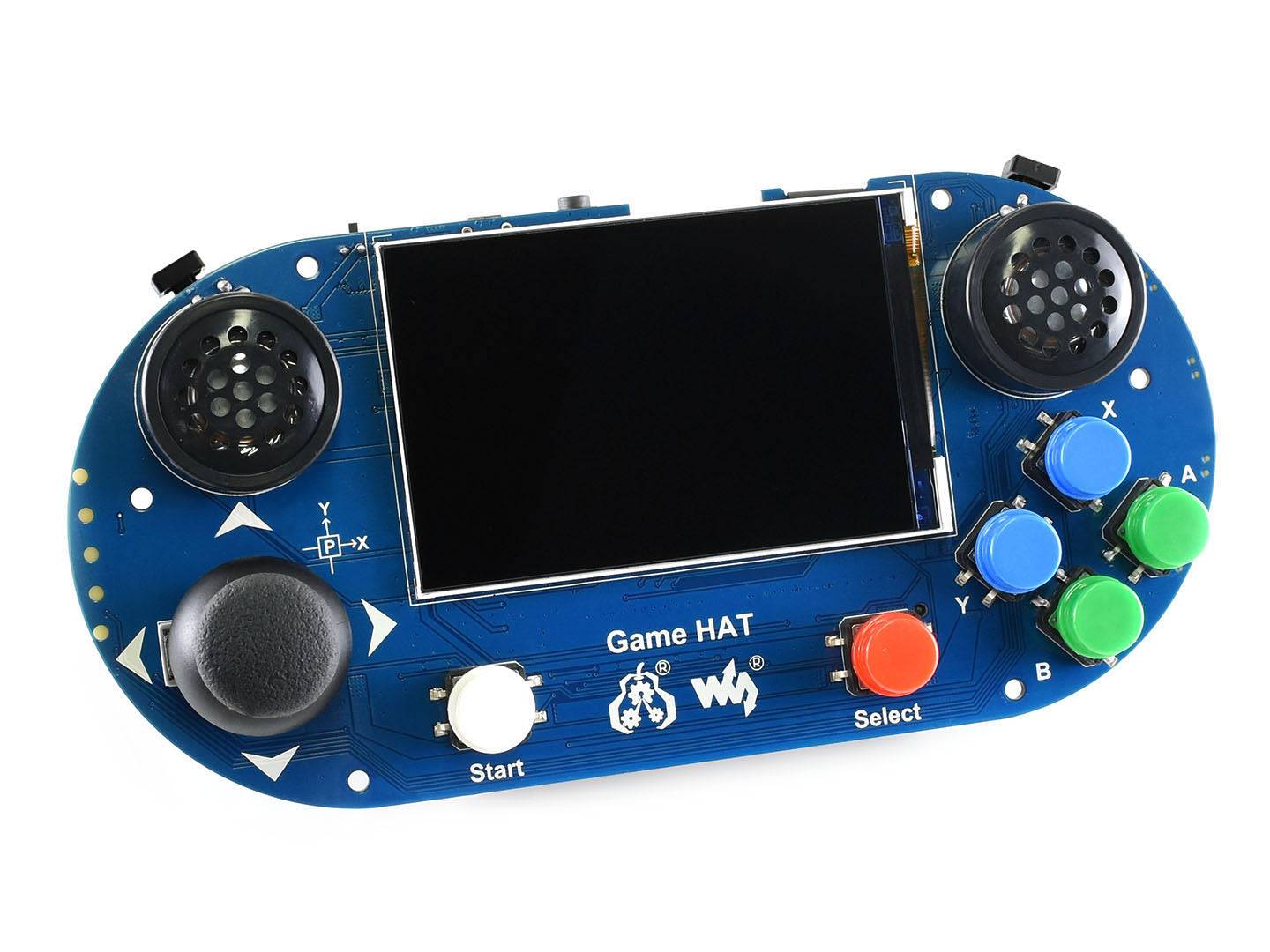

Game HAT for Raspberry Pi

Name: Game HAT for Raspberry Pi
Brand: WaveShare
SKU: WSAL15154
Price: 20313.92 HUF
Availability: InStock

20.314 Ft

20.314 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

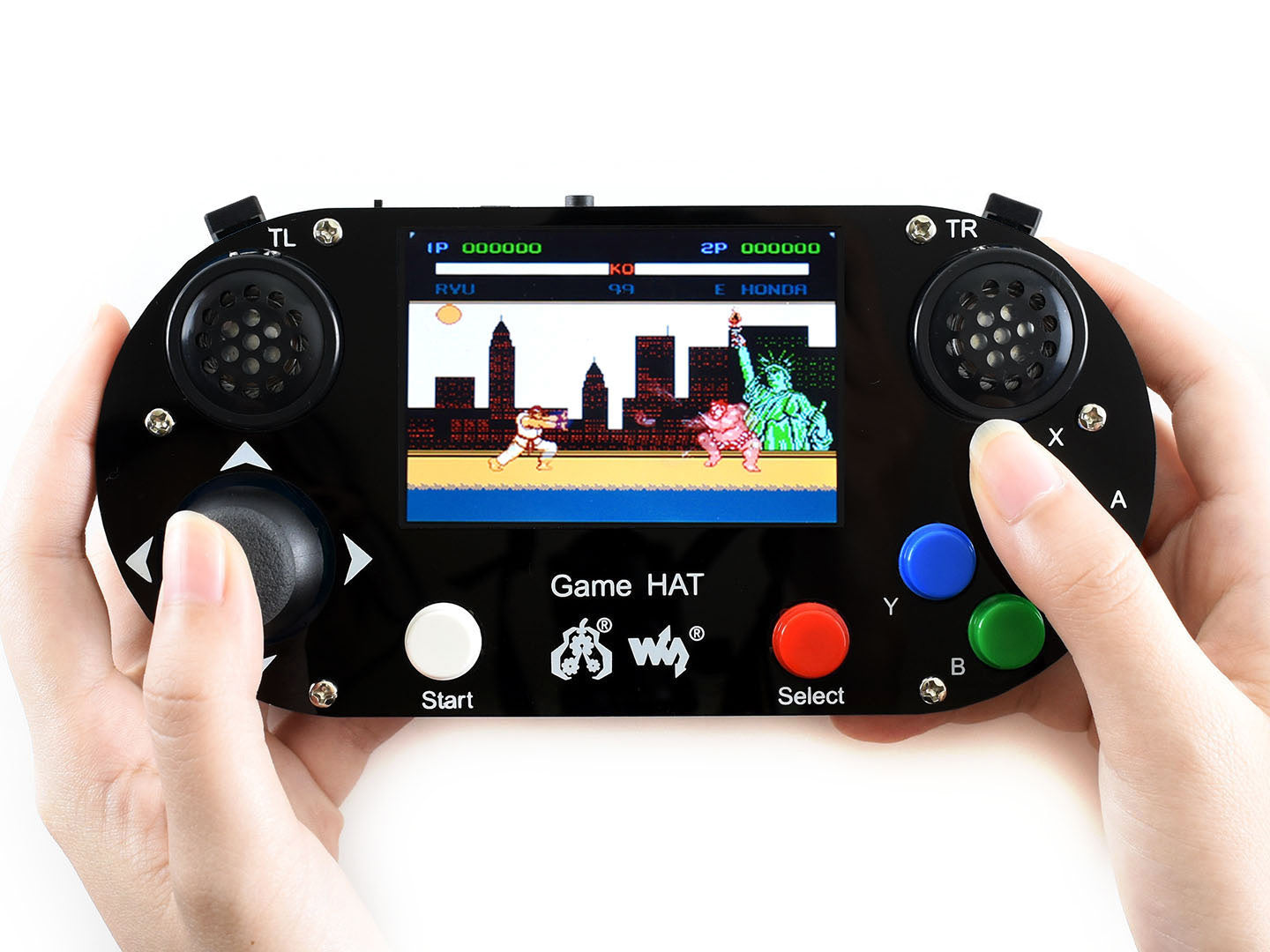

Game HAT for Raspberry Pi, make your own game console

SAFETY CAUTIONS

Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Overview

This Game HAT will turn your Raspberry Pi into a classic game console in a second, recalls you all the gaming pleasures in the memory.

3.5inch IPS screen, 480×320 resolution
60 frame experience, smoothly display, no more frame loss
Compatible with Raspberry Pi A+/B+/2B/3B/3B+/4B (Raspberry Pi Zero/Zero W/Zero WH requires another HDMI cable)
Integrates battery charge circuitry, powered from a 18650 lithium battery (NOT included), plays anywhere anytime
Battery capacity indicator
Onboard speaker and earphone jack, listen to the familiar BGM from the old days

Game HAT keys introduction

Game function keys vary according to specific game
Start+Select to exit current game
Menu,Up/Left,Down/Right,Exit, this four keys on the bottom allow to adjust screen brightness/contrast, volume, etc.

Wiki : www.waveshare.com/wiki/Game_HAT

PartNumber	Category	Display	Requirements
GamePi15	Portable Game Console	1.54inch display, 240×240 resolution	Pi required
GamePi20	Portable Game Console	2.0inch IPS display, 320×240 resolution	Pi included, out-of-box
GamePi20-Acce	Portable Game Console	2.0inch IPS display, 320×240 resolution	Pi required
Game HAT	Portable Game Console	3.5inch IPS display, 480×320 resolution	Pi required
GamePi43	Portable Game Console	4.3inch IPS display, 800×480 resolution	Pi (PI3B+ OR PI4B-2GB) included, out-of-box
GamePi43-Acce	Portable Game Console	4.3inch IPS display, 800×480 resolution	Pi required

Have a look:

Arcade Machine Console Control Box Selection

The 18650 batteries are NOT included.
Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
