SKU:WSAL31328
GC2093 2MP USB Camera Module, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone
Regulärer Preis
10.832 Ft
Verkaufspreis
10.832 Ft
Regulärer Preis
0 Ft
Einzelpreis
pro
Sale
Ausverkauft
Steuer enthalten.
Versand wird an der Kasse berechnet.
Abholverfügbarkeit konnte nicht geladen werden

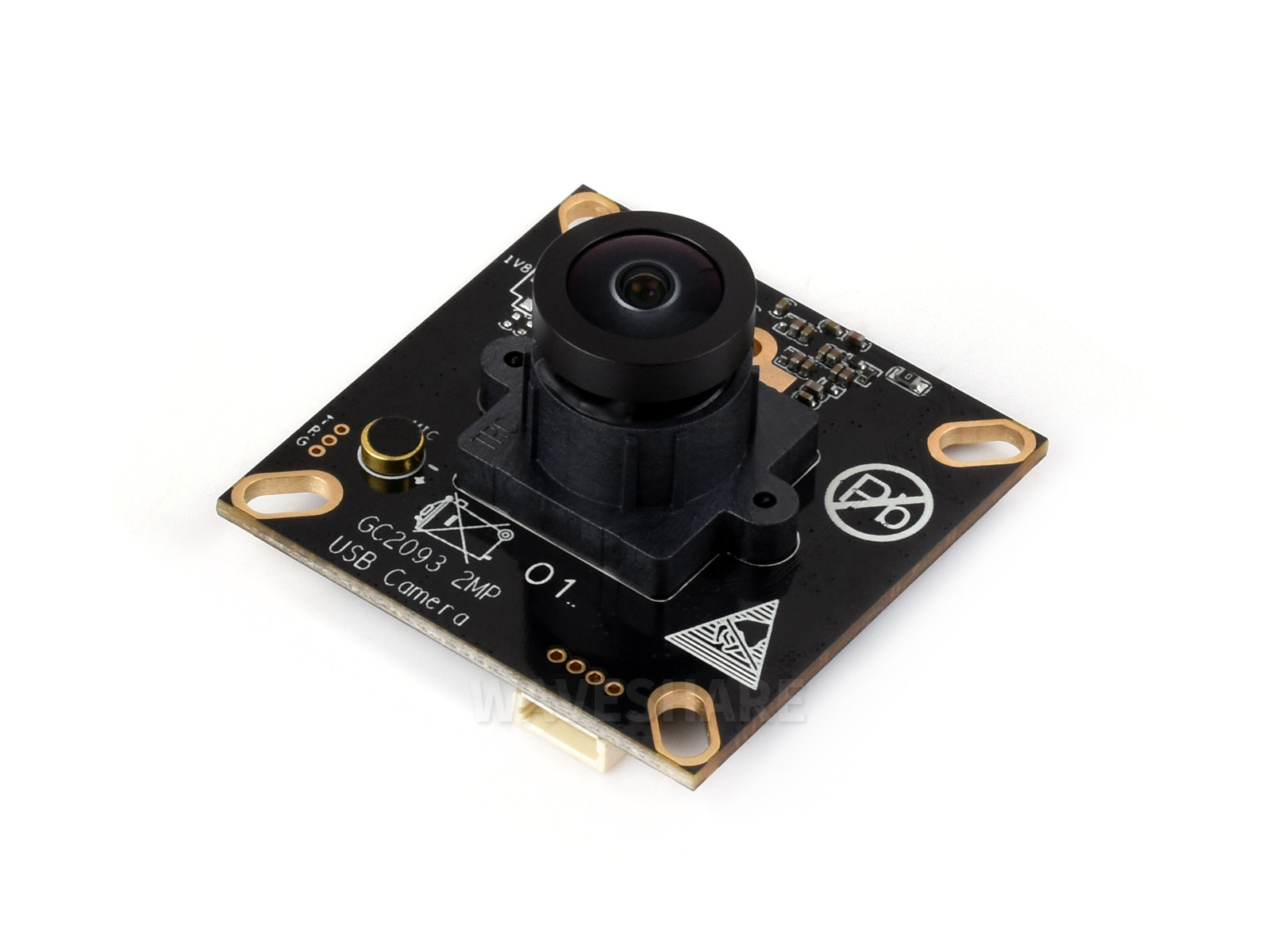

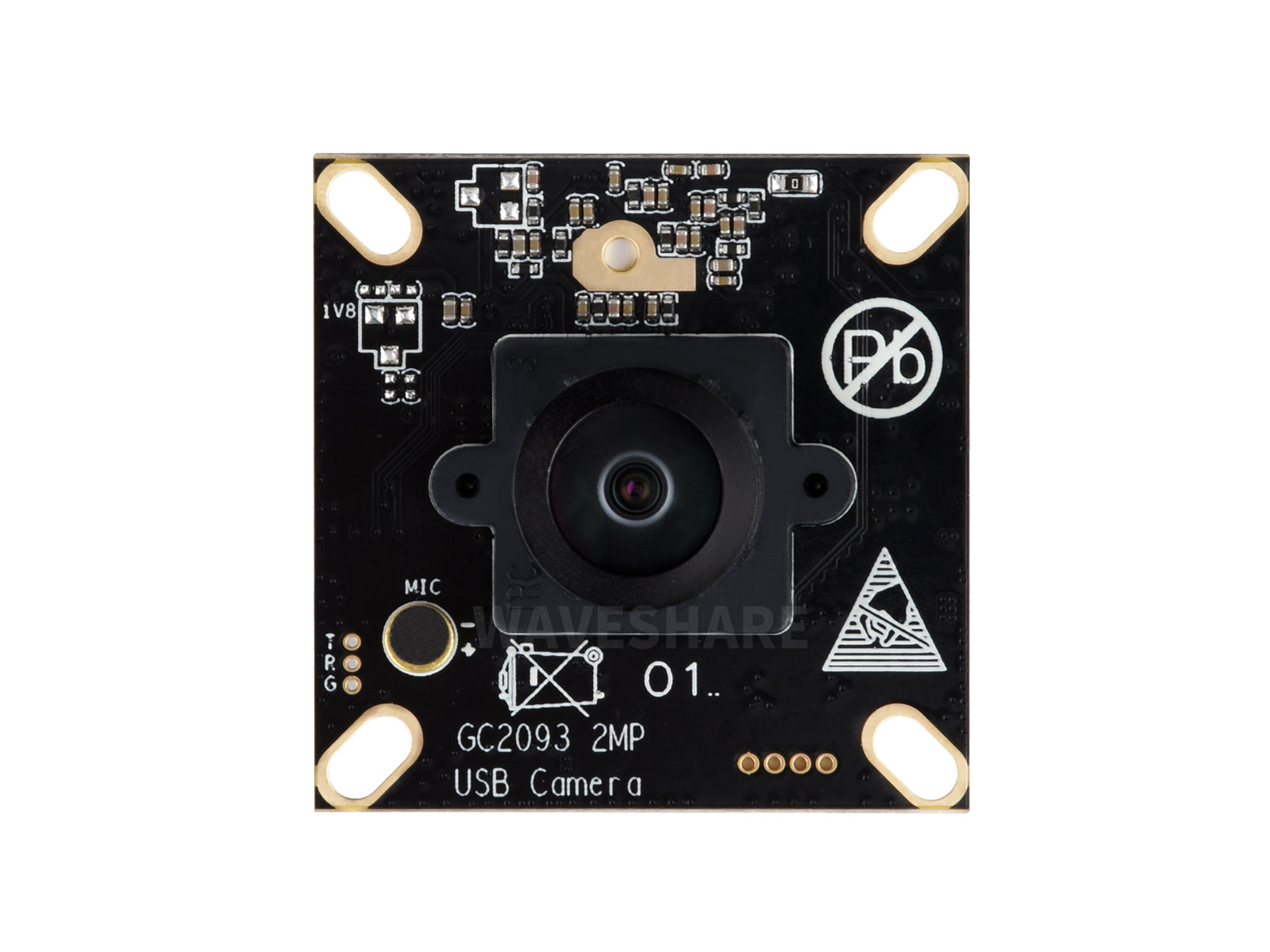

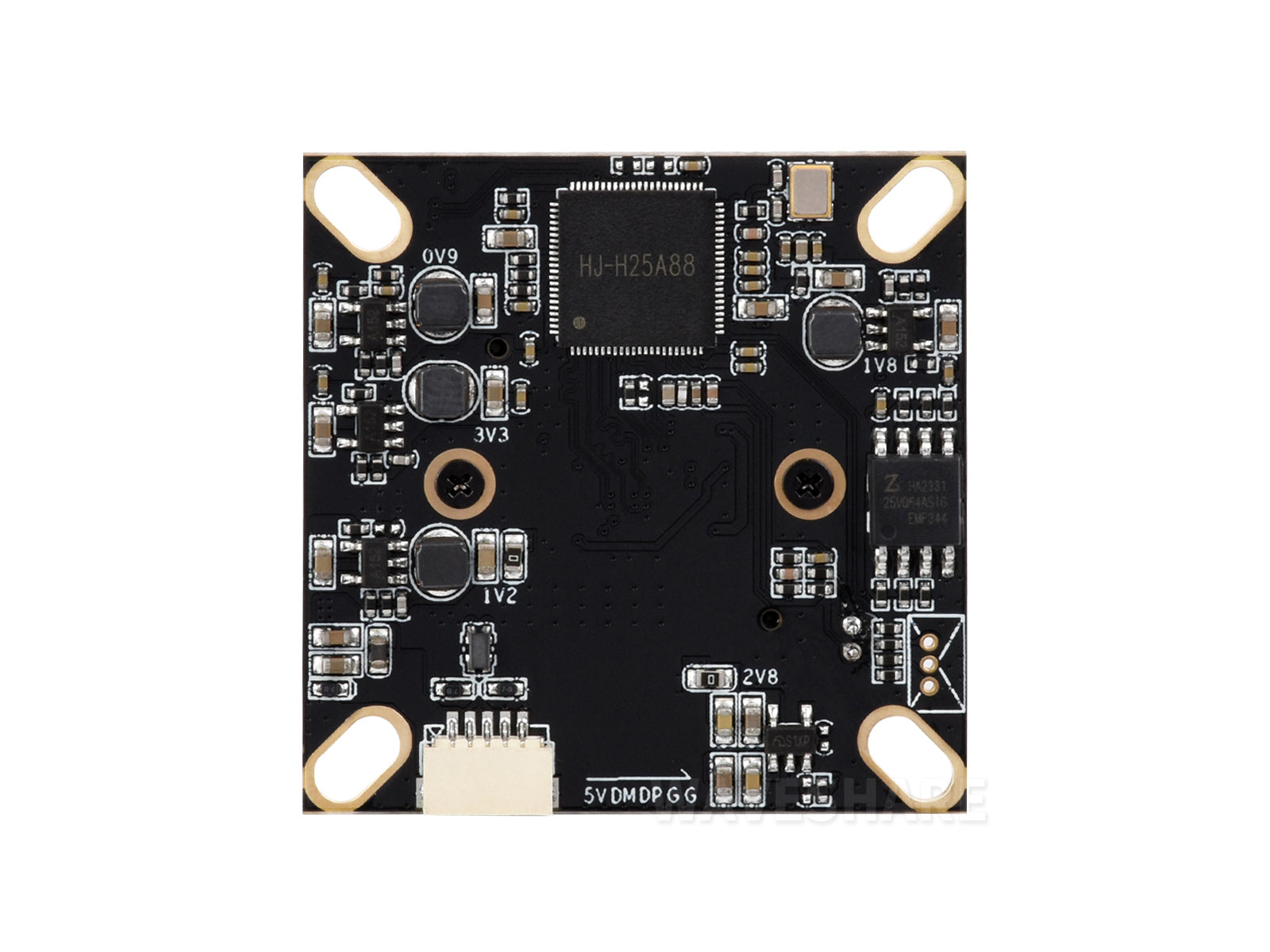

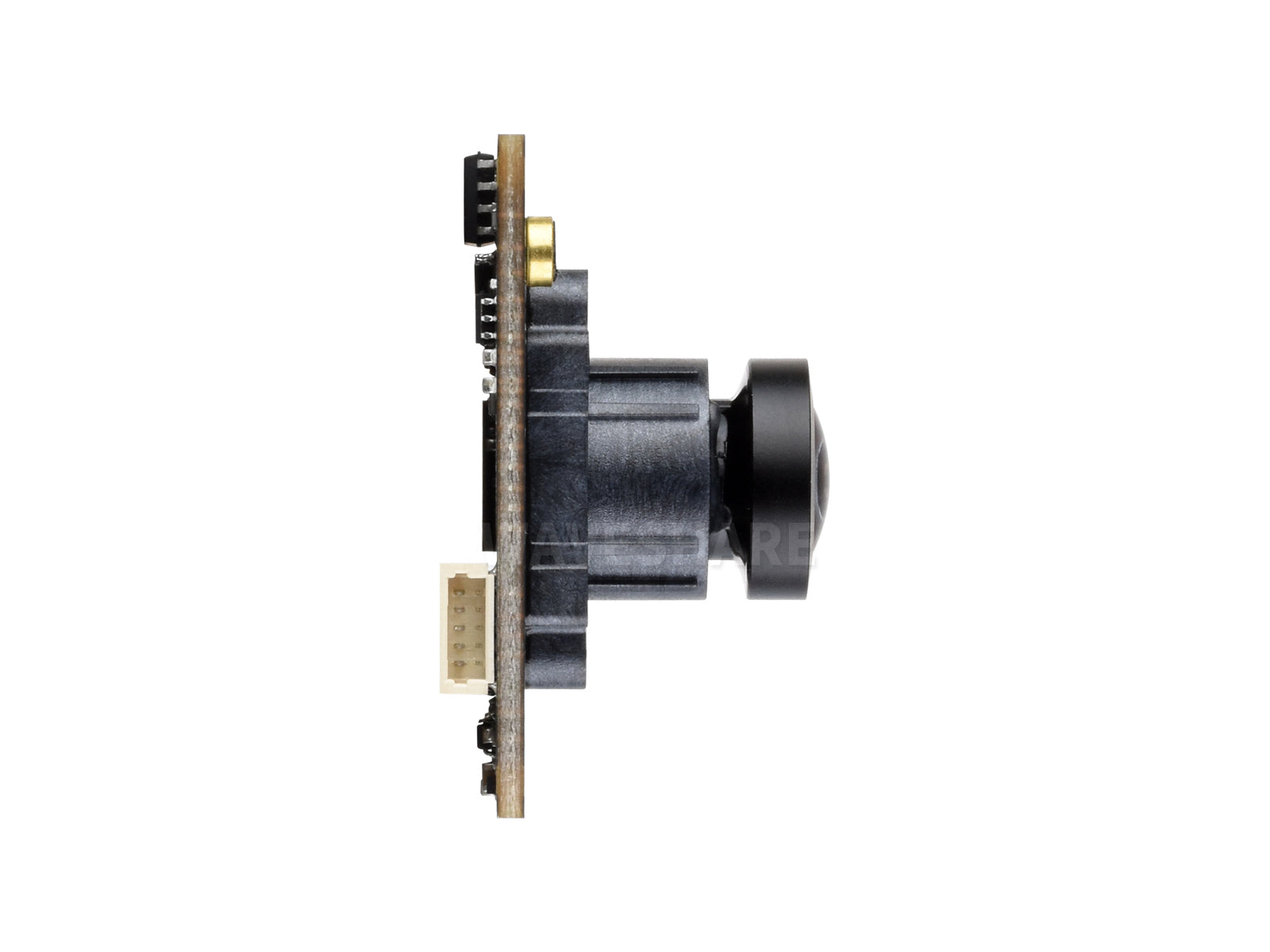

GC2093 2MP USB Camera Module, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone
2MP USB M12 camera module
Adopts GC2093 sensor chip, onboard USB 2.0 interface, WDR (Wide Dynamic Range) support for better backlight imaging
Specifications
| Pixels | 2MP | |
|---|---|---|
| sensor chip | GC2093 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/2.9 inch |
| Aperture (F) | 2.2 | |
| Effective Focal length (EFL) | 2.28 mm | |
| Field of View (FOV) | 170.2°(D) 144°(H) 77.6°(V) | |
| Focusing | Fixed-focus | |
| Distortion | <-27% | |
| Dynamic Range | 81dB Linear mode, 105dB HDR mode | |
| IR Filter | 650nm filter | |
| Image | Format support | MJPG、YUY2 |
| Static photographic resolution | 1920 × 1080 | |
| Video recording | MJPG: 30FPS 640×360 30FPS 640×480 30FPS 1024×576 30FPS 1280×720 30FPS 1920×1080 | |
| YUY2: 25FPS 640×360 25FPS 640×480 20FPS 1024×576 15FPS 1280×720 | ||
| Audio | Onboard microphone | |
| Operating Voltage | 5V ± 5% | |
| Operating current | 180mA | |
| Dimensions | 38.00 × 38.00 × 19.01 (mm) | |
Excellent WDR with Backlight Adaptation
Featuring a high dynamic range of 81dB in Linear mode and up to 105dB in HDR mode, combined with the characteristics of GC2093, it performs impressively in backlit environments. Whether under direct sunlight or in scenes with strong contrast between light and shadow, it effectively balances image brightness and preserves detail in both highlights and shadows.
* the above picture is the WDR effect simulation, please refer to the actual imaging effect
Plug and Play, Easy Connection
Onboard USB 2.0 interface, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Shutter Mode | Feature |
|---|---|---|---|---|---|---|---|
| OV9281 1MP USB Camera (A) | 1MP | OV9281 | 1280×720 | 25×25mm | 105° | Global shutter | 120FPS high frame rate, mono camera |
| OV2735 2MP USB Camera (A) | 2MP | OV2735 | 1920×1080 | 25×25mm | 96° | Rolling shutter | distortion-free |
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38x38mm | 145° | Rolling shutter | Low-light sensitivity |
| GC2093 2MP USB Camera (A) | 2MP | GC2093 | 1920x1080 | 38x38mm | 170° | Rolling shutter | Wide dynamic range, backlit imaging, onboard microphone |
| SC2210 2MP USB Camera (A) | 2MP | SC2210 | 1920x1080 | 38x38mm | 110.8° | Rolling shutter | Large aperture, starlight-level |
| PS5268-2MP-USB-Camera-A | 2MP | PS5268 | 1920x1080 | 30×30mm | 112.6° | Rolling shutter | Wide dynamic range, IP67 water-resistant case |
| OS05A10 5MP USB Camera (A) | 5MP | OS05A10 | 2592×1944 | 25×25mm | 96° | Rolling shutter | wide dynamic range, distortion-free |
| OV5693 5MP USB Camera (A) | 5MP | OV5693 | 2592x1944 | 18×40mm | 135° | Rolling shutter | auto-focus |
| OV5693 5MP USB Camera (B) | 5MP | OV5693 | 2592x1944 | 8.5×60.2mm | 75° | Rolling shutter | Small size, auto-focus |
| OV5640 5MP USB Camera (B) | 5MP | OV5640 | 2592x1944 | 9×62mm | 68° | Rolling shutter | Small size, auto-focus |
| OV5640 5MP USB Camera (C) | Small size | ||||||
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106.9° | Rolling shutter | Manual focus, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (B) | 5MP | IMX335 | 2592x1944 | 25×24mm | 175° | Rolling shutter | Fixed-focus, wide angle, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (C) | 5MP | IMX335 | 2592x1944 | 25×24.3mm | 91.7° | Rolling shutter | Fixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone |
| IMX378 12MP USB Camera (A) | 12MP | IMX378 | 3840×3032 | 30×30mm | 79.8° | Rolling shutter | HD, auto-focus, onboard dual microphones |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38x38mm | 145° | Rolling shutter | HD, embedded digital mic |
| IMX179 8MP USB Camera (B) | 8MP | IMX179 | 3264×2448 | 9×62mm | 75° | Rolling shutter | HD, small size, auto-focus |
| IMX415 8MP USB Camera (A) | 8MP | IMX415 | 3840×2160 | 38×38mm | 95.5° | Rolling shutter | HD, auto-focus, onboard dual microphones, distortion-free |
| IMX678 8MP USB Camera (A) | 8MP | IMX678 | 3840×2160 | 38×38mm | 93° | Rolling shutter | HD, Low-light sensitivity, distortion-free |
| OS08A10 8MP USB Camera (A) | 8MP | OS08A110 | 3840×2160 | 38×38mm | 68° | Rolling shutter | HD, Low-light sensitivity, Low distortion |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4208×3120 | 38×38mm | 123° | Rolling shutter | HD, OIS |
| AR0144 Stereo USB Camera (A) | 1MP | AR0144 | 2560×800 | 66×30mm | 74° | Global shutter | Frame-synchronized stereo output, distortion-free |
| IMX577 12MP USB Camera (A) | 12MP | IMX577 | 3840×3024 | 34×34mm | 113° | Rolling shutter | HD, distortion-free |
| IMX577 12MP USB Camera (B) | 12MP | IMX577 | 3840×3024 | 34×34mm | - | Rolling shutter | HD, C/CS lenses support |
| OS02G10 Stereo USB Camera (A) | 2MP | OS02G10 | 3840×1080 | 100×22mm | 92° | Rolling shutter | Frame-synchronized stereo output, distortion-free |
Lieferumfang
- GC2093 2MP USB Camera (A) × 1
- USB-A to 5PIN cable × 1
