GNSS Active Ceramic Positioning Antenna, IPEX 1 connector, Supports multiple satellite positioning systems
GNSS Active Ceramic Positioning Antenna
Supports multiple satellite positioning systems such as BD, GPS, GLONASS
Specifications
| Center frequency | 1575.42±2MHz / 1561±2MHz / 1602.56±2MHz | Output impedance | 50Ω |
|---|---|---|---|
| Gain | 21dBi±2 | Connector | IPEX 1 |
| Cable length | ~ 35mm | Ceramic dimension | 25 × 25mm |
| Current Consumption | <10mA | Polarization | R.H.C.P |
| Power Supply | DC 3.3 ~ 5.0V | Noise Figure | ≤1.5dB |
| Axial Ratio | 3dB | Input power (Max) | 50W |
| Radiation direction | Omni-directional | Operating temp. | -20 ~ +65˚C |
GNSS Antenna Connection Examples
Connect to L76K GPS Module

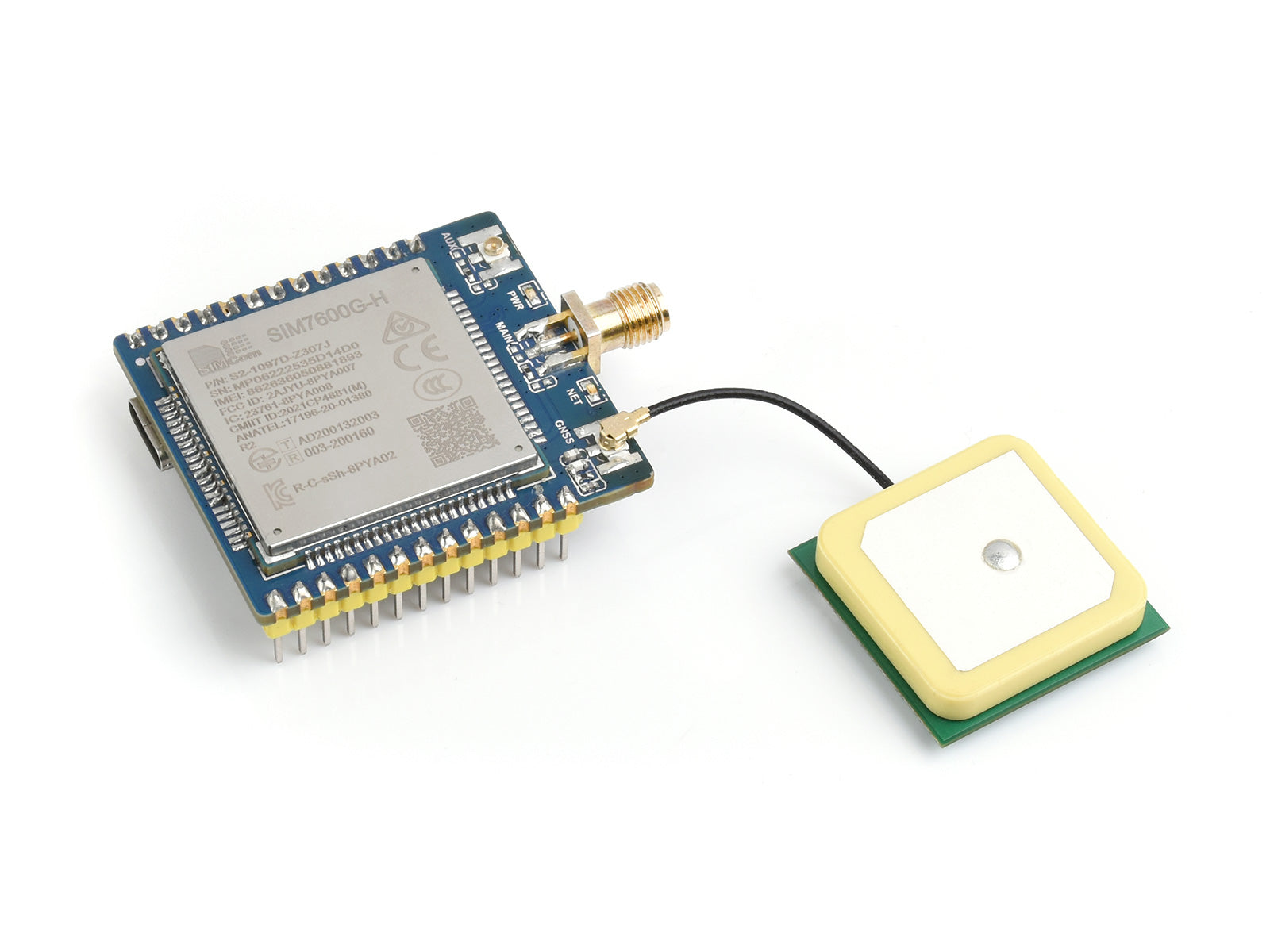

Connect to SIM7600G-H 4G Module
for reference only, please refer to the part list for detailed package content

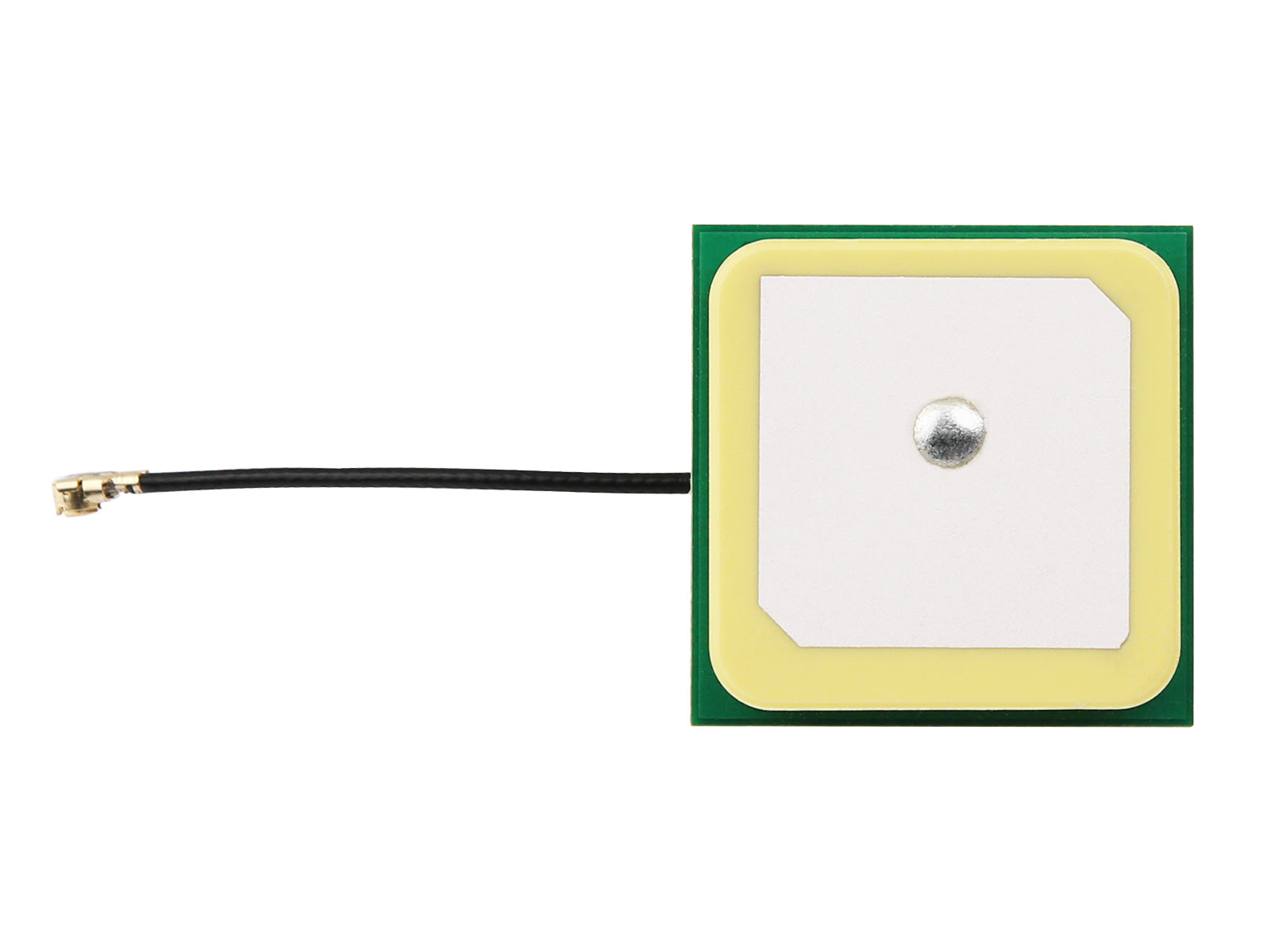

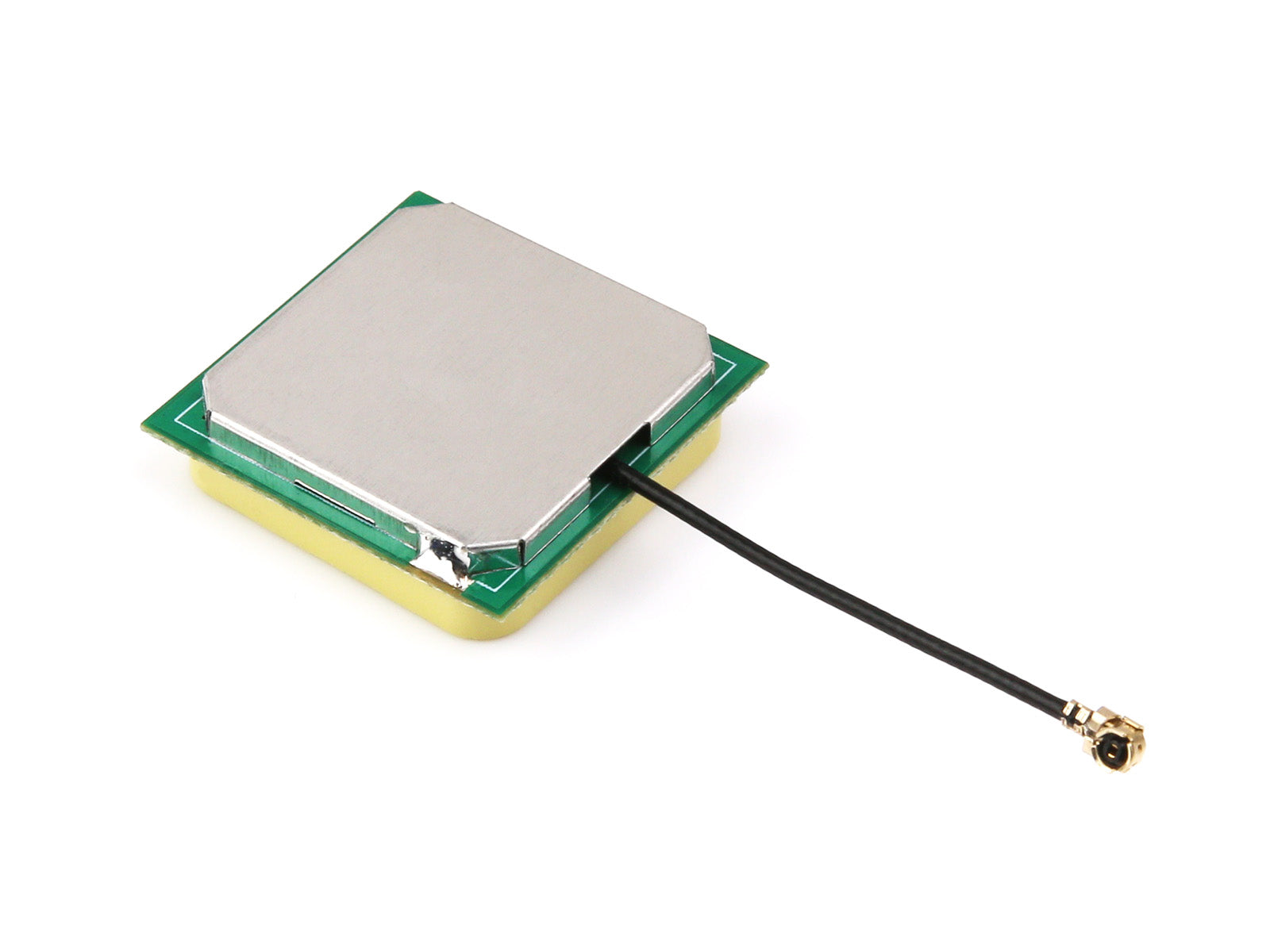

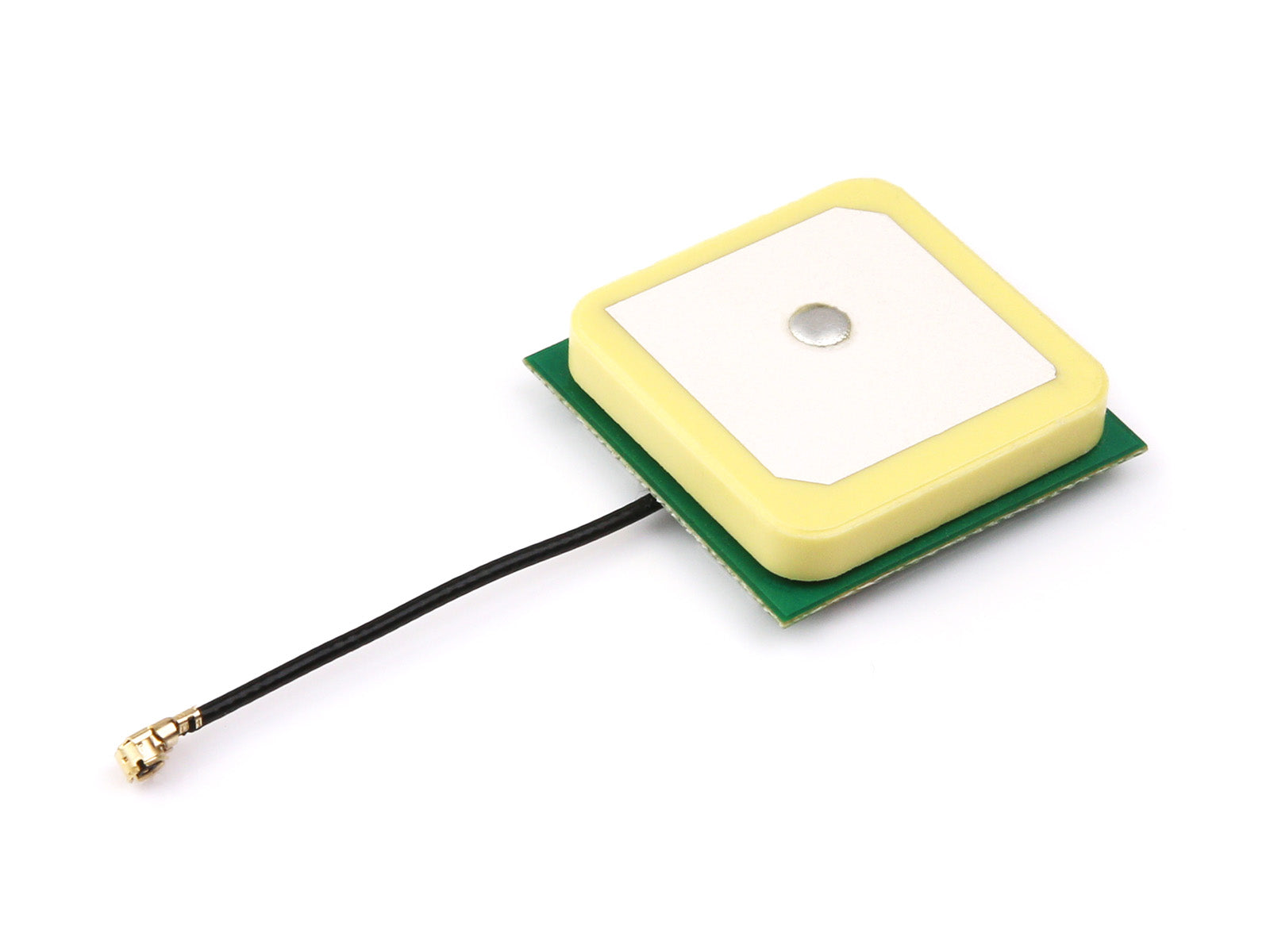

product show
Outline dimensions
Note: supports mass customization for cable length and antenna connector
Lieferumfang
- GNSS Ceramic Antenna x1
