GNSS L1+L2+L5 Multi-GNSS & Multi-Frequency Active Antenna, SMA-J Connector, Supports Multi-GNSS Positioning Systems, Sunproof, High Temperature Tolerance

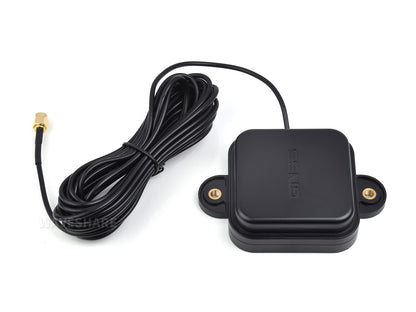

GNSS L1+L2+L5Multi-GNSS & Multi-Frequency Active Antenna

Sunproof, High Temperature Tolerance

Supports Multiple GNSS such as BD, GPS, GLONASS, Galileo, etc.

Specifications

Frequency range	BDS B1/B2/B3 GPS L1/L2/L5 GLONASS G1/G2/G3 GALILEO E1/E2/E5a/E5b/E6	phase center error	±2mm
LNA Gain	40±2dB	Polarisation	Right-Hand Circular Polarization
Gain	4dBi	connector	SMA-J
VSWR	≤2.0	Antenna size	108×76×27mm
Output impedance	50Ω	Cable	RG174
Working current	≤45mA	Cable length	5m
Working voltage	DC 3.0~18.0V	working temperature	-40~70˚C
Axial Ratio	≤3.0dB	Storage temperature	-55~85˚C
Noise figure	≤1.8dB	Mounting	Magnetic base

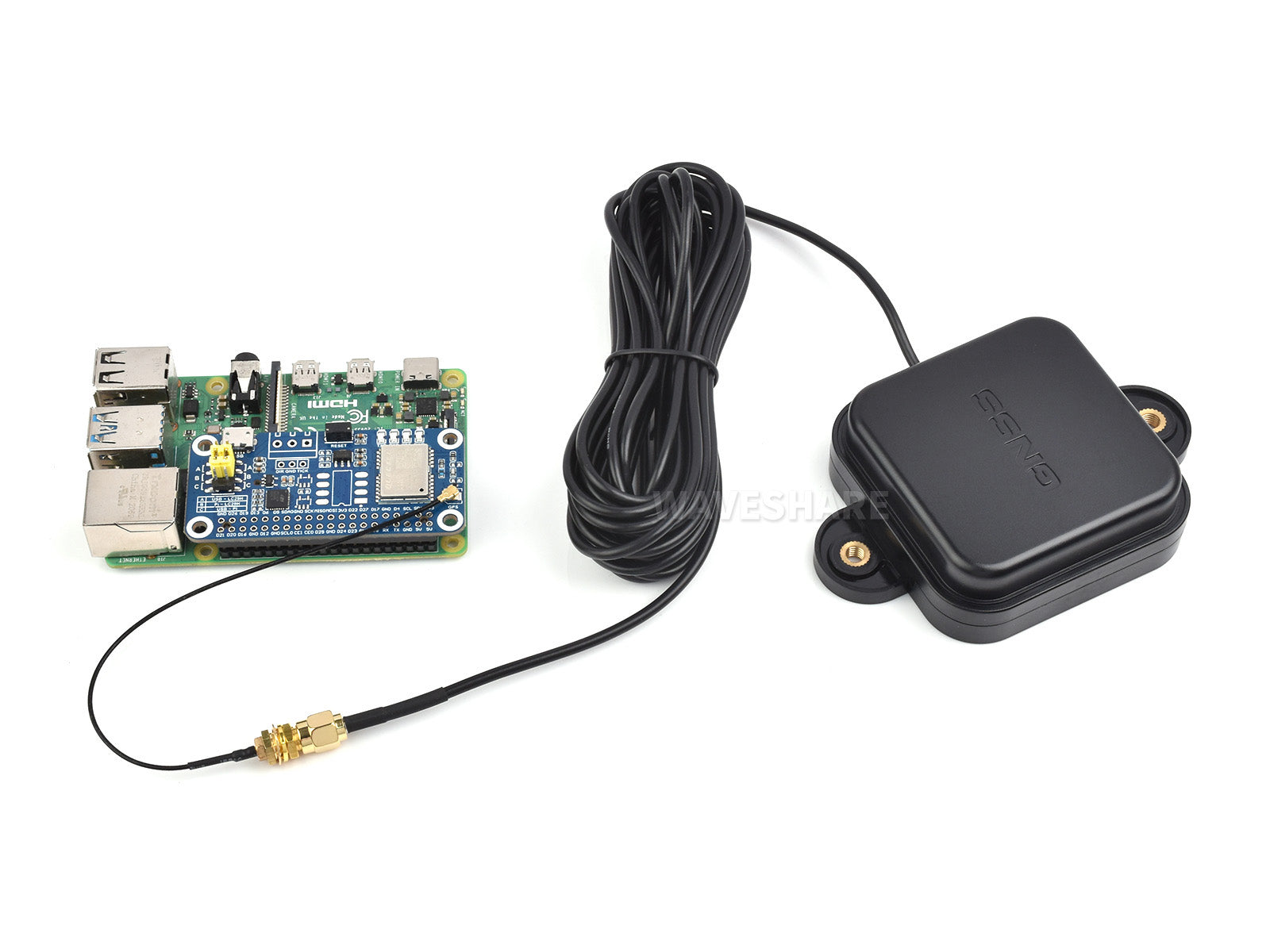

Application Example

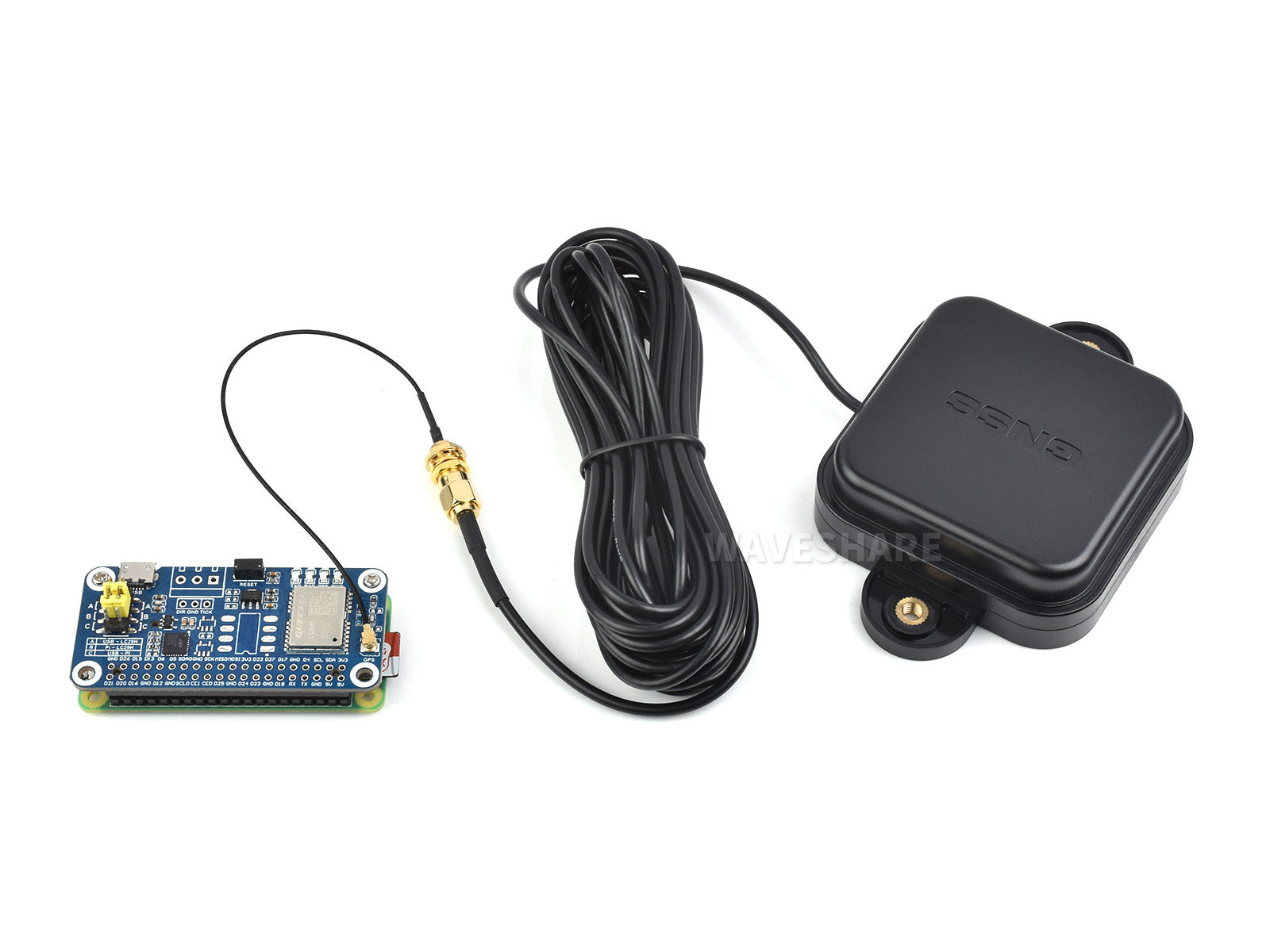

* for reference only, the Raspberry Pi board and GPS HAT are NOT included

Application scenarios

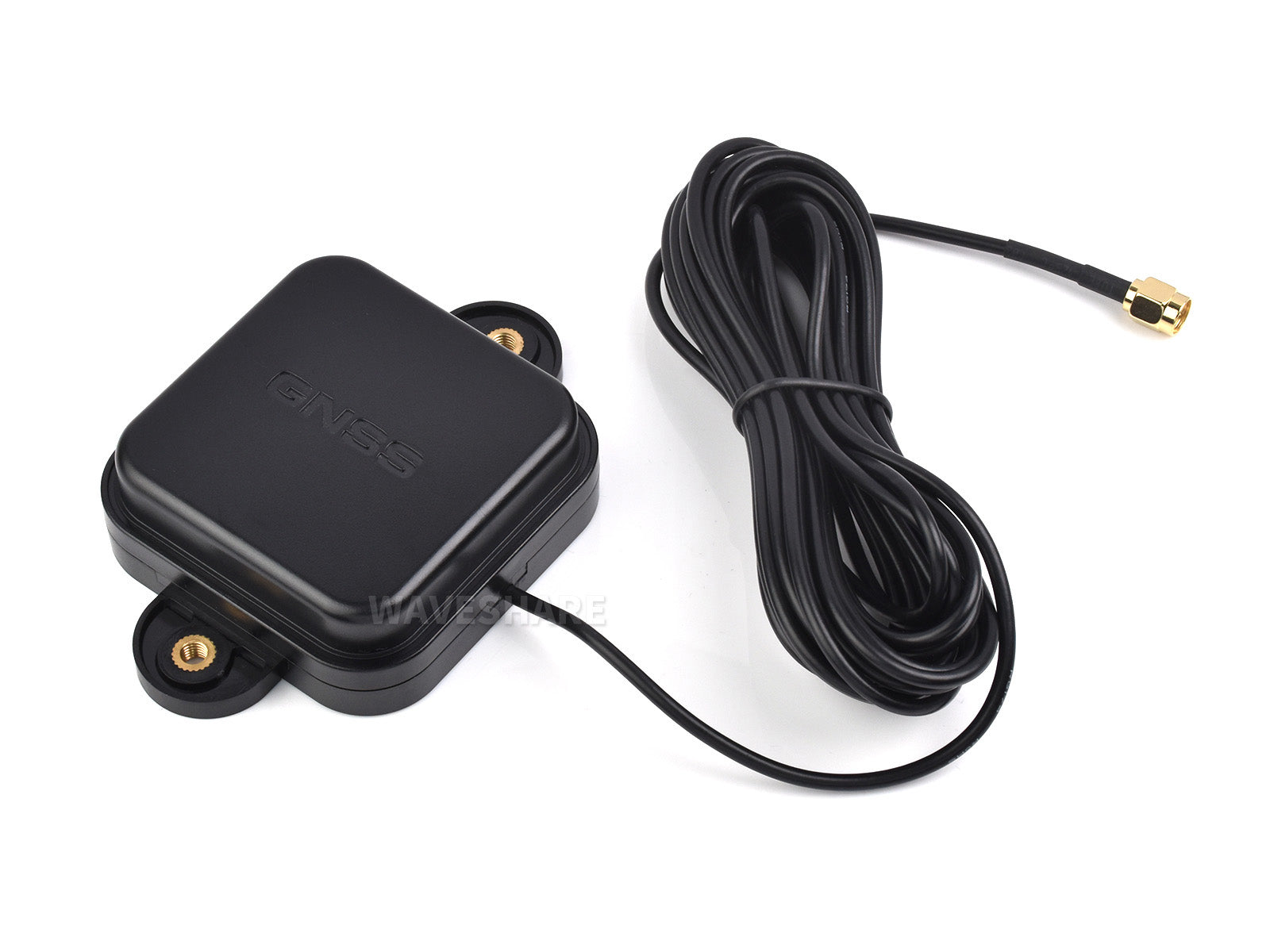

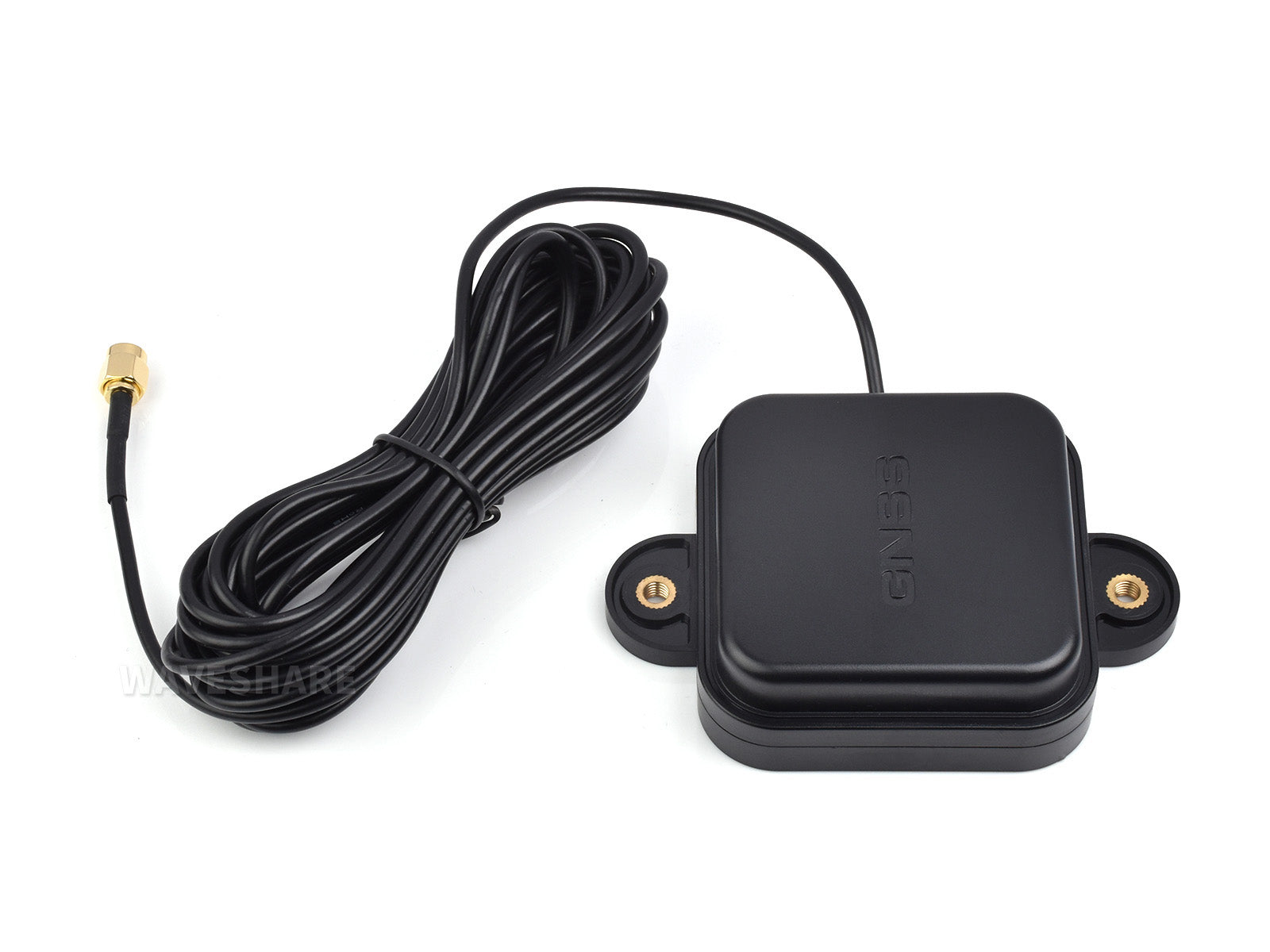

product show

Outline dimensions

Note: supports mass customization for cable length and antenna connector

Lieferumfang

GPS External Antenna (E) x1
