GNSS L1+L5 Dual-frequency Active Antenna, SMA-J Connector, Supports Multi-GNSS Positioning Systems

GNSS L1+L5 Dual-frequency Active Antenna

Supports Multiple GNSS such as BD, GPS, Galileo, QZSS, IRNSS, etc.

Specifications

Frequency range	BDS B1I/B1C/B2a GPS L1/L1C/L5C GALILEO E1/E5a QZSS L5 IRNSS S-L5	phase center error	±2mm
LNA Gain	28±2dB	Polarisation	Right-Hand Circular Polarization
Gain	2dBi	connector	SMA-J
VSWR	≤2.0	Antenna size	50.0×50.0×19.1mm
Output impedance	50Ω	Cable	RG174
Working current	≤20mA	Cable length	3m
Working voltage	DC 3.0~18.0V	working temperature	-40~85˚C
Axial Ratio	≤3.0dB	Storage temperature	-55~85˚C
Noise figure	≤2dB	Mounting	Magnetic base/Double-sided tape

Application Example

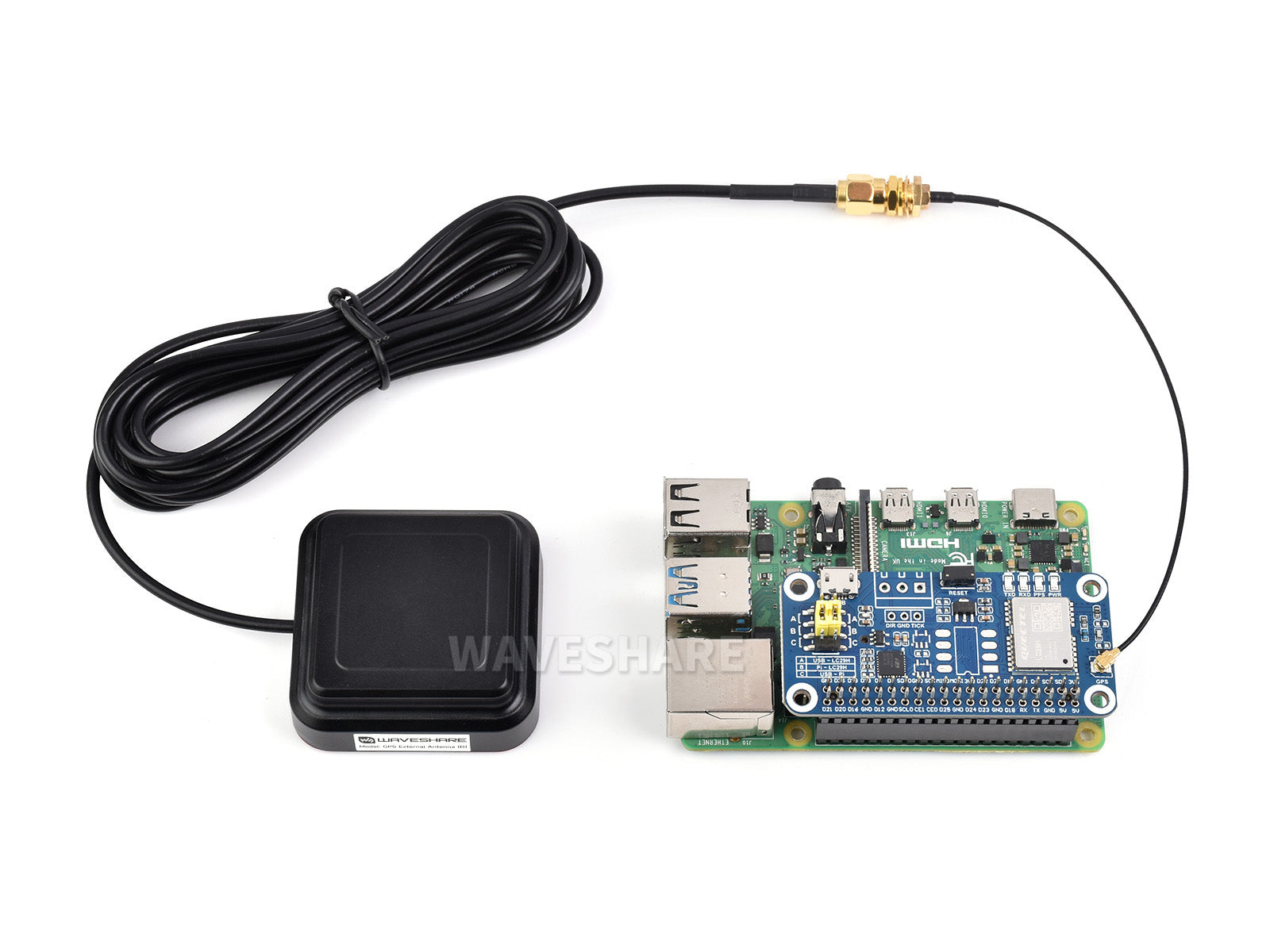

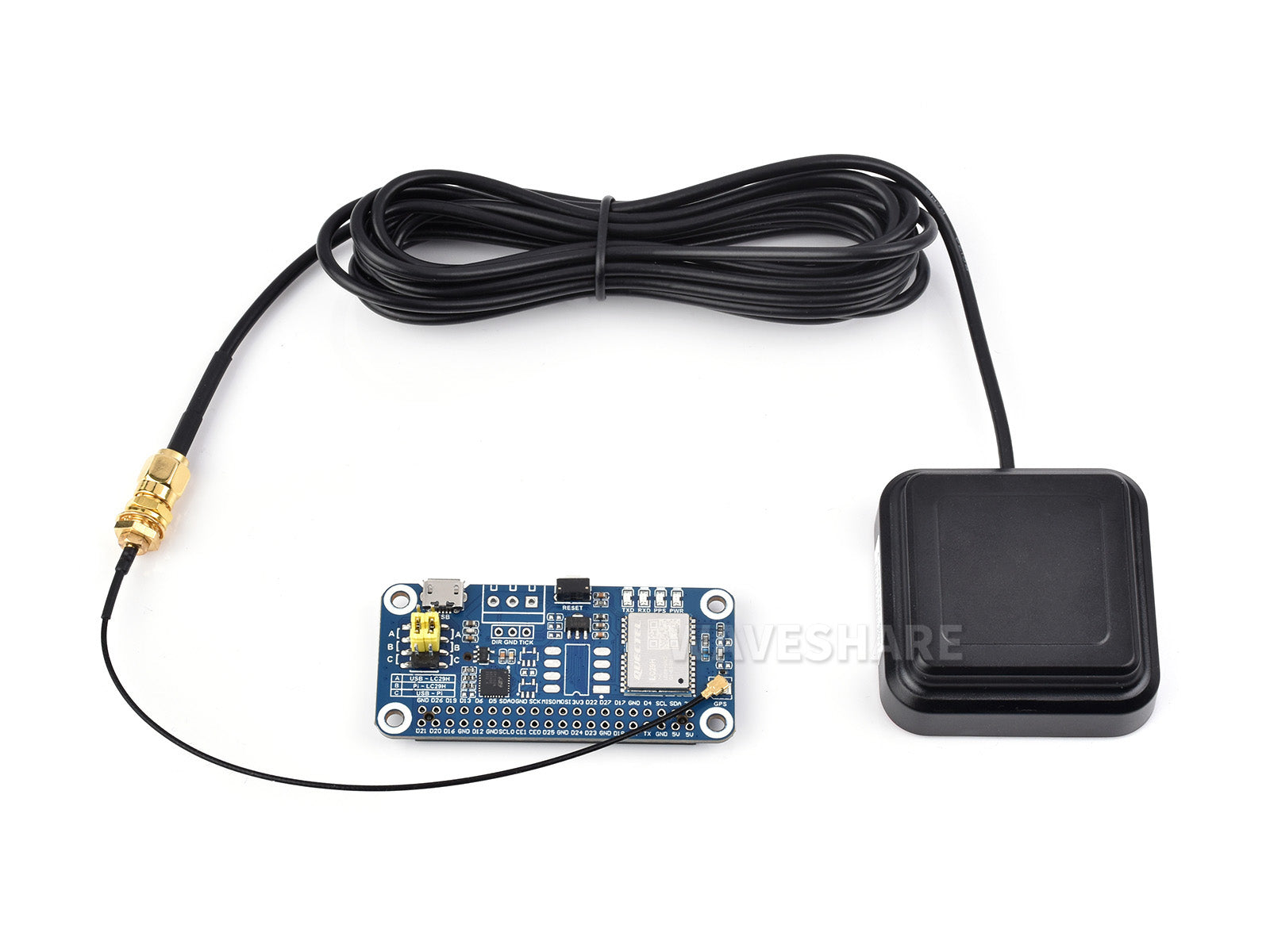

* for reference only, the Raspberry Pi board and GPS HAT are NOT included

Application scenarios

Antenna performance parameters

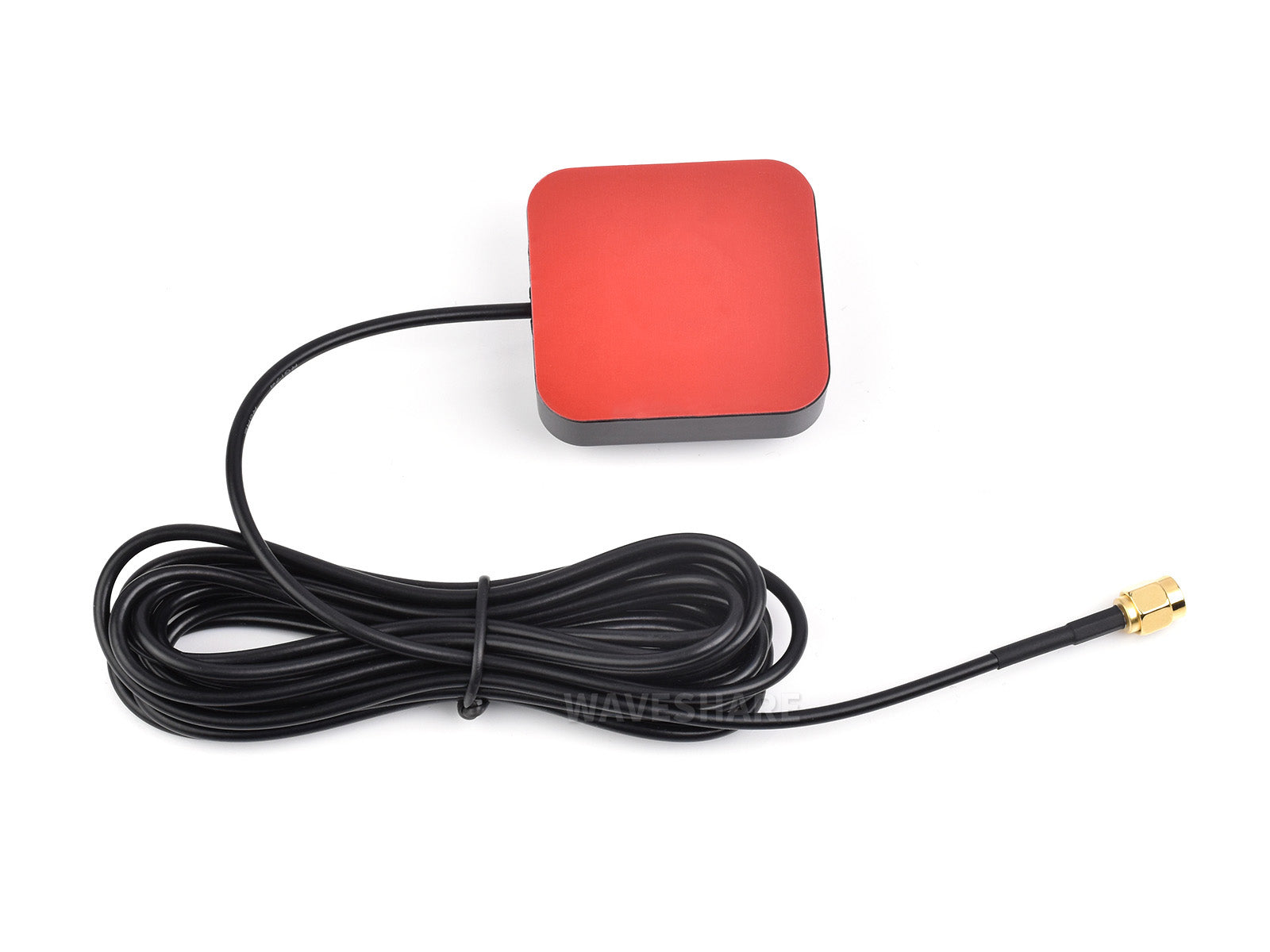

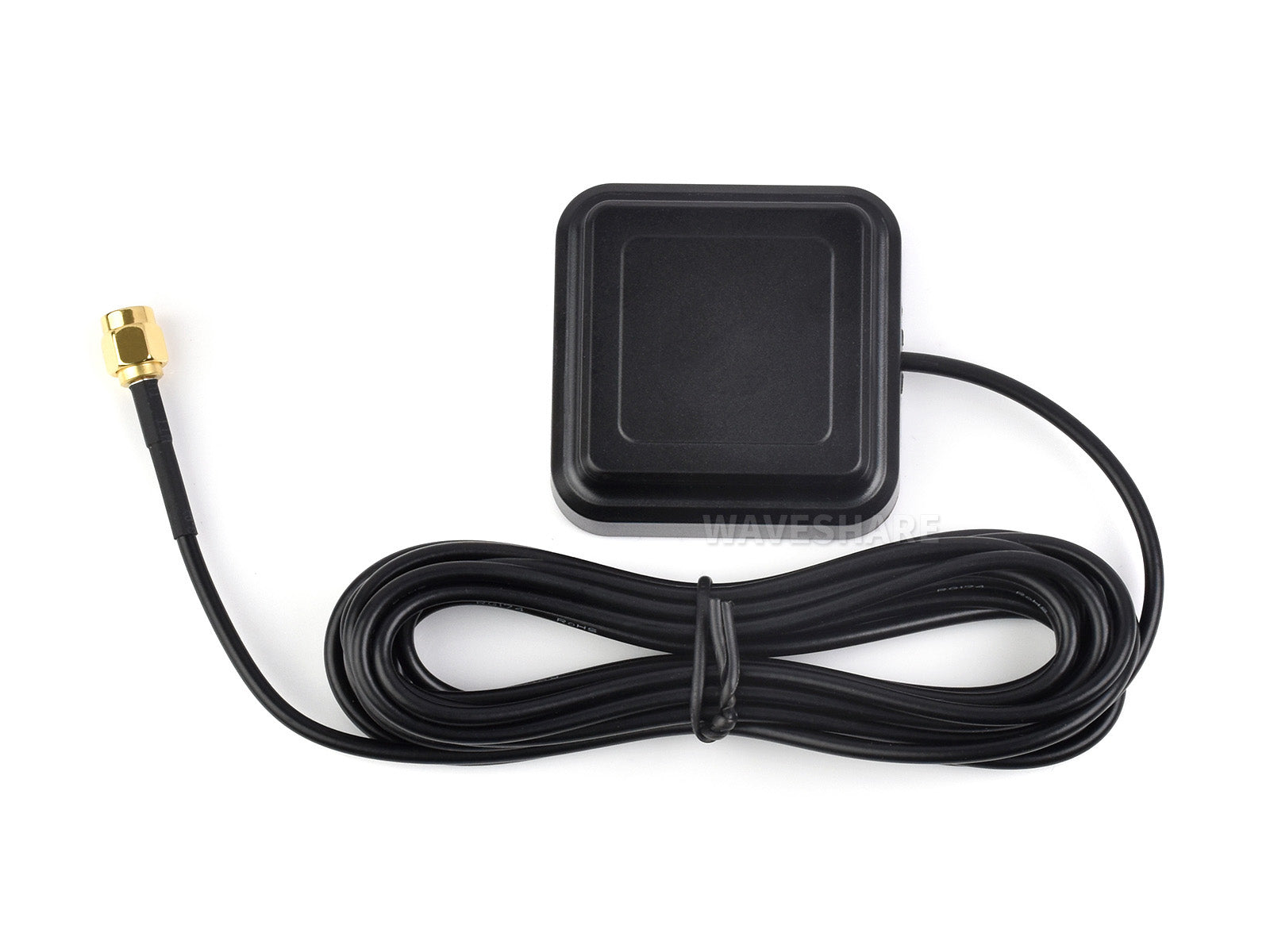

product show

Outline dimensions

Note: supports mass customization for cable length and antenna connector
