Kurzbeschreibung: Hailo-8 M.2 AI Accelerator Module, based on the 26TOPS Hailo-8 AI processor, Supports Linux/Windows Systems | Hailo-8

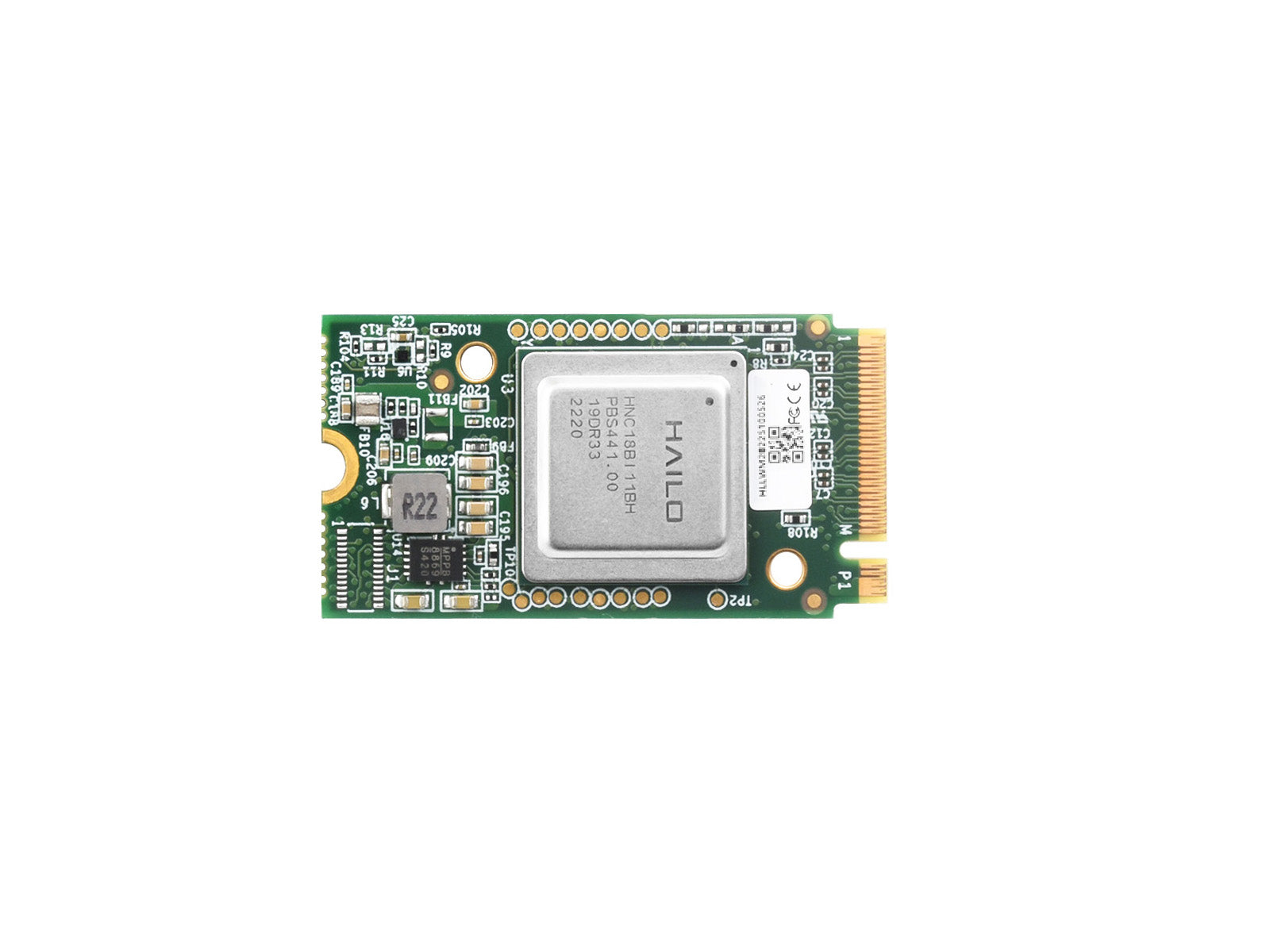

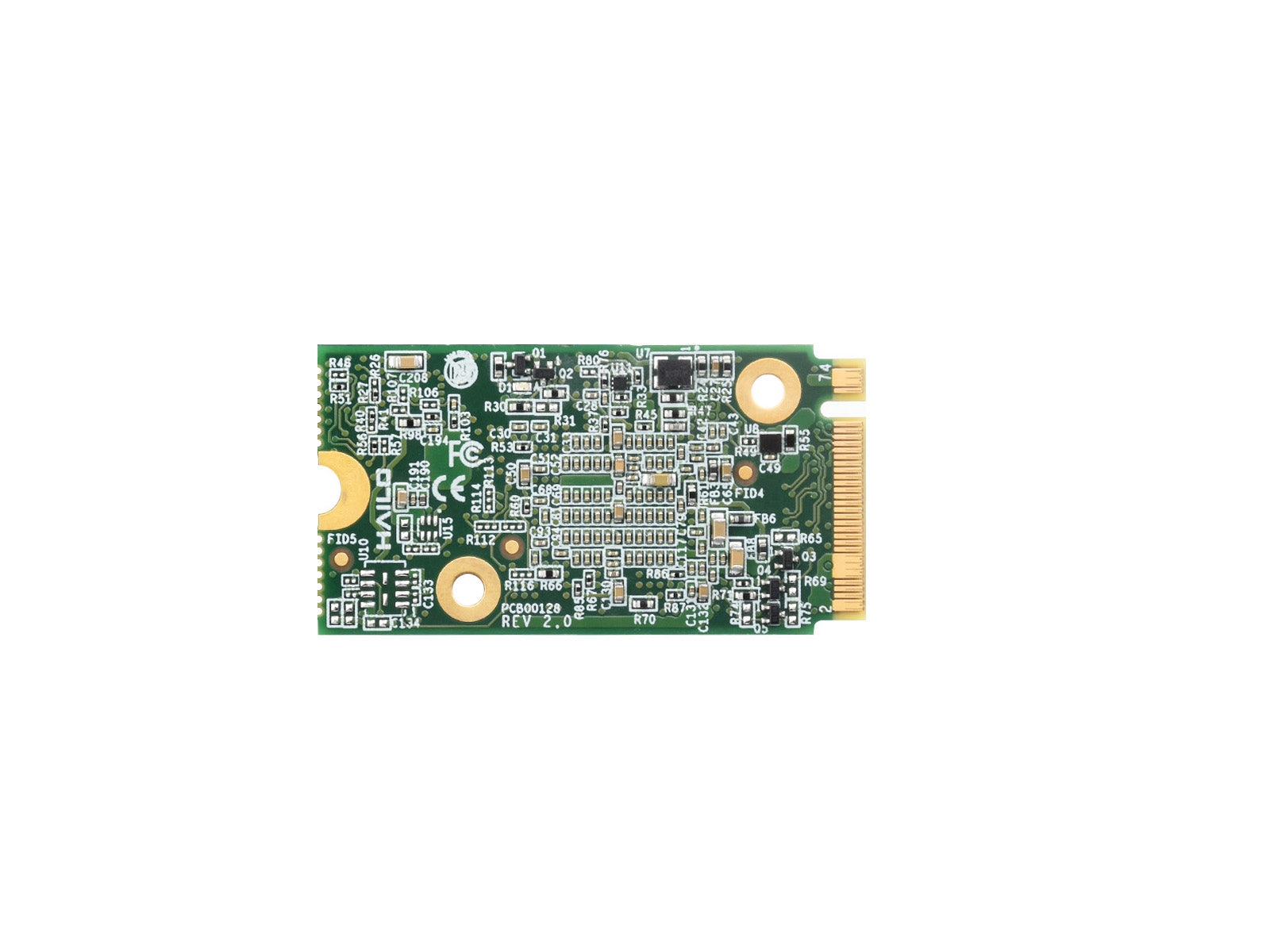

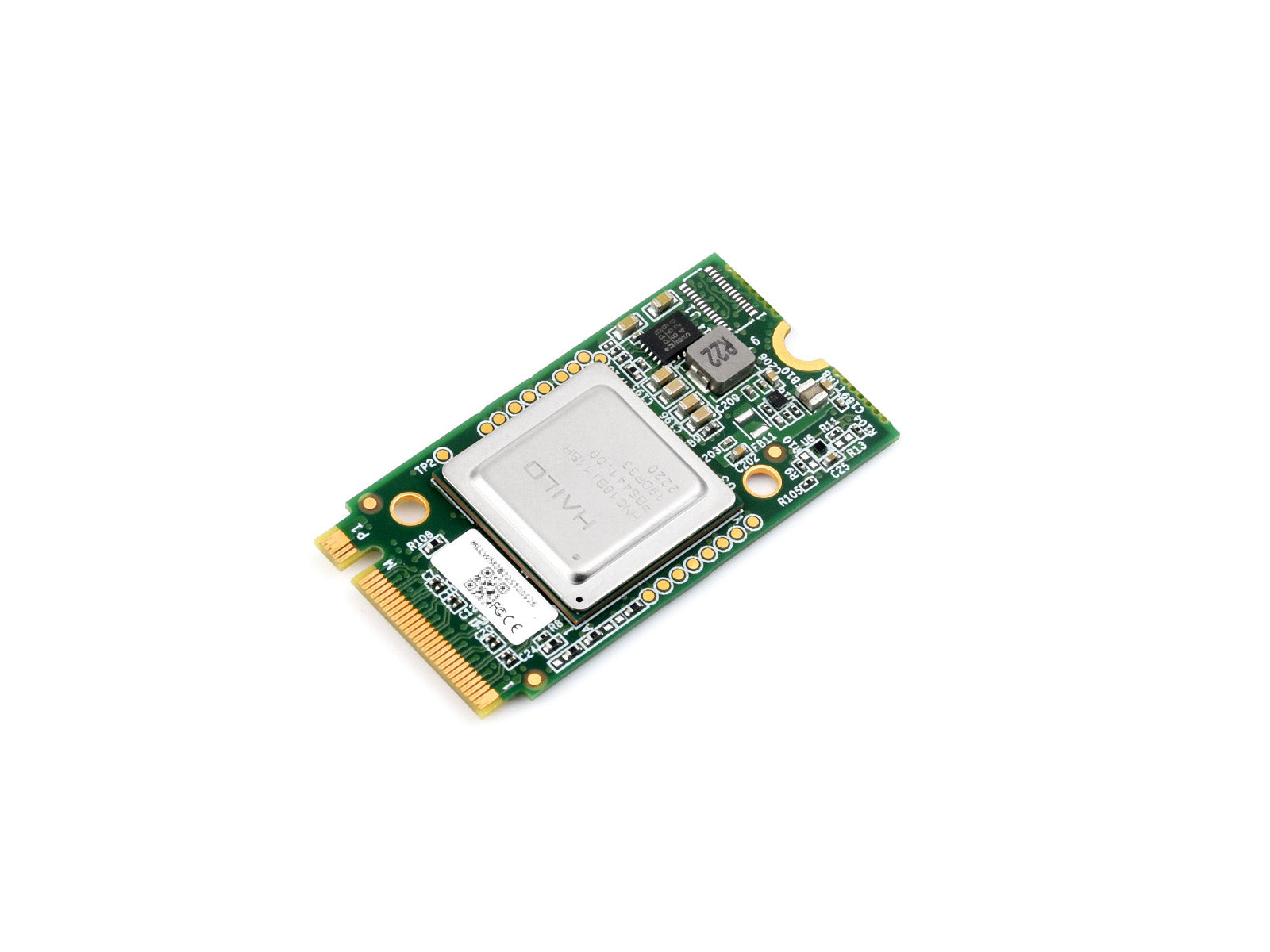

Hailo-8 M.2 AI Accelerator Module, based on the 26TOPS Hailo-8 AI processor, Supports Linux/Windows Systems

Hailo-8 AI Accelerator Module

Hailo-8 AI M.2 Module Parameters

AI performance	26 TOPS
Form Factor	M.2 Key M
Power supply	3.3V ± 5%
Power consumption	2.5W (Typ.) 8.65W (Max.)
Interface	PCIe Gen3, 4-lane
Certificate	CE, FCC Class A
Storage temperature	-40 ~ 85°C
Operating temperature	-40 ~ 85°C
Operating humidity	5% ~ 90%RH (no frosting)
Dimensions	22x42 (mm)

Equipped with Hailo-8 AI Accelerator to Step Up Your Edge Product Performance

The Hailo-8 M.2 module is an AI accelerator module for AI applications, based on the 26 tera-operations per second (TOPS) Hailo-8 AI processor with high power efficiency. The M.2 AI accelerator features a full PCIe Gen-3.0 4-lane interface, delivering unprecedented AI performance for edge devices. The M.2 module can be plugged into an existing edge device with M.2 socket to provide low-power deep neural network inferencing. Leveraging Hailo's comprehensive Dataflow Compiler and its support for standard AI frameworks, customers can easily port their Neural Network models to the Hailo-8 and introduce high-performance AI products to the market quickly.

Hailo-8 performance parameters

NN Model	mAP	Hailo-8L FPS(batch8)
yolov4_tiny	18.98	610
yolov6n	34.3	345
yolov7	49.8	45
yolox_s_wide	42.4	75
yolov3	38	26
yolov8n	37.23	270
yolov8s	44.75	128
yolov8m	50.08	55

Type	NN Model	Input Resolution	FPS	Power(W)	FPS/W
Classification	ResNet-50 v1	224x224	1332	3.45	386
	MobileNet_v2_1.0	224x224	2444	2.152	1135
	EfficientNet_M	240x240	889	3.5	254
Object Detection	SSD_MobileNet_v1	300x300	1055	2.2	479
	YOLOv5m	640x640	218	4.6	47.3
Segmentation	stdc1	1024x1920	54	2.9	18.6
Multi stream object detection (8 streams)	YOLOv3	608x608	69	4.9	14

Applied in the AI Field

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Hailo-8

Lieferumfang

Hailo-8 AI M.2 Module x1
