SKU:WSAL26185

IMX219 Camera Module For Raspberry Pi 5, 8MP, MIPI-CSI Interface, Options For 79.3° / 120° FOV, Comes With Pi5 CSI Flexible Cable 200mm

8MP Camera Module for Raspberry Pi 5

IMX219 sensor, MIPI-CSI Interface, Options for 79.3° / 120° FOV

Version Options

Pi5-IMX219-77 79.3° FOV

Pi5-IMX219-120 120° FOV

Specifications

Model	Pi5-IMX219-77	Pi5-IMX219-120
PIXELS	8MP
Sensor	IMX219
resolution	3280×2464
CMOS size	1/4 inch
Aperture (F)	2.0
Focal length	2.85mm	1.79mm
Field of view	79.3°	120°
DISTORTION	<1%	<13.6%
Lens dimensions	6.5×6.5mm
Screw holes	4 × screw holes, used for attachment, provides 3.3V power output
Dimension	25×24mm

Working With Raspberry Pi 5

Comes with CSI flexible cable 200mm, easy to use with Raspberry Pi 5

for reference only, the Raspberry Pi 5 is NOT included

Working With RDK X5

Comes with CSI flexible cable 200mm, easy to use with RDK X5

for reference only, the RDK X5 is NOT included

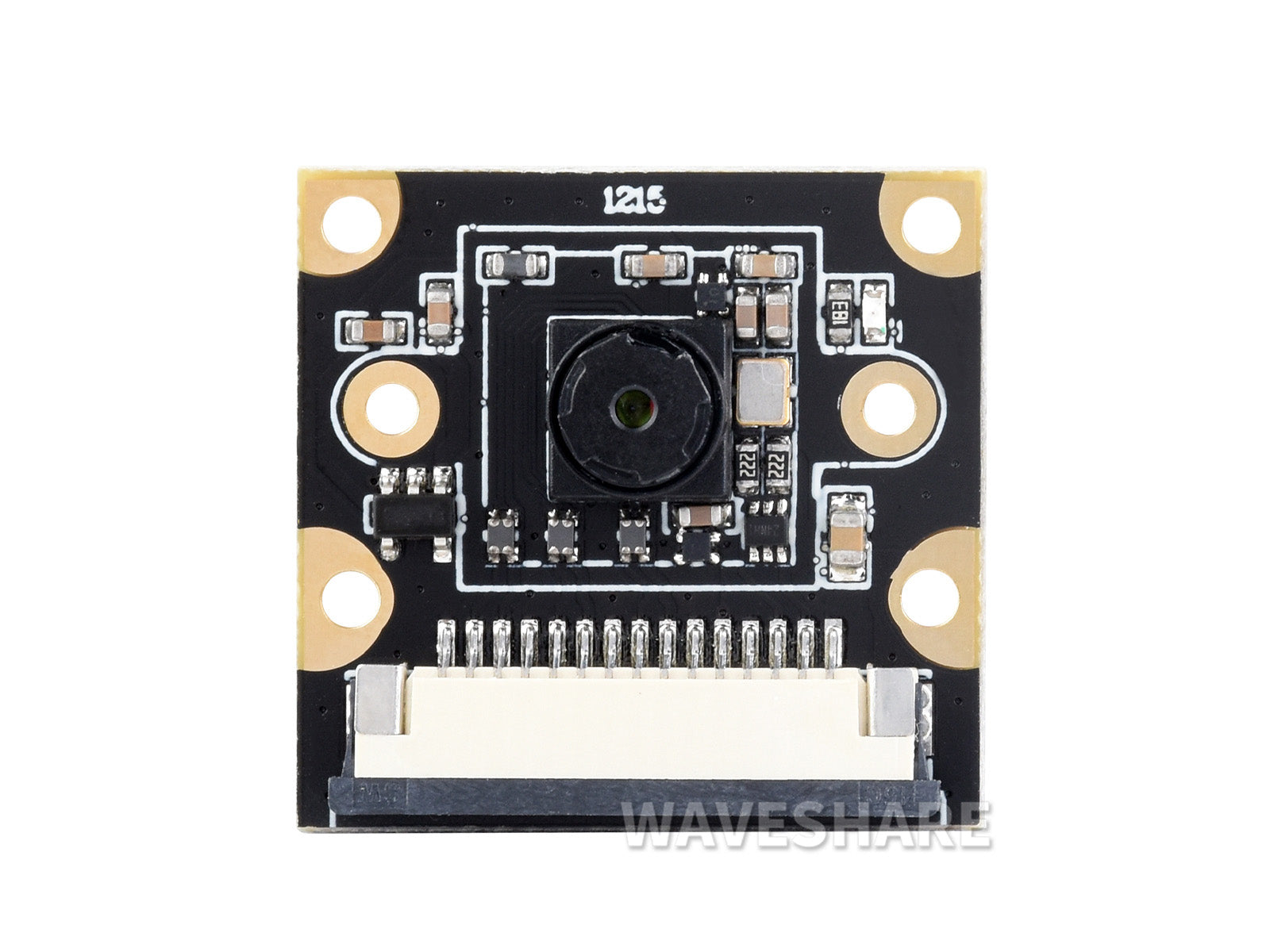

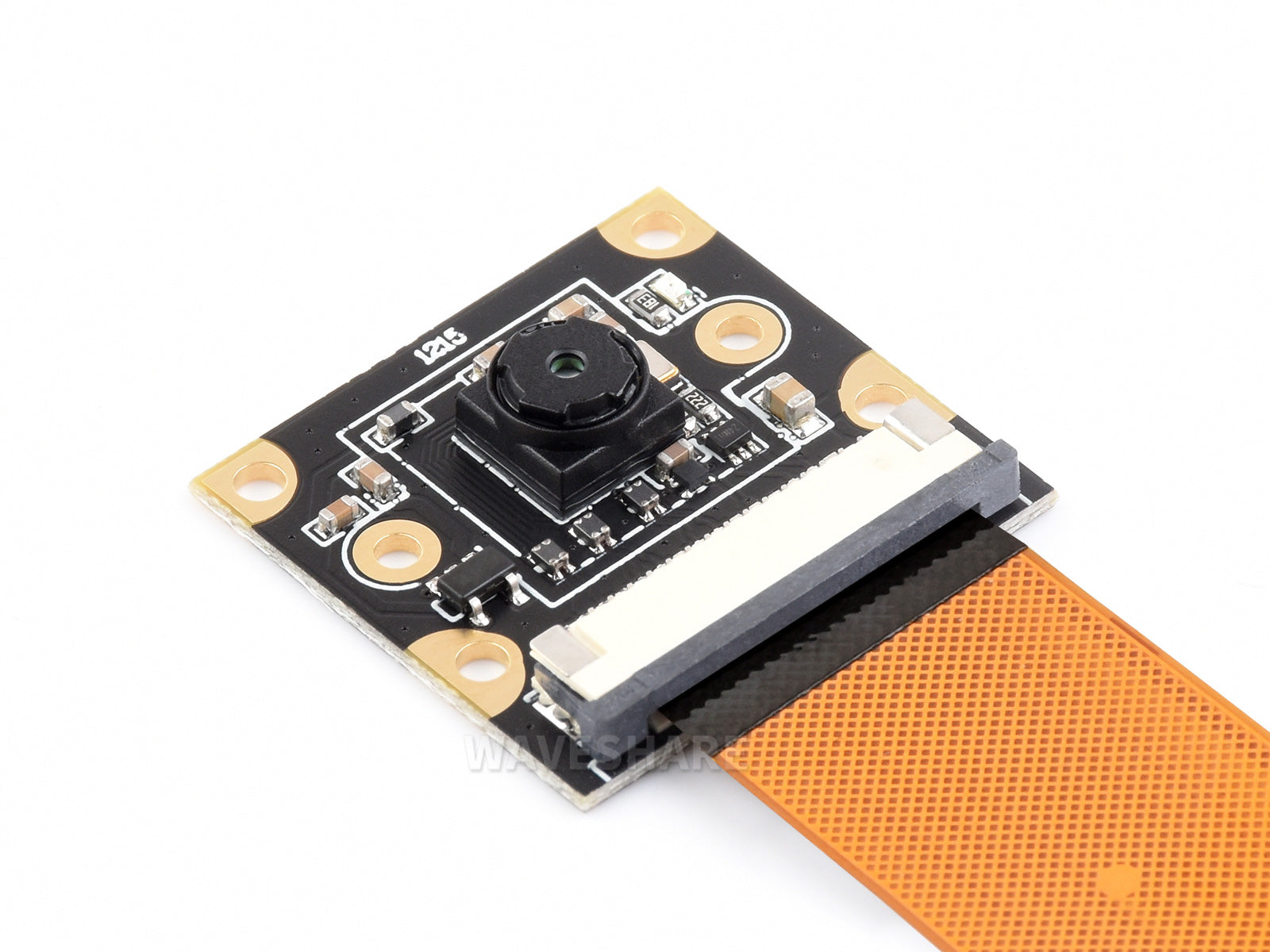

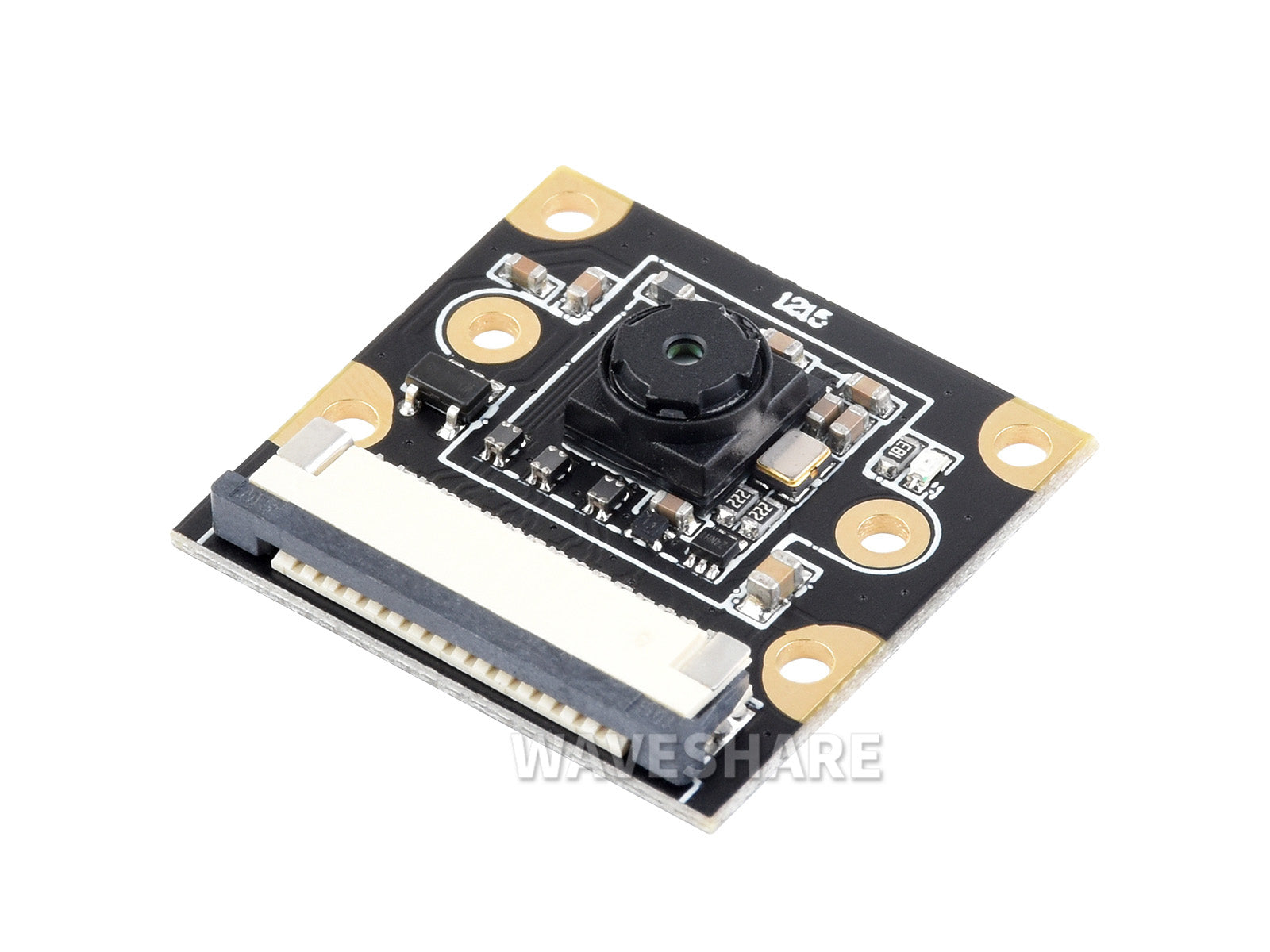

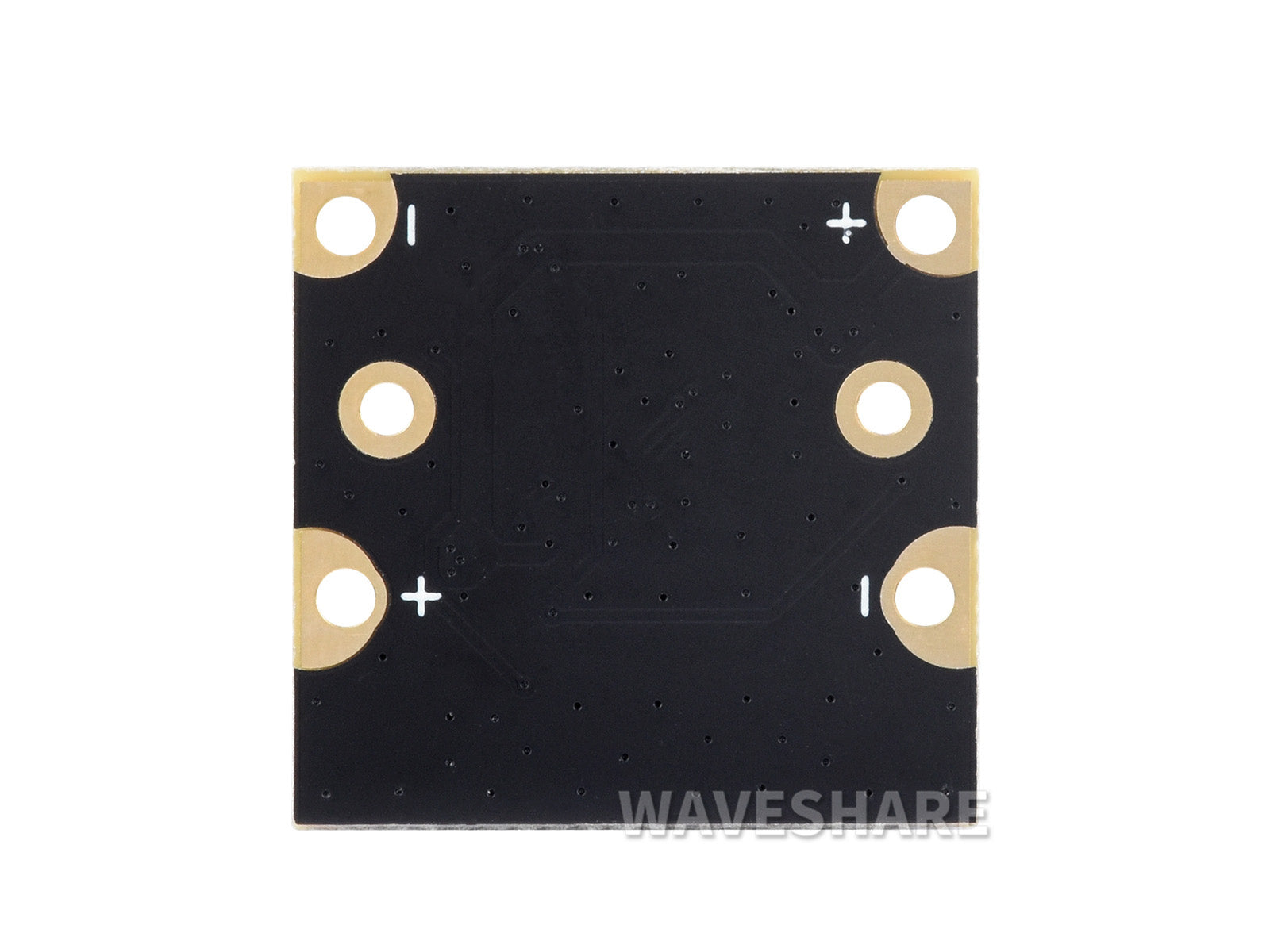

Product Show

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Pi5-IMX219

Lieferumfang

OPTIONS Pi5-IMX219 (with Pi5-Camera-Cable-200mm) x1
