SKU:WSAL32500

IMX290 2MP Camera module (A), IMX290 sensor chip, Better Sensitivity In Low-Light Condition, Distortion-Free, Supports Raspberry Pi Series Boards

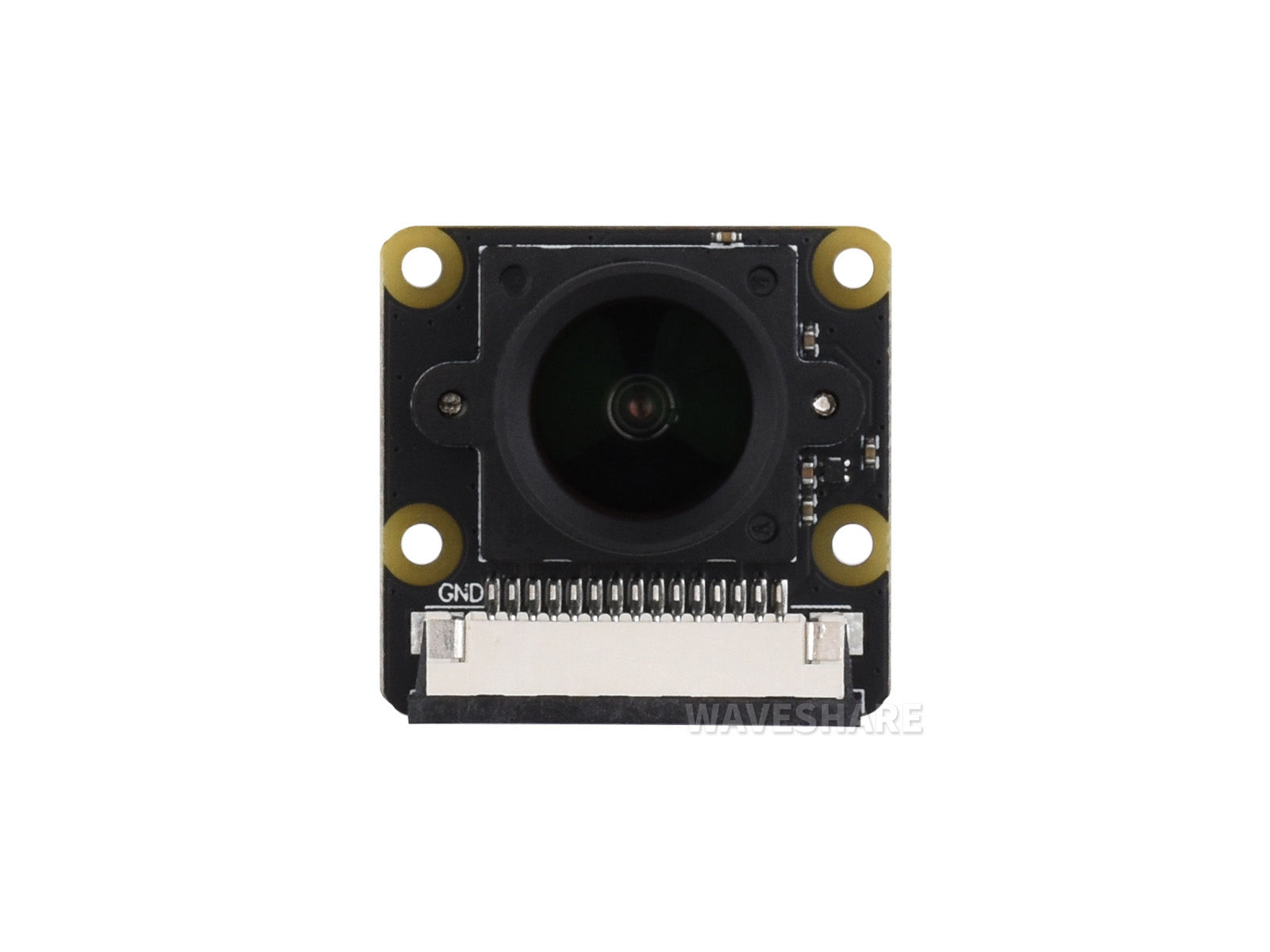

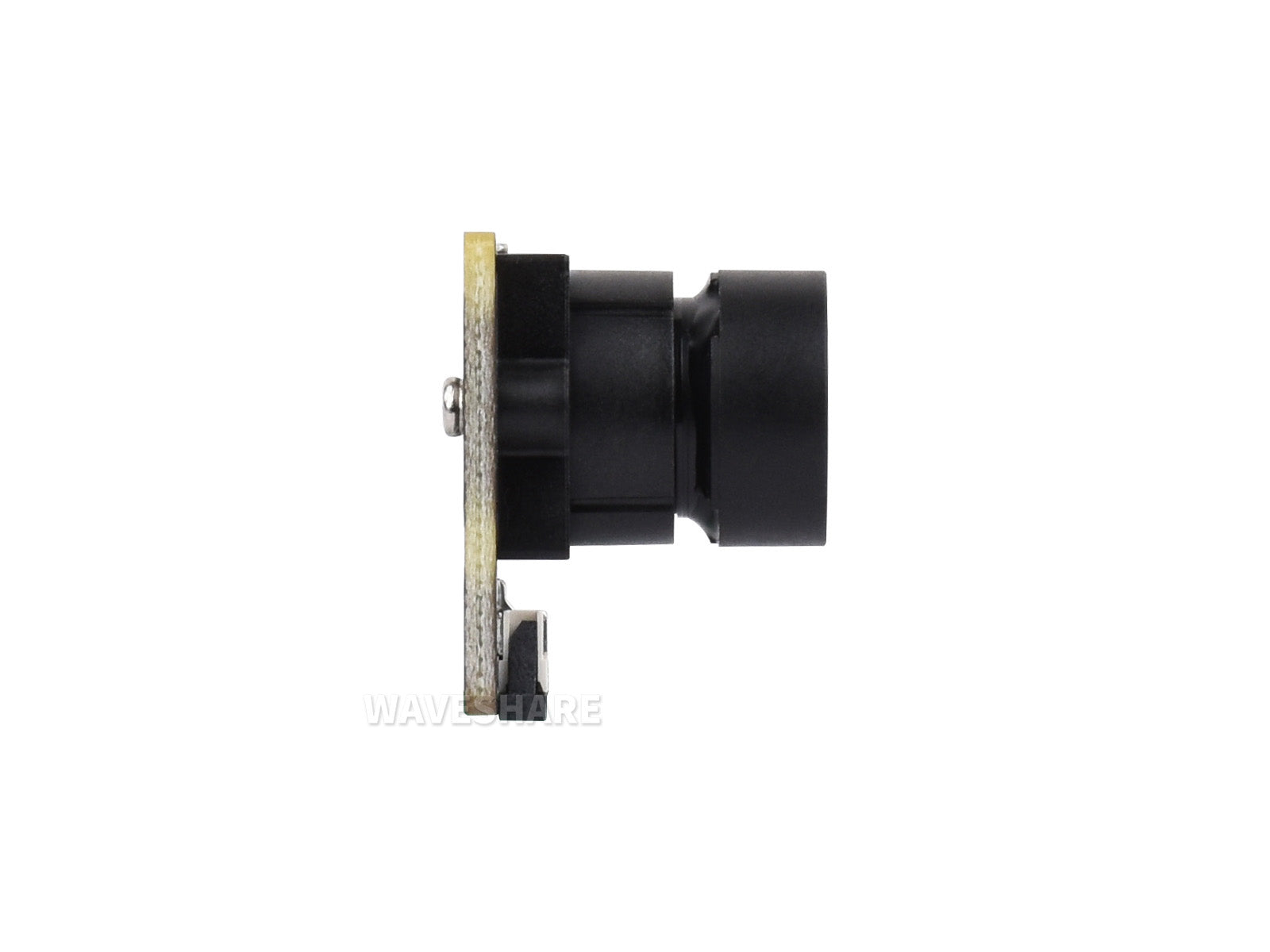

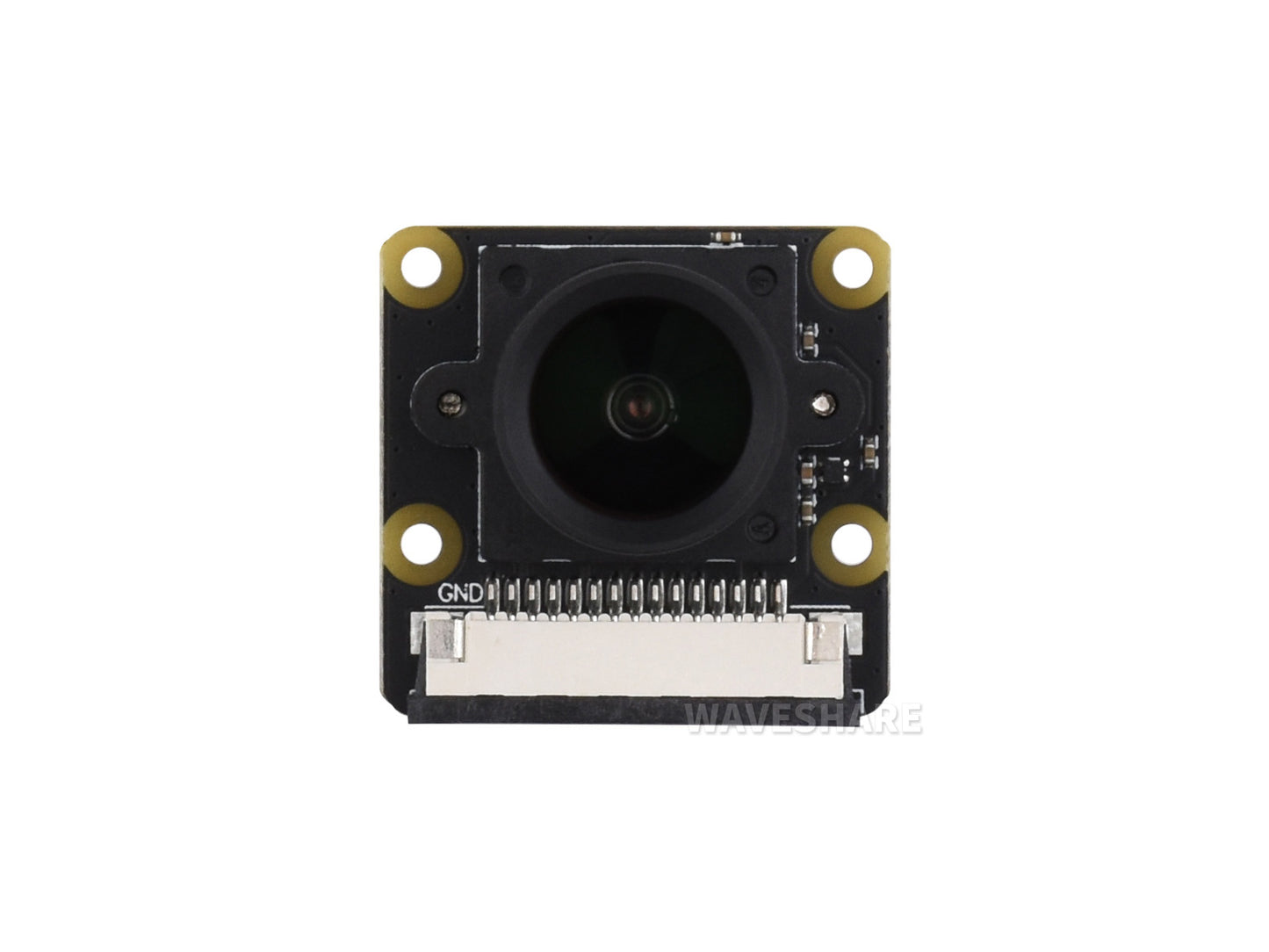

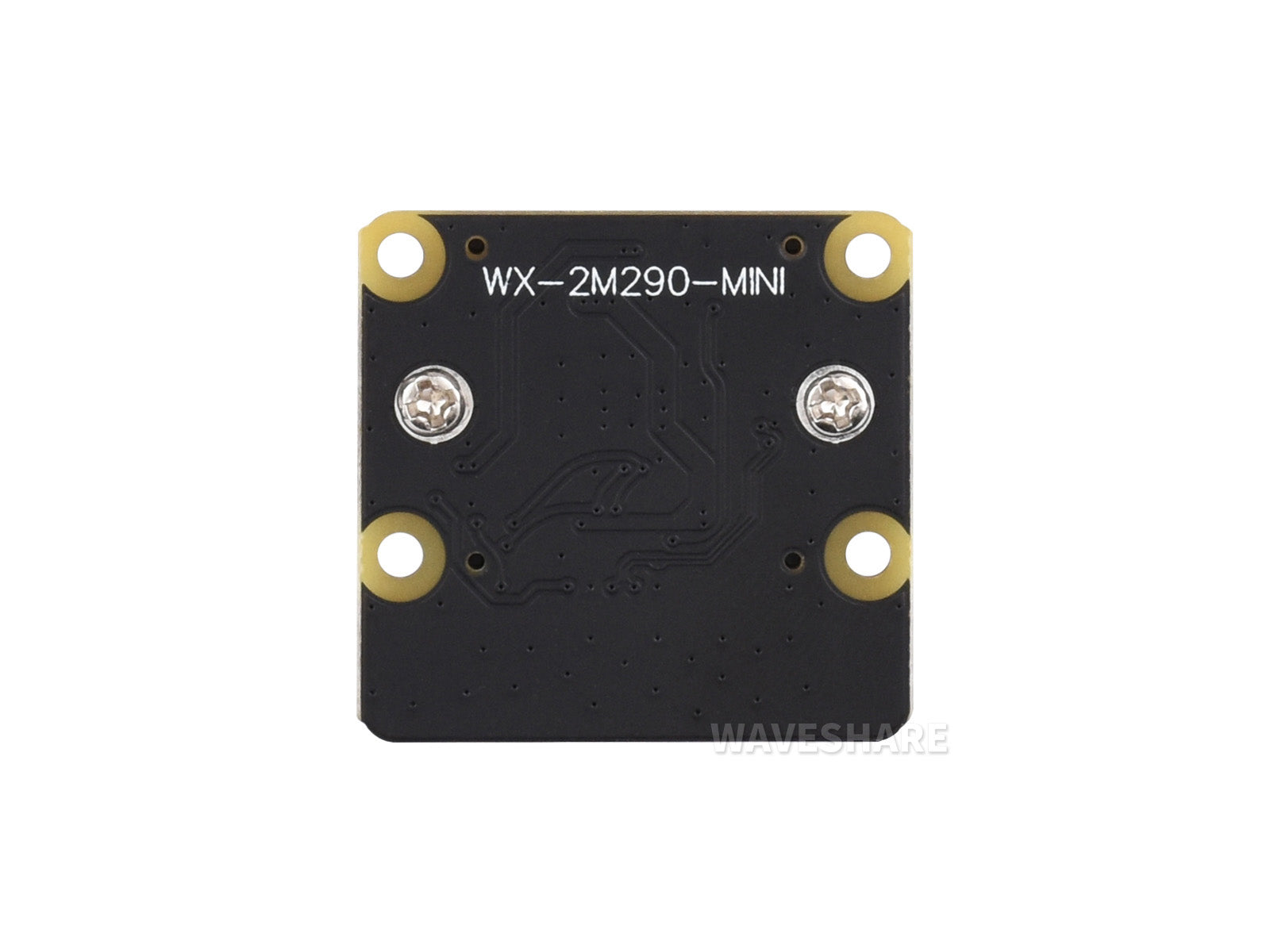

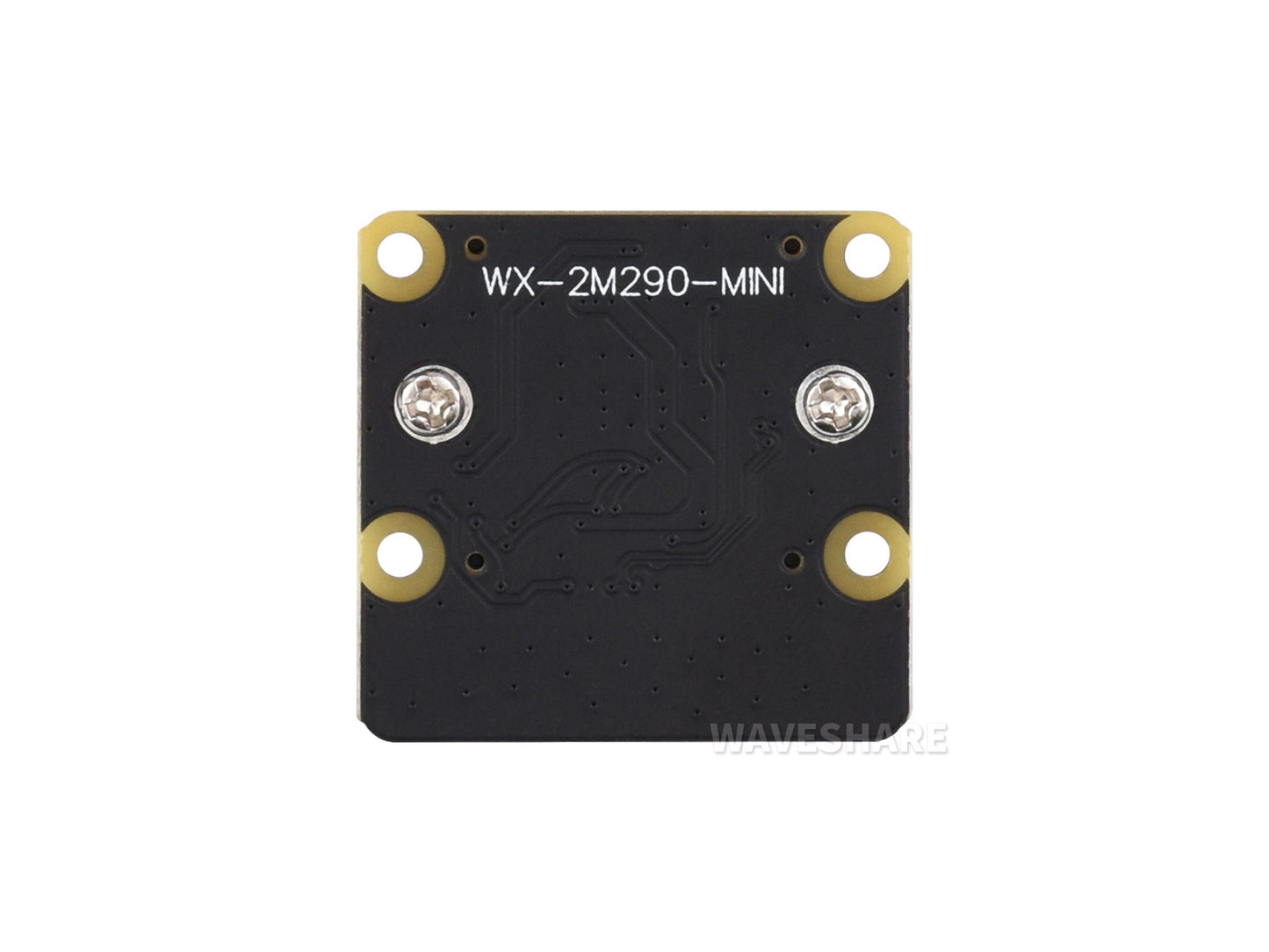

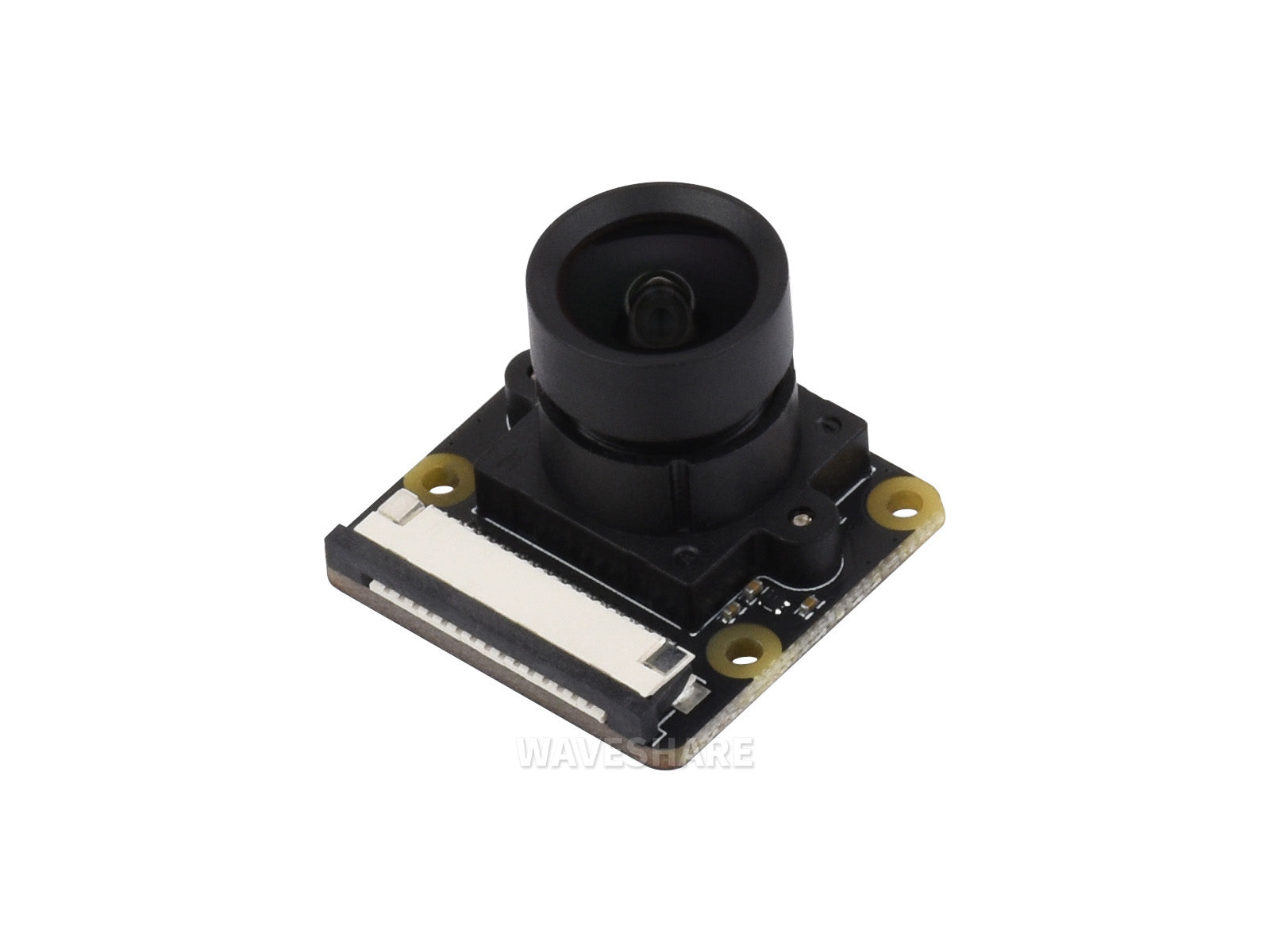

IMX290 2MP Camera

2MP | distortion-free | 94° FOV | Raspberry Pi Series Boards support

Device & System Support

Raspberry Pi

Supports Pi 5 / Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W

CM3 / 3+ / 4 / 5 (extra adapter board required)

Specifications

Sensor	IMX290	CMOS size	1/2.8″
Pixels	2MP (1920 × 1080)	Aperture	F2.7
Focal length	2.88mm	FOV	94°
Camera type	Color	Focusing	Fixed-focus
Distortion	< -0.3%	Shutter	Rolling shutter

Better Low-light sensitivity

Provides a better imaging effect in low light conditions, maintaining clear visuals without dark or blurry shots

Distortion-Free

Equipped with a distortion-free lens with a distortion rate of less than -0.3%, delivering undistorted imaging and more accurate reproduction of real-world scenes

* The images above are simulated for reference only, please refer to the actual shooting effect.

Connecting with Raspberry Pi

Compatible with multiple Raspberry Pi boards including Pi 5 / 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+, and Raspberry Pi Zero series or Zero 2 W series boards

* for reference only, the Raspberry Pi 5, Raspberry Pi 4B, and Raspberry Pi Zero 2 W are not included, please purchase separately.

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/IMX290_2MP_Camera_(A)

Lieferumfang

1. IMX290 2MP Camera (A) x1
2. 15PIN to 22PIN CSI cable x1
3. 15PIN CSI cable x1

1

2

3
