IMX296 Global Shutter Camera Module (A), IMX296 Sensor Chip, 1.6MP, Suitable for fast motion photography and machine vision applications, Compatible With Raspberry Pi Series Boards

IMX296 Global Shutter Camera Module

IMX296 Sensor | 1.6MP | Raspberry pi series boards support

Features at a glance

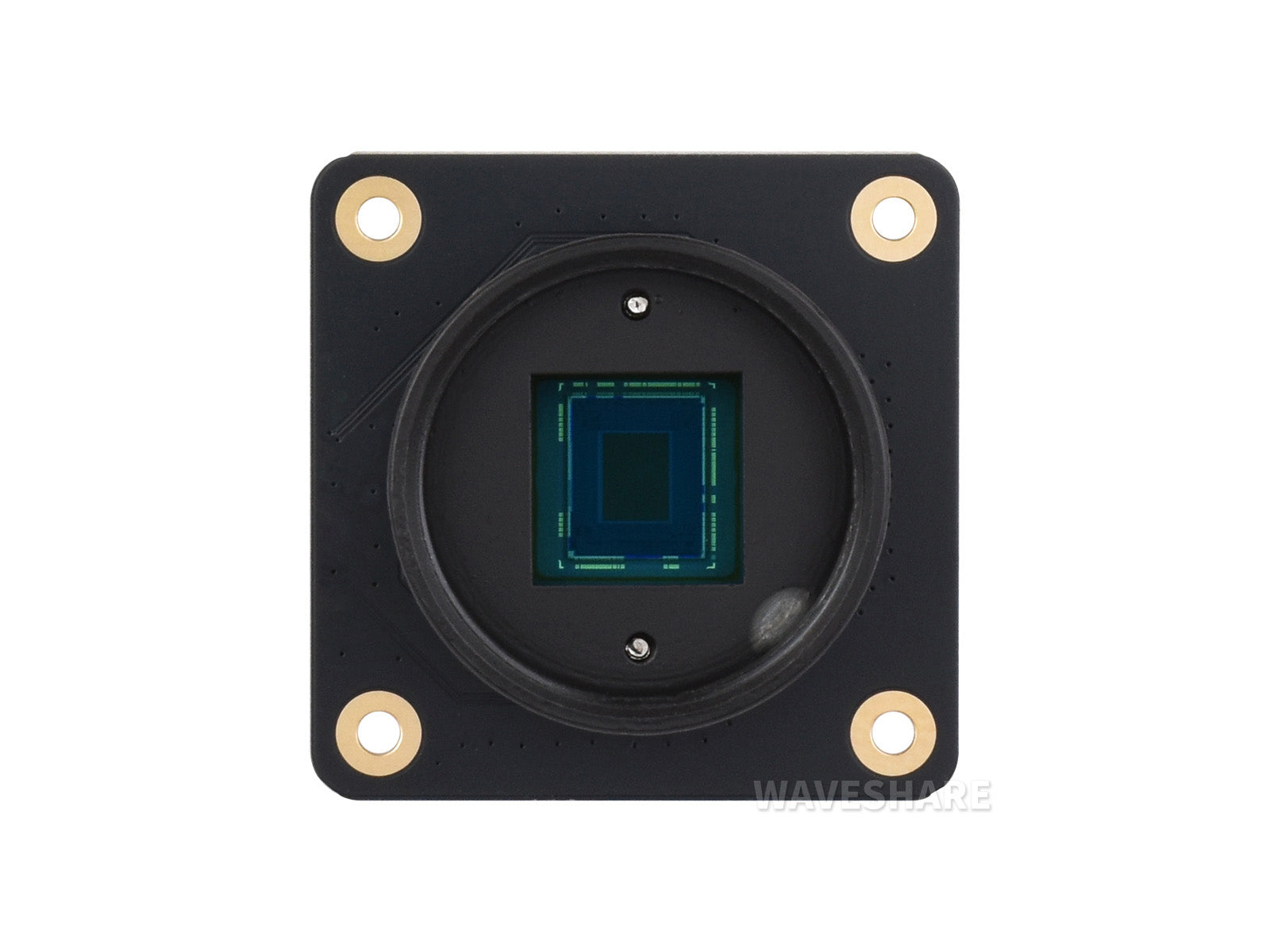

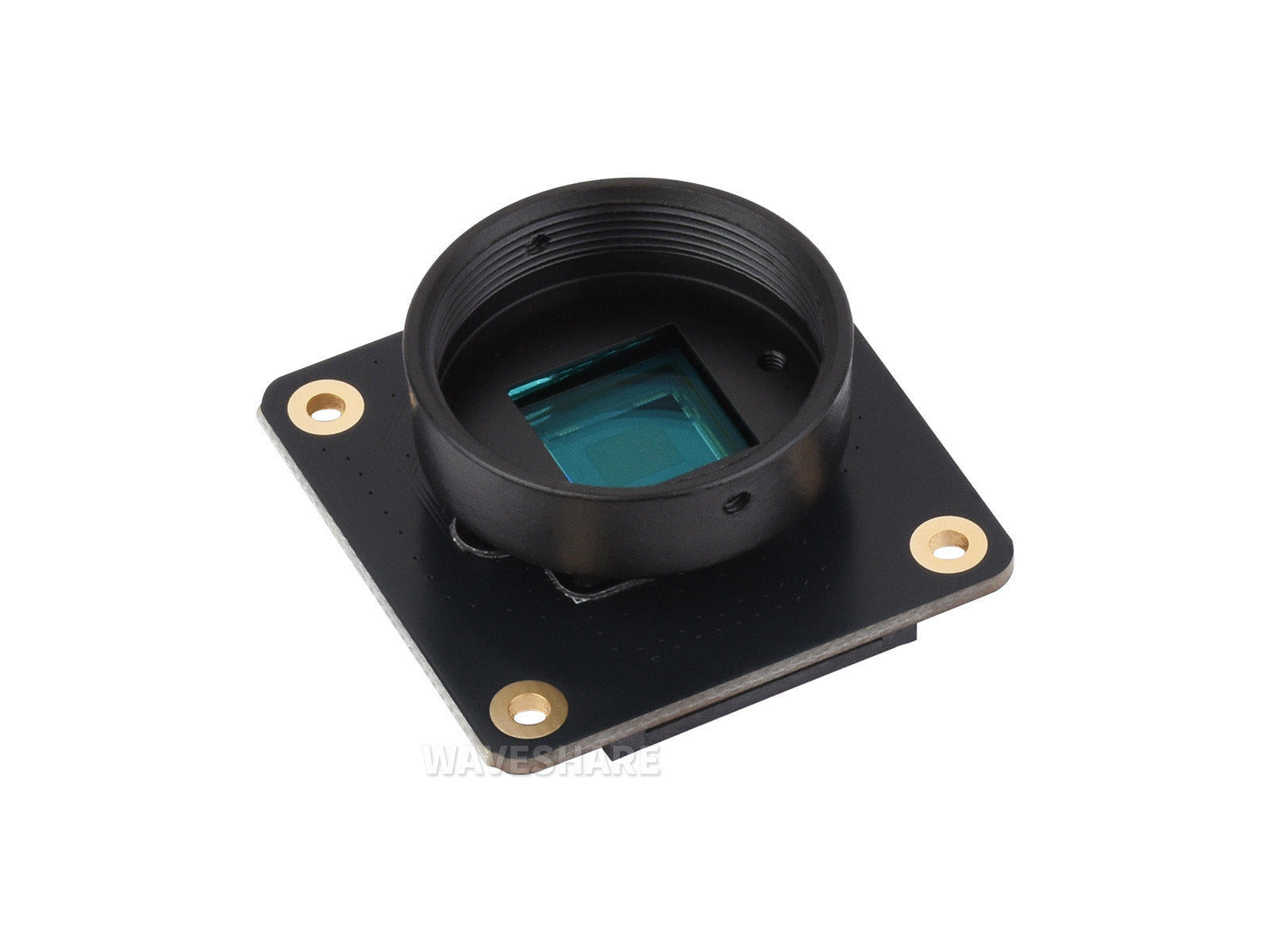

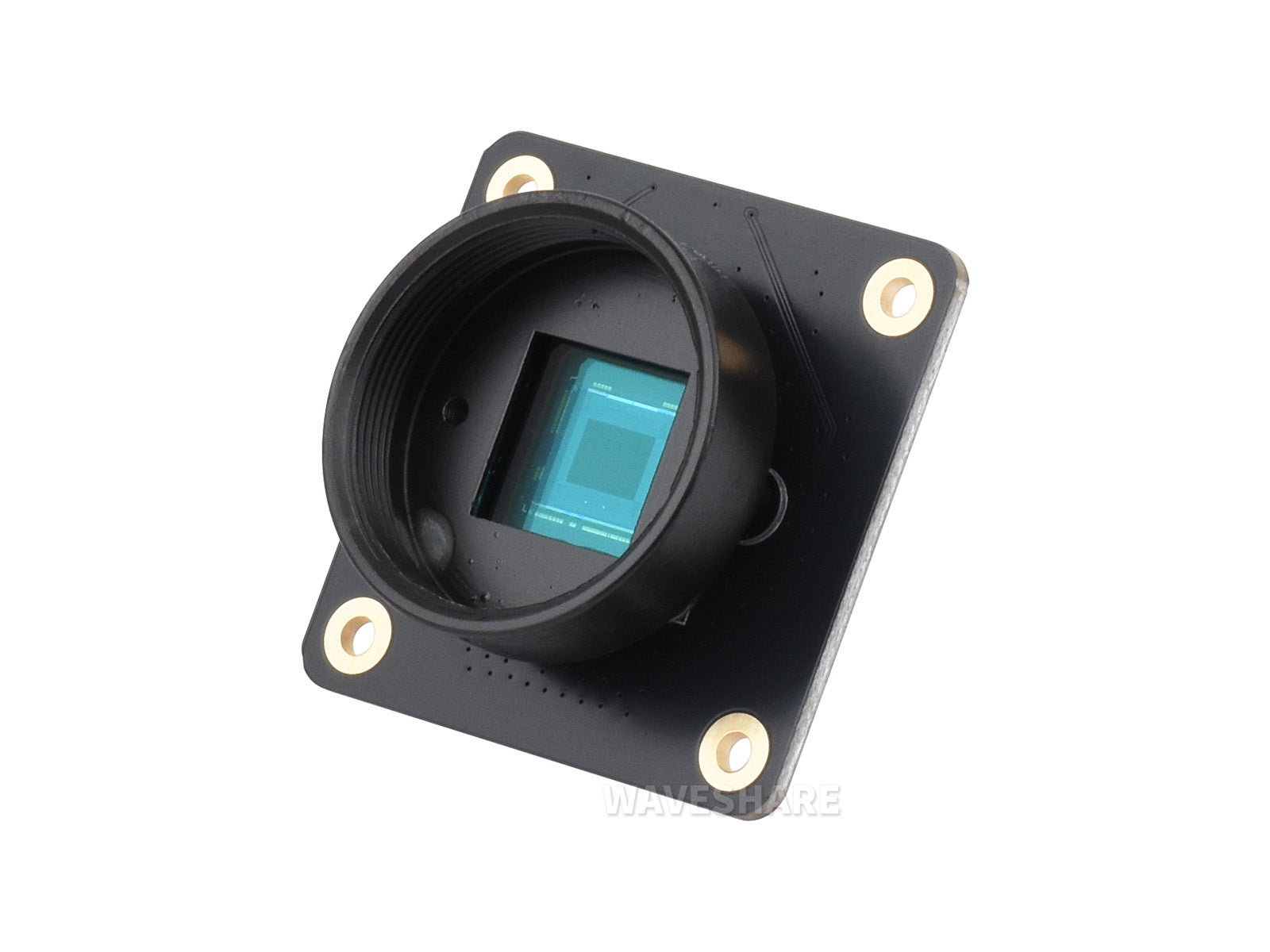

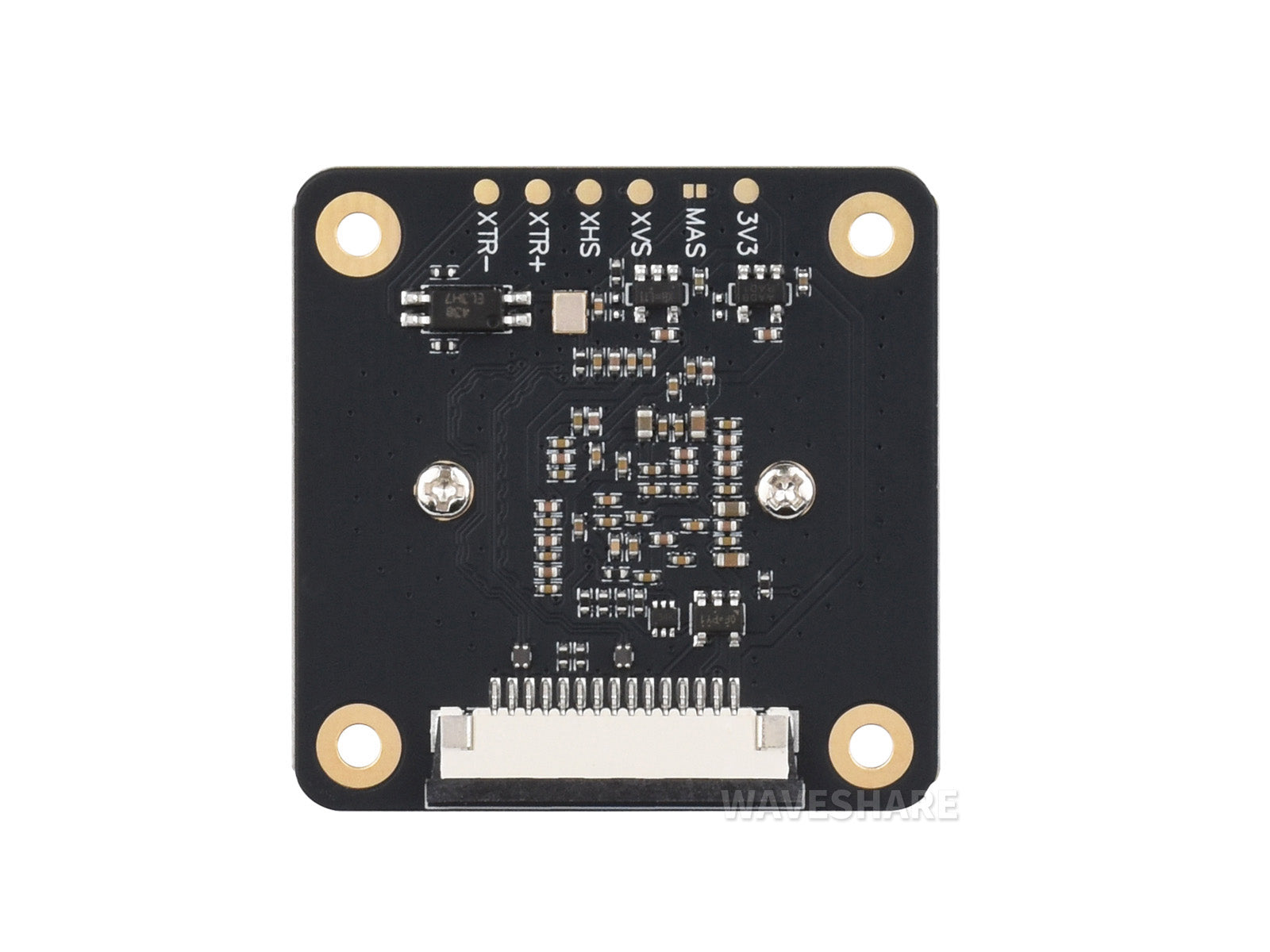

TheIMX296 Global Camera (A) is based on the IMX296 sensor with 1.6MP resolution. It is capable of capturing fast moving objects without the Jelly-Effect of rolling shutter, ideal for fast motion photography and machine vision applications. The camera includes a C- to CS-mount adapter, suitable for industrial lenses with C or CS mount. Comes with dual cables, compatible with all Raspberry Pi series boards.

Specifications

Sensor	Model	IMX296
	1.6MP(Color)	1456 × 1088
	CMOS diagonal size	6.3mm
	Pixel size	3.45 × 3.45 (µm)
Output		RAW10
Lens Support		C-mount / CS-mount (C-CS adapter included)
IR cut filter		Integrated

Lens Selection

Product	6mm Wide Angle Lens	16mm Telephoto Lens	25mm Telephoto Lens	35mm Telephoto Lens	8-50mm Zoom Lens	100X Microscope Lens for Pi
Image format	1/2"	1"	2/3"	1"	1/2.3"	1/2"
Focal length	6mm	16mm	25mm	35mm	8-50mm	-
Aperture	F1.2	F1.4-16	F1.4-16	F1.7-16	F1.4	-
OPTICAL MAGNIFICATION	-					0.12X~1.8X
ZOOM RATIO	-					15:01
Mount	CS-mount	C-mount				C/CS-mount
Angle of view	63°	1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4°	2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°	1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°	45°-5.35°	-
Back focus	7.53mm	17.53mm				-
Optical length	-	67.53mm	-
Distortion	-	1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）	0.05%	0.35%	-	< -0.1%
M.O.D.	0.20m	0.20m	0.25m	0.30m	0.20m	2.4mm
Dimensions	Φ30.00 × 34.00mm	Φ39.00 × 50.00mm	Φ34.00 × 34.00mm	Φ35.00 × 34.00mm	Φ40.00×68.30mm	Φ39.00×112.00mm
Operation	Manual aperture adjustment					Fixed aperture
Weight	53g	133.7g	82g	78g	148g	202g

Global shutter, more clear imaging

the global shutter eliminates jello-effect while shooting fast moving objects more suitable for high-speed motion capturing

* The images above are simulated for reference only, please refer to the actual shooting effect.

with mounted lens

* The 16mm telephoto lens is not included, please purchase separately.

Working with Raspberry Pi

* for reference only, Raspberry Pi 5,Raspberry Pi Zero 2 W, and 16mm Telephoto Lens, are NOT included, please purchase separately.

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/IMX296_Global_Camera_(A)

Selection Guide

Part Number	Pixels	Sensor	CMOS Size	IR-CUT Filter	Lens Support	FoV (°)	Aper-ture (F)	Focal Length (mm)	Dimen-sions (mm)	For use with
Raspberry Pi HQ Camera	12.3MP	IMX477	7.9mm	integrated	C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX477 12.3MP Camera						-	-	-	38*38	Raspberry Pi, CM3/3+/4, Jetson series boards
Raspberry Pi HQ Camera M12					M12	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX477 IR-CUT Camera (A)						90	2.0	3.95	38*38	Raspberry Pi, CM3/3+/4/5, Jetson series boards
IMX477-160 12.3MP Camera						160	2.2	2.75	25*24	Raspberry Pi, CM3/3+/4/5, Jetson series boards
Raspberry Pi Global Shutter Camera	1.6MP	IMX296	6.3mm		C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX296 Global Camera (A)	1.6MP	IMX296	6.3mm		C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX296-130 BW Camera	1.6MP	IMX296	6.3mm		M12	130	1.6	3.0	38*38	Raspberry Pi, CM3/3+/4/5

Lieferumfang

1. IMX296 Global Camera (A) x1
2. 15PIN to 22PIN CSI cable x1
3. 15PIN CSI cable x1
4. C-CS adapter + dust cap x1

1

2

3

4
