SKU:WSAL33322

IMX327 2MP IR-CUT Camera, Starlight Camera Sensor, Fixed-Focus, 90° Diagonal FOV, Compatible With Raspberry Pi Series Boards

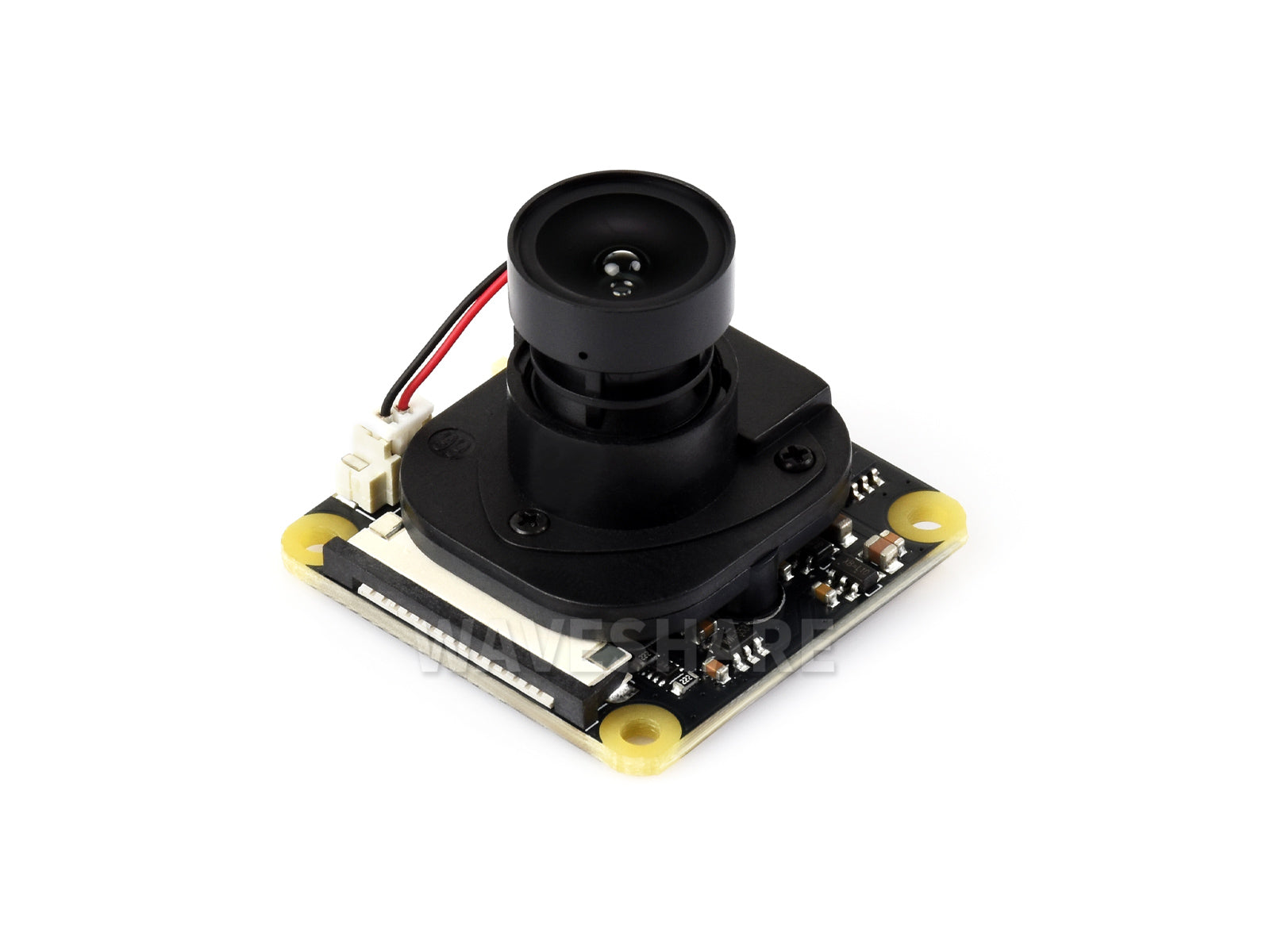

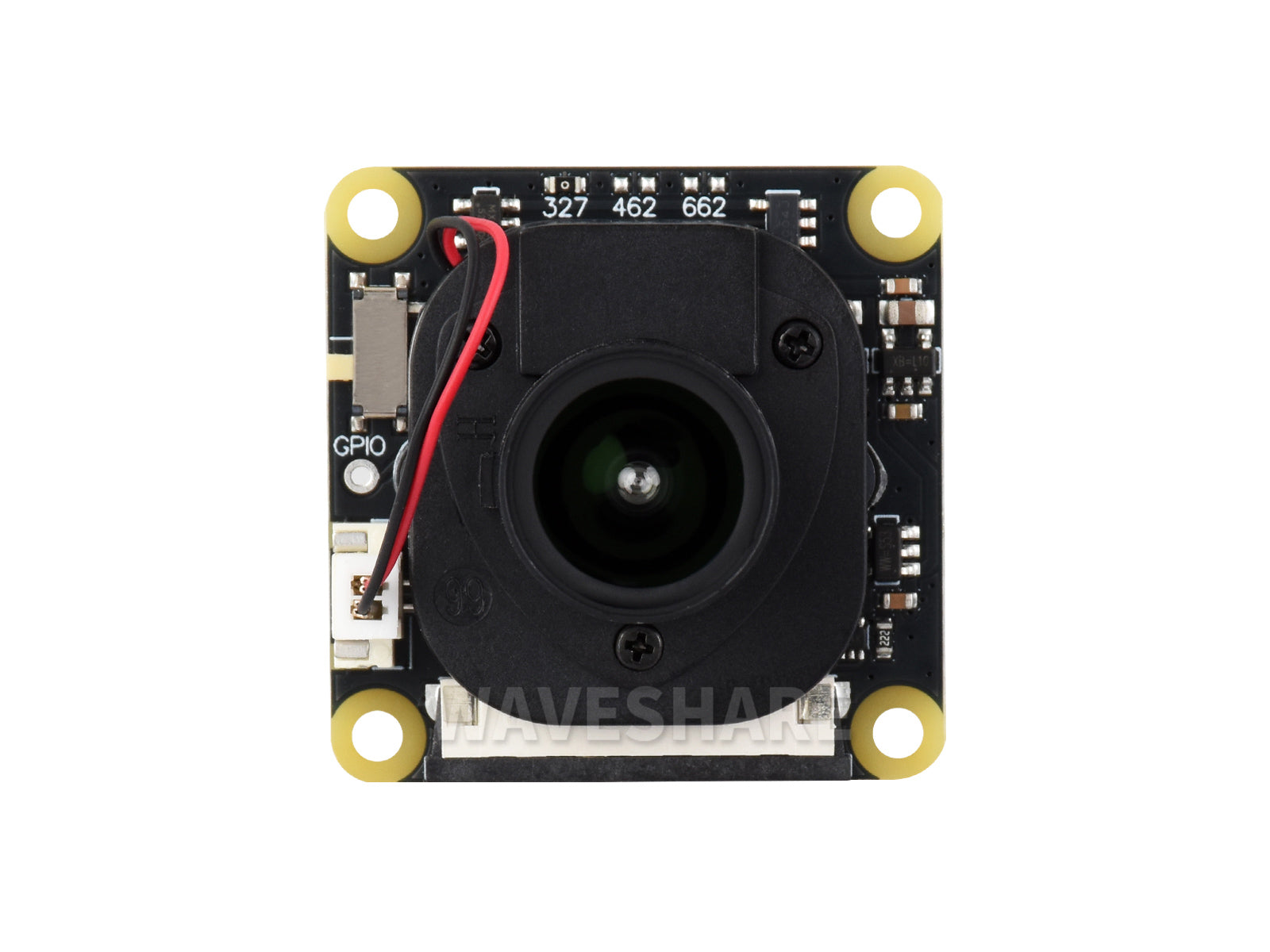

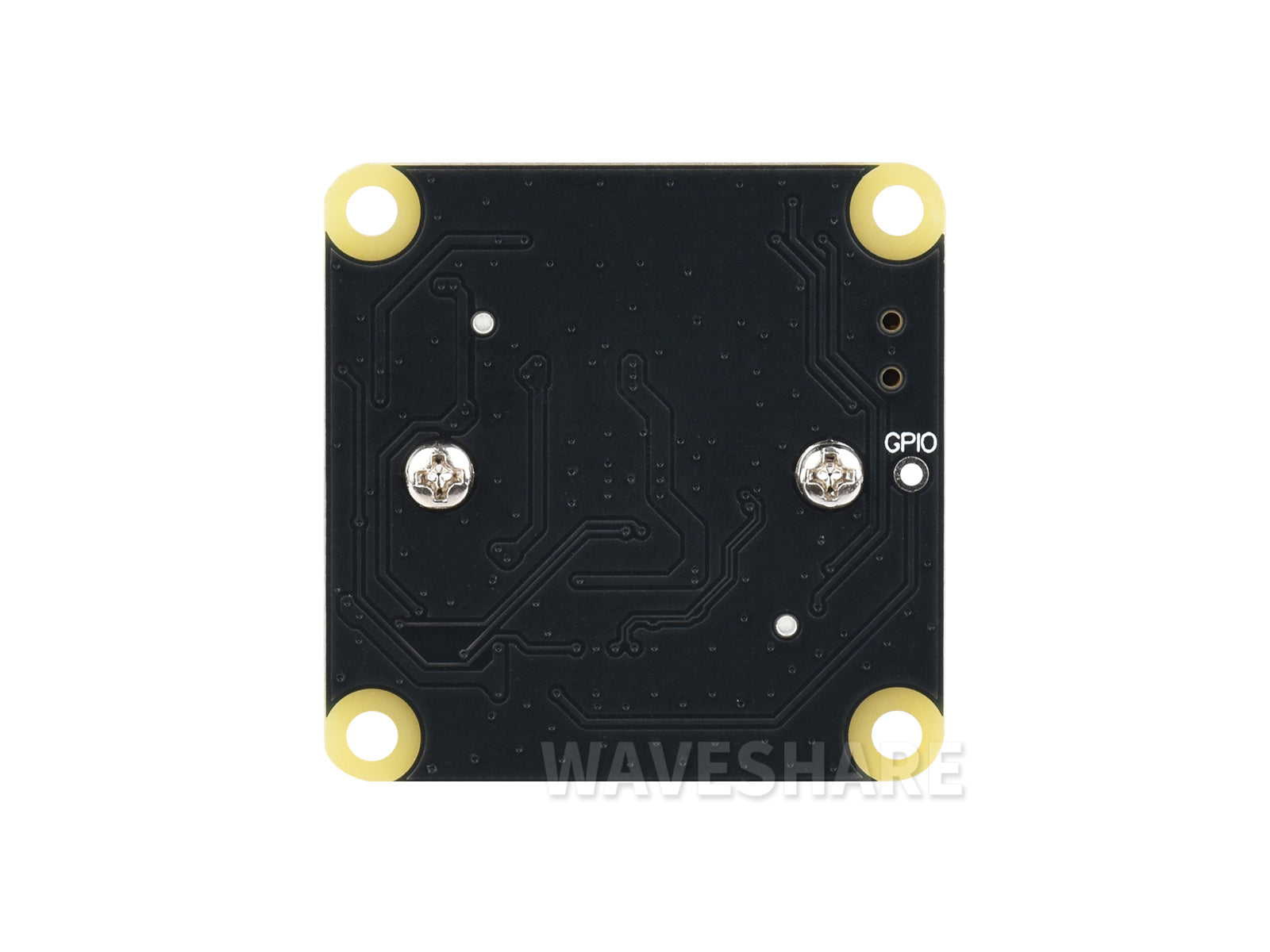

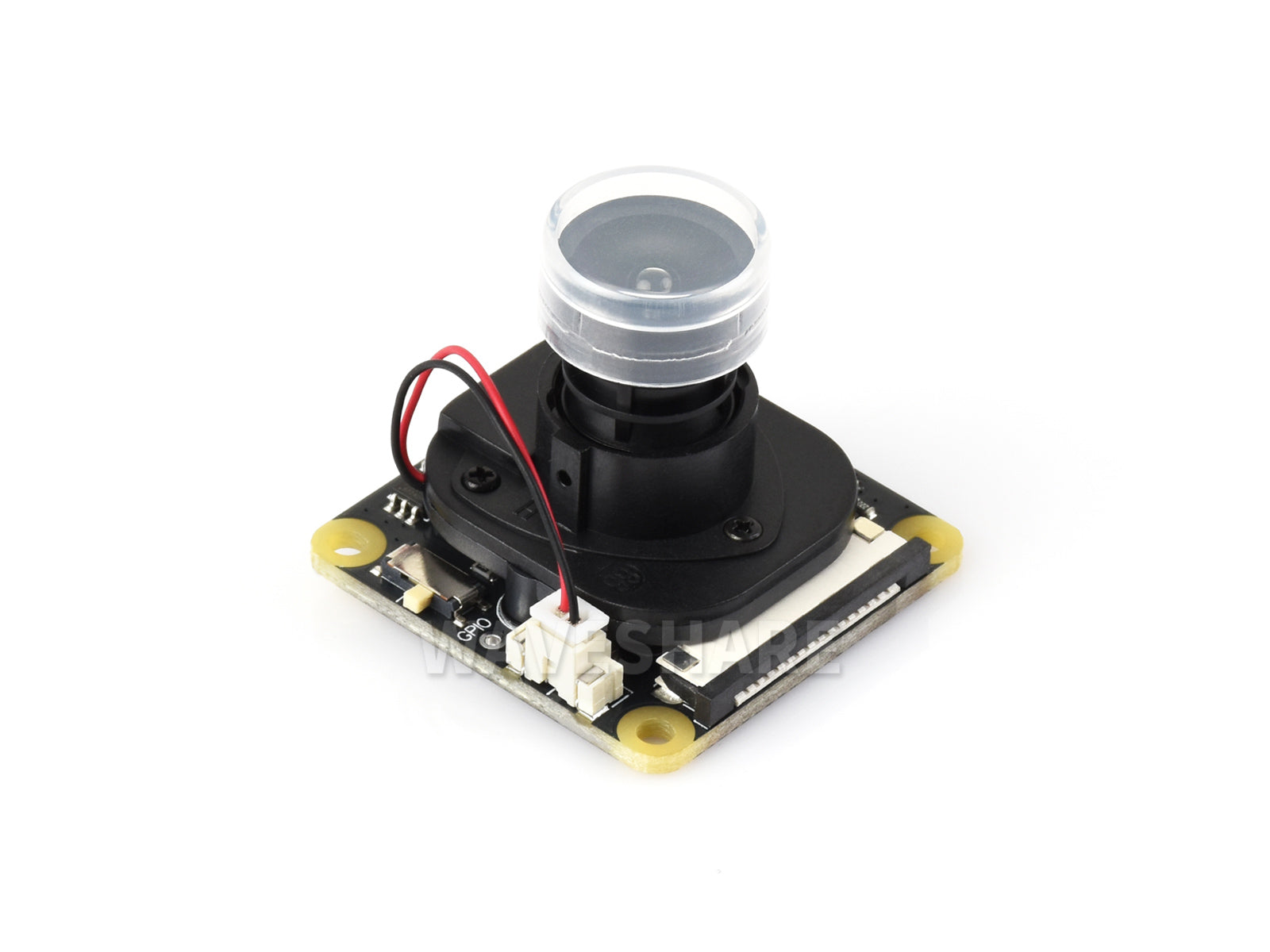

IMX327 2MP IR-CUT Camera

2MP | Starlight Camera | IR-CUT  | 90° FOV 

Compatible with Raspberry Pi series boards

Device Support

Raspberry Pi series

Supports Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2 W

for using with CM3 / 3+ / 4 / 5, an extra adapter board is required

Specifications

Sensor	IMX327	CMOS size	1/2.8 inch
PIXELS	2MP (1920 × 1080)	APERTURE	F2
FOCAL LENGTH	3.95mm	FIELD OF VIEW	90°
CAMERA TYPE	Color	FOCUSING	Fixed focus
DISTORTION	< 5%	SHUTTER	Rolling Shutter

Starlight Camera

Clear Imaging even in Low Light Conditions

Built-in IR-CUT

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

Working with Raspberry Pi

direct connect to Raspberry Pi different variants including Raspberry Pi 5 / 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+ / Zero / Zero 2 W series

* for reference only, the Raspberry Pi 4B,Raspberry Pi 5andRaspberry Pi 2 W are NOT included.

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/IMX327_2MP_IR-CUT_Camera_(A)

Lieferumfang

1. IMX327 2MP IR-CUT Camera (A) x1
2. 22PIN to 15PIN FPC cable ~15cm x1
3. 15PIN FFC x1

1

2

3
