SKU:WSAL31824
IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free
Regulärer Preis
17.153 Ft
Verkaufspreis
17.153 Ft
Regulärer Preis
0 Ft
Einzelpreis
pro
Sale
Ausverkauft
Steuer enthalten.
Versand wird an der Kasse berechnet.
Abholverfügbarkeit konnte nicht geladen werden
IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free
5MP USB camera module
IMX335 sensor, USB2.0 port, 91.7° distortion-free lens
Specifications
| Pixels | 5MP | |
|---|---|---|
| Sensor | IMX335 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/2.8 inch |
| Aperture (F) | 2.4 | |
| Focal length (EFL) | 3.25mm | |
| Field of view (FOV) | 91.7° | |
| Distortion | <-1.22% | |
| Focusing | Fixed-focus | |
| Mount | M12 | |
| CONSTRUCTION | 3G2P + IR Filter (650nm) | |
| Image | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 | |
| Dynamic range | 71.6dB@8xgain | |
| SNR | 36dB | |
| Audio | onboard 1 × microphone | |
| Operating voltage | 5V ± 5% | |
| operating temperature | -10°C~60°C | |
| Module size | 25.00 × 24.30 (mm) | |

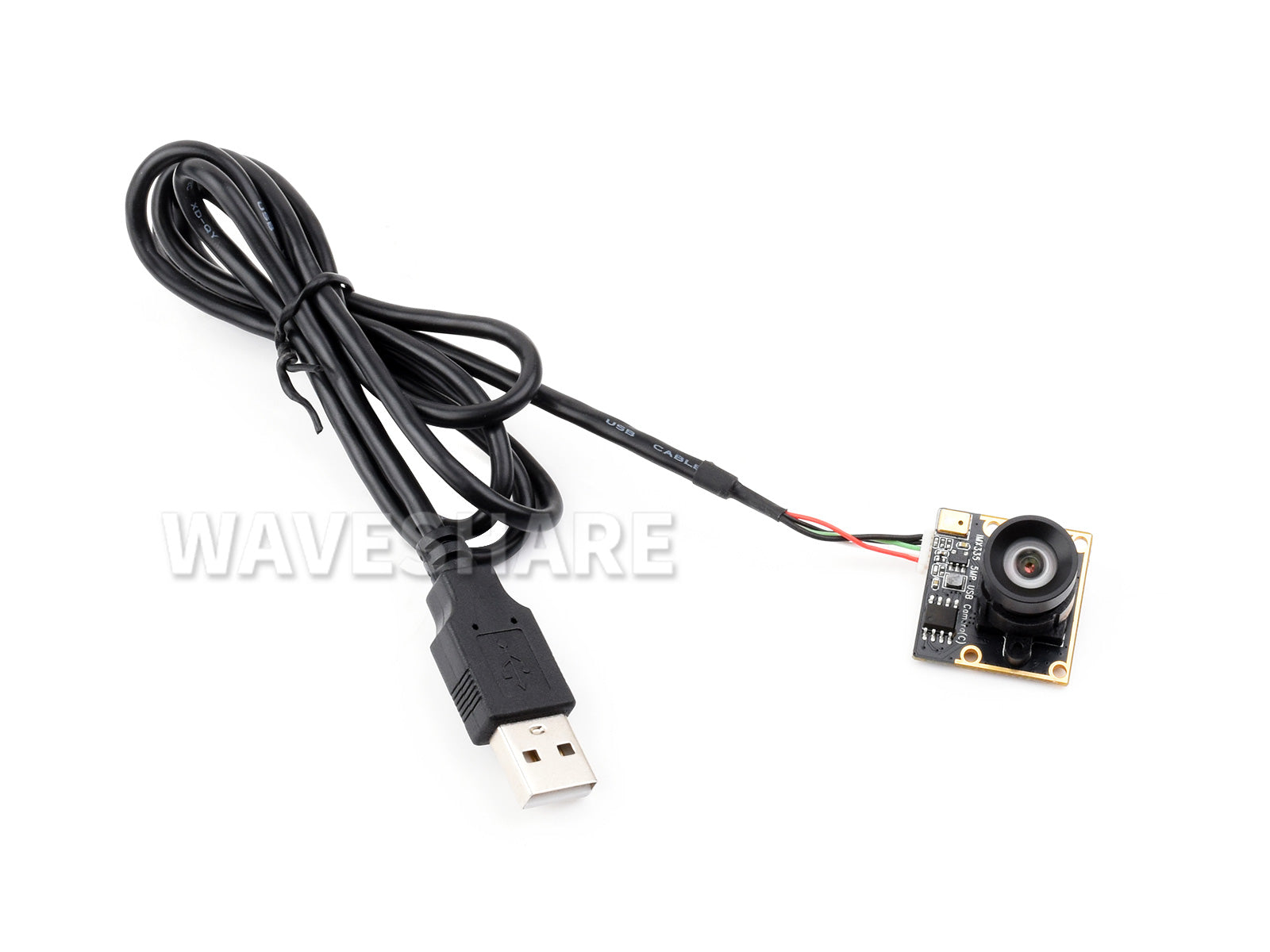

Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
Connecting to RDK X5 Development Board
* for reference only, the Raspberry Pi 5,Jetson Orin kitandRDK X5 Development Board are not included
5MP High resolution
Supports 30 FPS output, suitable for capturing details
Better Low-light sensitivity
Provides a better imaging effect in low light condition
Wide Dynamic Range
supports wide dynamic range (WDR) technology for maintaining image details and quality in high contrast scenes
* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than -1.22%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Pinout Definition
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Shutter Mode | Feature |
|---|---|---|---|---|---|---|---|
| OV9281 1MP USB Camera (A) | 1MP | OV9281 | 1280×720 | 25×25mm | 105° | Global shutter | 120FPS high frame rate, mono camera |
| OV2735 2MP USB Camera (A) | 2MP | OV2735 | 1920×1080 | 25×25mm | 96° | Rolling shutter | distortion-free |
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38x38mm | 145° | Rolling shutter | Low-light sensitivity |
| GC2093 2MP USB Camera (A) | 2MP | GC2093 | 1920x1080 | 38x38mm | 170° | Rolling shutter | Wide dynamic range, backlit imaging, onboard microphone |
| SC2210 2MP USB Camera (A) | 2MP | SC2210 | 1920x1080 | 38x38mm | 110.8° | Rolling shutter | Large aperture, starlight-level |
| PS5268-2MP-USB-Camera-A | 2MP | PS5268 | 1920x1080 | 30×30mm | 112.6° | Rolling shutter | Wide dynamic range, IP67 water-resistant case |
| OS05A10 5MP USB Camera (A) | 5MP | OS05A10 | 2592×1944 | 25×25mm | 96° | Rolling shutter | wide dynamic range, distortion-free |
| OV5693 5MP USB Camera (A) | 5MP | OV5693 | 2592x1944 | 18×40mm | 135° | Rolling shutter | auto-focus |
| OV5693 5MP USB Camera (B) | 5MP | OV5693 | 2592x1944 | 8.5×60.2mm | 75° | Rolling shutter | Small size, auto-focus |
| OV5640 5MP USB Camera (B) | 5MP | OV5640 | 2592x1944 | 9×62mm | 68° | Rolling shutter | Small size, auto-focus |
| OV5640 5MP USB Camera (C) | Small size | ||||||
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106.9° | Rolling shutter | Manual focus, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (B) | 5MP | IMX335 | 2592x1944 | 25×24mm | 175° | Rolling shutter | Fixed-focus, wide angle, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (C) | 5MP | IMX335 | 2592x1944 | 25×24.3mm | 91.7° | Rolling shutter | Fixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone |
| IMX378 12MP USB Camera (A) | 12MP | IMX378 | 3840×3032 | 30×30mm | 79.8° | Rolling shutter | HD, auto-focus, onboard dual microphones |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38x38mm | 145° | Rolling shutter | HD, embedded digital mic |
| IMX179 8MP USB Camera (B) | 8MP | IMX179 | 3264×2448 | 9×62mm | 75° | Rolling shutter | HD, small size, auto-focus |
| IMX415 8MP USB Camera (A) | 8MP | IMX415 | 3840×2160 | 38×38mm | 95.5° | Rolling shutter | HD, auto-focus, onboard dual microphones, distortion-free |
| IMX678 8MP USB Camera (A) | 8MP | IMX678 | 3840×2160 | 38×38mm | 93° | Rolling shutter | HD, Low-light sensitivity, distortion-free |
| OS08A10 8MP USB Camera (A) | 8MP | OS08A110 | 3840×2160 | 38×38mm | 68° | Rolling shutter | HD, Low-light sensitivity, Low distortion |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4208×3120 | 38×38mm | 123° | Rolling shutter | HD, OIS |
| AR0144 Stereo USB Camera (A) | 1MP | AR0144 | 2560×800 | 66×30mm | 74° | Global shutter | Frame-synchronized stereo output, distortion-free |
| IMX577 12MP USB Camera (A) | 12MP | IMX577 | 3840×3024 | 34×34mm | 113° | Rolling shutter | HD, distortion-free |
| IMX577 12MP USB Camera (B) | 12MP | IMX577 | 3840×3024 | 34×34mm | - | Rolling shutter | HD, C/CS lenses support |
| OS02G10 Stereo USB Camera (A) | 2MP | OS02G10 | 3840×1080 | 100×22mm | 92° | Rolling shutter | Frame-synchronized stereo output, distortion-free |
Lieferumfang
IMX335 5MP USB Camera (C) x1
