IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones

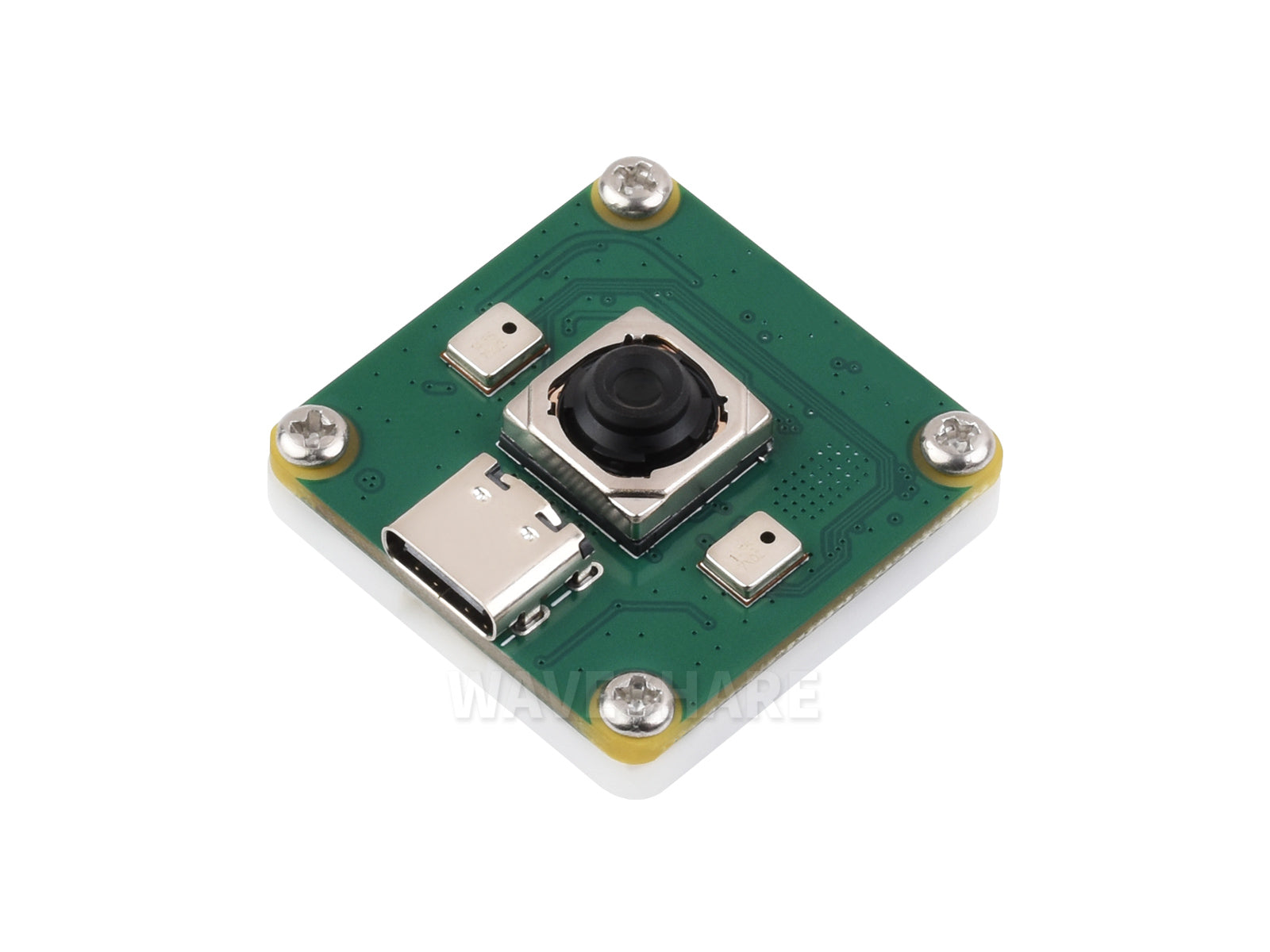

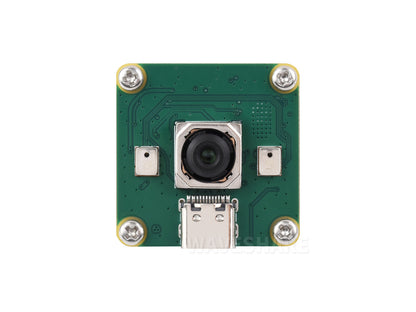

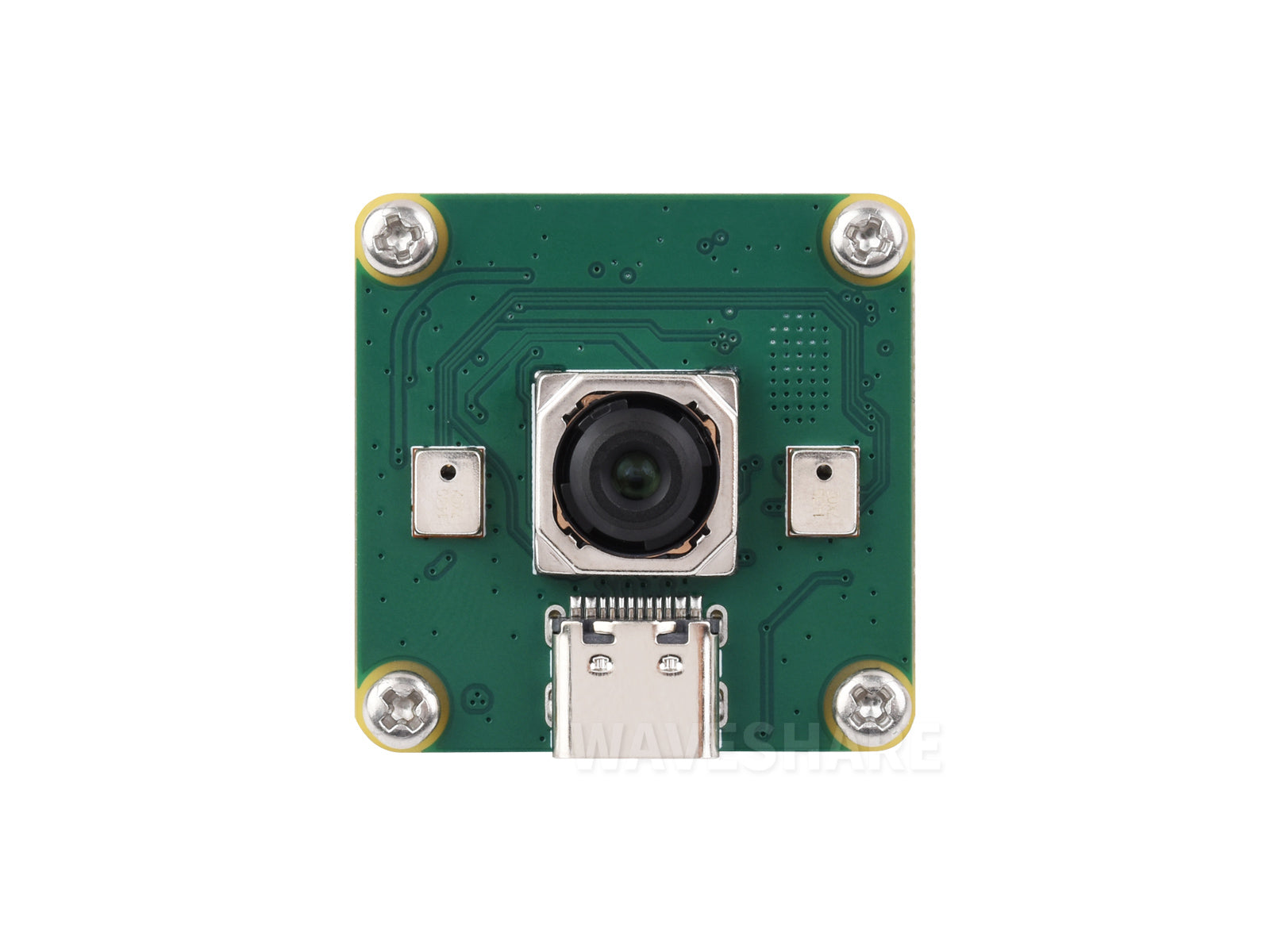

IMX378 12MP USB camera module
12MP | USB Type-C port | 79.8° FOV | Dual Microphones
Specifications
| Pixels | 12MP | |
|---|---|---|
| Sensor | IMX378 | |
| Interface | USB2.0 Type-C | |
| Camera | Sensor size | 1/2.3 inch |
| Aperture (F) | 1.79 | |
| Focal length (EFL) | 4.7mm | |
| Field of view (FOV) | 79.8° | |
| Distortion | <0.39% | |
| Focusing | Auto-focus | |
| Image | Format support | MJPG, YVY2 |
| Static image resolution | 3840 × 3032 | |
| Video recording | 30 FPS 3840 × 3032 30 FPS 3840 × 2160 30 FPS 2592 × 1944 | |
| Audio | Onboard dual microphones | |
| Operating voltage | 5V ± 5% | |
| operating temperature | 0°C ~ 50°C | |
| Module size | 30.00 × 30.00 (mm) | |
Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
Connecting to RDK X5 Development Board
* for reference only, the Raspberry Pi 5,Jetson Orin kitandRDK X5 Development Board are not included
12MP High resolution
Supports 30 FPS output, suitable for capturing details
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than 0.39%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Pinout Definition
Onboard two types of connectors

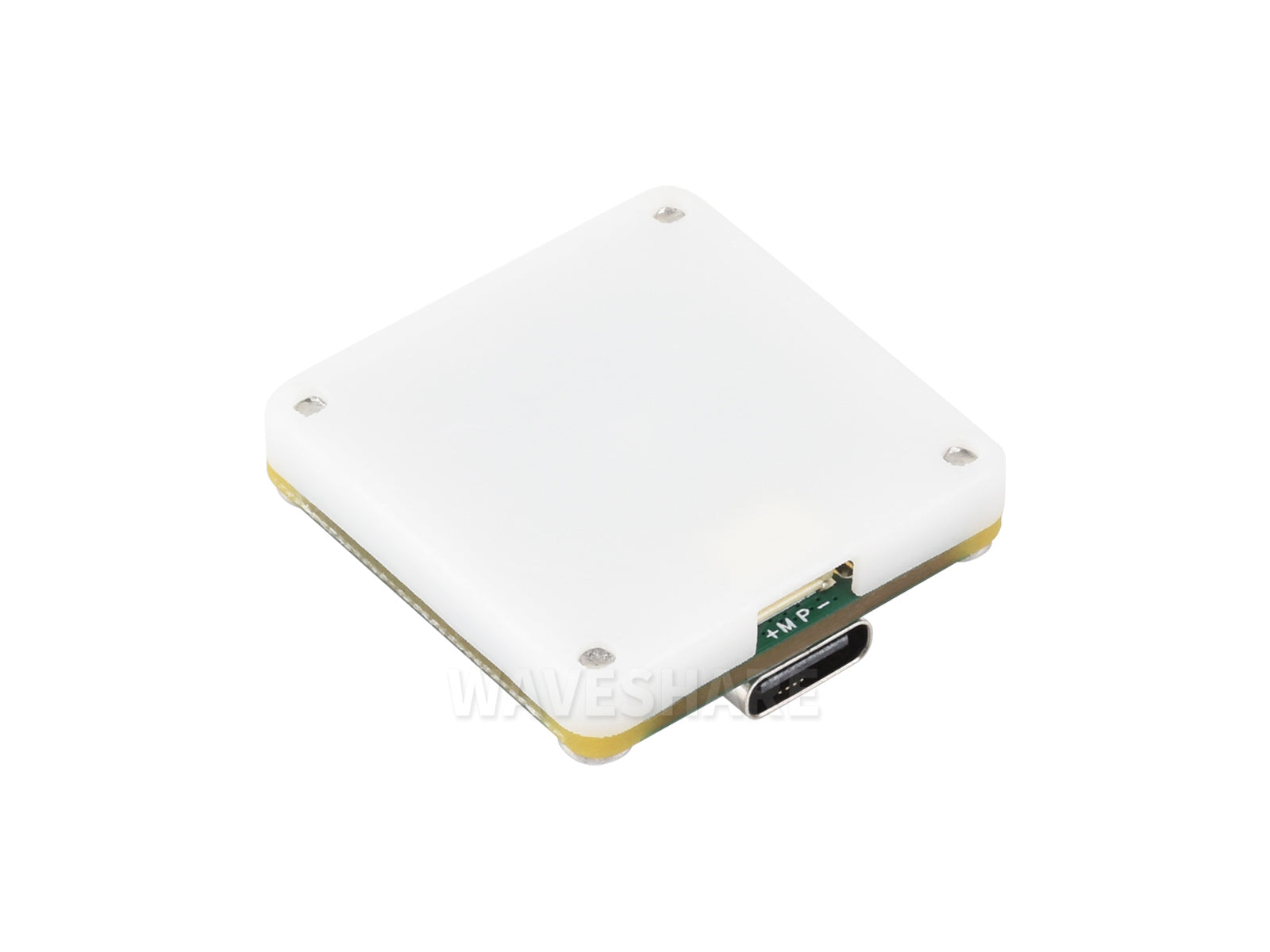

Connecting via USB Type-C port
Connecting via 1.0mm pitch 4PIN connector
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Shutter Mode | Feature |
|---|---|---|---|---|---|---|---|
| OV9281 1MP USB Camera (A) | 1MP | OV9281 | 1280×720 | 25×25mm | 105° | Global shutter | 120FPS high frame rate, mono camera |
| OV2735 2MP USB Camera (A) | 2MP | OV2735 | 1920×1080 | 25×25mm | 96° | Rolling shutter | distortion-free |
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38x38mm | 145° | Rolling shutter | Low-light sensitivity |
| GC2093 2MP USB Camera (A) | 2MP | GC2093 | 1920x1080 | 38x38mm | 170° | Rolling shutter | Wide dynamic range, backlit imaging, onboard microphone |
| SC2210 2MP USB Camera (A) | 2MP | SC2210 | 1920x1080 | 38x38mm | 110.8° | Rolling shutter | Large aperture, starlight-level |
| PS5268-2MP-USB-Camera-A | 2MP | PS5268 | 1920x1080 | 30×30mm | 112.6° | Rolling shutter | Wide dynamic range, IP67 water-resistant case |
| OS05A10 5MP USB Camera (A) | 5MP | OS05A10 | 2592×1944 | 25×25mm | 96° | Rolling shutter | wide dynamic range, distortion-free |
| OV5693 5MP USB Camera (A) | 5MP | OV5693 | 2592x1944 | 18×40mm | 135° | Rolling shutter | auto-focus |
| OV5693 5MP USB Camera (B) | 5MP | OV5693 | 2592x1944 | 8.5×60.2mm | 75° | Rolling shutter | Small size, auto-focus |
| OV5640 5MP USB Camera (B) | 5MP | OV5640 | 2592x1944 | 9×62mm | 68° | Rolling shutter | Small size, auto-focus |
| OV5640 5MP USB Camera (C) | Small size | ||||||
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106.9° | Rolling shutter | Manual focus, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (B) | 5MP | IMX335 | 2592x1944 | 25×24mm | 175° | Rolling shutter | Fixed-focus, wide angle, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (C) | 5MP | IMX335 | 2592x1944 | 25×24.3mm | 91.7° | Rolling shutter | Fixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone |
| IMX378 12MP USB Camera (A) | 12MP | IMX378 | 3840×3032 | 30×30mm | 79.8° | Rolling shutter | HD, auto-focus, onboard dual microphones |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38x38mm | 145° | Rolling shutter | HD, embedded digital mic |
| IMX179 8MP USB Camera (B) | 8MP | IMX179 | 3264×2448 | 9×62mm | 75° | Rolling shutter | HD, small size, auto-focus |
| IMX415 8MP USB Camera (A) | 8MP | IMX415 | 3840×2160 | 38×38mm | 95.5° | Rolling shutter | HD, auto-focus, onboard dual microphones, distortion-free |
| IMX678 8MP USB Camera (A) | 8MP | IMX678 | 3840×2160 | 38×38mm | 93° | Rolling shutter | HD, Low-light sensitivity, distortion-free |
| OS08A10 8MP USB Camera (A) | 8MP | OS08A110 | 3840×2160 | 38×38mm | 68° | Rolling shutter | HD, Low-light sensitivity, Low distortion |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4208×3120 | 38×38mm | 123° | Rolling shutter | HD, OIS |
| AR0144 Stereo USB Camera (A) | 1MP | AR0144 | 2560×800 | 66×30mm | 74° | Global shutter | Frame-synchronized stereo output, distortion-free |
| IMX577 12MP USB Camera (A) | 12MP | IMX577 | 3840×3024 | 34×34mm | 113° | Rolling shutter | HD, distortion-free |
| IMX577 12MP USB Camera (B) | 12MP | IMX577 | 3840×3024 | 34×34mm | - | Rolling shutter | HD, C/CS lenses support |
| OS02G10 Stereo USB Camera (A) | 2MP | OS02G10 | 3840×1080 | 100×22mm | 92° | Rolling shutter | Frame-synchronized stereo output, distortion-free |
Lieferumfang
- IMX378 12MP USB Camera (A) x1
- SH1.0 4PIN dual plug cable x1
