SKU:WSAL32004

IMX415 8MP Camera Module (A), With High SNR, Good Low Light Performance, Supports Raspberry Pi / Luckfox Series Boards

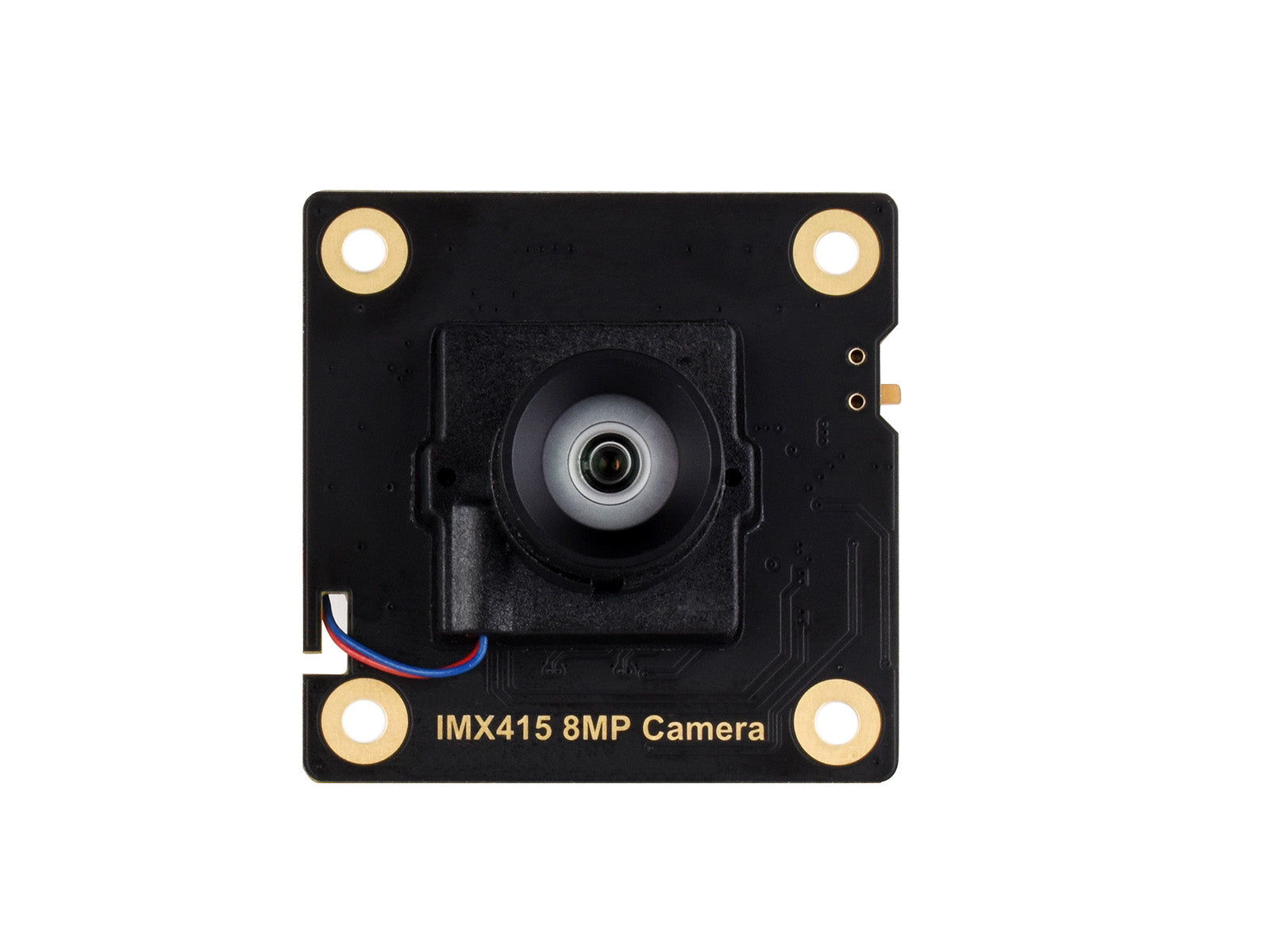

IMX415 8MP Camera (A)

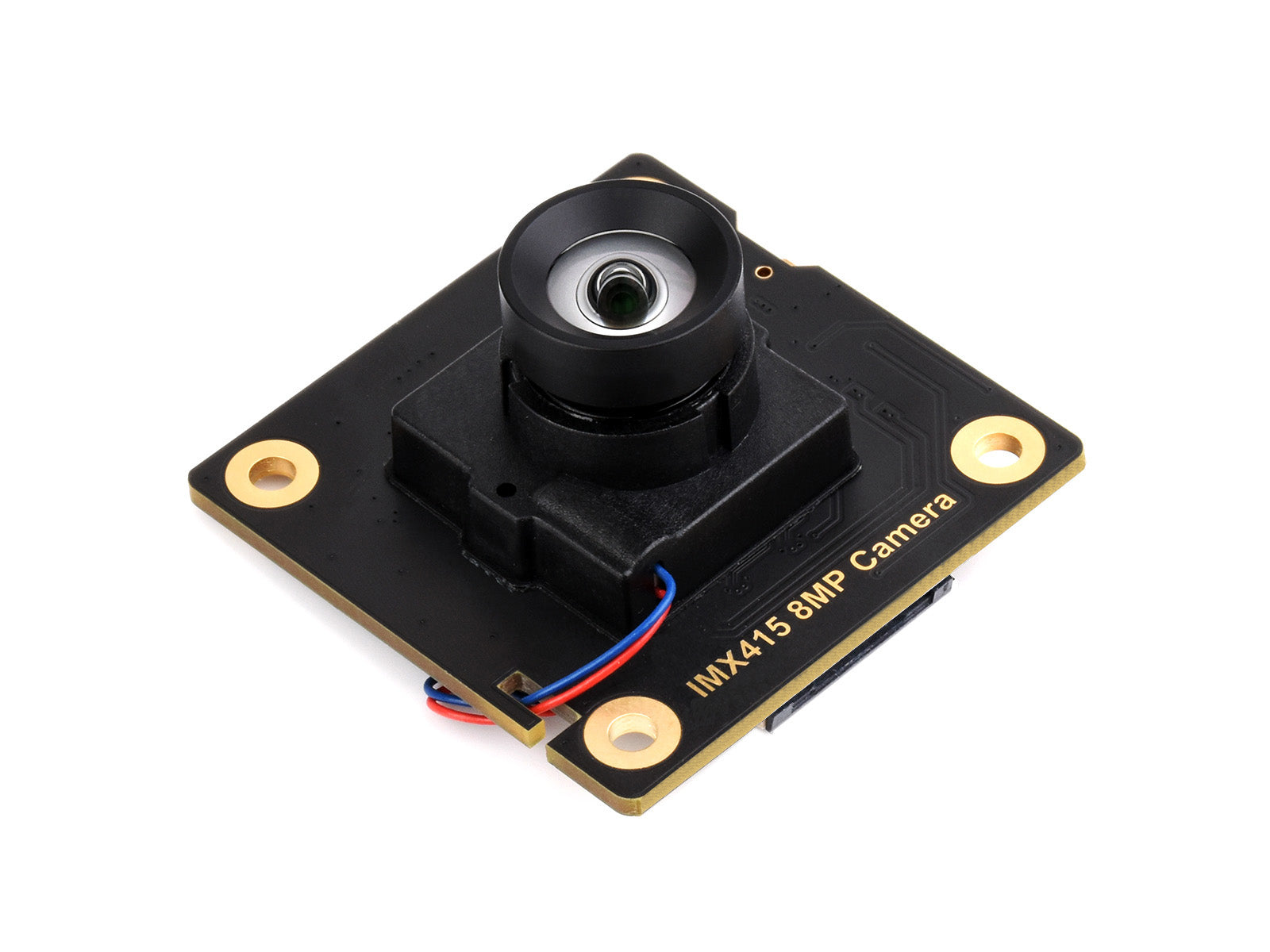

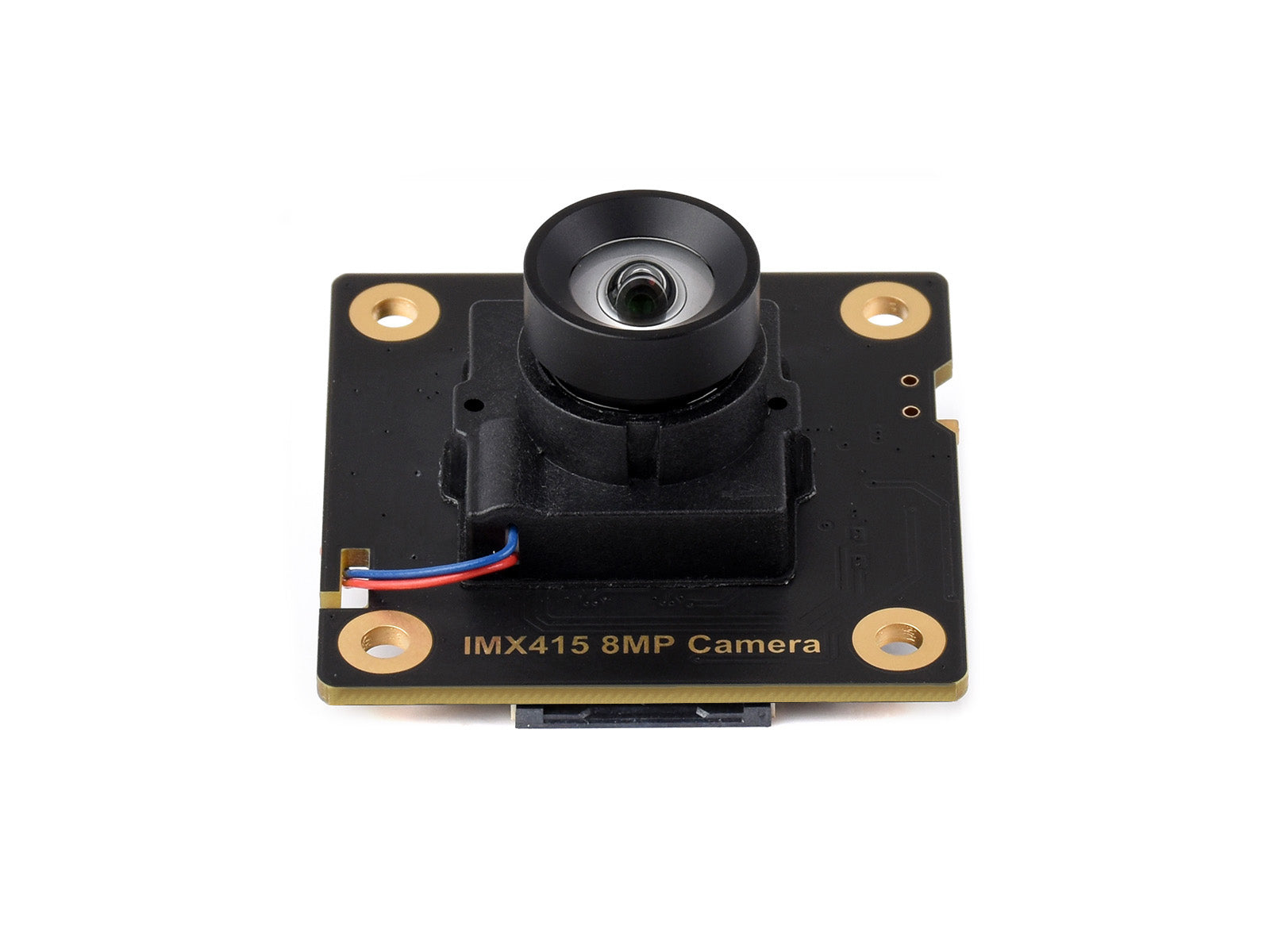

Adopts IMX415 Sensor Chip With 95.5° Wide Angle Lens

Specifications

Sensor	IMX415	CMOS size	1/2.8″
Camera type	Color	Recommended recording pixels	Approx. 8.29MP (3840×2160)
Image size	Diagonal 6.43mm	Unit cell size	1.45um (H) × 1.45um (V)
Aperture	F2.4	Focal length	2.88mm
FOV	95.5°	Distortion	<1%
Applications	Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc.

Wide field of view

Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle

High SNR and Low Light Performance

Multiple Motherboards Support

Compatible With Raspberry Pi 5 / Zero Series / Zero 2W Series BoardsExtra FPC Cable Is Required For Raspberry Pi 4B+ / 3B+ / 3B Series

Connecting with Raspberry Pi 5

Connecting with Raspberry Pi 4B

Connecting with Zero 2 W

Connecting with Zero W

Supports Luckfox motherboardsCan be directly connected to Luckfox-Omni3576 Development Board

Connecting with Luckfox-Omni3576 Development Board

* for reference only, Raspberry Pi 4B,Raspberry Pi 5,Zero W,Zero 2 W,Luckfox-Omni3576, and yellow FPC are NOT included.

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/IMX415_8MP_Camera_(A)

Lieferumfang

1. IMX415 8MP Camera (A) ×1
2. 22PIN FPC cable ×1

1

2
