SKU:WSAL28524

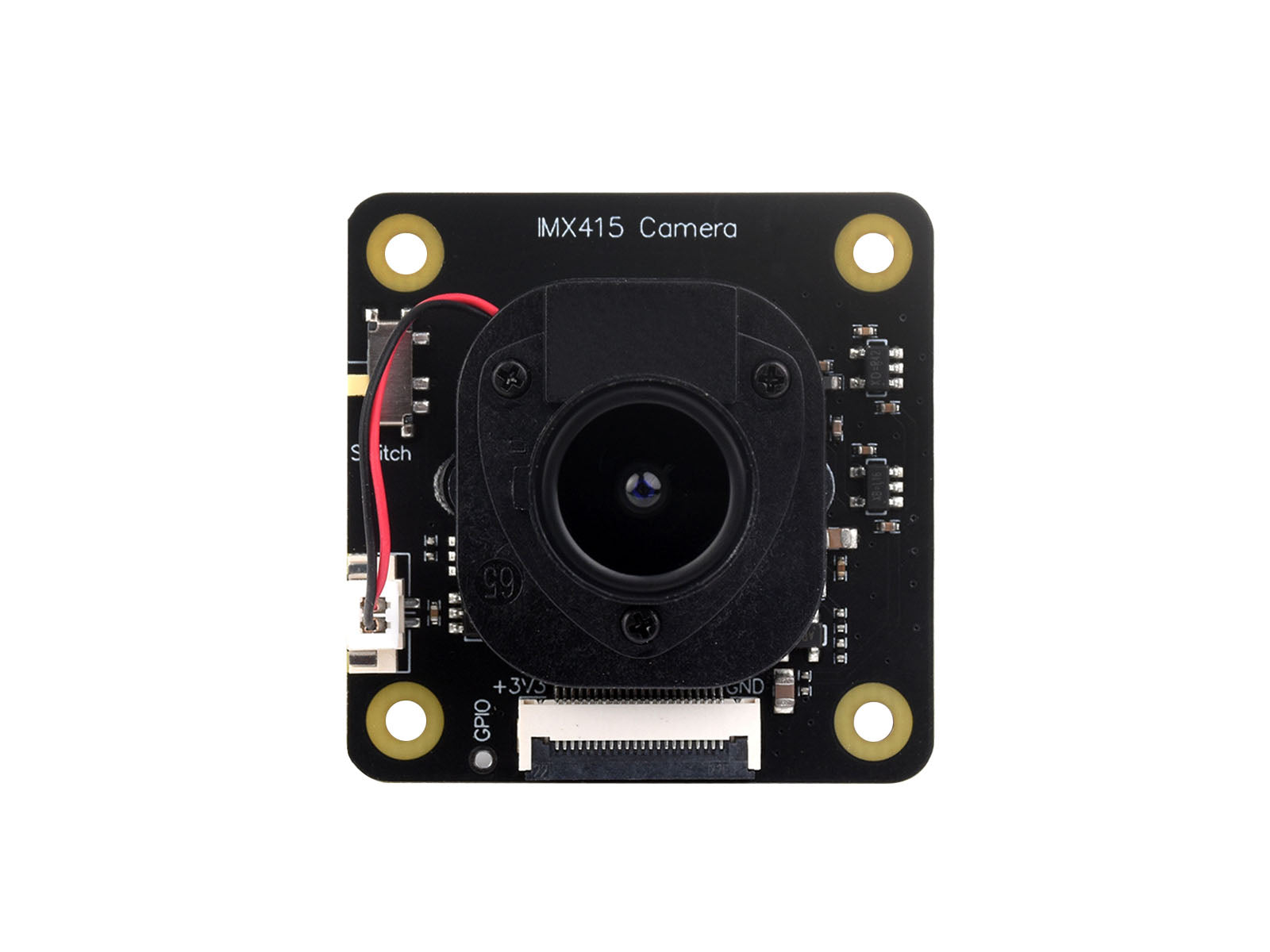

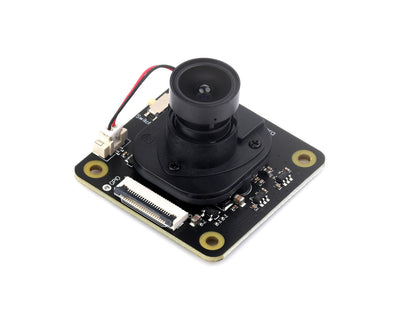

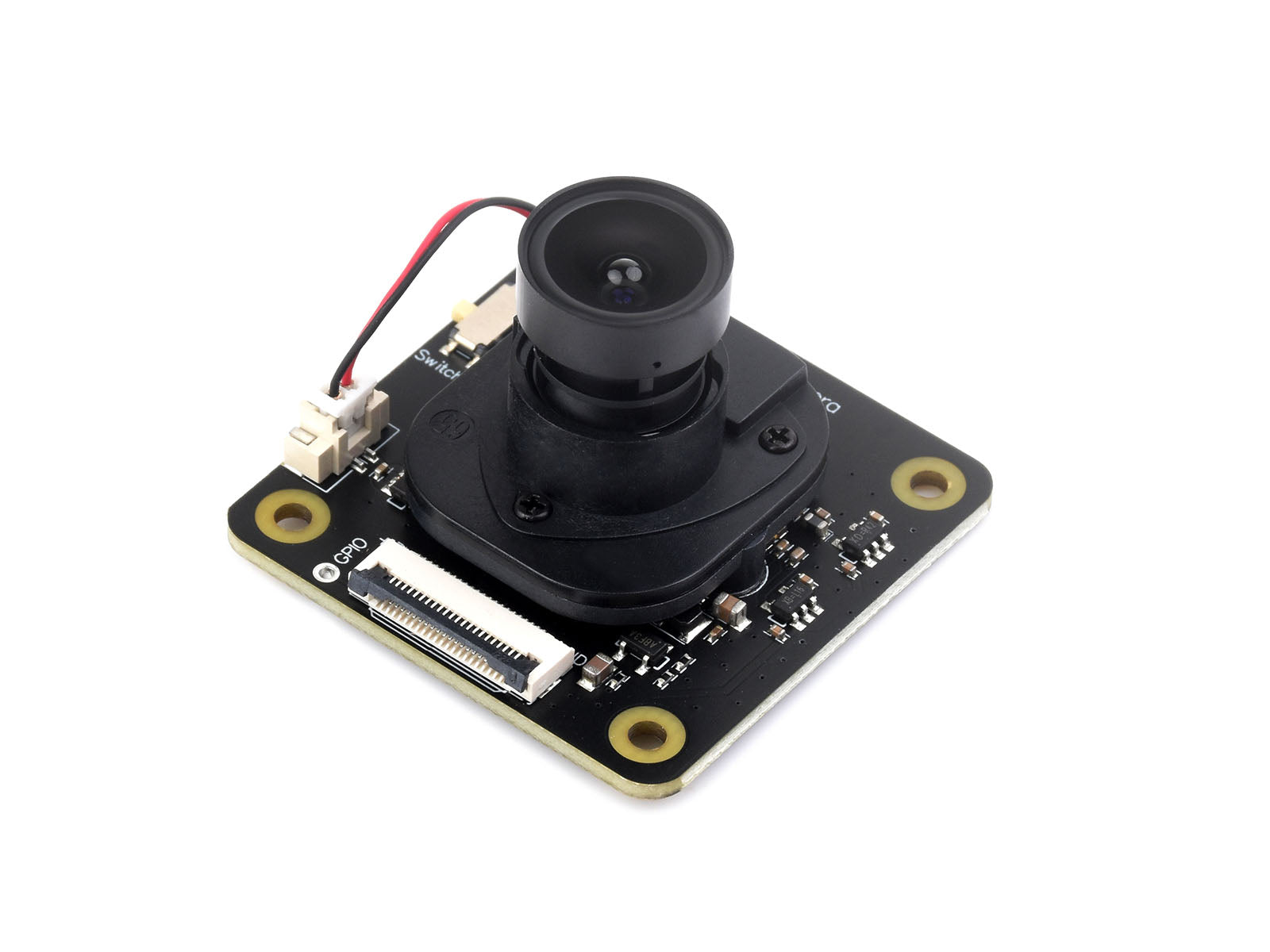

IMX415 8MP Camera Module, With High SNR, Good Low Light Performance, And Low Distortion

Specifications

Sensor	IMX415	CMOS size	1/2.8″
Camera type	Color	Recommended recording pixels	Approx. 8.29MP (3840×2160)
Image size	Diagonal 6.43mm	Unit cell size	1.45um (H) × 1.45um (V)
Aperture	F2.0	Focal length	3.95mm
FOV	98°	Distortion	<1%
Applications	Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc.

Wide field of view

Onboard 98° wide angle lens, provides a wider picture range and viewing angle

High SNR and Low Light Performance

Multiple Motherboards Support

Supports Raspberry Pi series boardsCompatible With Raspberry Pi 5 / Zero Series / Zero 2W Series BoardsExtra FPC Cable Is Required For Raspberry Pi 4B+ / 3B+ / 3B Series

Connecting with Raspberry Pi 5

Connecting with Raspberry Pi 4B

Connecting with Zero 2 W

Connecting with Zero W

Supports Luckfox series boardsCan be directly connected to Luckfox-Omni3576 Development Board

Connecting with Luckfox-Omni3576 Development Board

* for reference only, Raspberry Pi 4B,Raspberry Pi 5,Zero W,Zero 2 W,Luckfox-Omni3576, and yellow FPC are NOT included.

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/IMX415-98_IR-CUT_Camera

Lieferumfang

1. IMX415-98 IR-CUT Camera ×1
2. 22PIN FPC cable ×1

1

2
