SKU:WSAL30450

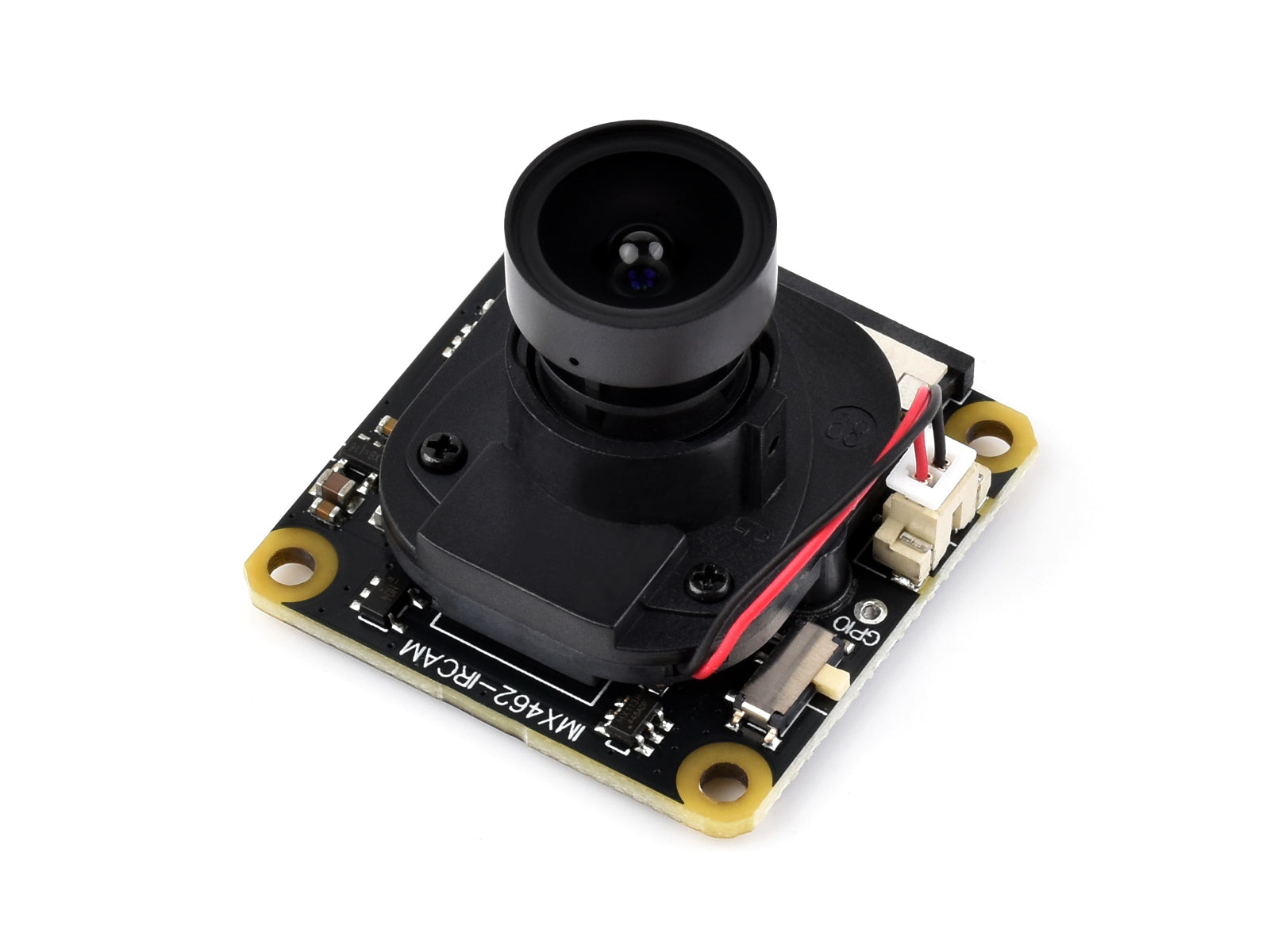

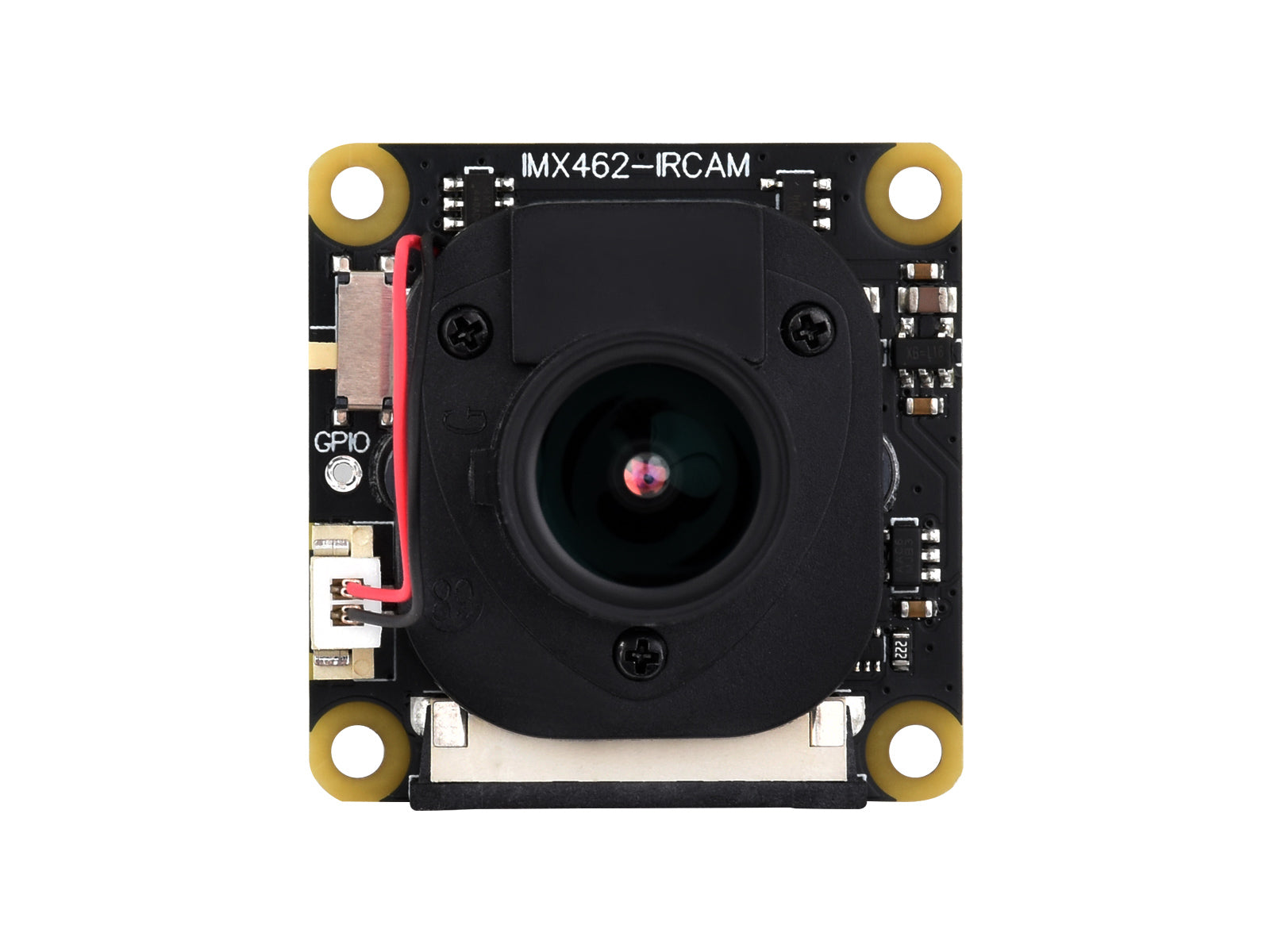

IMX462 2MP IR-CUT Camera, 90° DFOV, Starlight Camera Sensor, Fixed-Focus, Compatible with Raspberry Pi series boards

IMX462 Starlight Camera

2MP | IR-CUT  | 90° DFOV 

Compatible with Raspberry Pi series boards

Specifications

Sensor	IMX462	CMOS size	1/2.8 inch
PIXELS	2MP (1920 × 1080)	APERTURE	F2
FOCAL LENGTH	3.95mm	Diagonal FIELD OF VIEW	90°
CAMERA TYPE	Color	FOCUSING	Fixed focus
DISTORTION	< 5%	SHUTTER	Rolling Shutter

Starlight Camera

capable of capturing clear images even in Low Light Conditions

Built-in IR-CUT

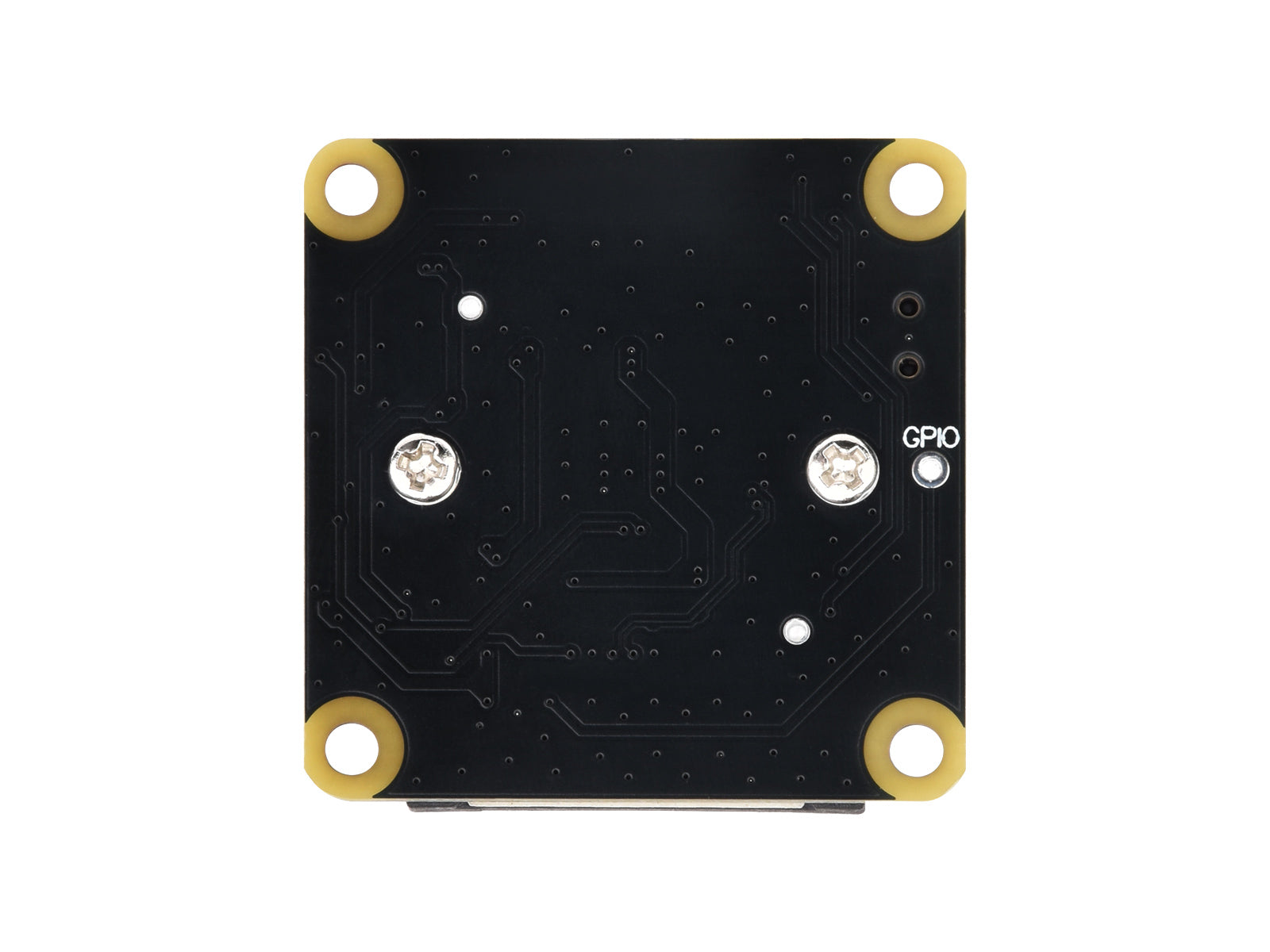

Onboard switch and GPIO pad for switching or GPIO software control of IR-CUT function

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

Works with IR fill light for night vision imaging

Note: The IR fill light needs to be purchased separately. It is recommended to use an 850nm fill light.

Working with Raspberry Pi

direct connect to Raspberry Pi different variants including 5 / 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+ , supports connecting to Zero / Zero 2 W series

* for reference only, the Raspberry Pi 5andRaspberry Pi 2W are NOT included.

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/IMX462_IR-CUT_Camera_(A)

Lieferumfang

IMX462 IR-CUT Camera (A) x1
