IMX462 2MP IR-CUT Camera, Starlight Camera Sensor, Onboard ISP, Fixed-Focus, Options for 127.9° / 100.0° FOV

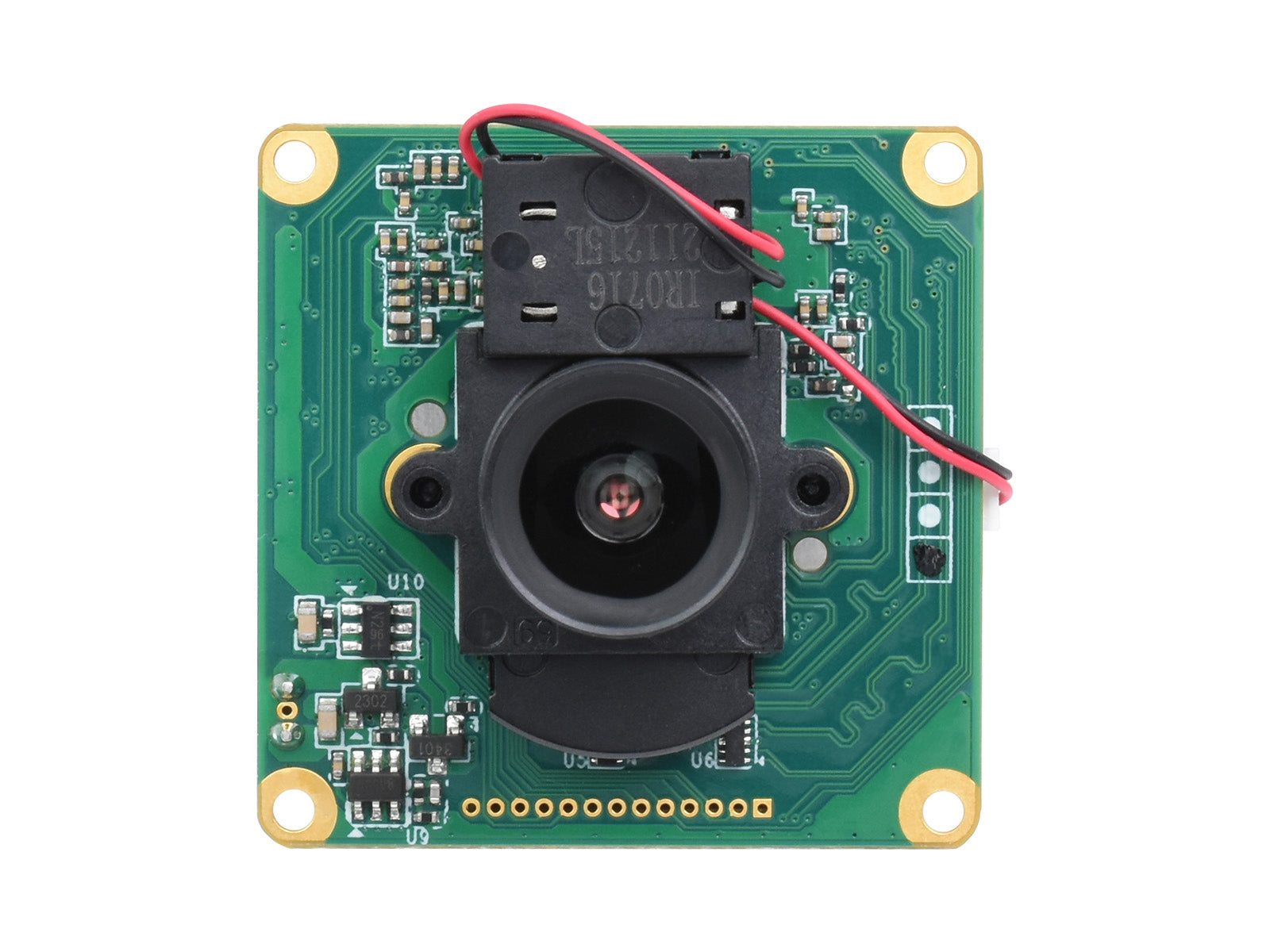

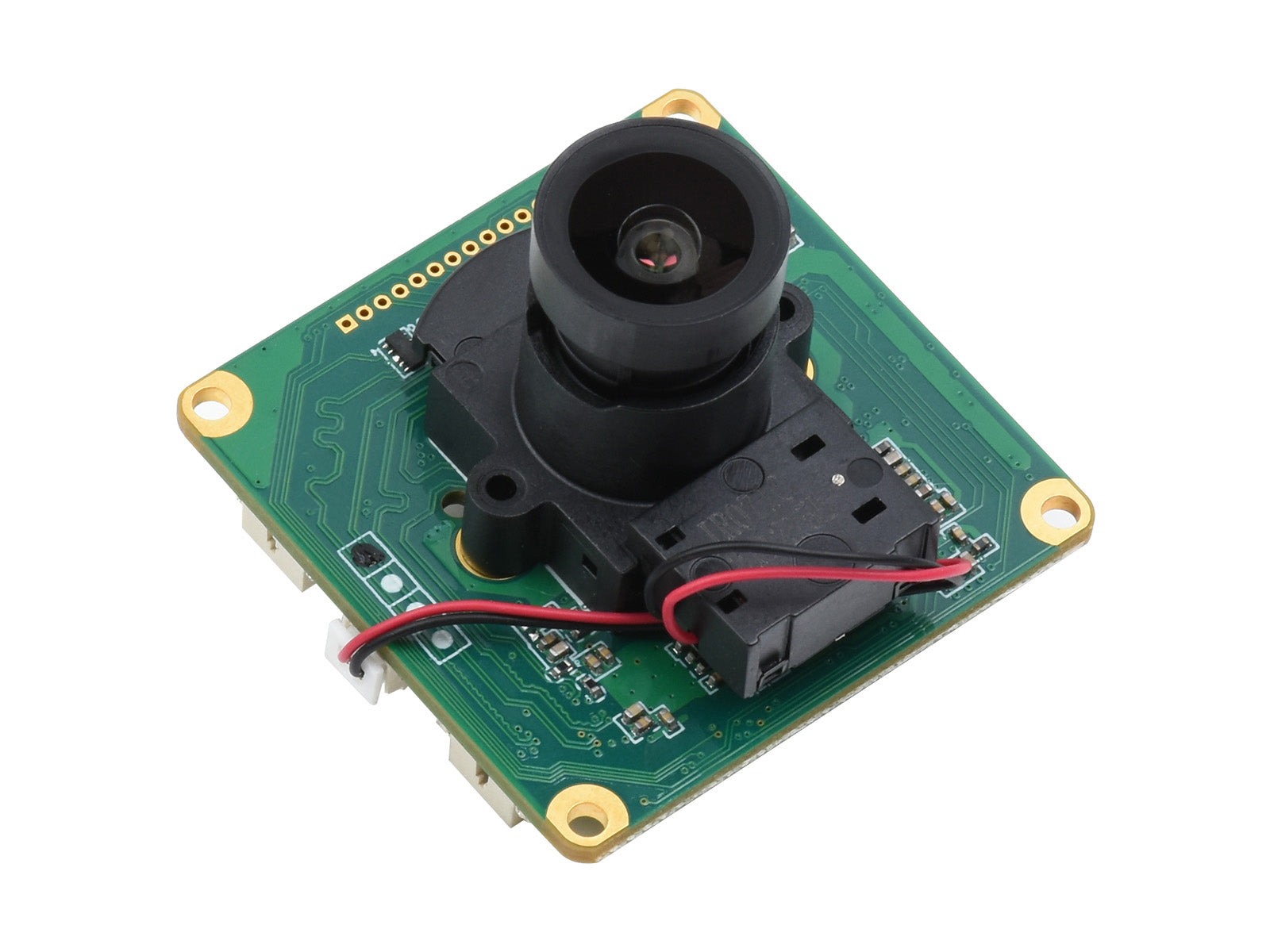

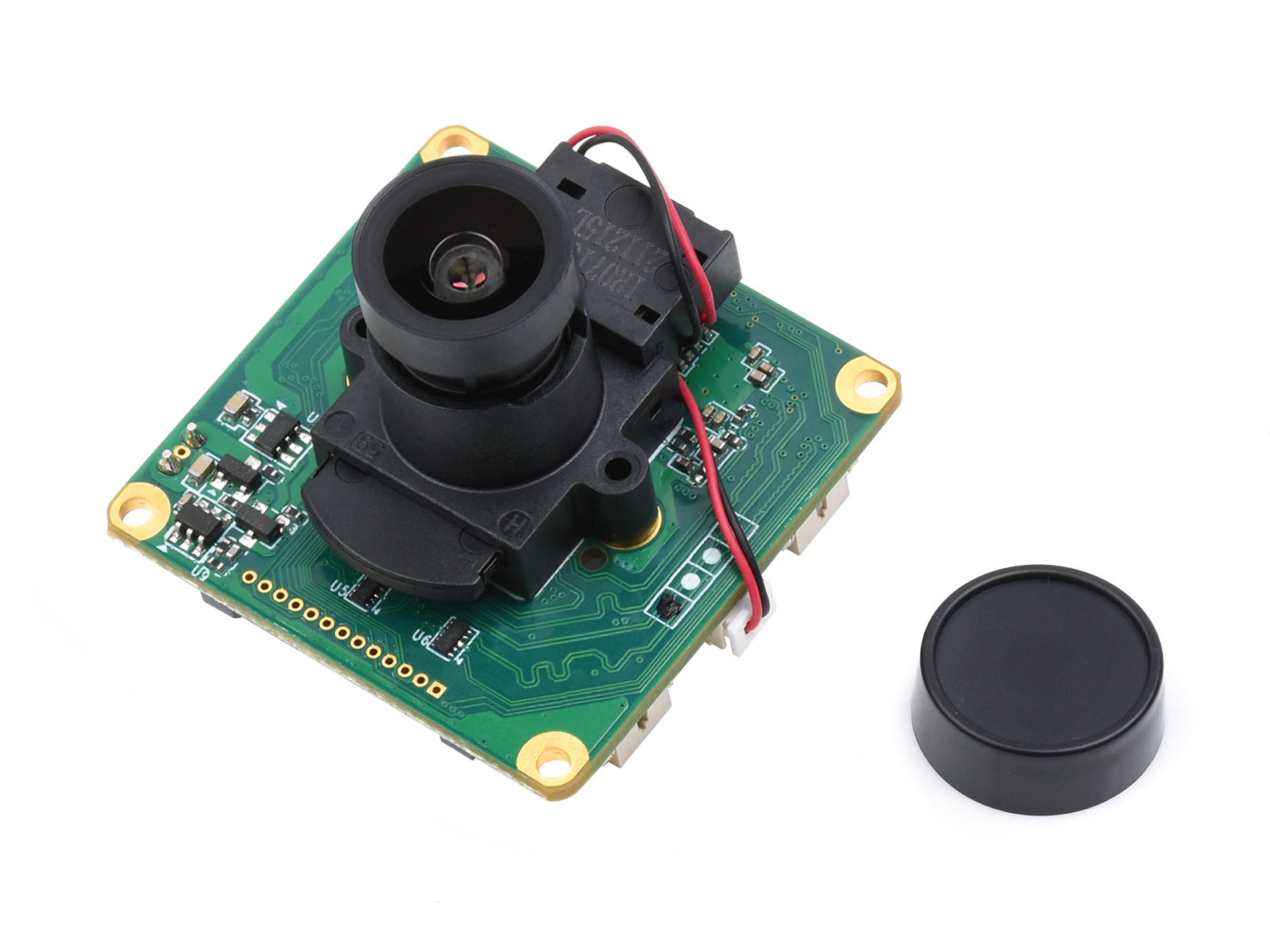

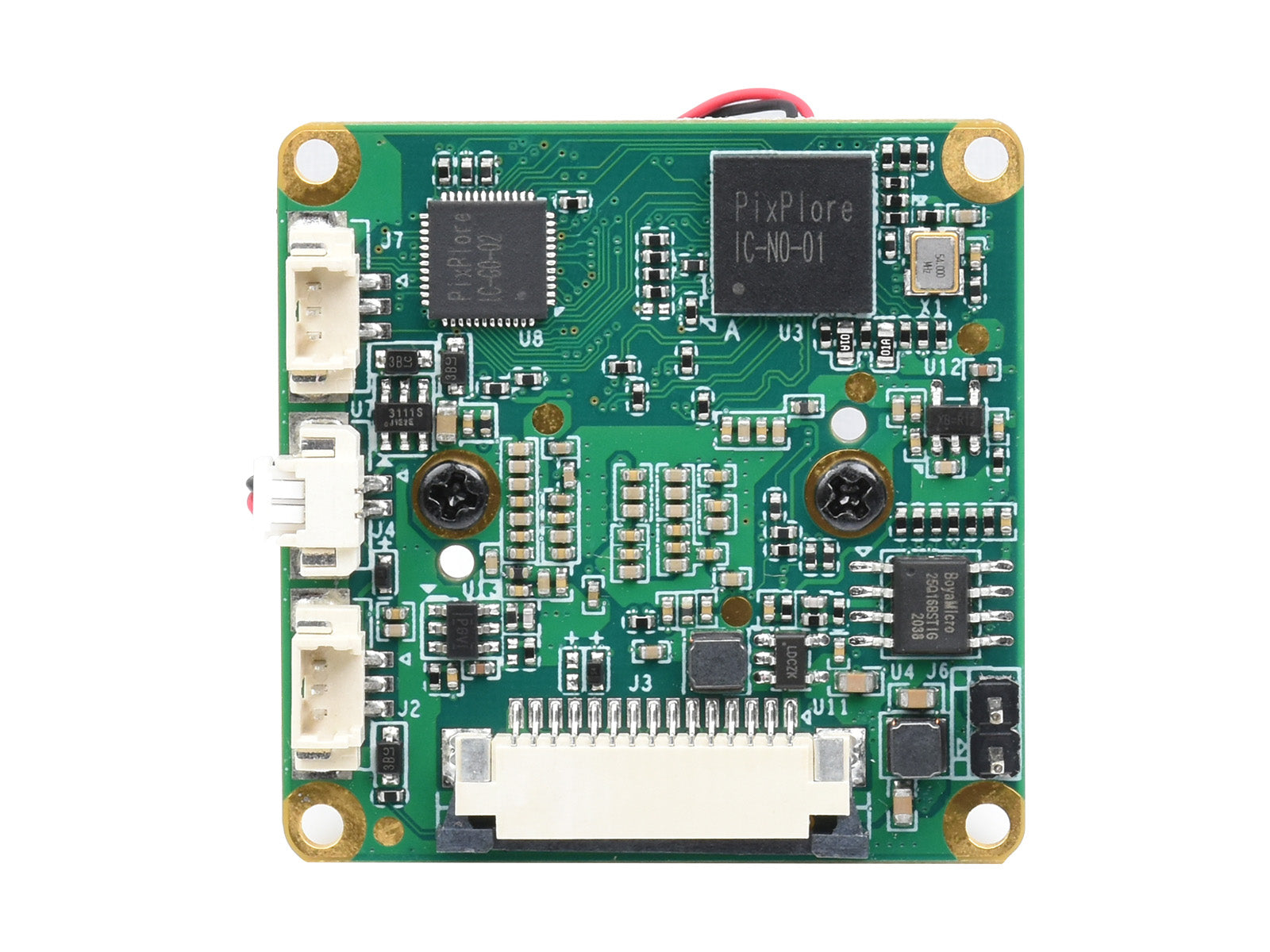

IMX462 Starlight Camera

2MP | IR-CUT  | ISP 

Compatible with Raspberry Pi series boards and Jetson Nano

Version Options

IMX462-127 2MP Starlight Camera127.9° FOV

IMX462-100 2MP Starlight Camera100.0° FOV

Device Support

Raspberry Pi series

Supports Raspberry Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2 W, and CM3/3+/4 (extra adapter board required)

Jetson Series

Support for Jetson series development kits

Specifications

Sensor	IMX462-127	IMX462-100
CMOS SIZE	1/2.8 inch
PIXELS	2MP (1920 × 1080)
CAMERA TYPE	Color
FOCUSING	Fixed focus
SHUTTER	Rolling Shutter
APERTURE	F1.61	F1.0
FOCAL LENGTH	3.18mm	3.9mm
FIELD OF VIEW	127.9°	100.0°
DISTORTION	< -51%	< -32.0%

Starlight Camera

Clear Imaging even in Low Light Conditions

Built-in IR-CUT

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

Onboard ISP

Integrated Image Signal Processing Circuit, Clearer Imaging Effect

Working with Raspberry Pi

directly connect to Raspberry Pi different variants including 5/4B/3B+/3A+/3B/2B/B+/A+, extra FPC cable is required for Zero / Zero 2 W series

• for reference only, Raspberry Pi 4B and 2W are NOT included.
• Specific driver is required for Raspberry Pi to use the IMX462 camera.

Working With Jetson Nano

Directly Connect To Jetson Nano Developer Kit

for reference only, Jetson Nano Developer Kit is NOT included.

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/IMX462_2MP_Starlight_Camera

Lieferumfang

IMX462-127 2MP Starlight Camera

IMX462-127 2MP Starlight Camera x1

IMX462-100 2MP Starlight Camera

IMX462-100 2MP Starlight Camera x1
