SKU:WSAL29574

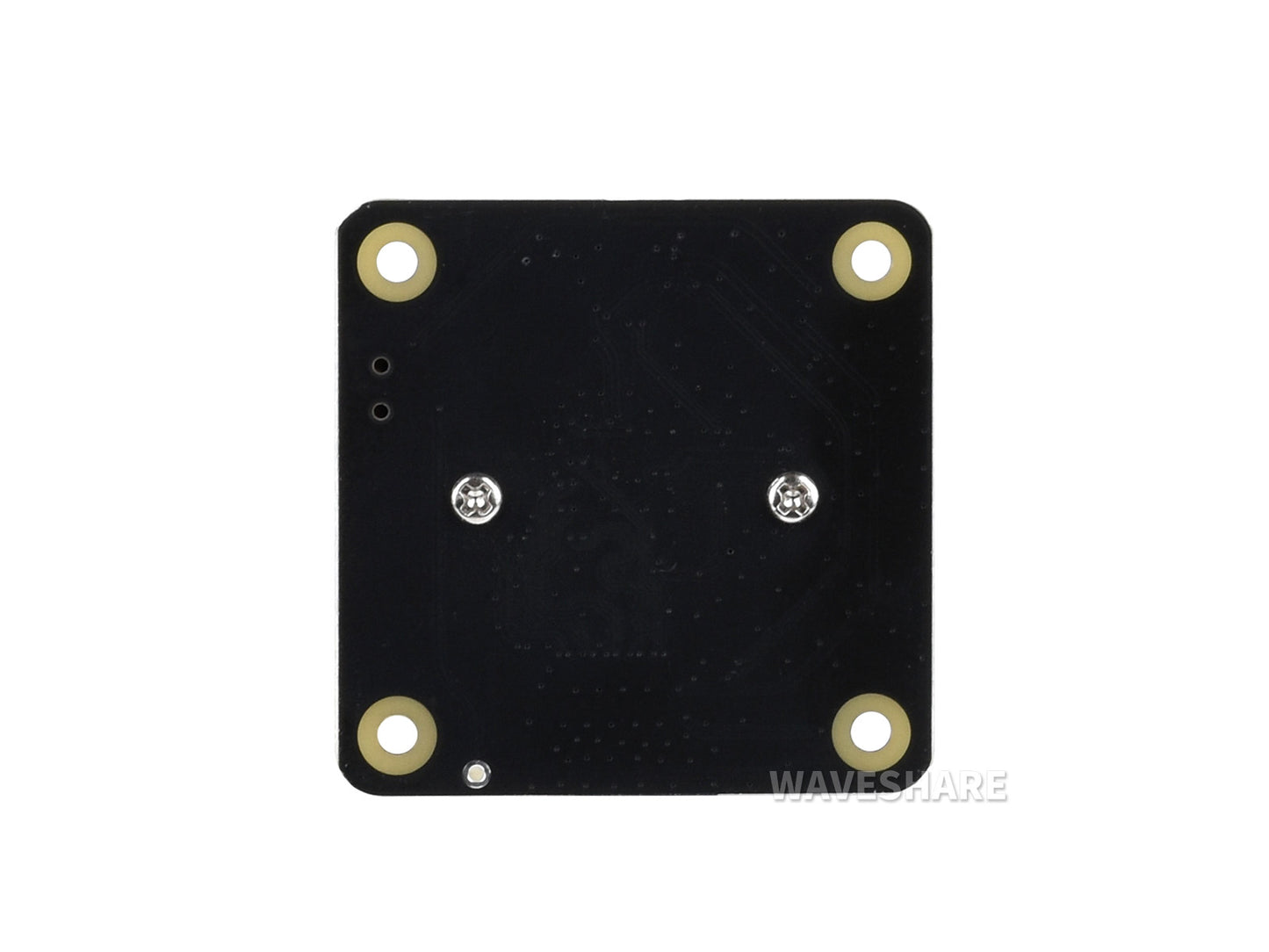

IMX477 IR-CUT 12.3MP Camera (A), Applicable for Raspberry Pi Series Boards
Regulärer Preis
31.602 Ft
Verkaufspreis
31.602 Ft
Regulärer Preis
0 Ft
Einzelpreis
pro
Sale
Ausverkauft
Steuer enthalten.
Versand wird an der Kasse berechnet.
Abholverfügbarkeit konnte nicht geladen werden
Kurzbeschreibung: IMX477 IR-CUT 12.3MP Camera (A), Applicable for Raspberry Pi / Jetson Nano
IMX477 IR-CUT 12.3MP Camera (A), Applicable for Raspberry Pi Series Boards

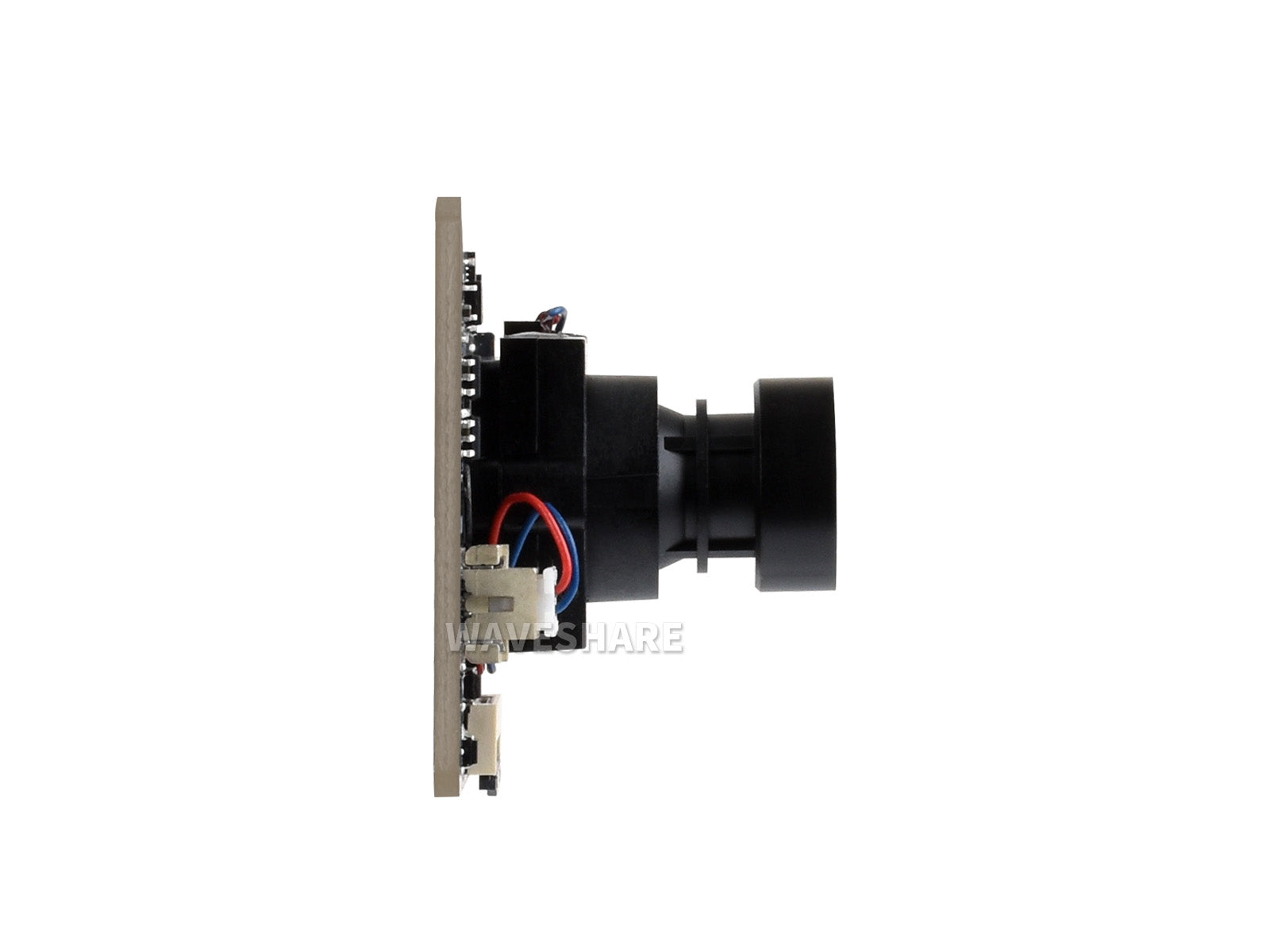

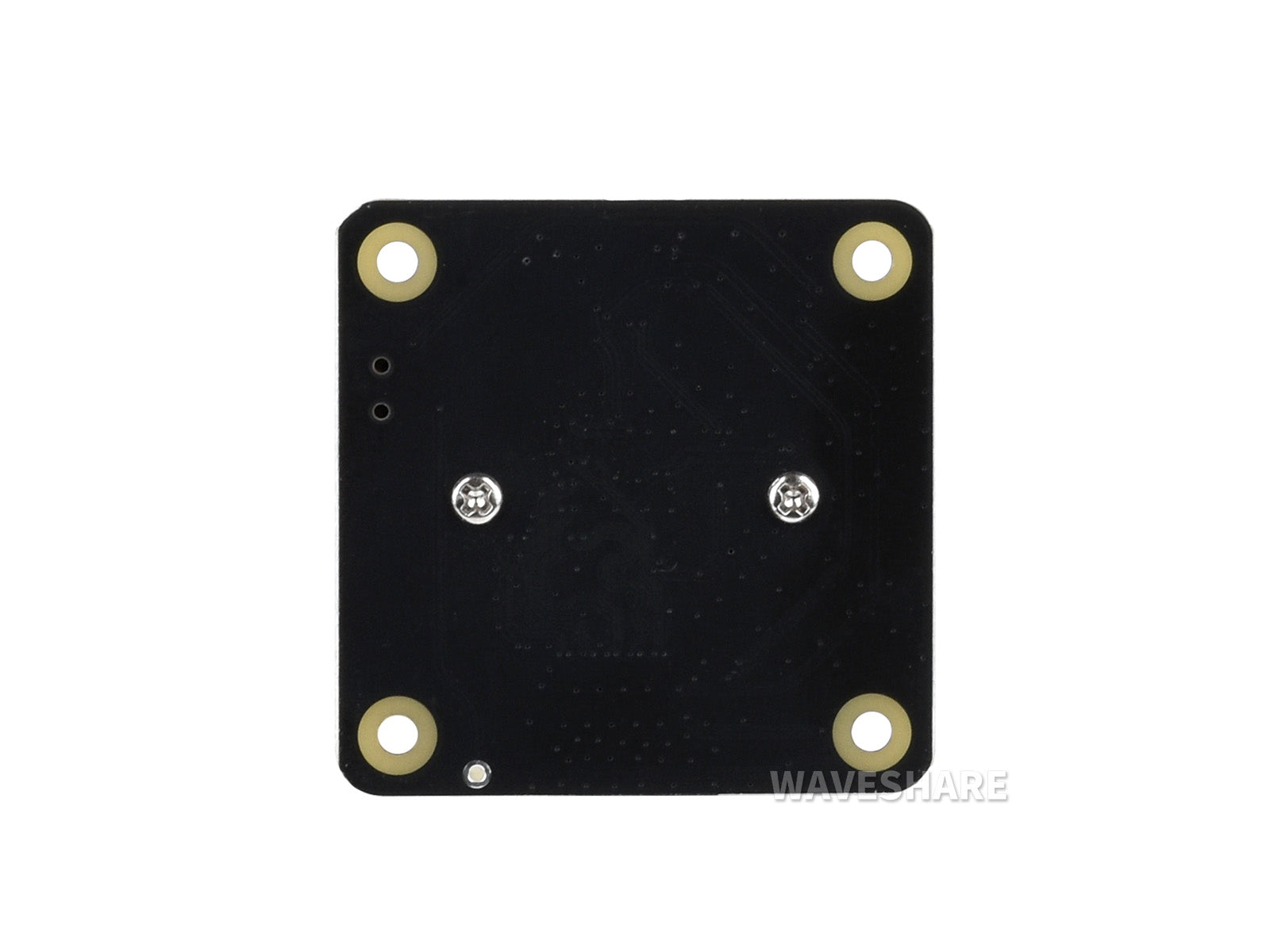

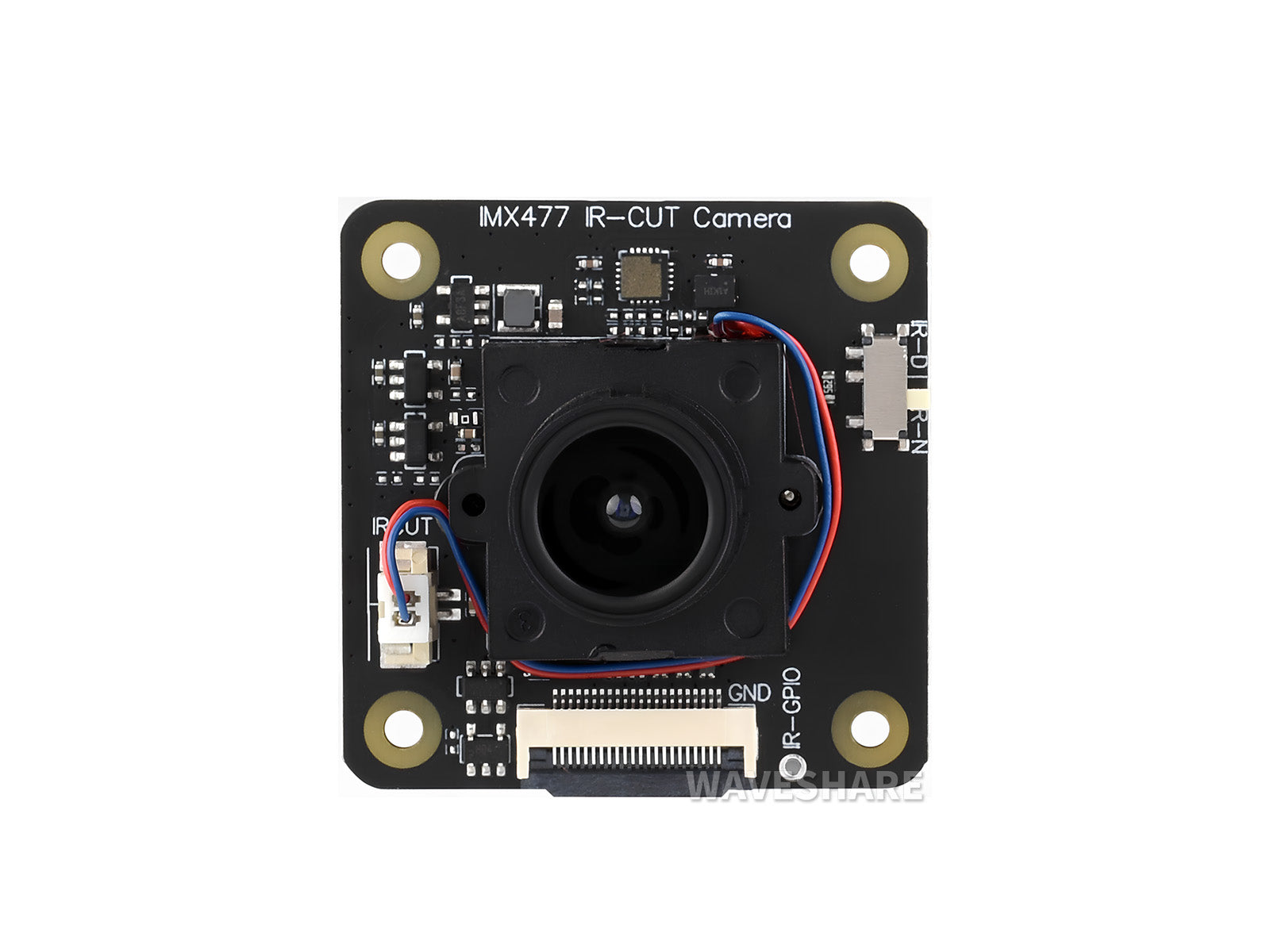

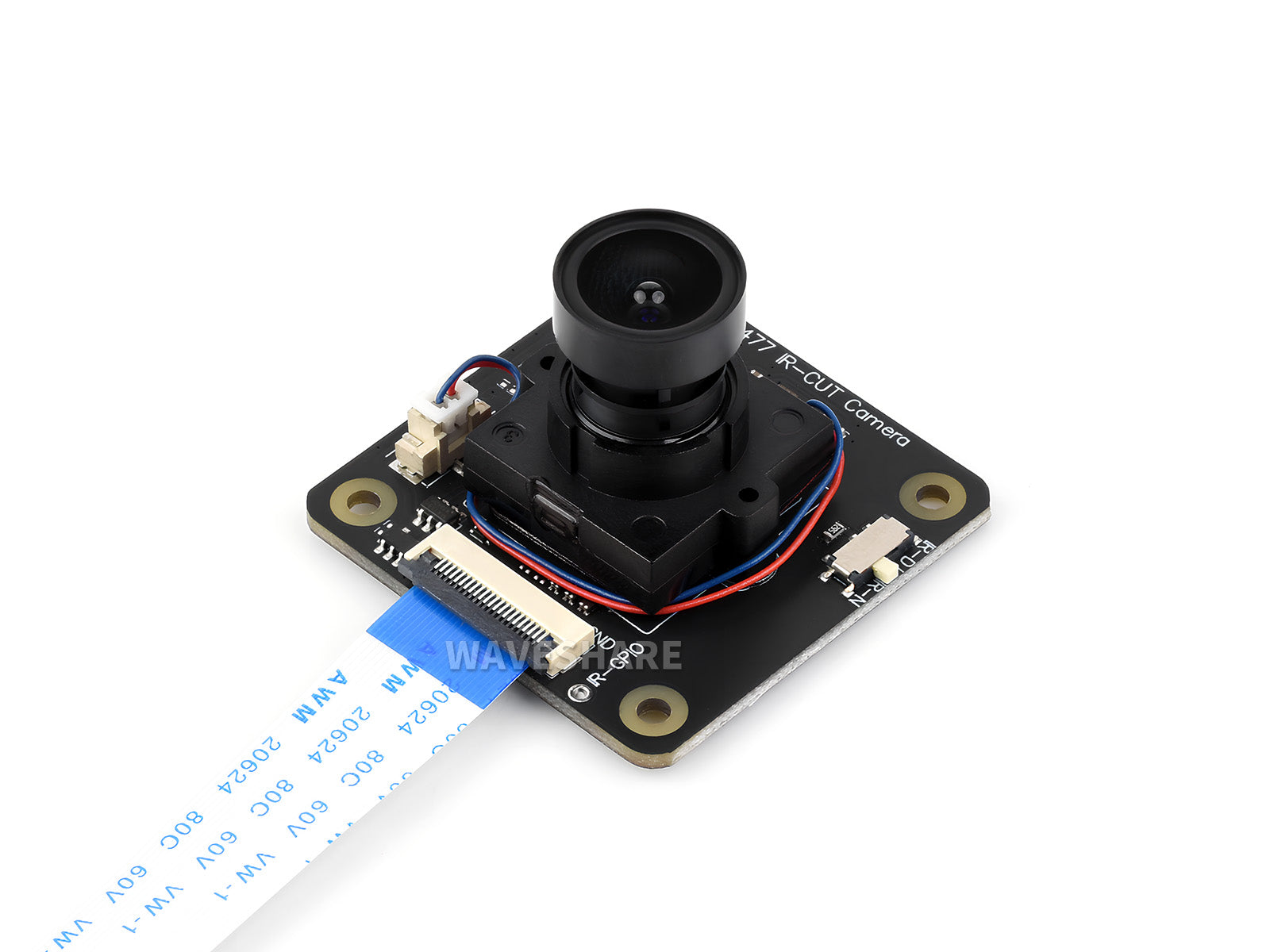

IMX477 IR-CUT camera module
IMX477 sensor, 12.3MP, Applicable for Raspberry Pi Series Boards
Specifications
| Sensor | Model | IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 × 3040 | |
| CMOS diagonal length | 7.9mm | |
| Pixel size | 1.55µm (H) × 1.55µm (V) | |
| Camera | Aperture (F) | 2.0 |
| Focal length (BFL) | 3.95 | |
| Field of view (FOV) | 90°(D) | |
| Distortion | <12.5% | |
| Operating voltage | 3.3V | |
| Applications | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
Ultra High Resolution
The IMX477 sensor supports up to 12.3MP resolution, capturing every detail in the picture
Built-in IR-CUT for all-day use
allows the user to switch filter freely according to the usage scenario
* Note: the infrared light is required for night vision function and needs to be purchased separately.
Multiple Motherboards Support
Compatible With Raspberry Pi Series Boards
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with CM4 / CM5 IO Board
Connecting with Zero 2 W
* for reference only, Raspberry Pi 4B,Raspberry Pi 5,Compute Module 4 IO Board, and Zero 2 W are NOT included.
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | CMOS Size | IR-CUT Filter | Lens Support | FoV (°) | Aper-ture (F) | Focal Length (mm) | Dimen-sions (mm) | For use with |
|---|---|---|---|---|---|---|---|---|---|---|
| Raspberry Pi HQ Camera | 12.3MP | IMX477 | 7.9mm | integrated | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4/5 |
| IMX477 12.3MP Camera | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| Raspberry Pi HQ Camera M12 | M12 | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4/5 | ||||
| IMX477 IR-CUT Camera (A) | 90 | 2.0 | 3.95 | 38*38 | Raspberry Pi, CM3/3+/4/5, Jetson series boards | |||||
| IMX477-160 12.3MP Camera | 160 | 2.2 | 2.75 | 25*24 | Raspberry Pi, CM3/3+/4/5, Jetson series boards | |||||
| Raspberry Pi Global Shutter Camera | 1.6MP | IMX296 | 6.3mm | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4/5 | |
| IMX296 Global Camera (A) | 1.6MP | IMX296 | 6.3mm | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4/5 | |
| IMX296-130 BW Camera | 1.6MP | IMX296 | 6.3mm | M12 | 130 | 1.6 | 3.0 | 38*38 | Raspberry Pi, CM3/3+/4/5 |
Lieferumfang
- IMX477 IR-CUT Camera (A) x1
- 15Pin to 22Pin cable x1
- 22Pin cable (opposite sides) x1
