SKU:WSAL32641
IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition, Easy To Use
Regulärer Preis
27.087 Ft
Verkaufspreis
27.087 Ft
Regulärer Preis
0 Ft
Einzelpreis
pro
Sale
Ausverkauft
Steuer enthalten.
Versand wird an der Kasse berechnet.
Abholverfügbarkeit konnte nicht geladen werden

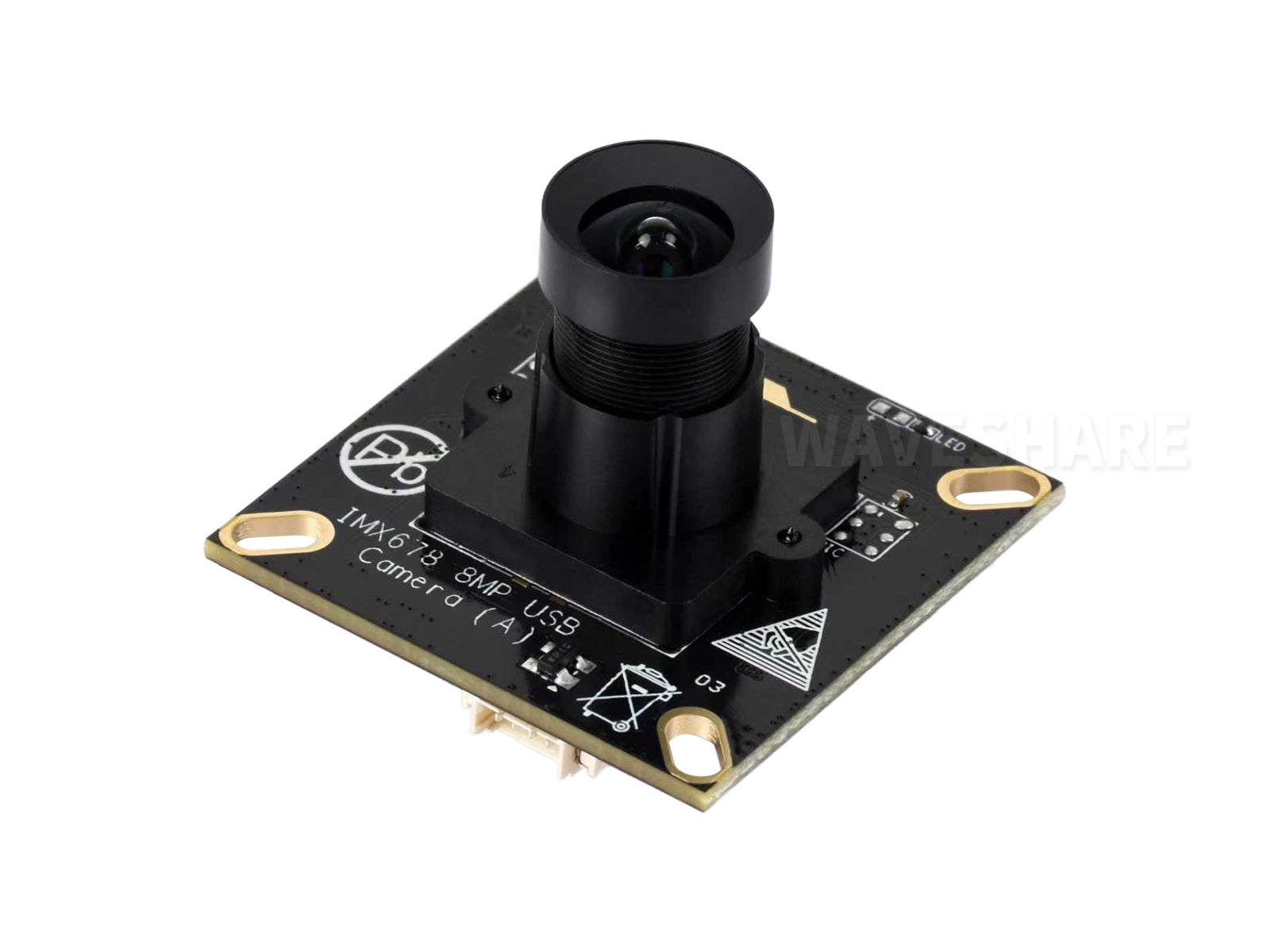

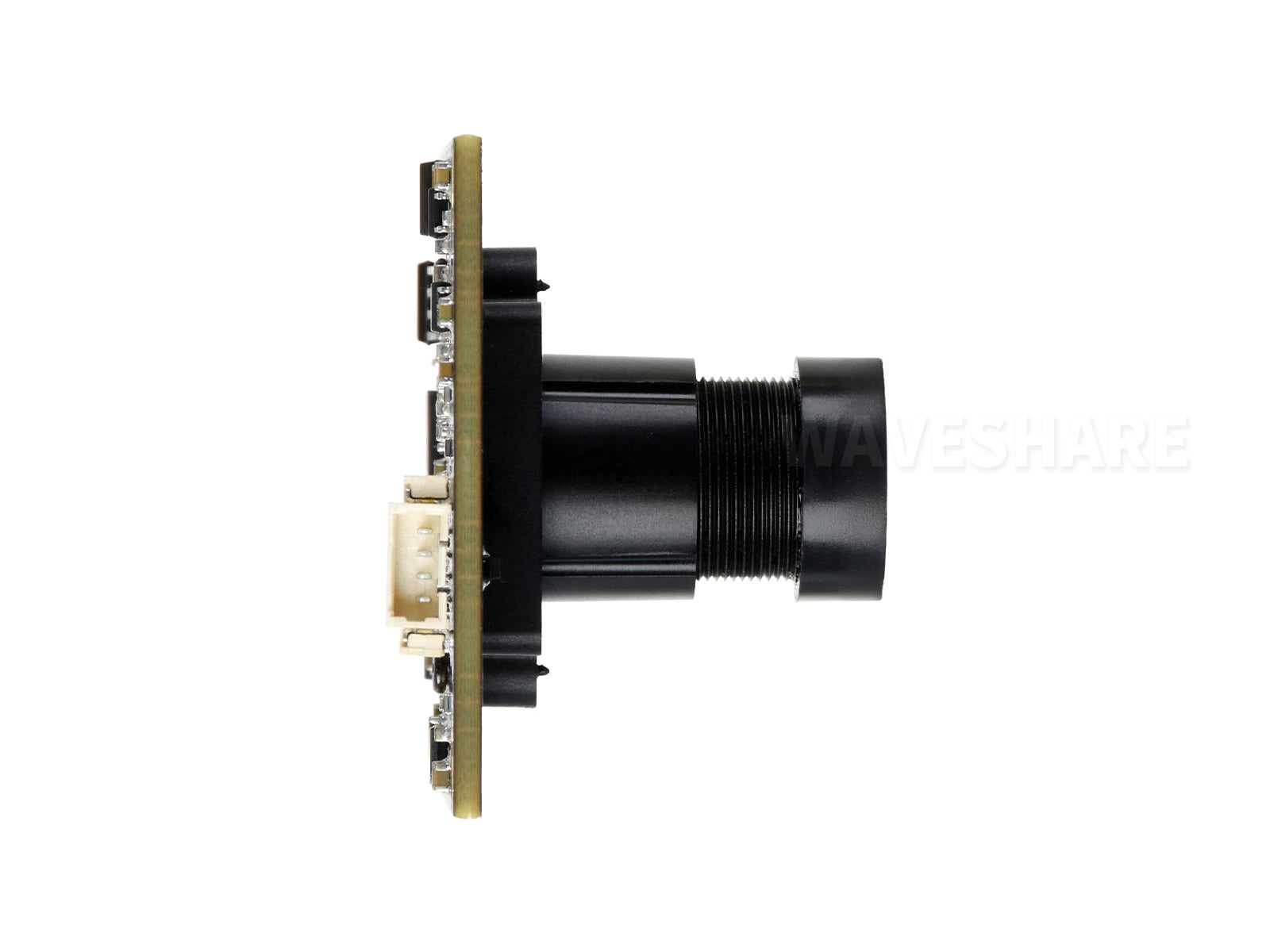

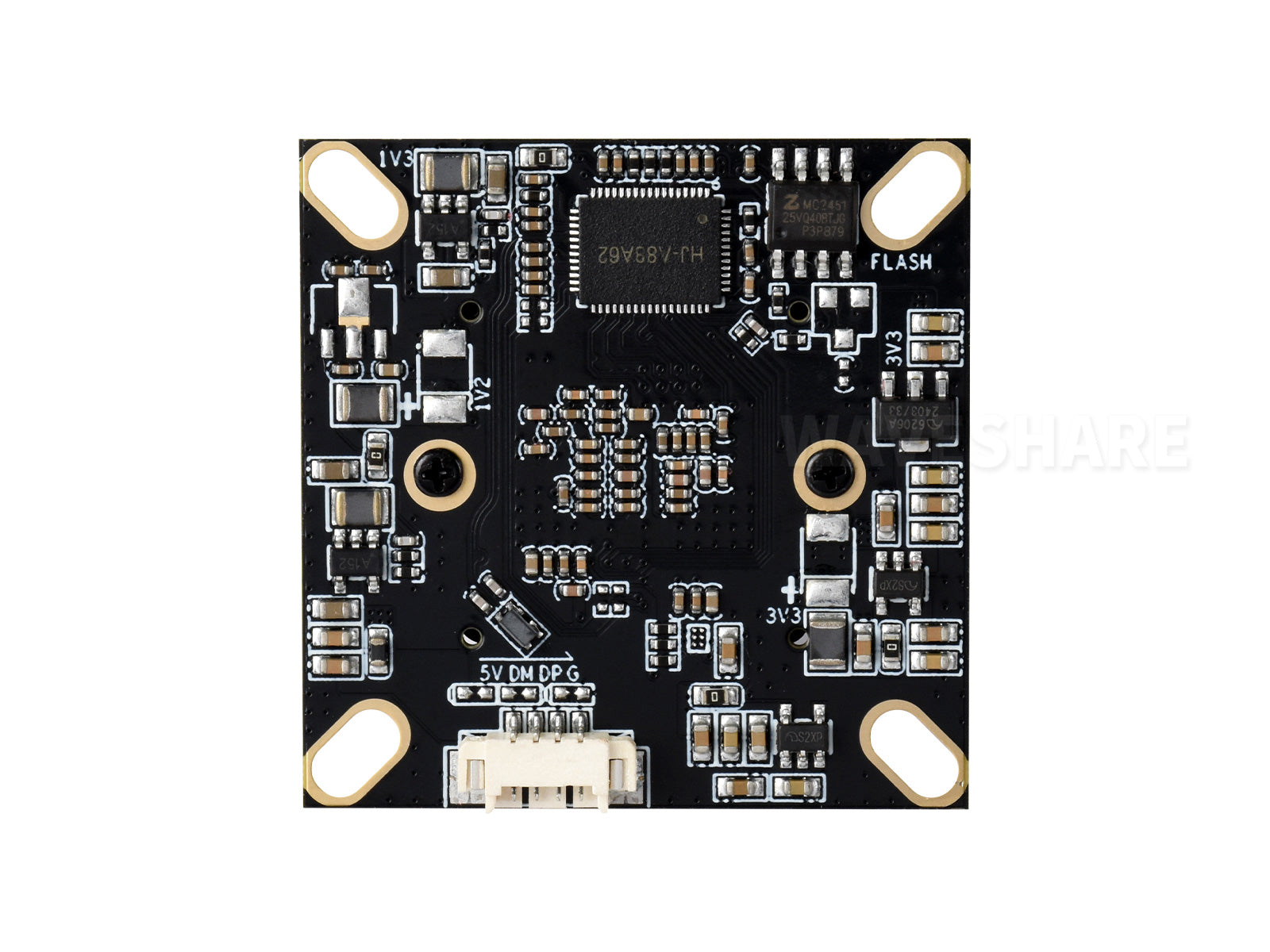

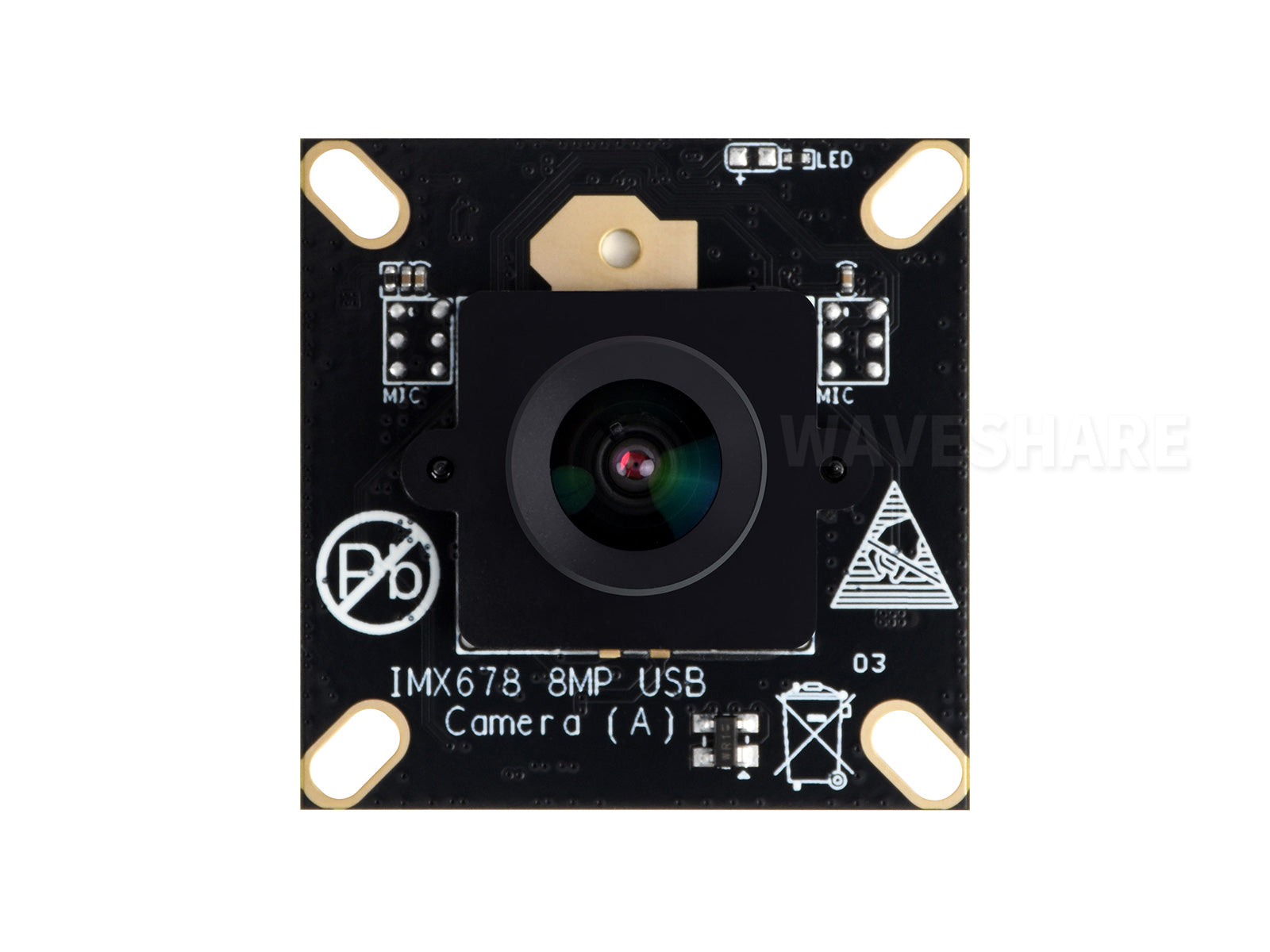

IMX678 8MP M12 USB Camera Module, IMX678 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition, Easy To Use
8MP M12 USB camera module
IMX678 sensor | USB2.0 port | excellent low-light performance
Specifications
| Pixels | 8MP | |
|---|---|---|
| sensor chip | IMX678 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/1.8inch |
| Aperture (F) | 2.4 | |
| Focal length (EFL) | 4.2mm | |
| Field of View (FOV) | 93° (D) / 86° (H) / 55° (V) | |
| Focusing | Fixed-focus | |
| Distortion | <-1.2% | |
| IR Filter | 650nm filter | |
| Shutter | Rolling shutter | |
| Image | Format support | MJPG, YUY2 |
| Static image resolution | 3840 × 2160 | |
| Video recording | MJPG: 30FPS 3840 × 2160 30FPS 2880 × 2160 30FPS 2048 × 1536 30FPS 1920 × 1080 30FPS 1600 × 1200 30FPS 1280 × 960 30FPS 1280 × 720 30FPS 800 × 600 30FPS 640 × 480 | |
| YUY2: 1.5FPS 3840 × 2160 1.5FPS 2880 × 2160 3.75FPS 2048 × 1536 3.75FPS 1920 × 1080 5FPS 1600 × 1200 7.5FPS 1280 × 960 10FPS 1280 × 720 10FPS 1024 × 768 20FPS 800 × 600 20FPS 640 × 480 | ||
| Operating Voltage | 5V ± 5% | |
| Operating current | 250mA | |
| Dimensions | 38.00 × 38.00 × 24.93 (mm) | |
8MP High resolution
IMX678 8MP resolution, captures clear images at both near and far distances
Better Low-light sensitivity
Provides a better imaging effect in low light condition, maintaining clear visuals without dark or blurry shots
* The images above are simulated for reference only, please refer to the actual shooting effect.
Plug and Play, Easy Connection
Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
* for reference only, please refer to the package content for the detailed part list.
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Shutter Mode | Feature |
|---|---|---|---|---|---|---|---|
| OV9281 1MP USB Camera (A) | 1MP | OV9281 | 1280×720 | 25×25mm | 105° | Global shutter | 120FPS high frame rate, mono camera |
| OV2735 2MP USB Camera (A) | 2MP | OV2735 | 1920×1080 | 25×25mm | 96° | Rolling shutter | distortion-free |
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38x38mm | 145° | Rolling shutter | Low-light sensitivity |
| GC2093 2MP USB Camera (A) | 2MP | GC2093 | 1920x1080 | 38x38mm | 170° | Rolling shutter | Wide dynamic range, backlit imaging, onboard microphone |
| SC2210 2MP USB Camera (A) | 2MP | SC2210 | 1920x1080 | 38x38mm | 110.8° | Rolling shutter | Large aperture, starlight-level |
| PS5268-2MP-USB-Camera-A | 2MP | PS5268 | 1920x1080 | 30×30mm | 112.6° | Rolling shutter | Wide dynamic range, IP67 water-resistant case |
| OS05A10 5MP USB Camera (A) | 5MP | OS05A10 | 2592×1944 | 25×25mm | 96° | Rolling shutter | wide dynamic range, distortion-free |
| OV5693 5MP USB Camera (A) | 5MP | OV5693 | 2592x1944 | 18×40mm | 135° | Rolling shutter | auto-focus |
| OV5693 5MP USB Camera (B) | 5MP | OV5693 | 2592x1944 | 8.5×60.2mm | 75° | Rolling shutter | Small size, auto-focus |
| OV5640 5MP USB Camera (B) | 5MP | OV5640 | 2592x1944 | 9×62mm | 68° | Rolling shutter | Small size, auto-focus |
| OV5640 5MP USB Camera (C) | Small size | ||||||
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106.9° | Rolling shutter | Manual focus, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (B) | 5MP | IMX335 | 2592x1944 | 25×24mm | 175° | Rolling shutter | Fixed-focus, wide angle, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (C) | 5MP | IMX335 | 2592x1944 | 25×24.3mm | 91.7° | Rolling shutter | Fixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone |
| IMX378 12MP USB Camera (A) | 12MP | IMX378 | 3840×3032 | 30×30mm | 79.8° | Rolling shutter | HD, auto-focus, onboard dual microphones |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38x38mm | 145° | Rolling shutter | HD, embedded digital mic |
| IMX179 8MP USB Camera (B) | 8MP | IMX179 | 3264×2448 | 9×62mm | 75° | Rolling shutter | HD, small size, auto-focus |
| IMX415 8MP USB Camera (A) | 8MP | IMX415 | 3840×2160 | 38×38mm | 95.5° | Rolling shutter | HD, auto-focus, onboard dual microphones, distortion-free |
| IMX678 8MP USB Camera (A) | 8MP | IMX678 | 3840×2160 | 38×38mm | 93° | Rolling shutter | HD, Low-light sensitivity, distortion-free |
| OS08A10 8MP USB Camera (A) | 8MP | OS08A110 | 3840×2160 | 38×38mm | 68° | Rolling shutter | HD, Low-light sensitivity, Low distortion |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4208×3120 | 38×38mm | 123° | Rolling shutter | HD, OIS |
| AR0144 Stereo USB Camera (A) | 1MP | AR0144 | 2560×800 | 66×30mm | 74° | Global shutter | Frame-synchronized stereo output, distortion-free |
| IMX577 12MP USB Camera (A) | 12MP | IMX577 | 3840×3024 | 34×34mm | 113° | Rolling shutter | HD, distortion-free |
| IMX577 12MP USB Camera (B) | 12MP | IMX577 | 3840×3024 | 34×34mm | - | Rolling shutter | HD, C/CS lenses support |
| OS02G10 Stereo USB Camera (A) | 2MP | OS02G10 | 3840×1080 | 100×22mm | 92° | Rolling shutter | Frame-synchronized stereo output, distortion-free |
Lieferumfang
- IMX678 8MP USB Camera (A) x1
- USB Type-A to MX1.25 4PIN cable ~1.5m x1
