SKU:WSAL25739

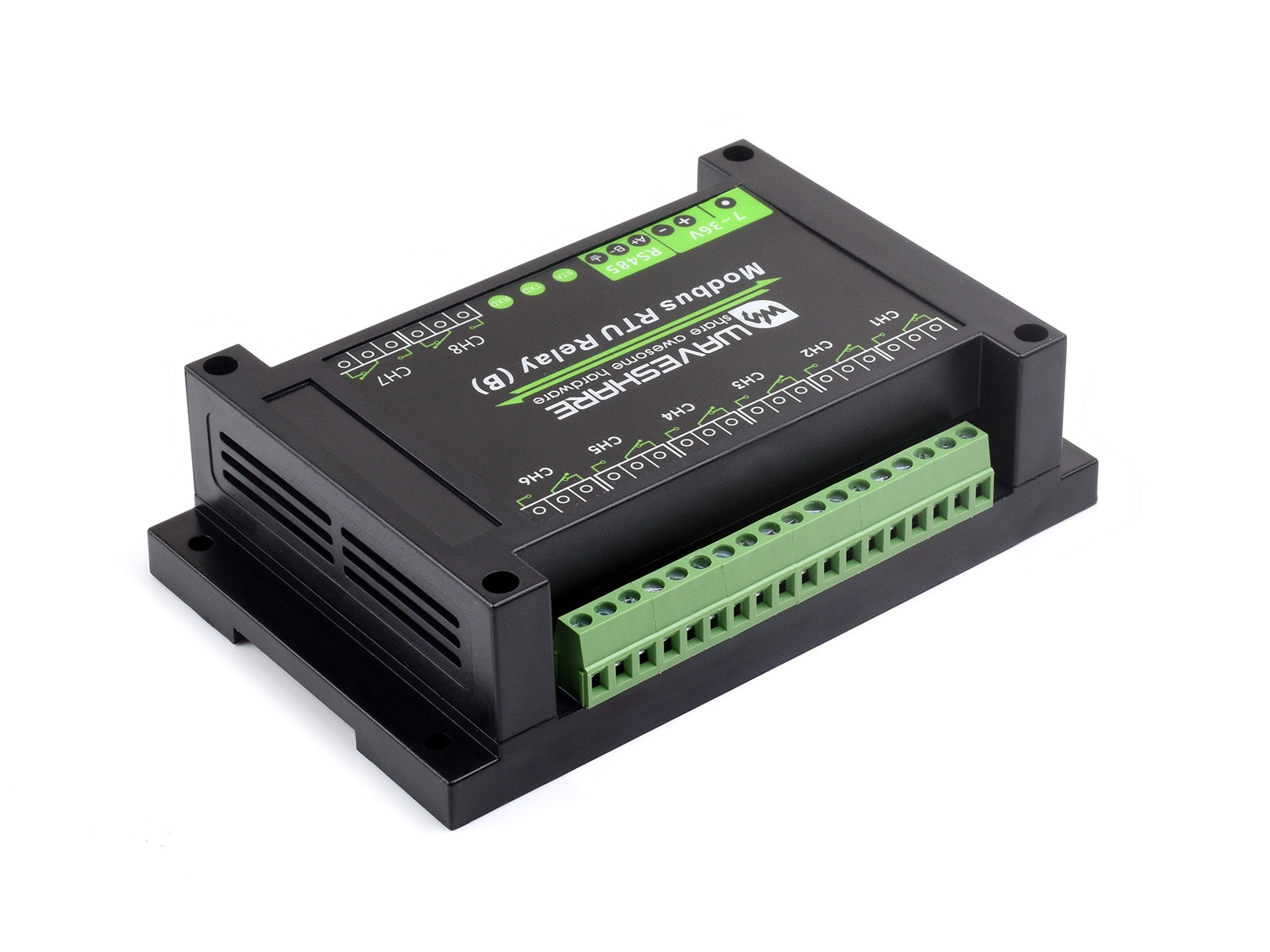

Industrial Modbus RTU 8-ch Relay Module (B) with RS485 Interface, Multi Isolation Protection Circuits, 7~36V Power Supply
Abholverfügbarkeit konnte nicht geladen werden
Kurzbeschreibung: Industrial Modbus RTU 8-ch Relay Module with RS485 Interface, Multi Isolation Protection Circuits, 5V Power Supply
Modbus RTU Protocol, Multi Isolation Protection Circuits, Safe & Stable & Reliable
This is an industrial 8-ch relay module controlled via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, magnetical isolation, and TVS diode, etc. It also comes with an ABS enclosure. The Modbus RTU Relay (B) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
- Configurable device address (1~255), multi devices can be cascaded on RS485 bus
- Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
- Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
- Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
- High quality relay, contact rating: ≤10A 250VAC/30VDC

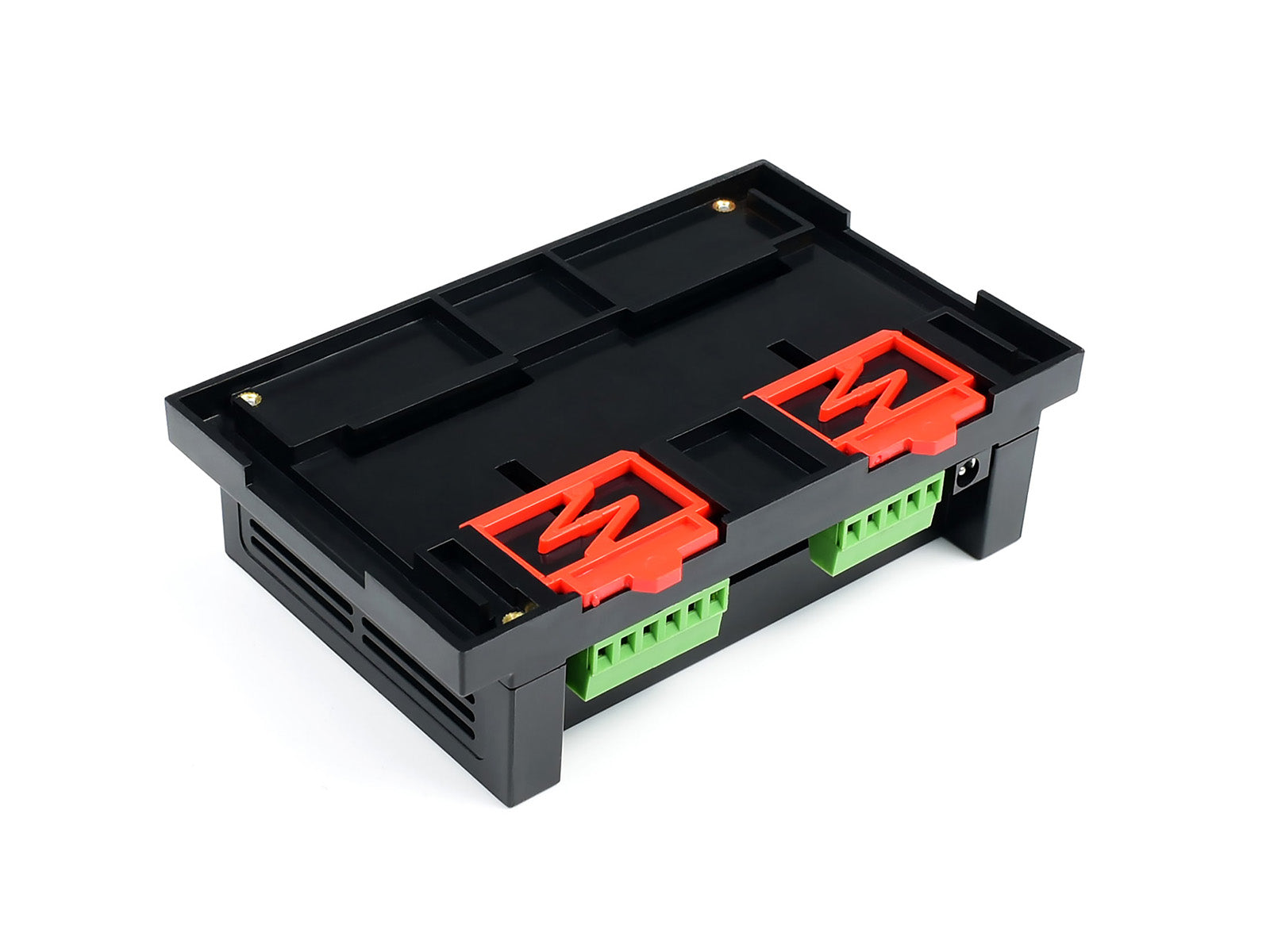

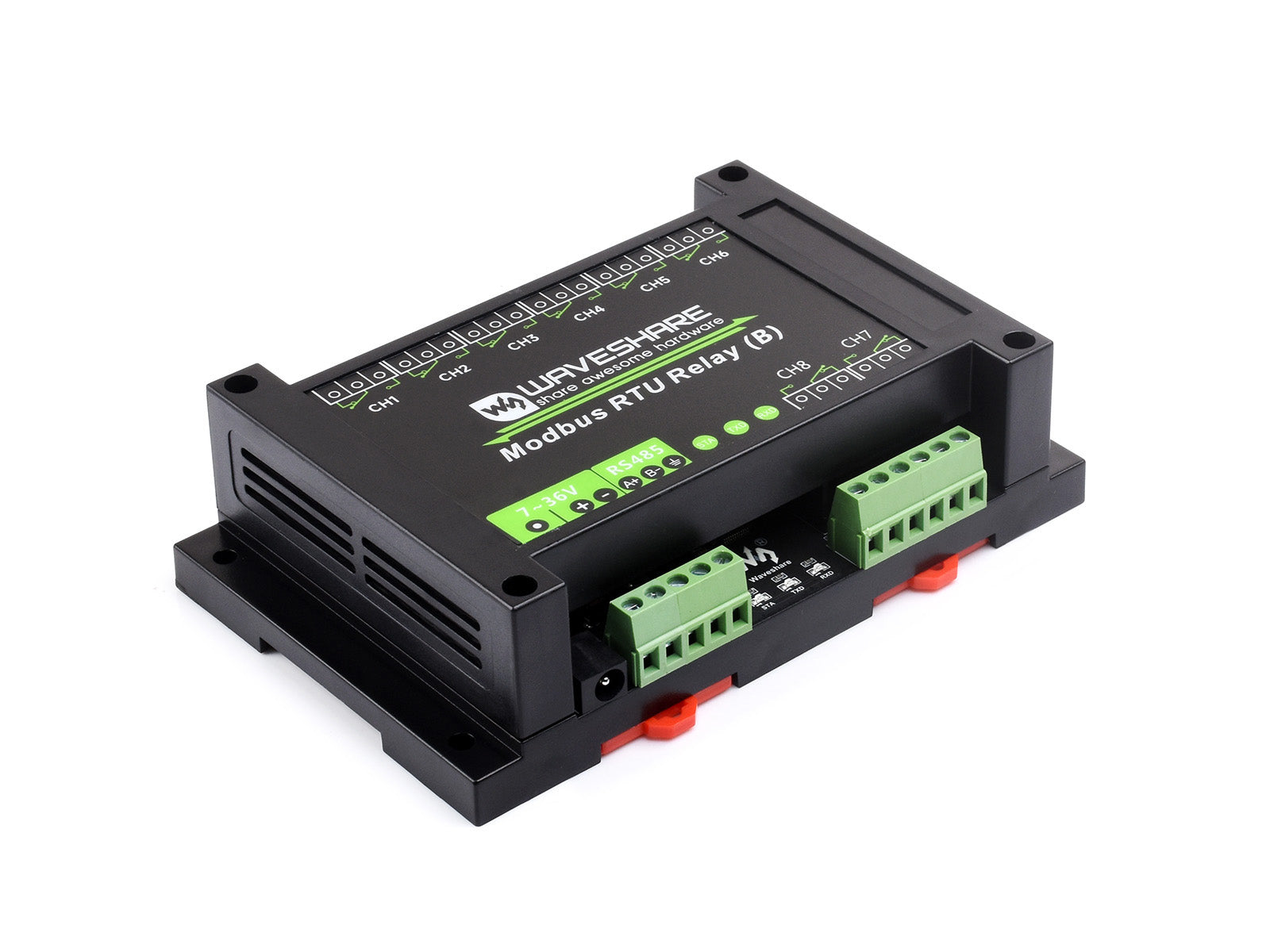

- Rail-mounted ABS plastic enclosure, easy to install, safe to use

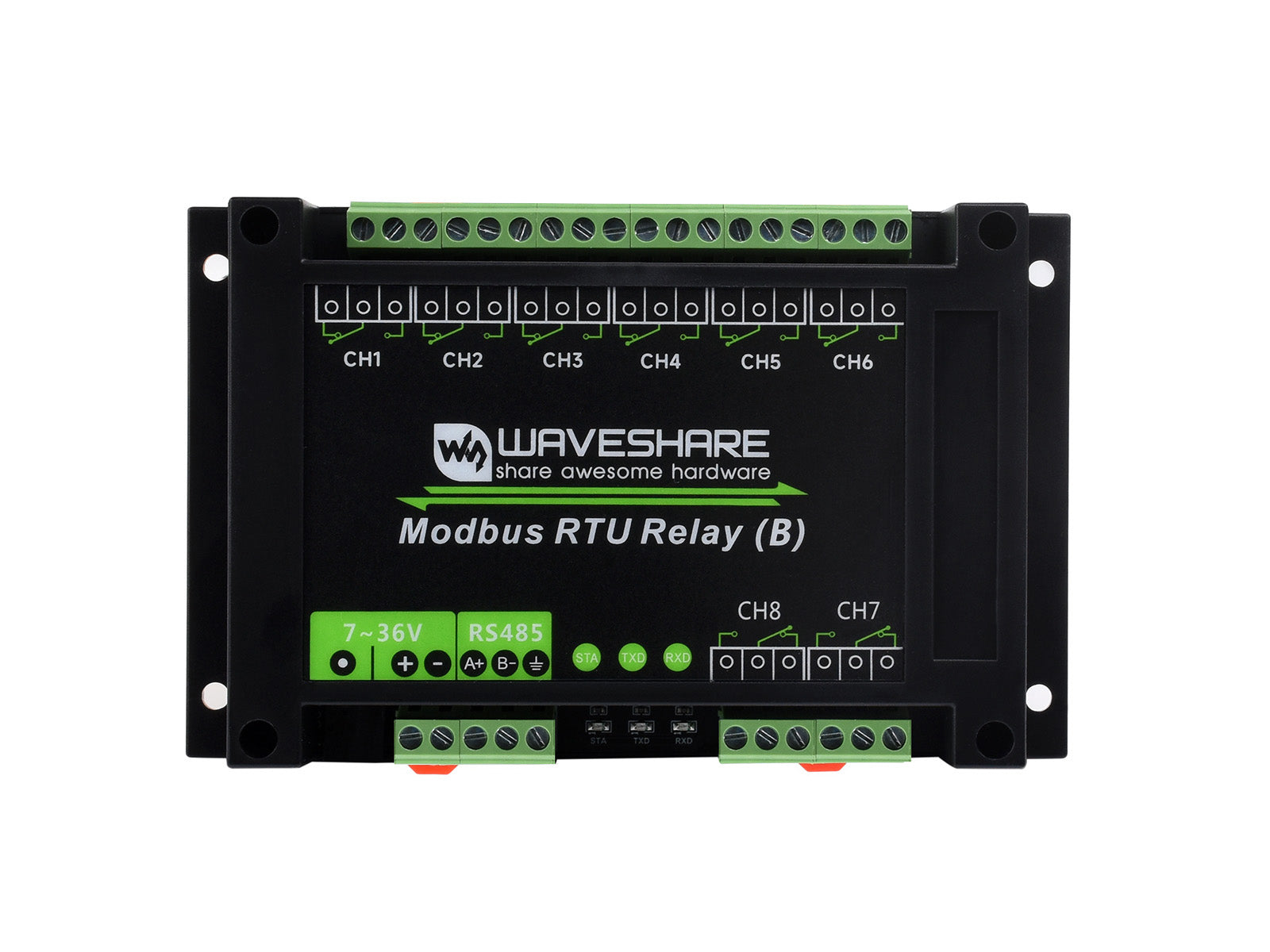

- 3 LEDs for indicating the MCU status and signal transceiving status
| PRODUCT | Modbus RTU Relay | Modbus RTU Relay (B) |
|---|---|---|
| Power supply | 5V | 7~36V |
| Communication interface | RS485 | |
| Baudrate | 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 | |
| Default communication format | 9600, N, 8, 1 | |
| Relay channels | 8 | |
| Contact form | 1NO 1NC | |
| contact rating | ≤10A 250VAC/30VDC | |
| Communication protocol | Standard Modbus RTU protocol | |
| RS485 address | 1~255 | |
| LED indicators | STA: MCU indicator, keeps flashing when the MCU normally workingTXD: TX indicator, lights up when sending dataRXD: RX indicator, lights up when receiving data | |
Multiple protections for safer and more reliable use
Rail-mounted ABS plastic enclosure, easy to install, safe to use
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
In case of many devices are cascaded, or communication distance is quite long, it is necessary to use RS485 repeaters
for reference only, the USB TO RS232/485/TTL converter is Not included
Contact rating of the onboard relay up to 10A 250VAC/30VDC Directly controlling 220VAC home appliances, or devices below 30VDC
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
| product | Communication parameters | Relay type | Output control | Input control | Power range | Dimensions |
|---|---|---|---|---|---|---|
| Modbus RTU Relay | RS485 port | 10A Universal Relay | 8-ch | - | 5V | 145×90×40mm |
| Modbus RTU Relay (B) | 10A Universal Relay | 8-ch | - | 7V~36V | 175×90×40mm | |
| Modbus RTU Relay (C) | 10A Latching Relay | 8-ch | - | 7V~36V | 145×90×40mm | |
| Modbus RTU Relay (D) | 10A Universal Relay | 8-ch | 8-ch | 7V~36V | 175×90×40mm | |
| Modbus RTU Relay (E) | 30A High Current Relay | 8-ch | - | 7V~36V | 200×110×60mm | |
| Modbus RTU Relay 4CH | 30A High Current Relay | 4-ch | - | 7V~36V | 145×90×40mm | |
| Modbus RTU Relay 16CH | 10A Universal Relay | 16-ch | - | 5V | 200×110×60mm | |
| Modbus RTU Relay 32CH | 10A Universal Relay | 32-ch | - | 7V~36V | 300×110×60mm | |
| Modbus POE ETH Relay | Ethernet port (PoE support) | 10A Universal Relay | 8-ch | - | 7V~36V | 145×90×40mm |
| Modbus POE ETH Relay (B) | 10A Universal Relay | 8-ch | 8-ch | 7V~36V | 175×90×40mm | |
| Modbus POE ETH Relay (C) | Dual Ethernet ports (PoE support) | 10A Universal Relay | 8-ch | 8-ch | 7V~36V | 175×90×40mm |
| Modbus POE ETH Relay 16CH | Dual Ethernet ports (PoE support) | 10A Universal Relay | 16-ch | - | 7V~36V | 200×110×60mm |
| Modbus POE ETH Relay 30CH | Ethernet port (PoE support) | 10A Universal Relay | 30-ch | - | 7V~36V | 300×110×60mm |
Lieferumfang
- The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.
- It is also recommended to purchase USB TO RS232/485/TTLorUSB TO RS485 at the same time for easy testing.
Modbus RTU Relay (B) x1
