SKU:WSAL25219

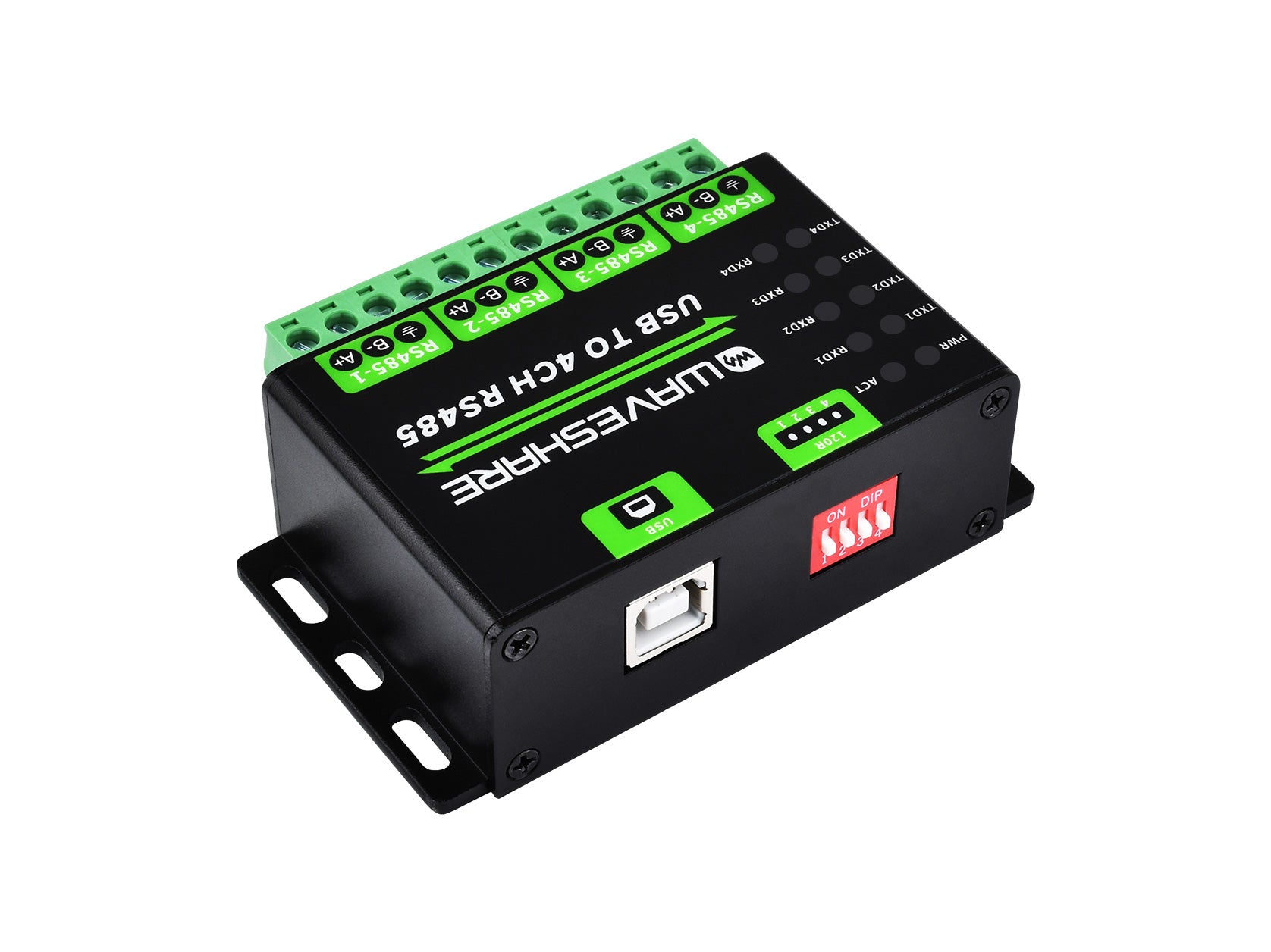

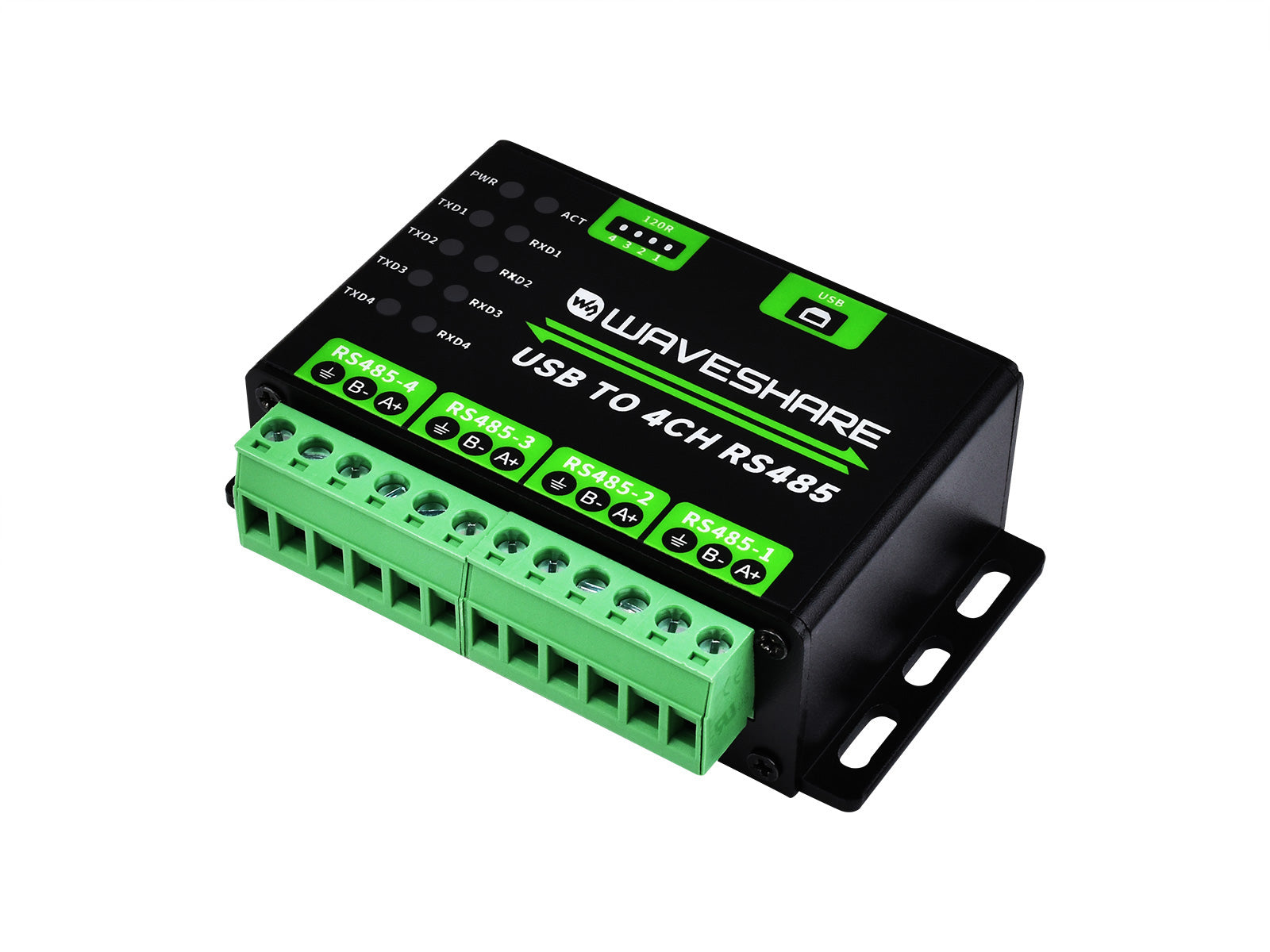

Industrial USB TO 4Ch RS485 Converter, Multi Protection Circuits, Multi Systems Support, Aluminium Alloy Case
Abholverfügbarkeit konnte nicht geladen werden
Kurzbeschreibung: Industrial USB TO 4Ch RS485 Converter, Multi Protection Circuits, Multi Systems Support, Aluminium Alloy Case, Wall-Mount & Rail-Mount Support
Stable Transmission | Multi Devices | Multi Systems
- Extending USB to 4CH RS485, allows concurrent and independent communication for each channel
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

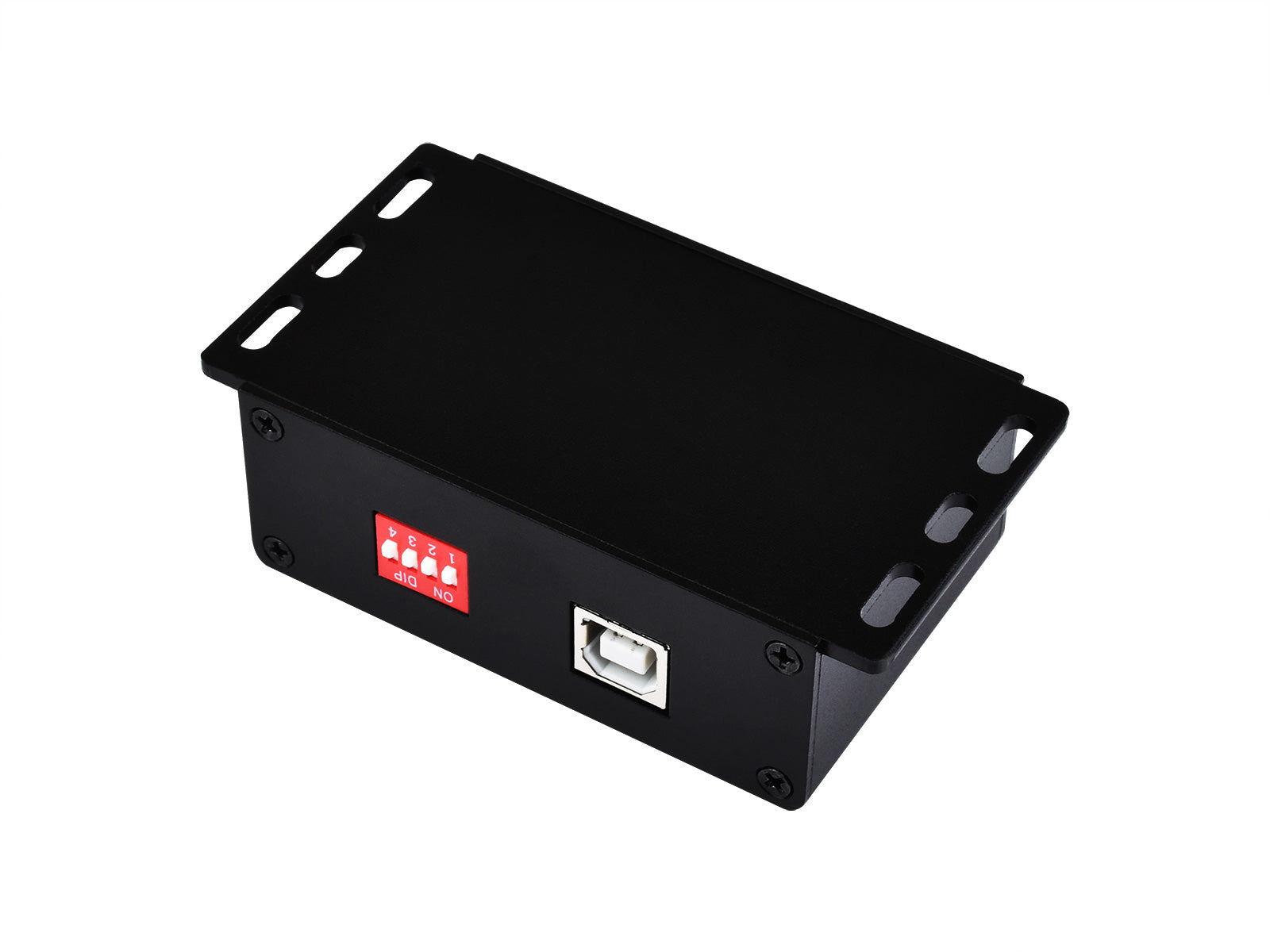

- Onboard RS485 output terminal 120R resistors, enabled/disabled via DIP switch
- Aluminium alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
| PRODUCT TYPE | Industrial Grade USB to RS485 converter | |
|---|---|---|
| Host port | USB | |
| Device port | RS485 | |
| Baudrate | 1200bps ~ 460800bps | |
| USB | Operating voltage | 5V |
| Connector | USB-B | |
| Protection | 500mA resettable fuse, ESD protection | |
| Transmission distance | About 5m | |
| RS485 | Connector | Screw terminal |
| Protection | 600W lightningproof and surge-suppress, 15KV ESD protection | |
| Transmission distance | Maximum communication distance is about 1200m (at a low rate, with 120R resistor turned on) | |
| Transmission mode | Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| Operating environment | Temperature | -40 ~ 85℃ |
| Humidity | 5%RH ~ 95%RH | |
| Operating system | Win7/8/8.1/10/11, Mac, Linux, Android | |
Onboard Resettable Fuse And Protection Diode, Provides Over-Current/Over-Voltage Proof, Improves Shock Proof Performance; Onboard Voltage Translator Circuit, With Surge Suppress And ESD Protection, Safe And Stable Communication
Supports Win7/8/8.1/10/11, Mac, Linux, Android, etc.
The USB signal can be converted into 4 balanced differential RS485 signals and the transmission rate is stable. The reliable speed is 1200~460800bps, the transmission distance is about 1.2km for RS485, and about 5 meters for USB.

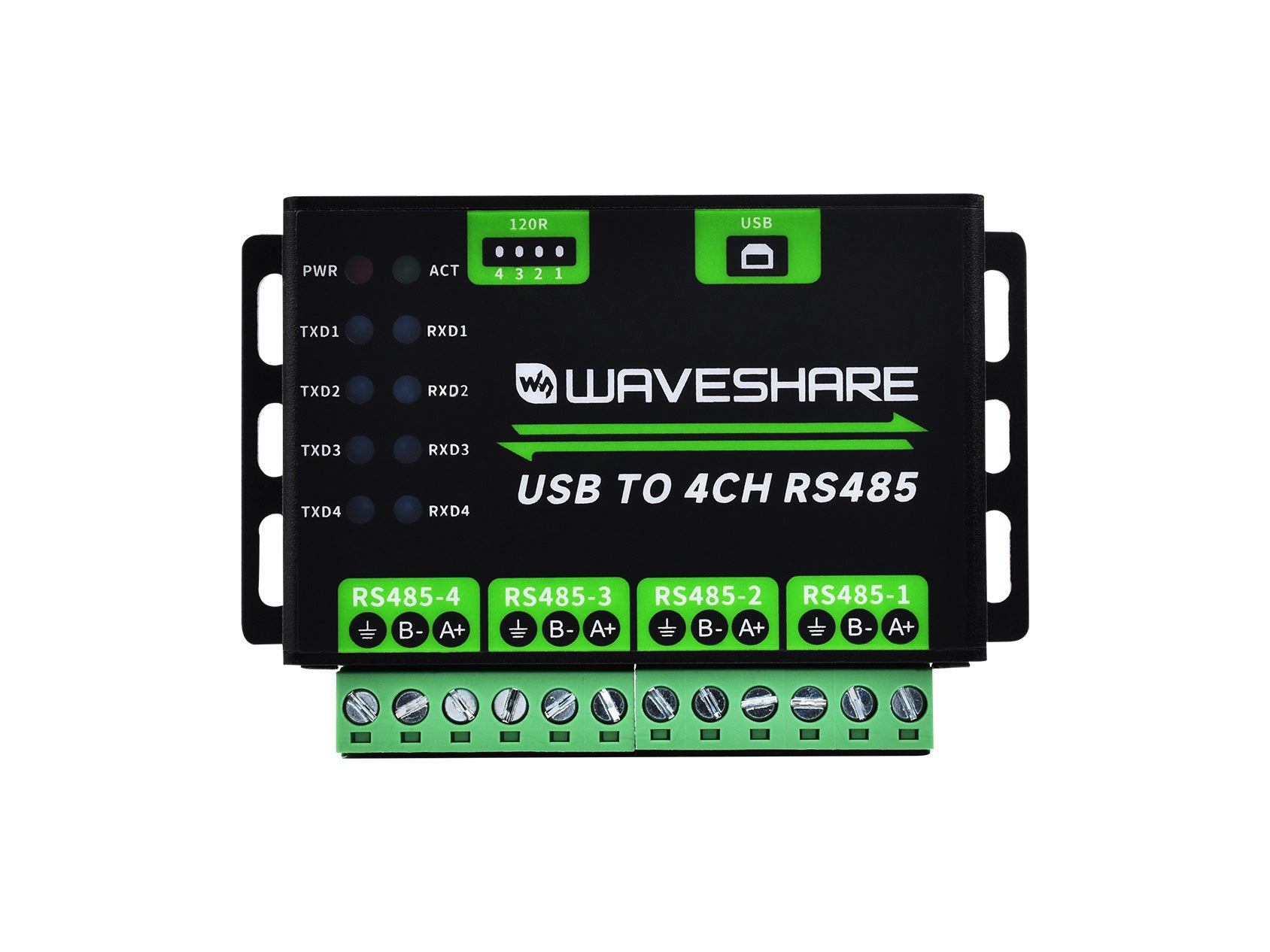

| Indicator Introduction | |
|---|---|
| PWR | power indicator, lights up while the USB is connected and voltage is detected |
| ACT | Status indicator, lights up green while the driver is detected. |
| RXD(1~4) | Blue RXD indicators, light up when the device ports send data back (corresponding to 4 channels respectively) |
| TXD(1~4) | Blue TXD indicators, light up when the USB port is sending data (corresponding to 4 channels respectively) |
| PE | Signal ground |
|---|---|
| A(1~4) | A(1~4) differential signal A+ |
| B(1~4) | B(1~4) differential signal B- |
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Lieferumfang
- USB TO 4CH RS485 x1
- USB type A to type B cable ~1.2m x1
