SKU:WSAL27076

Kurzbeschreibung: Industrial USB TO 4CH TTL Converter, USB To UART, Multi Protection Circuits, Multi Systems Support

Industrial USB TO 8CH TTL Converter, USB to UART, Multi Protection Circuits, Multi Systems Support, USB To TTL Adapter

IndustrialUSB TO 8CH TTL UARTCONVERTER

Stable Transmission | Multi Devices | Multi Systems

Features At A Glance

• Extending USB to 8CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel
• Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
• Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication
• Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

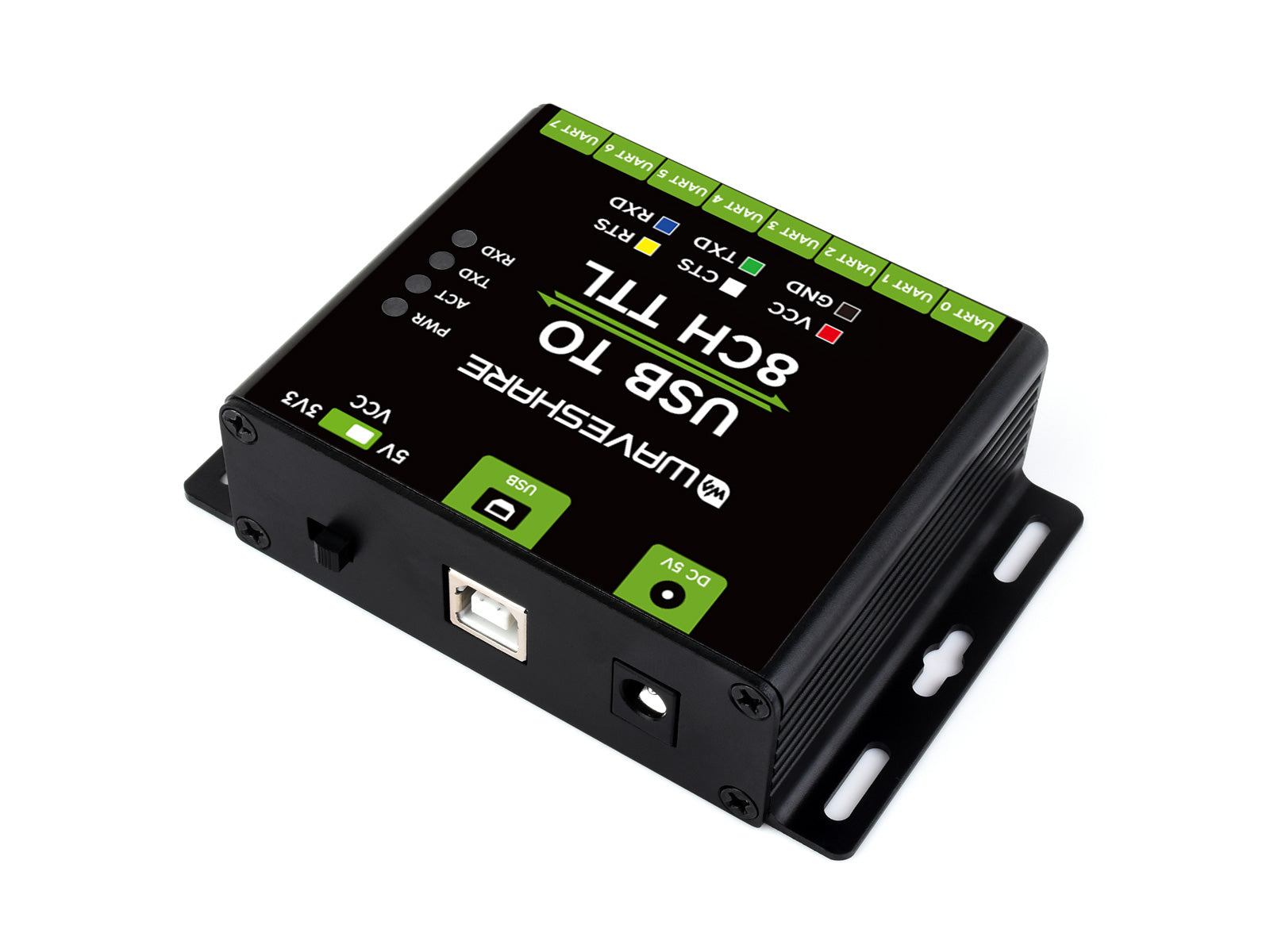

• Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
• 4 LEDs for indicating the power and transceiver status

Specifications

PRODUCT TYPE	Industrial USB to TTL converter
Host port	USB
Device Port	TTL (UART)
Baudrate	1200bps ~ 2M
USB	Operating voltage	5V
	Connector	USB-B
	Protection	200mA self-recovery fuse, ESD protection
Power supply	Connector	5V DC power jack
	Protection	Over-voltage protection and anti-reverse protection
TTL (UART)	Connector	50PIN anti-reverse header
	Protection	TVS diode, surge protection & ESD protection
	TTL level	3.3V/5V (configurable)
Indicators	PWR	Power indicator, lights up red when there is USB connection and voltage is detected
	ACT	Status indicator, lights up green when the driver is detected
	TXD	TX indicator, lights up when the USB port sends data
	RXD	RX indicator, lights up when the device ports send data back
Operating environment	Temperature	-40℃ ~ 85℃
	Humidity	5%RH ~ 95%RH
Operating system	Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Multiple protection, safe and stable

• Onboard self-recovery fuse and protection diodes, provide over-current/over-voltage proof, improve shock proof performance
• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
• Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication

Multiple systems support

Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...

Application examples

suitable for industrial/office conditions with strict requirements for operating environment and devices

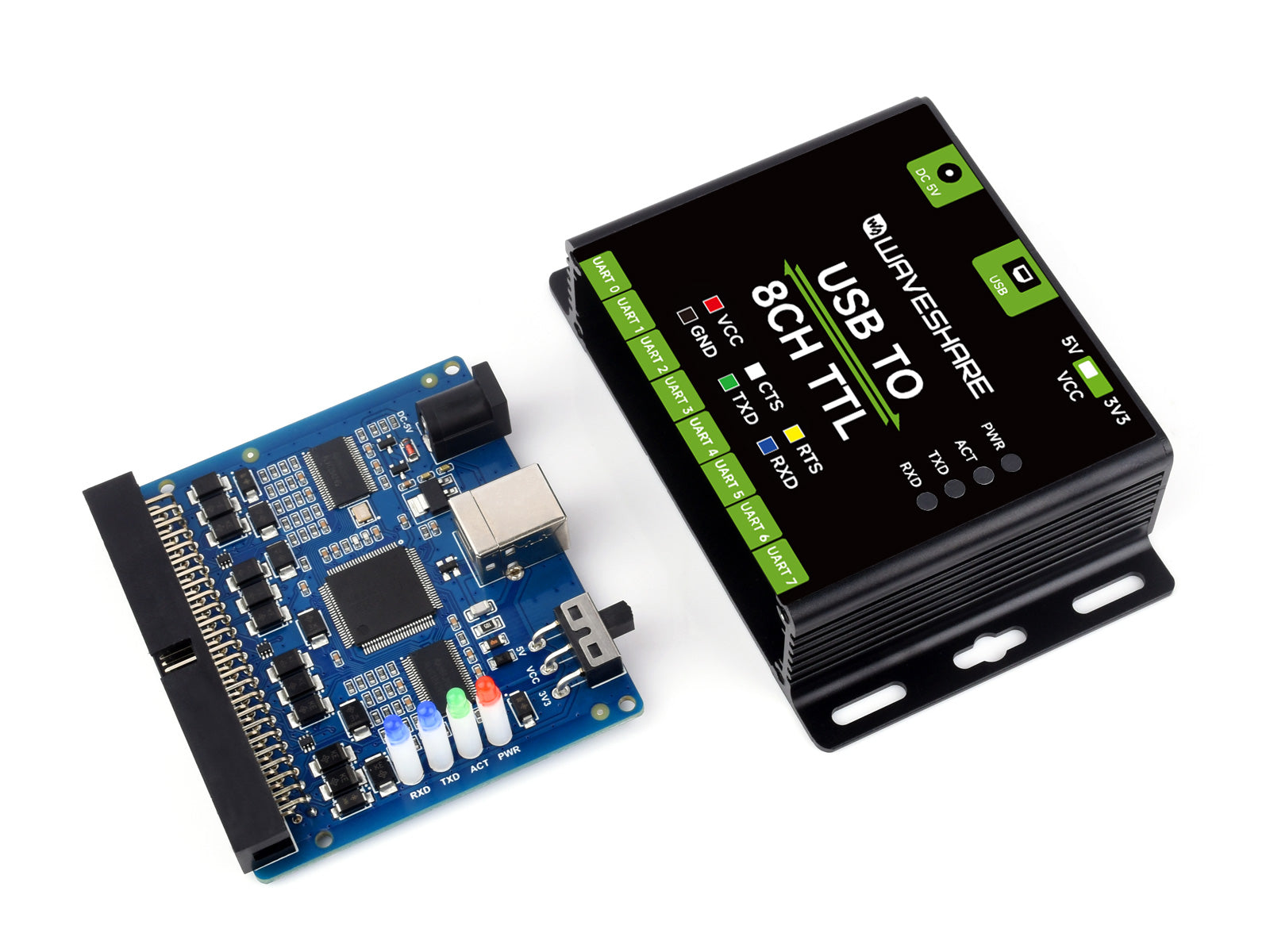

Extending USB to 8CH TTL UART Industrial chip, 8CH TTL, allows concurrent and independent communication

Small size, easy installation Flexible installation, suitable for sorts of devices to extend TTL interfaces

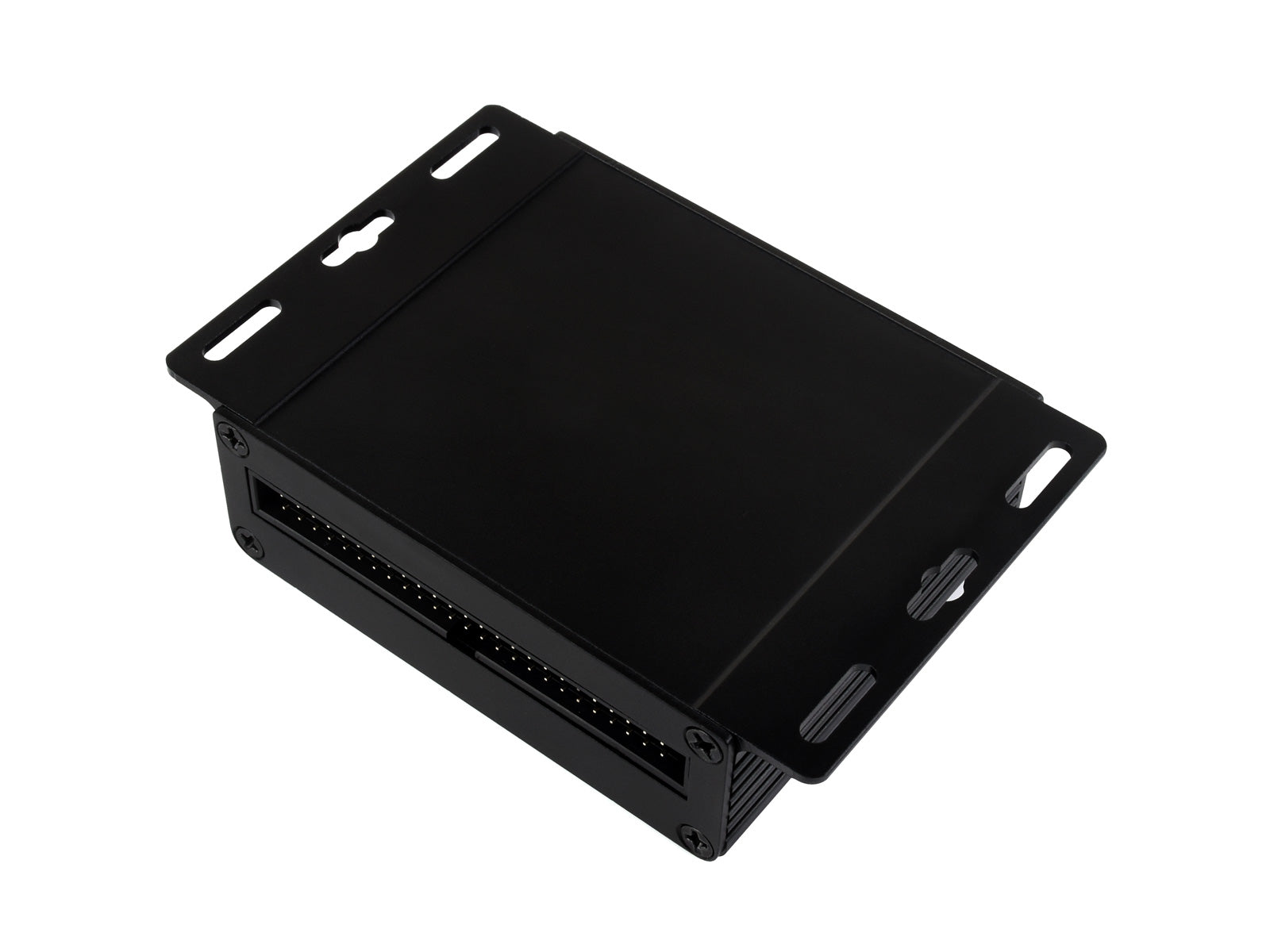

Reversed mounting holes Easy wall mount, industrial alloy enclosure, solid and durable

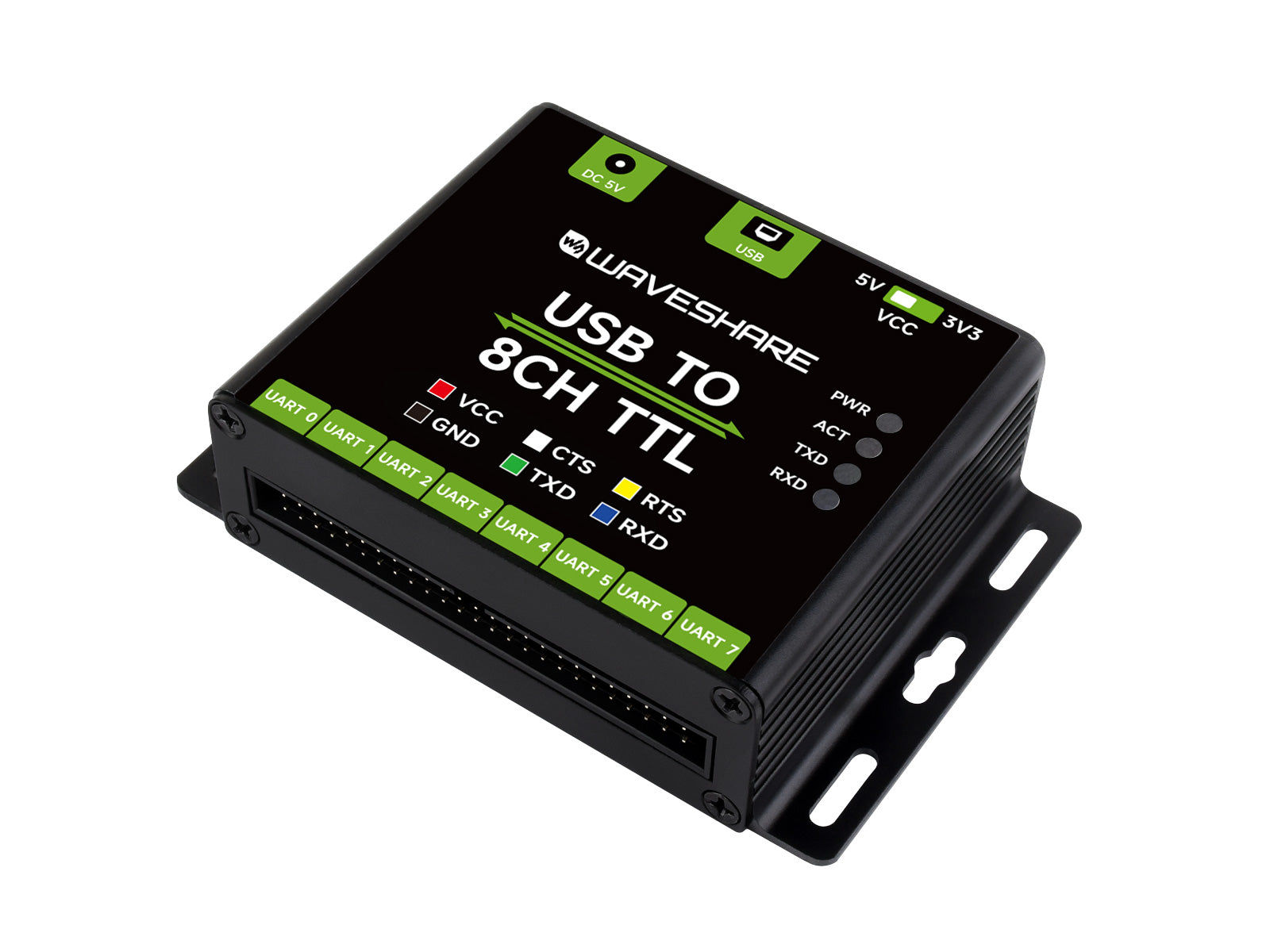

Interface introduction

Indicators description

PWR	Power indicator, lights up red when there is USB connection and voltage is detected
ACT	Status indicator, lights up green when the driver is detected
TXD	TX indicator, lights up when the USB port sends data
RXD	RX indicator, lights up when the device ports send data back

Pinout definition

VCC	5V or 3.3V output, configured by switch
GND	Ground
TXD	Connecting to MCU.RXD
RXD	Connecting to MCU.TXD
RTS	Connecting to MCU.CTS
CTS	Connecting to MCU.RTS

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/USB_TO_8CH_TTL

USB to serial port Converter Selection

Model	Description	serial port converter
USB TO RS232/485/TTL	USB to single-channel serial port;Adopts FT232RL solution;Industrial grade, with isolation; Wall-mount and desktop support	Single serial port converter: USB to RS232 USB to RS485 USB to TTL
USB TO RS232/485/TTL (B)	USB to single-channel serial port;Adopts CH343G solution;Industrial grade, with isolation;Wall-mount and desktop support	Single serial port converter: USB to RS232 USB to RS485 USB to TTL
USB TO RS232/485/422/TTL	USB to single-channel serial port;Adopts FT232RNL solution;Industrial grade, with isolation;Wall-mount and rail-mount support	Single serial port converter: USB to RS232 USB to RS485 USB to RS422 USB to TTL
USB TO UART/I2C/SPI/JTAG	USB to 2-ch serial port;Adopts CH347T solution;Industrial grade, without isolation;Wall-mount and desktop support	Multi-functional serial port converter: USB to 2-ch TTL USB to 1-ch TTL + 1-ch I2C + 1-ch SPI USB to 1-ch TTL + 1-ch JTAG
USB TO 4CH TTL	USB to 4-ch serial port;Adopts CH344 solution;Industrial grade, without isolation;Wall-mount and desktop support	4-ch serial port converter: USB to 4-ch TTL
USB TO 4CH RS485	USB to 4-ch serial port;Adopts CH344 solution;Industrial grade, without isolation;Wall-mount and desktop support	4-ch serial port converter: USB to 4-ch RS485
USB TO 4CH RS485 (B)	USB to 4-ch serial port;Adopts CH344 solution;Industrial grade, with isolation;Wall-mount and desktop support	4-ch serial port converter: USB to 4-ch RS485
USB TO 4CH RS232/485	USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and rail-mount support	4-ch serial port converter: USB to 4-ch RS232 USB to 3-ch RS232 + 1-ch RS485 USB to 2-ch RS232 + 2-ch RS485
USB TO 4CH RS232	USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and desktop support	4-ch serial port converter: USB to 4-ch RS232
USB TO 4CH RS485/422	USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and rail-mount support	4-ch serial port converter: USB to 4-ch RS485 USB to 3-ch RS485 + 1-ch RS422 USB to 2-ch RS485 + 2-ch RS422
USB TO 4CH Serial Converter	USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and desktop support	4-ch serial port converter: USB to 1-ch TTL + 3-ch RS485 USB to 1-ch TTL + 2-ch RS485 + 1-ch RS232 USB to 1-ch TTL + 2-ch RS485 + 1-ch RS422 USB to 1-ch TTL + 2-ch RS485 + 1-ch RS232 + 1-ch RS422 USB to 2-ch TTL + 2-ch RS485 USB to 2-ch TTL + 1-ch RS485 + 1-ch RS422 USB to 2-ch TTL + 1-ch RS422 + 1-ch RS232
USB TO 8CH RS485	USB to 8-ch serial port;Industrial grade, with isolation;Wall-mount and rail-mount support	8-ch serial port converter: USB to 8-ch RS485

Lieferumfang

1. USB TO 8CH TTL x1
2. USB cable (~1.2m) x1
3. 50PIN squid wire x1
