SKU:WSAL29616

Interface Protection Adapter Board for Raspberry Pi Compute Module series, Provides Physical Protection for Frequent Plugging and Unplugging of CM4 / CM5 Socket

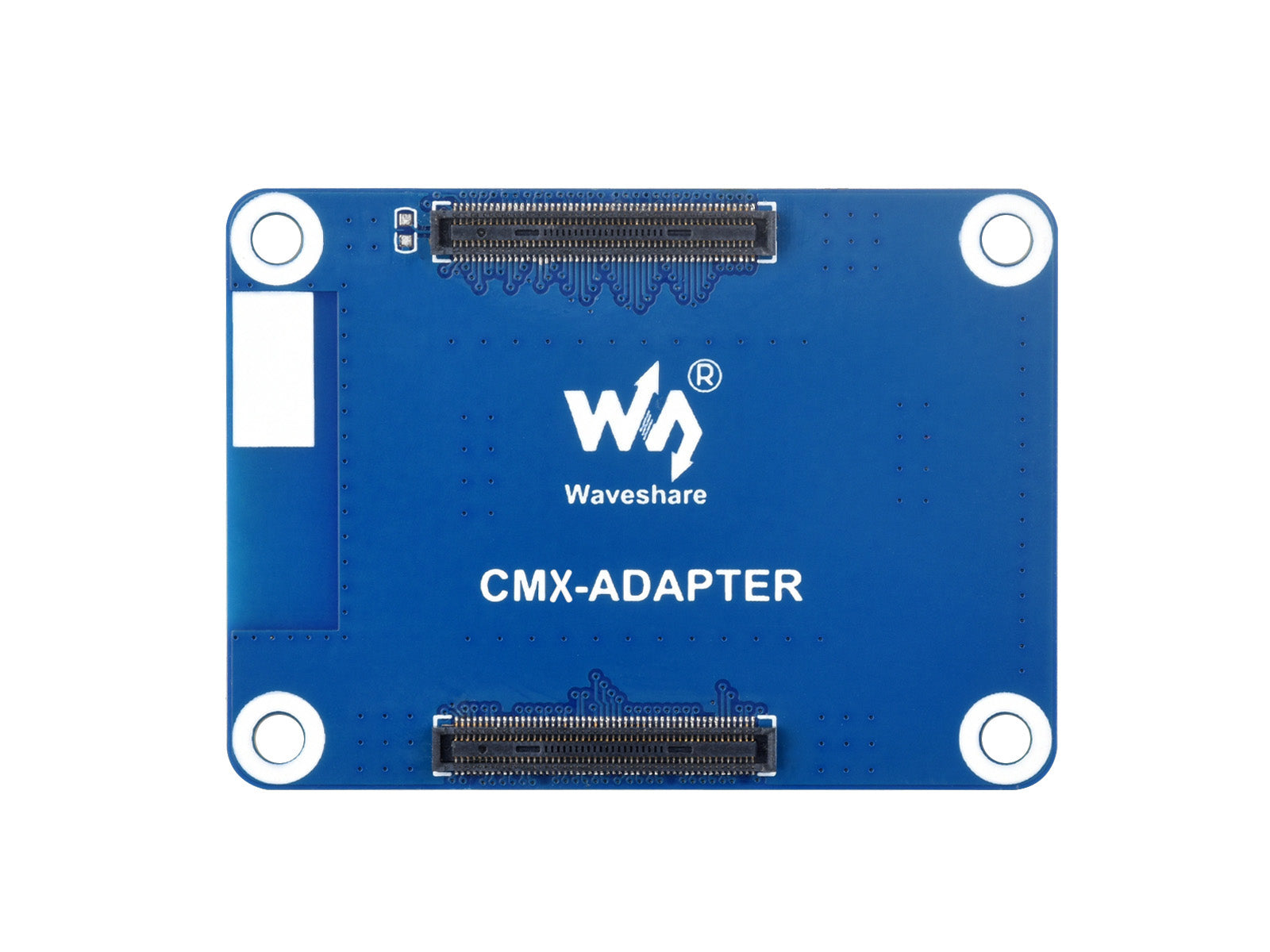

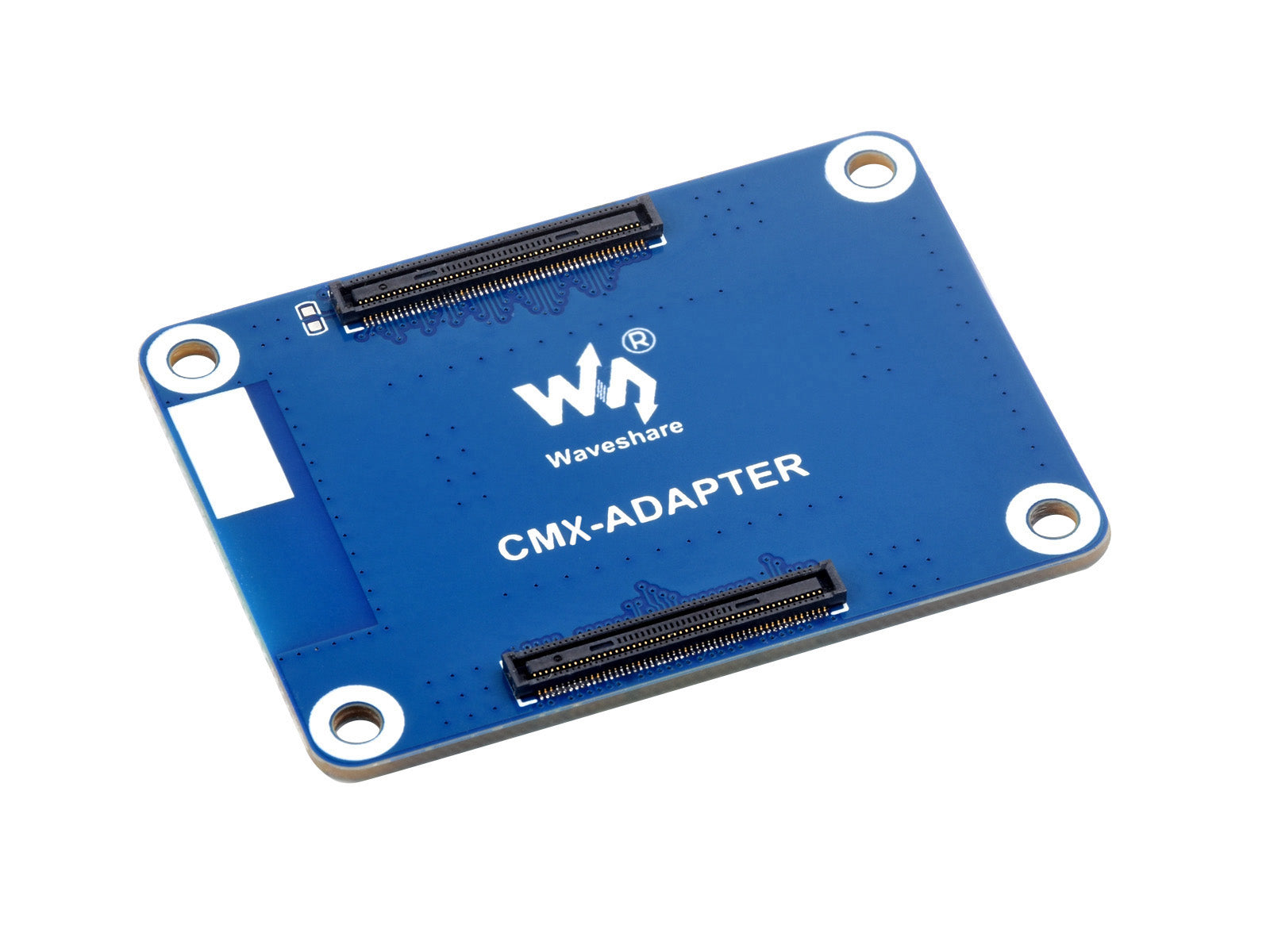

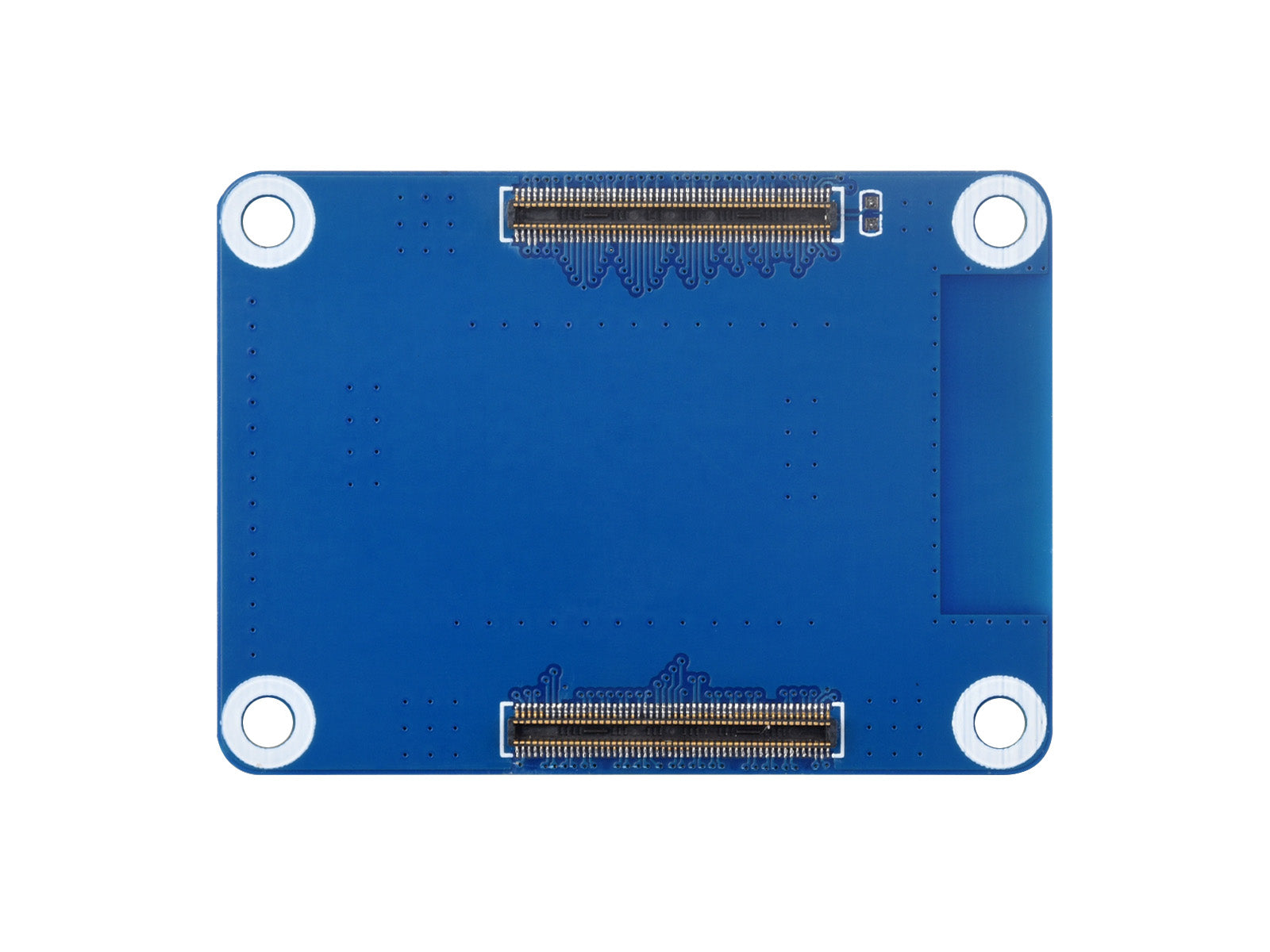

Interface Protection Adapter Board for Raspberry Pi CM4 / CM5

Based on Raspberry Pi CM4 / CM5

Onboard Standard CM4 / CM5 Connectors, Supports access to the Lite / EMMC series of CM4 / CM5 and connecting to corresponding baseboard or expansion board

Physical Protection for Frequent Plugging and Unplugging

Prevents damage to the CM4 / CM5 socket from frequent physical plugging and unplugging, suitable for applications that require frequent connections of CM4 / CM5

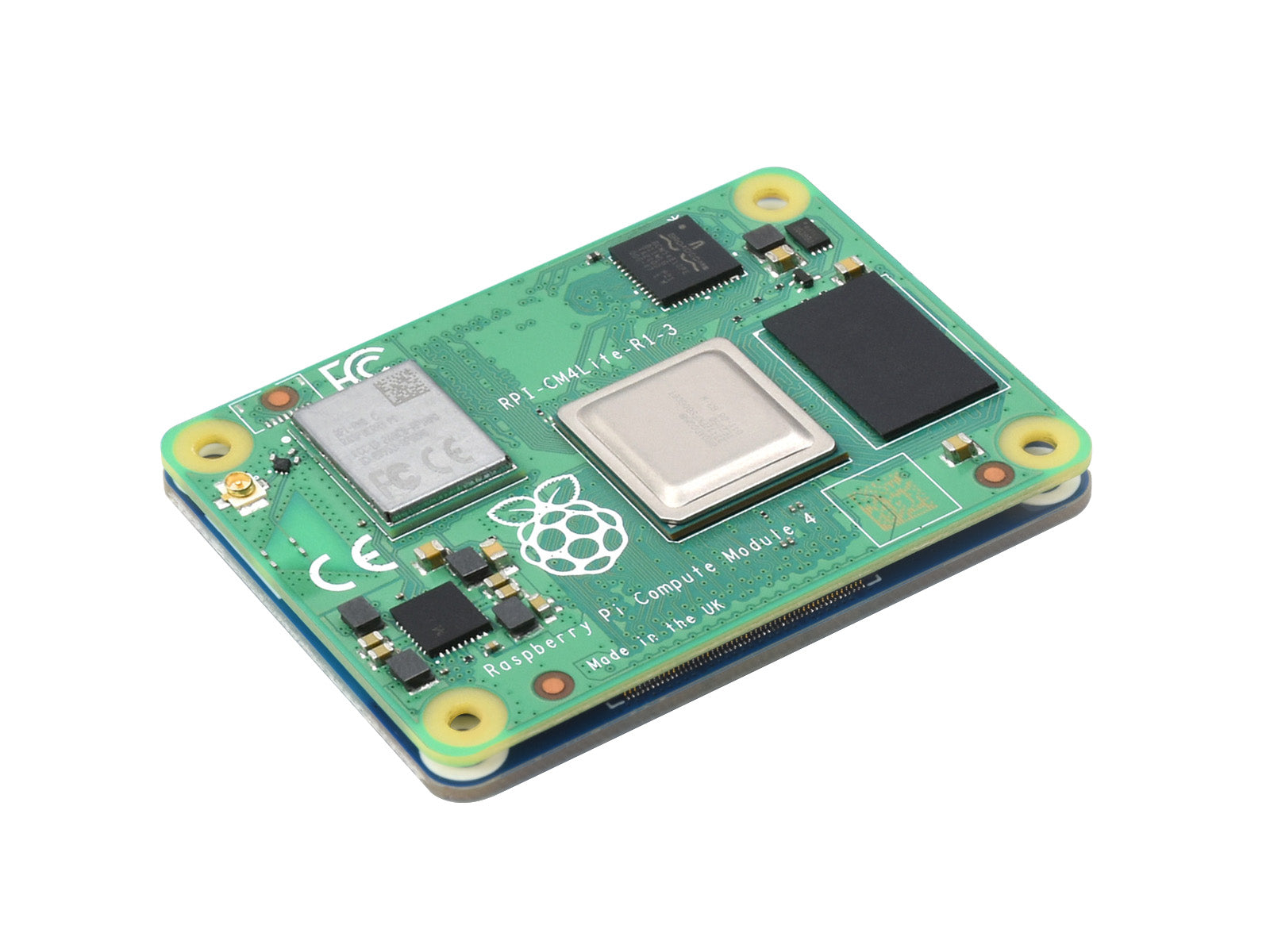

Connecting with Compute Module 4

Connecting with Compute Module 5

Connecting with Luckfox Core3566 Module

Easy to Install

Connecting the Compute Module 4 to Compute Module 4 IO Board via CMX-ADAPTER

Connecting the Luckfox Core3566 Module to Touch screen expansion board via CMX-ADAPTER

Interface Introduction

Outline dimensions

Lieferumfang

CMX-ADAPTER x1
