SKU:WSAL32175

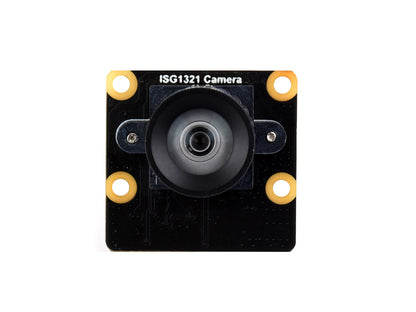

ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens, Supports 1280 × 1080@120fps Output

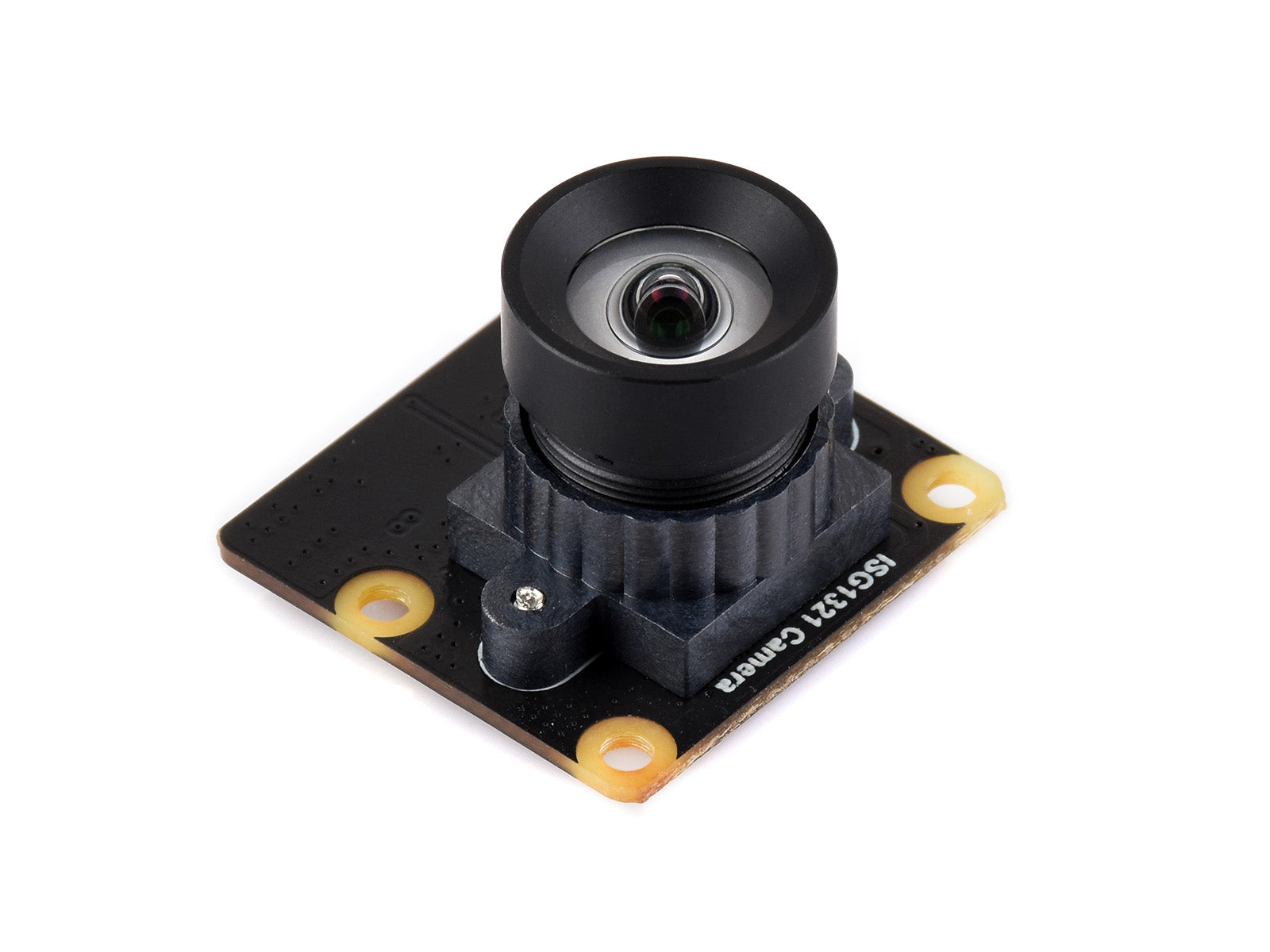

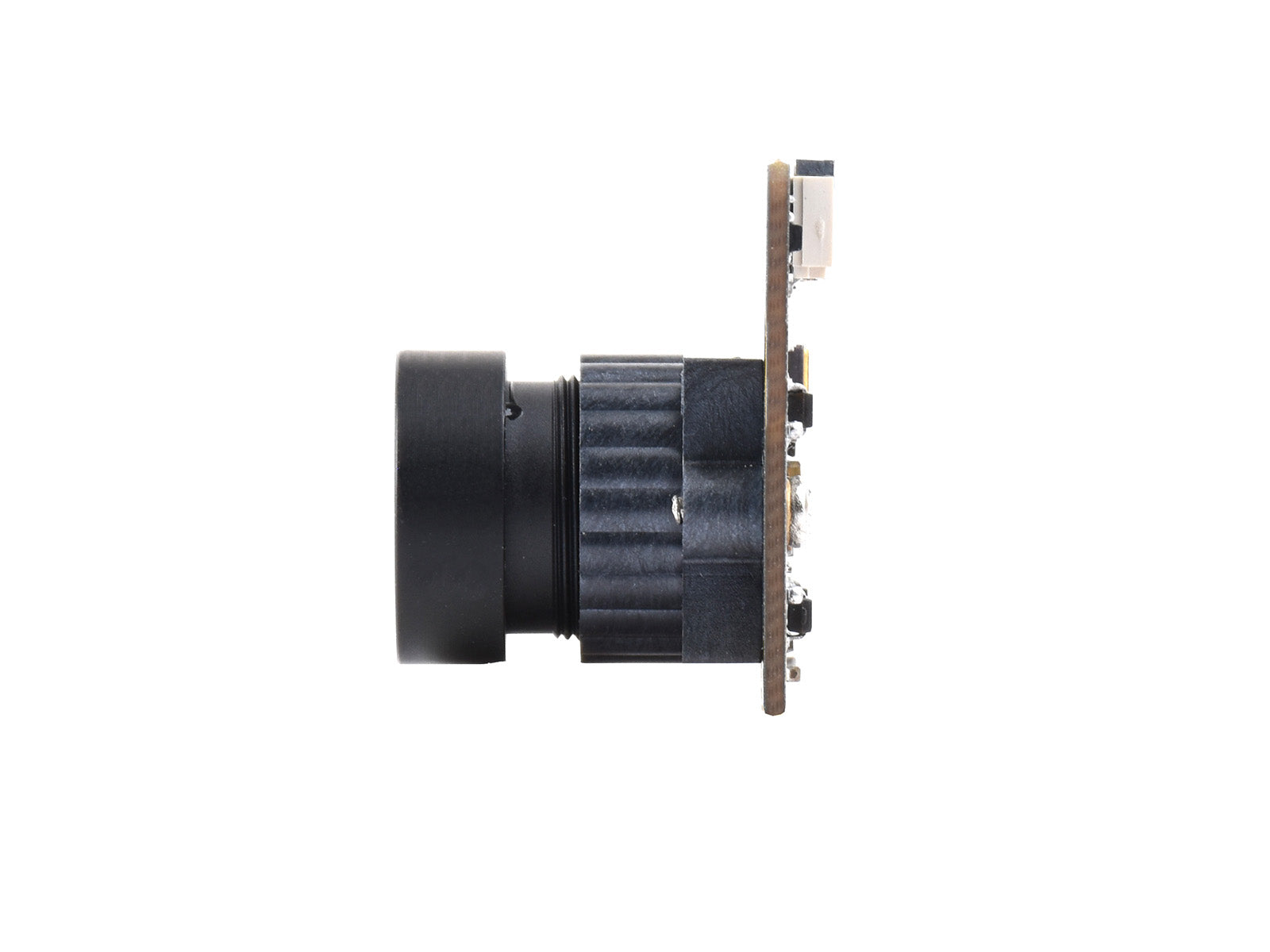

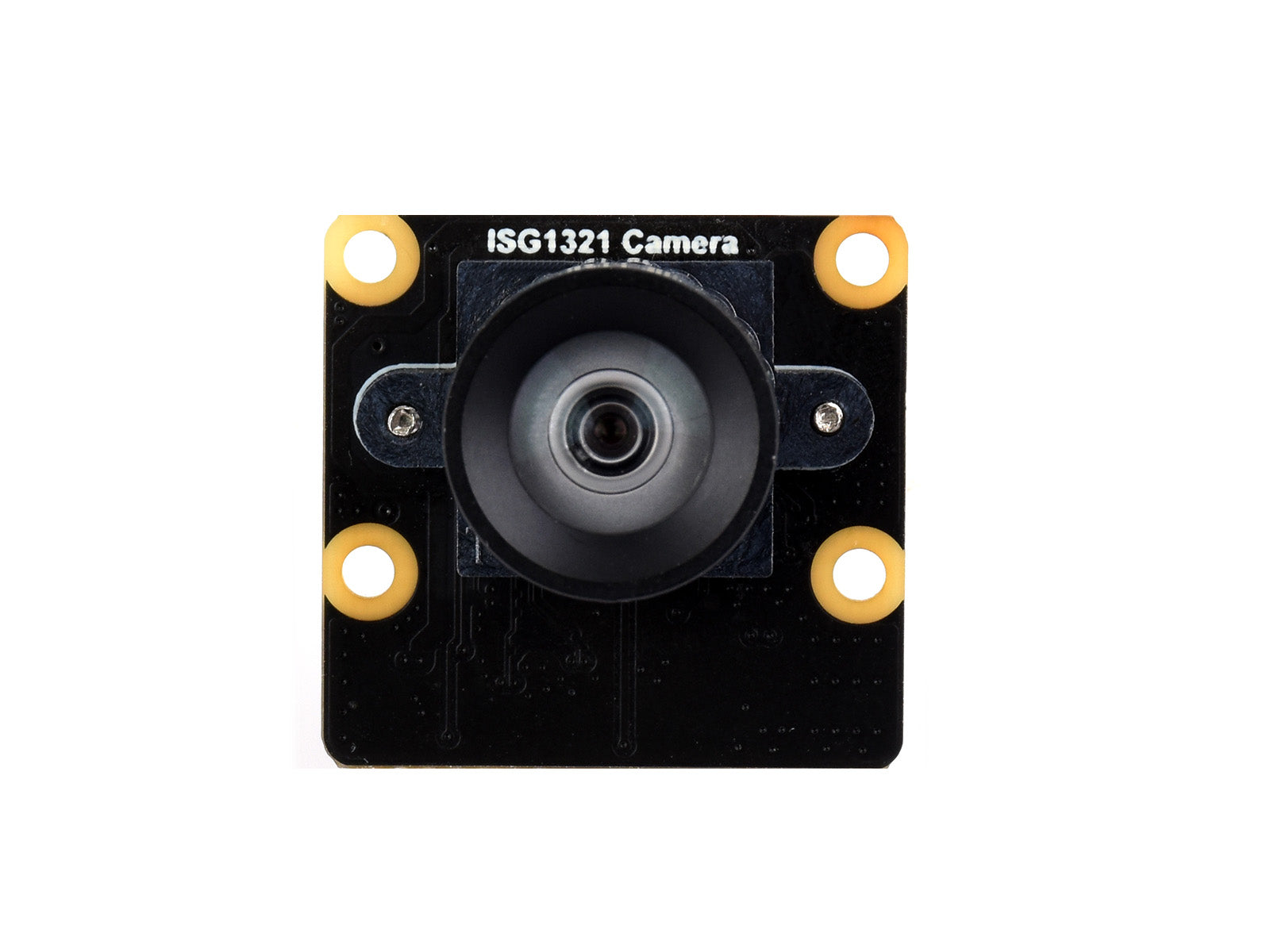

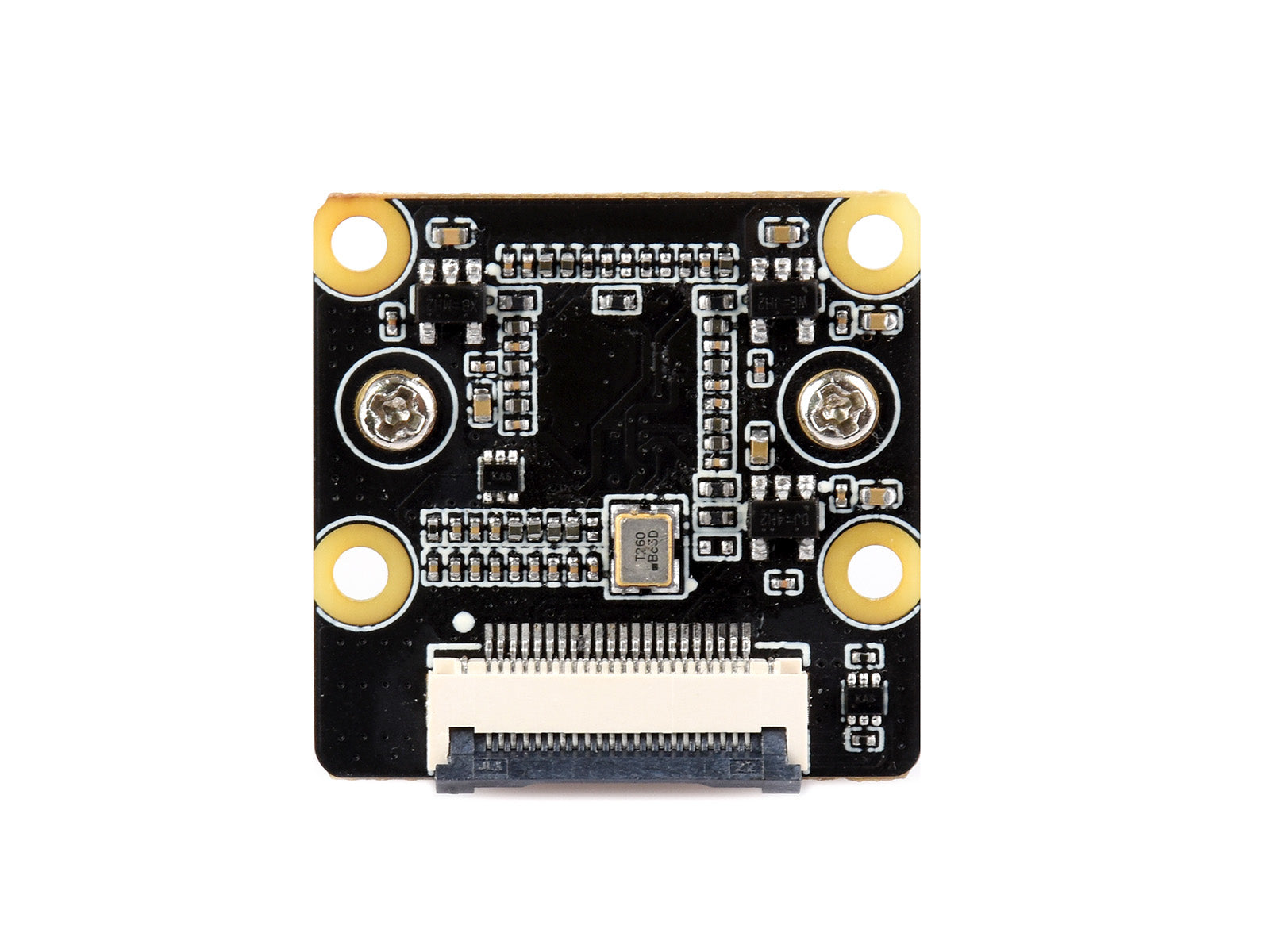

ISG1321 1.38MP mono global shutter camera module

equipped with a 95.5° FOV wide angle distortion-free lens

Specifications

Sensor	ISG1321	CMOS size	1/4 inch
Camera type	mono	Pixels	1.38MP (1280 x 1080)
Shutter	Global Shutter	Output	120 FPS (MAX)
Interface	MIPI-CSI (2-lane)	Aperture	F2.4
Distortion	< 1%	FOV	95.5°
Focal length	2.88mm	Focusing	Manual focus
Applications	Machine Vision, Logistics Barcode Reading, and Industrial Inspection

Wide field of view

Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle

Global Shutter

All pixels are exposed simultaneously, capturing images without distortion

High Frame Rate

Supports up to 1280×1080@120fps, enabling precise capture of fast-moving objects

Connects to Luckfox Pico Zero

* for reference only, the Luckfox Pico Zero is NOT included.

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/ISG1321_Camera

Lieferumfang

1. ISG1321 Camera x1
2. 22PIN FFC cable ~200mm x1

1

2
