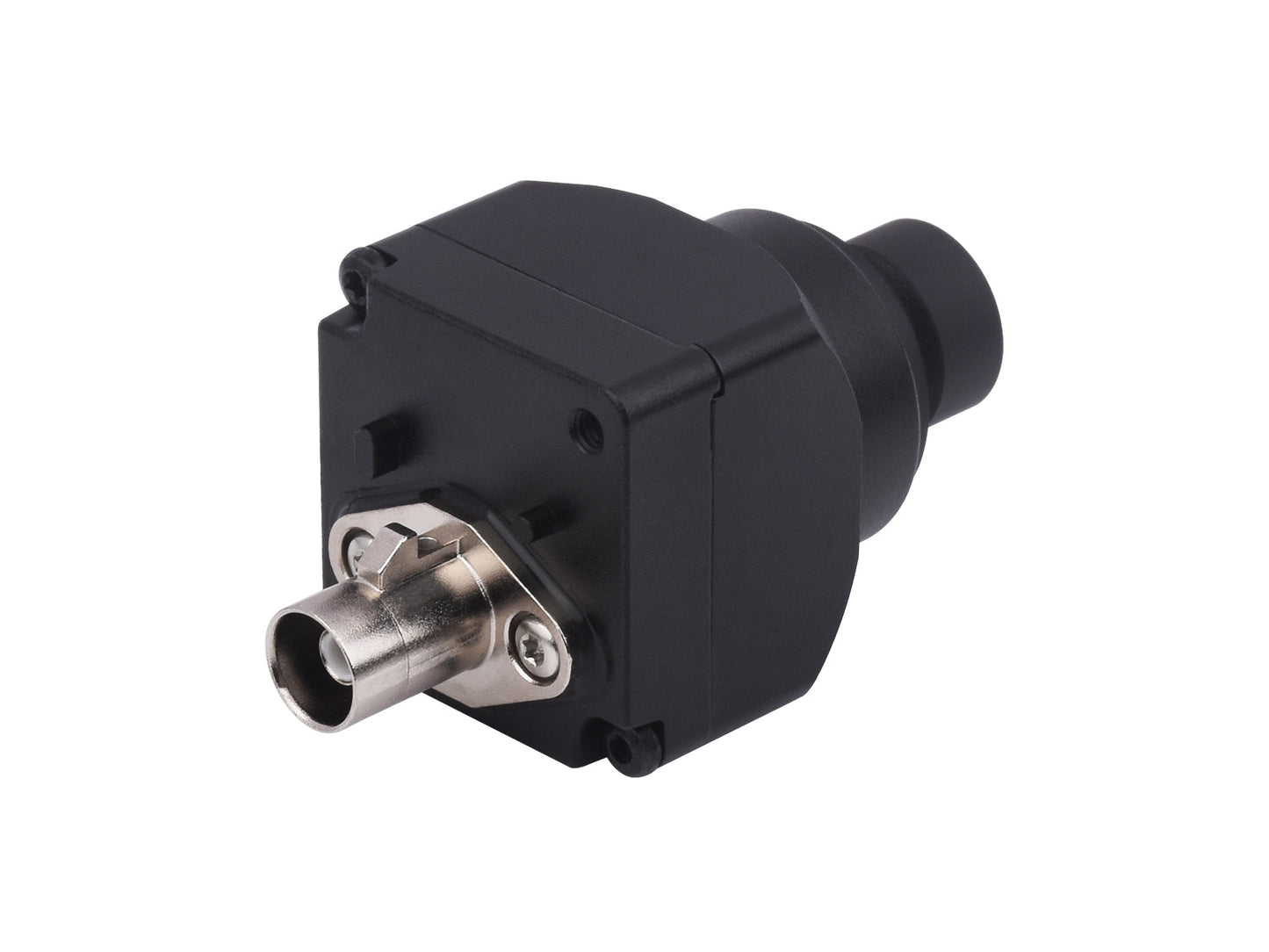

ISX031 3MP GMSL Camera Module, IP67 Protection Degree, More Durable
ISX031C GMSL Camera
3MP | ISX031C Image Sensor | GMSL Camera
Product Introduction
The ISX031C-GMSL-Camera-H100 camera module adopts ISX031C CMOS image sensor with built-in Image Signal Processor (ISP) and Maxim GMSL2 serializer (MAX96717F), compliance with Automotive-grade performance and features high-quality image effect after professional image tuning; The module is also equipped with an automotive-grade Active Alignment (AA) lens, and can achieve the IP67 protection rating.
Specifications
| Sensor | Model | 2.95MP ISX031 RGGB |
|---|---|---|
| Resolution | 1920 × 1536 | |
| CMOS size | 1/2.42 inch | |
| Pixel size | 3.0um × 3.0um | |
| Camera | Field Of View | 100°(H) × 78°(V) |
| Focal length | 3.55mm | |
| Aperture (F) | 1.6 | |
| Distortion | -58% | |
| ISP | Built-in | |
| Frame Rate | 1920 × 1536@30fps | |
| HDR (High Dynamic Range) | Support | |
| LFM (LED Flicker Mitigation) | Support | |
| Output Format | YUV422@8bit | |
| Serializer | MAXIM MAX96717F | |

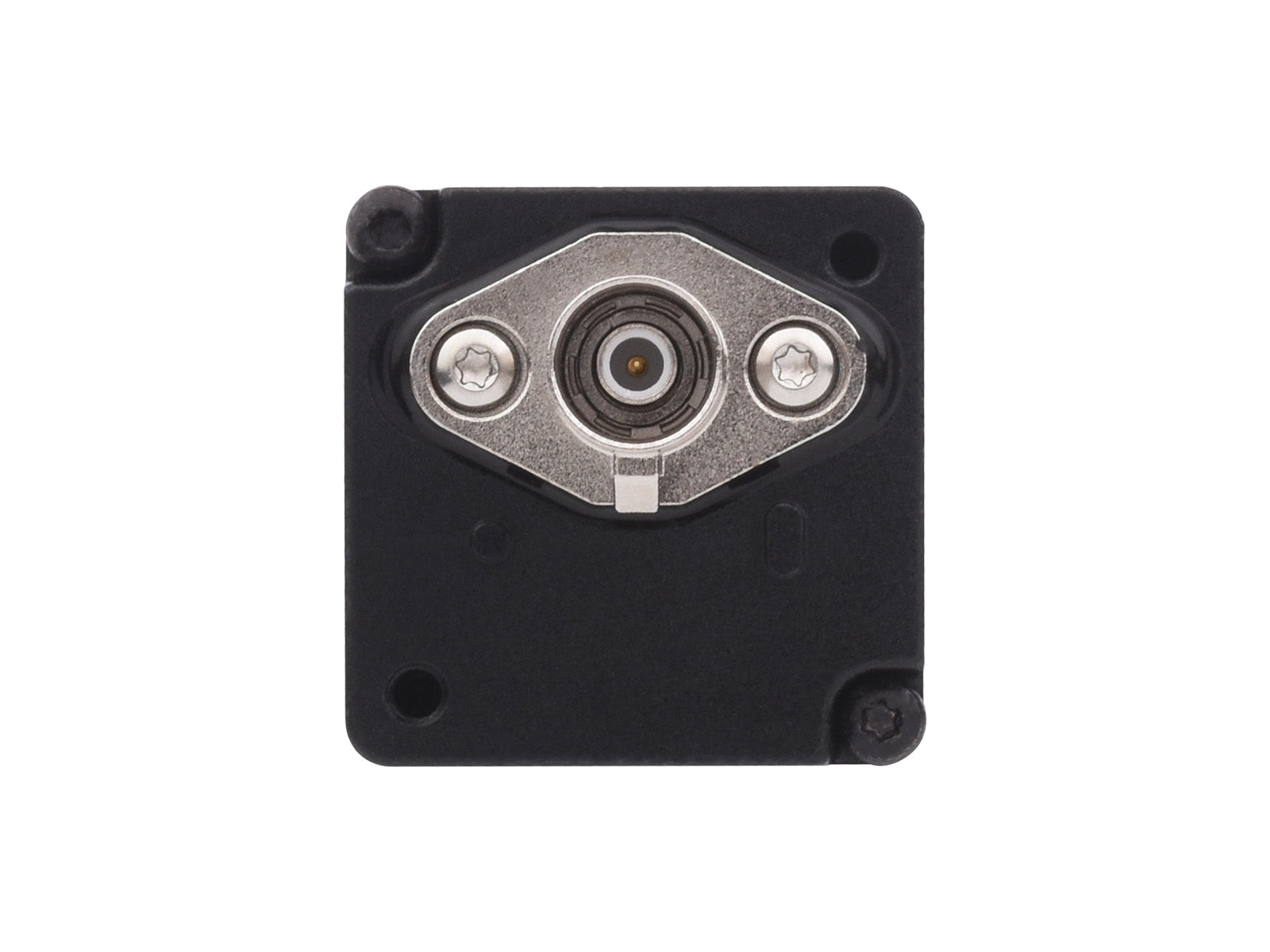

| Connector | GMSL2 (Amphenol Fakra Z Buckle connector) | |
| Operating Voltage | 9 ~ 16V PoC | |
| Operating Current | 200mA@12VDC | |
| Operating Temperature | -20°C ~ 65°C | |
| Protection Degree | IP67 | |
Application Example
* for reference only, the Jetson Orin NX Kit and GMSL camera expansion board are NOT included, please check the Package Content for the detailed part list.
Outline dimensions
Lieferumfang
ISX031C-GMSL-Camera-H100 x1
