SKU:WSAL24737

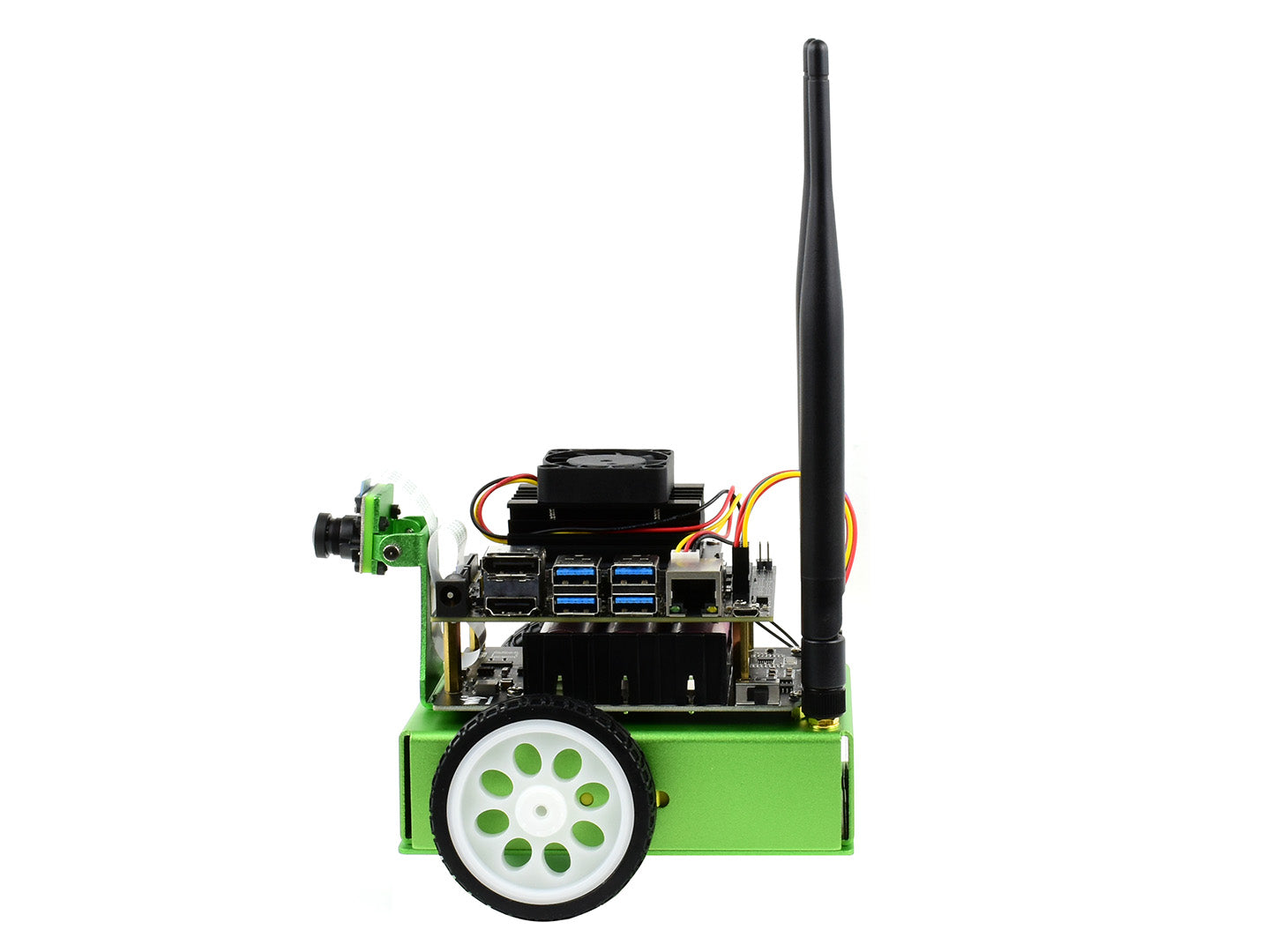

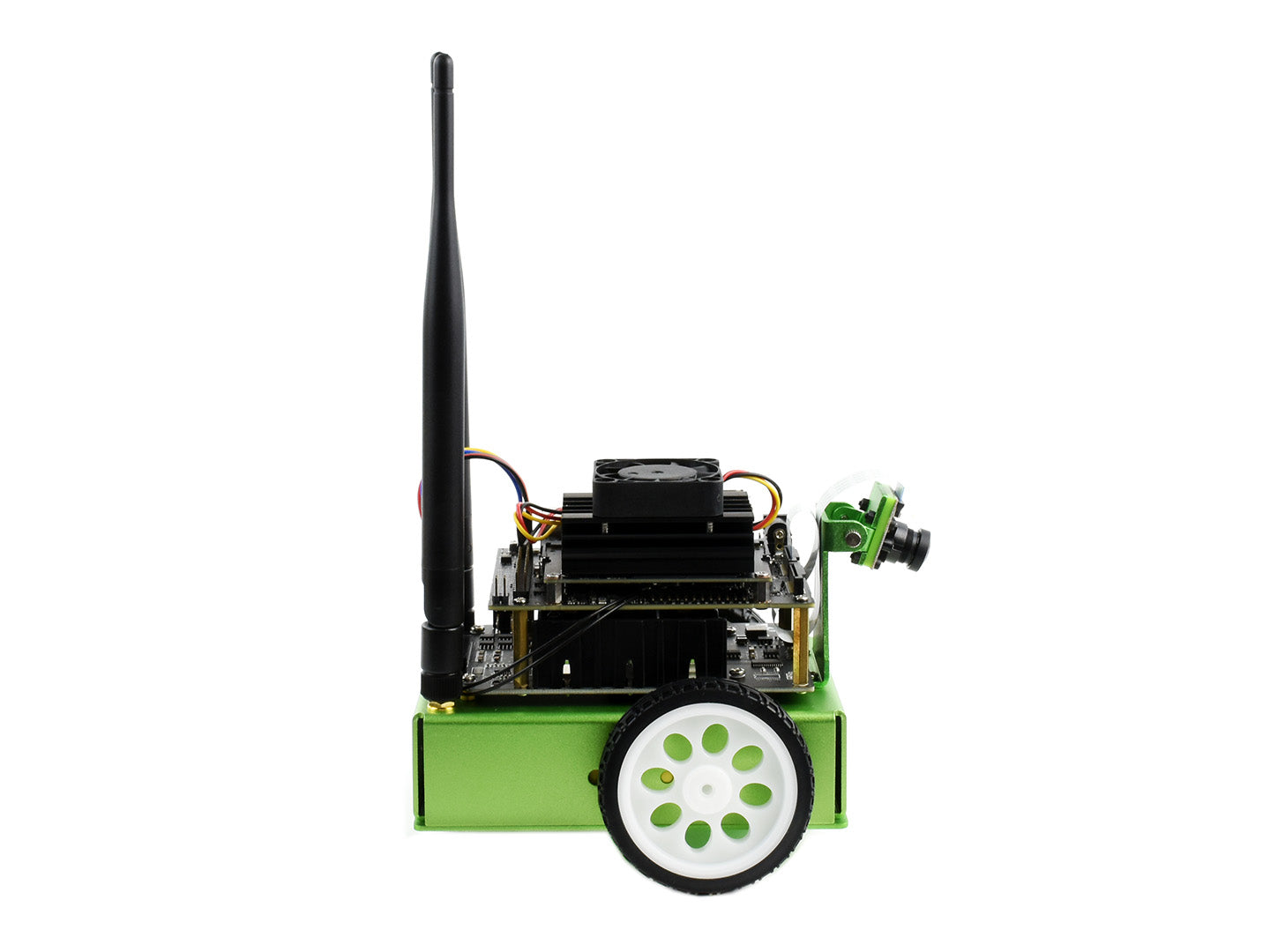

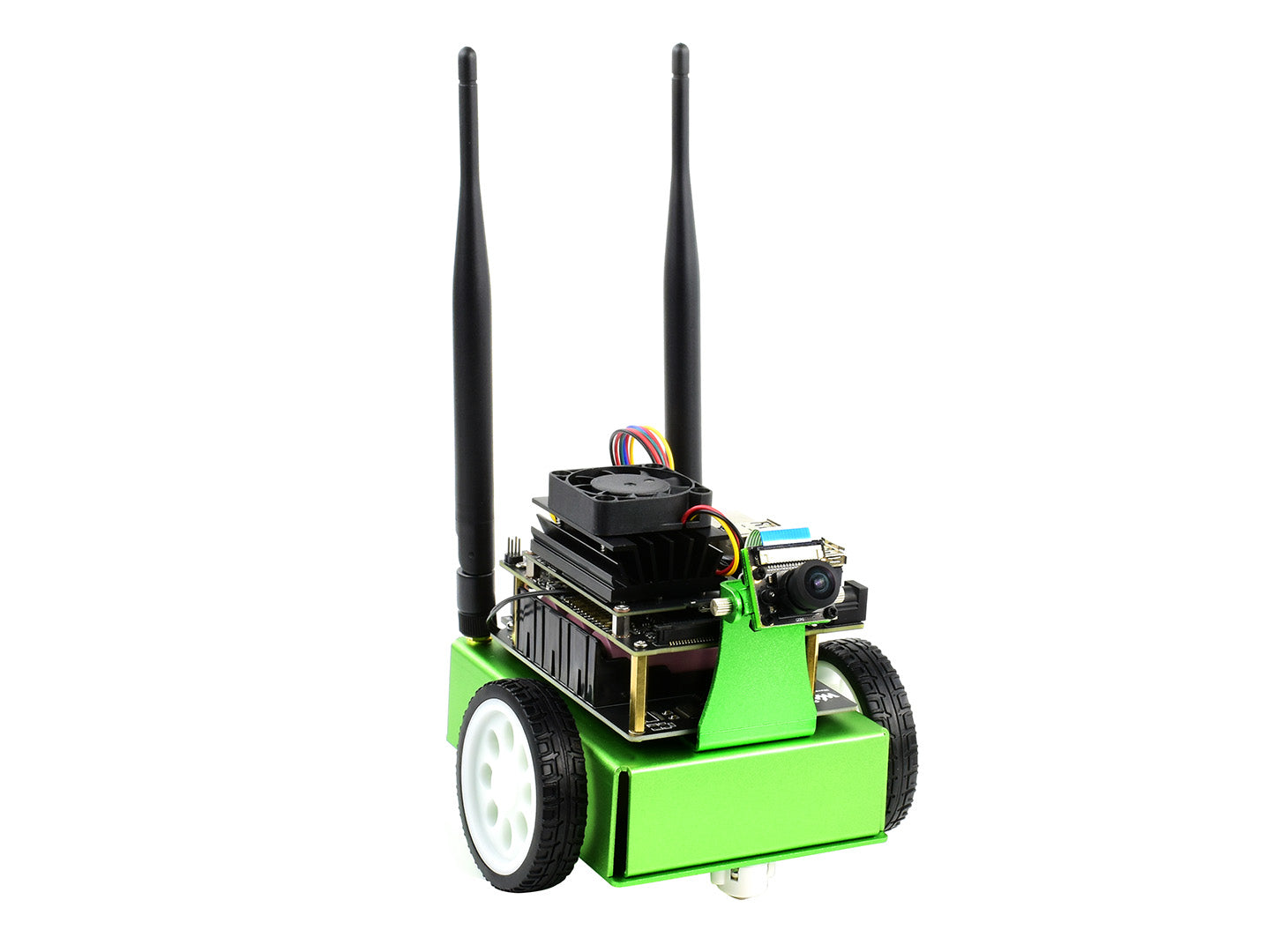

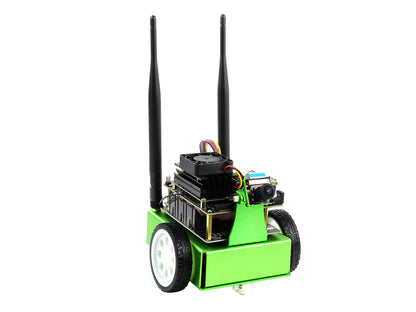

JetBot AI Kit B, AI Robot Based on Jetson Nano, comes with Waveshare Jetson Nano Dev Kit
Abholverfügbarkeit konnte nicht geladen werden
Base on the N-VIDIA Jetson Nano Module
Jetson Nano is a small, powerful AI computer, which delivers 472 GFLOPS for running modern AI algorithms fast, with a Cortex-A57 CPU and a 128-core Maxwell GPU.It is widely used for deep learning, computer vision, GPU computing, multimedia processing,and much more. Many popular AI frameworks are supported, such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, etc. This product provides two version options: N-VIDIA Jetson Nano Developer Kit (B01) and Waveshare Jetson Nano Dev Kit.
Jetson Nano Developer Kit (B01) is the official N-VIDIA kit with a variety of onboard interfaces including the 40PIN GPIO expansion header, Gigabit Ethernet port, USB 3.0 ports, HDMI port, DIS port and CSI camera connector, meet the needs of various applications.
Waveshare Jetson Nano Dev Kit is the alternative solution of B01 kit, with the Jetson Nano B01 eMMC version module and the Waveshare JETSON-IO-BASE-A carrier board, providing almost the same performance and appearance as the Jetson Nano Developer Kit (B01). The B01 kit on board is a non-production specification Jetson Nano module, mainly for development and software testing, while the Jetson Nano B01 eMMC version is more suitable for users to integrate in production environments.
| Kit | A | B | Accessories Pack |
| Necessary accessories JetBot expansion board, IMX219-160 Camera, Wireless-AC8265, 64GB TF Card, motors, wheels, cooling fan, metal box, gamepad, power adapter, etc. | √ | √ | √ |
| N-VIDIA kit: Jetson Nano Developer Kit (B01) | √ | ||
| Waveshare Jetson Nano Dev Kit: The Jetson Nano module, JETSON-IO-BASE-A carrier board and N-VIDIA official heatsink | √ |
* Please refer to the part list for detailed package content.
SAFETY CAUTIONS
- Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
- Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
- Do not mix use old batteries with new ones, avoid using batteries of different brands.
- When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
- Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
- Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
| JetBot ROS | JetRacer ROS | JetBot | JetRacer | JetRacer Pro | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |  |  |  |  | ||||||
| Kit | A | B | A | B | A | B | A | B | A | B |
| Controller* | B01 | WS 4GB | B01 | WS 4GB | B01 | WS 4GB | B01 | WS 4GB | B01 | WS 4GB |
| MICROCONTROLLER | RP2040 | N/A | ||||||||
| Intelligent Speech | Double SpeakersDual MicrophonesSupport Intelligent speech | One SpeakerDual MicrophonesSupport Intelligent speech | N/A | |||||||
| SENSOR | IMU SensorRPLIDAR A1 | N/A | ||||||||
| MAPPING NAVIGATION | Support | Not Support | ||||||||
| Camera | 8MP HD resolution, 160° FOV wide angle camera | |||||||||
| OLED | 0.91" 128×32 pixels | |||||||||
| Wireless | AC8265 wireless NIC, 2.4G/5G dual-band WiFi, Bluetooth 4.2 | |||||||||
| Driving Type | Differential 2WD | Ackerman steering Dual gearmotor rear wheel drive | Differential 2WD | Ackerman steering Dual gearmotor rear wheel drive | Ackerman steering High speed motors 4WD Front and rear axle differentials | |||||
| Shock absorber | N/A | Adjustable oil-filled shocks 4WD independent suspension | ||||||||
| Power supply | 12.6V, 18650 battery × 3 (connected in series) | 8.4V, 18650 battery × 4 (two in parallel, two in series) | ||||||||
| Note: the 18650 batteries are NOT included. | ||||||||||
| motor | 37-520 Metal Encoder Motor Reduction Rate 1:30 Idle Speed 333RPM | TT motor Reduction rate 1:48 Idle speed 240RPM | 37-520 DC gearmotor Reduction rate 1:10 Idle speed 740RPM | RC380 high speed carbon brushed motor Idle speed 15000RPM | ||||||
| MOTOR ENCODER | AB phase Hall encoder | N/A | ||||||||
| Servo | N/A | 9kg/cm torque | N/A | 9kg/cm torque | 6kg/cm torque | |||||
| Chassis | Aluminum alloy chassis | Quality rugged plastic chassis | ||||||||
| Crashproof | N/A | Front sponge | N/A | Front sponge | ||||||
| Program library | JetBot, ROS | JetRacer, DonkeyCar, ROS | JetBot, ROS | JetRacer, DonkeyCar | ||||||
| Suggestion | ROS series Entry level Experienced programming skill required | Entry level Basic programming skill required | Competition level Experienced programming skill required | High speed competition level Experienced programming skill required | ||||||
| Note | *Controller: BO1 stands for Jetson Nano Developer Kit (B01) controller, with 4GB RAM WS 4GB stands for Jetson Nano Module + Waveshare carrier board, B01 compatible, with 4GB RAM | |||||||||

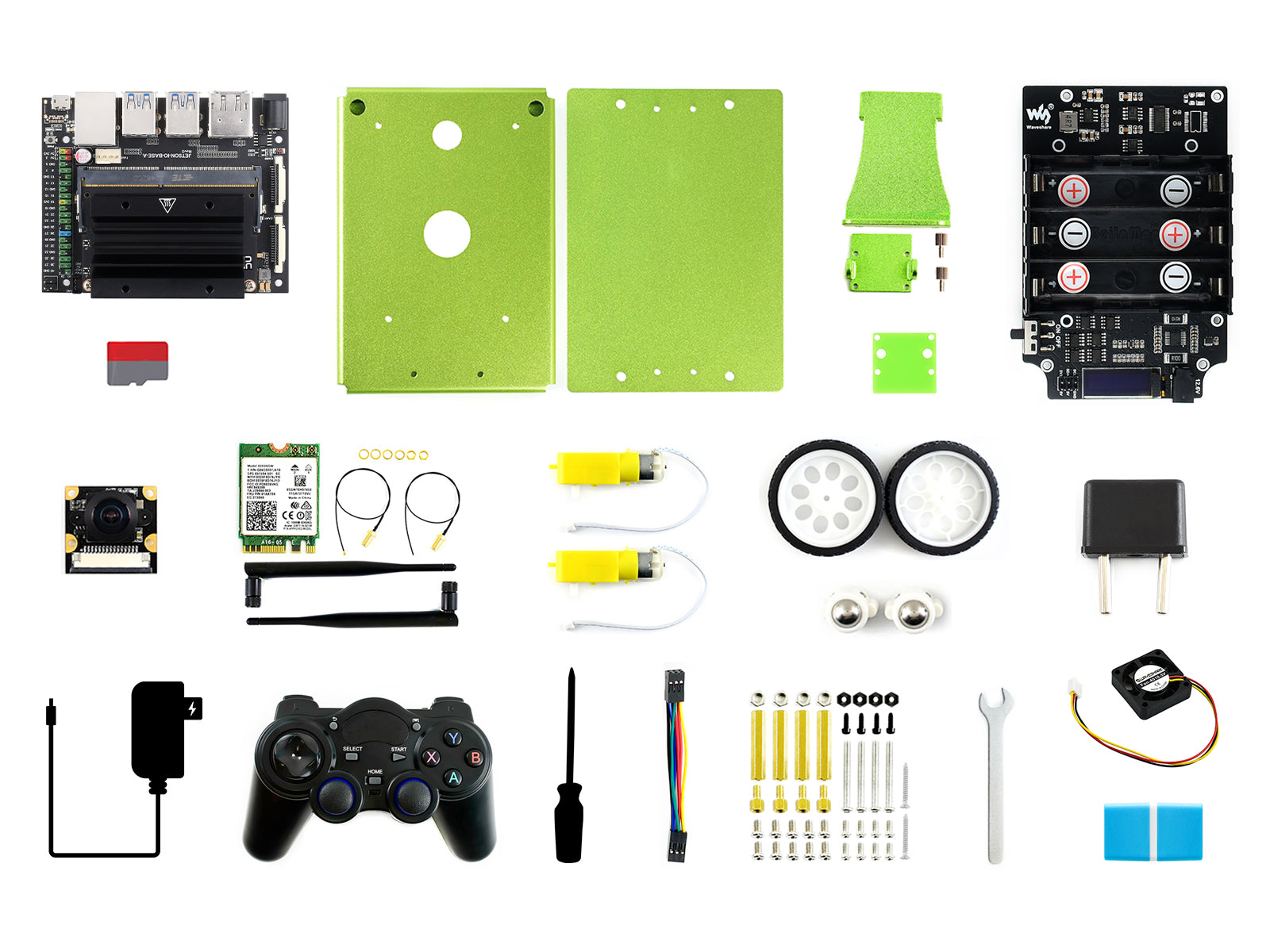

Lieferumfang
- The 18650 batteries are NOT included
- Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
- OPTIONS Jetson Nano Dev Kit
- TF Card 64GB
- Metal box
- Camera holder
- Acrylic piece
- JetBot expansion board
- IMX219-160 Camera
- Wireless-AC8265
- Motor 2PCS
- Wheel 2PCS
- Caster 2PCS
- Power adapter EU head
- OPTIONS 12.6V battery charger* the battery charger is for battery charging only, and will not power the Jetson Nano directly. If you want a stand-alone power supply for the Jetson Nano, please buy another 5V/4A power adapter.
- Wireless gamepad
- Screwdriver 2PCS
- 6Pin 9cm cable
- Screws pack
- Spanner
- 4010 cooling fan
- TF card reader
