SKU:WSAL23991

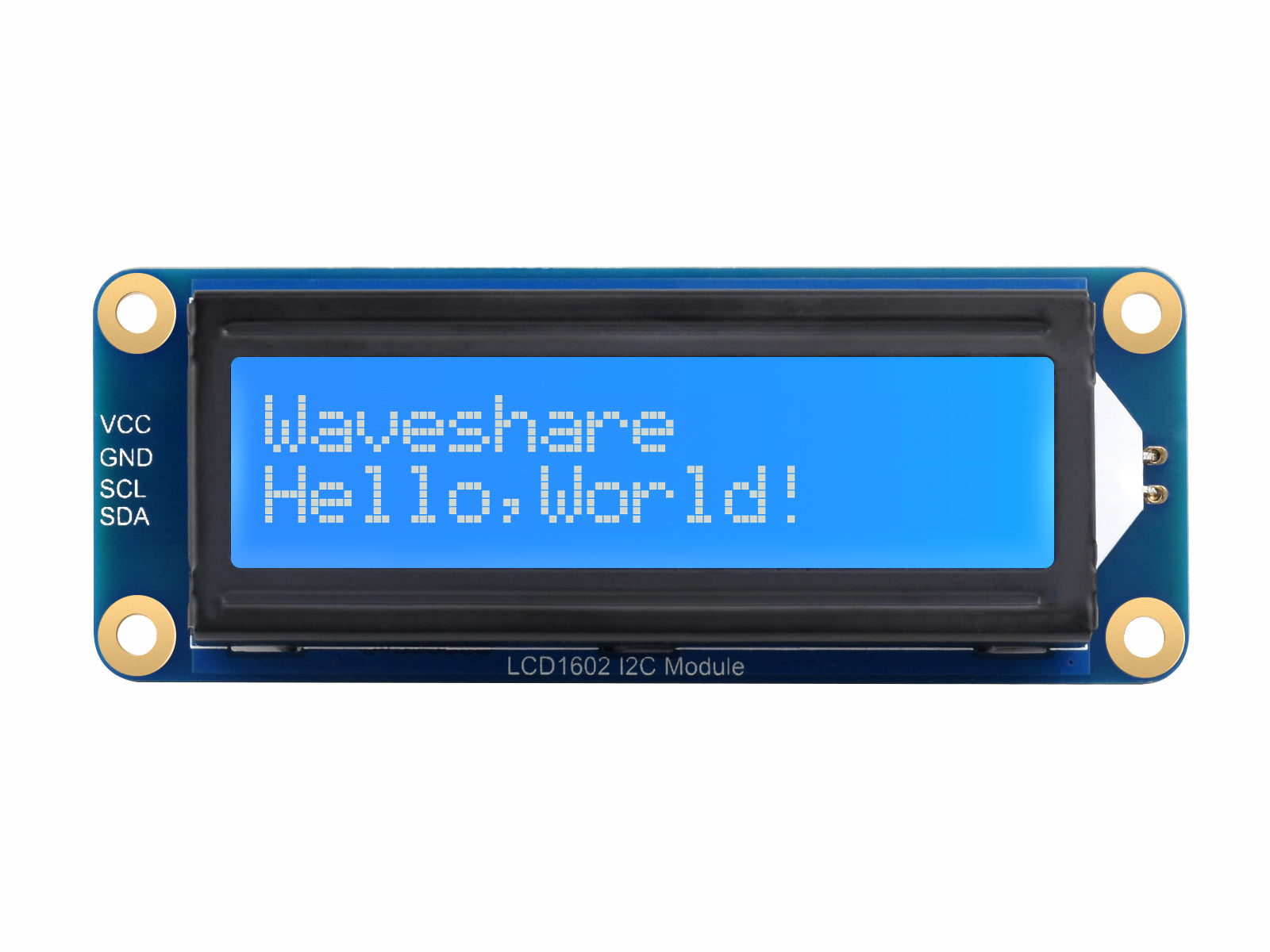

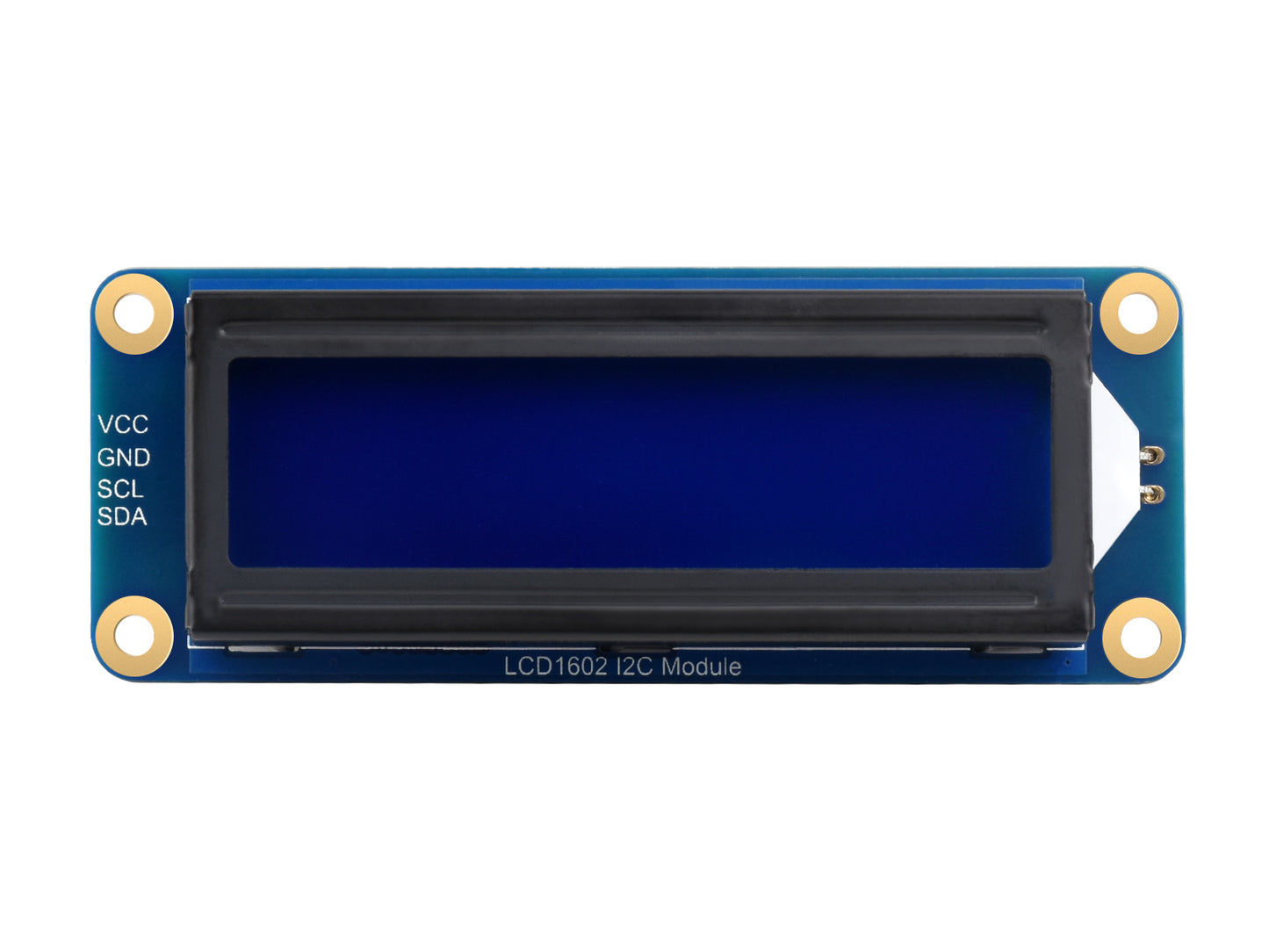

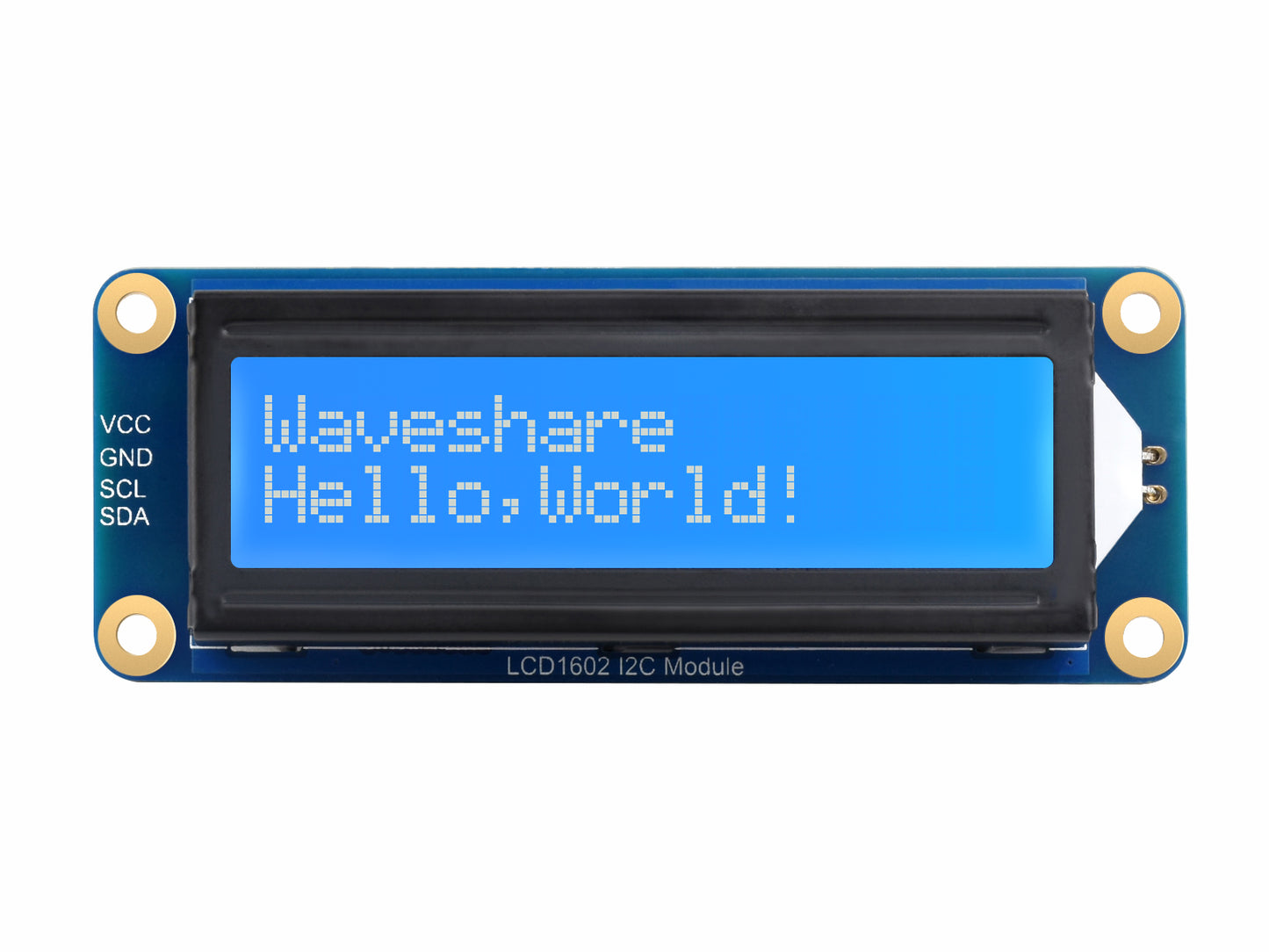

LCD1602 I2C Module, White color with blue background, 16x2 characters LCD, 3.3V/5V

LCD1602 I2C Module

White color with blue background, I2C communication, 3.3V/5V compatible

Supports Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32 and Arduino...

• Characters16 × 2
• InterfaceI2C
• Display PanelChar LCD
• Display effectWhite on Blue
• LCD ControllerAiP31068

Features at a glance

• Incorporates character LCD panel LCD1602
• I2C control interface, only two signal pins are required, saving the IO resource
• Compatible with 3.3V/5V operating voltage
• Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

Specifications

Communication Interface	I2C	LCD controller	AiP31068
Operating voltage	3.3 ~ 5V	Operating Temperature	-20 ~ +70℃
Display Panel	character LCD	Display size	64.5 × 16.0mm
Characters	16 × 2	Dimensions	87.0 × 32.0 × 13.0mm

Compatible With Multiple Platforms

Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 DemosAnd User Manuals, Easier To Develop And Integrate, And Better Expansibility

I2C control interface

only two signal pins are required, saving the IO resource

VCC	3.3V ~ 5V power input
GND	GND
SCL	I2C clock pin
SDA	I2C data pin

Demonstration

for reference only, Raspberry Pi Pico is NOT included.

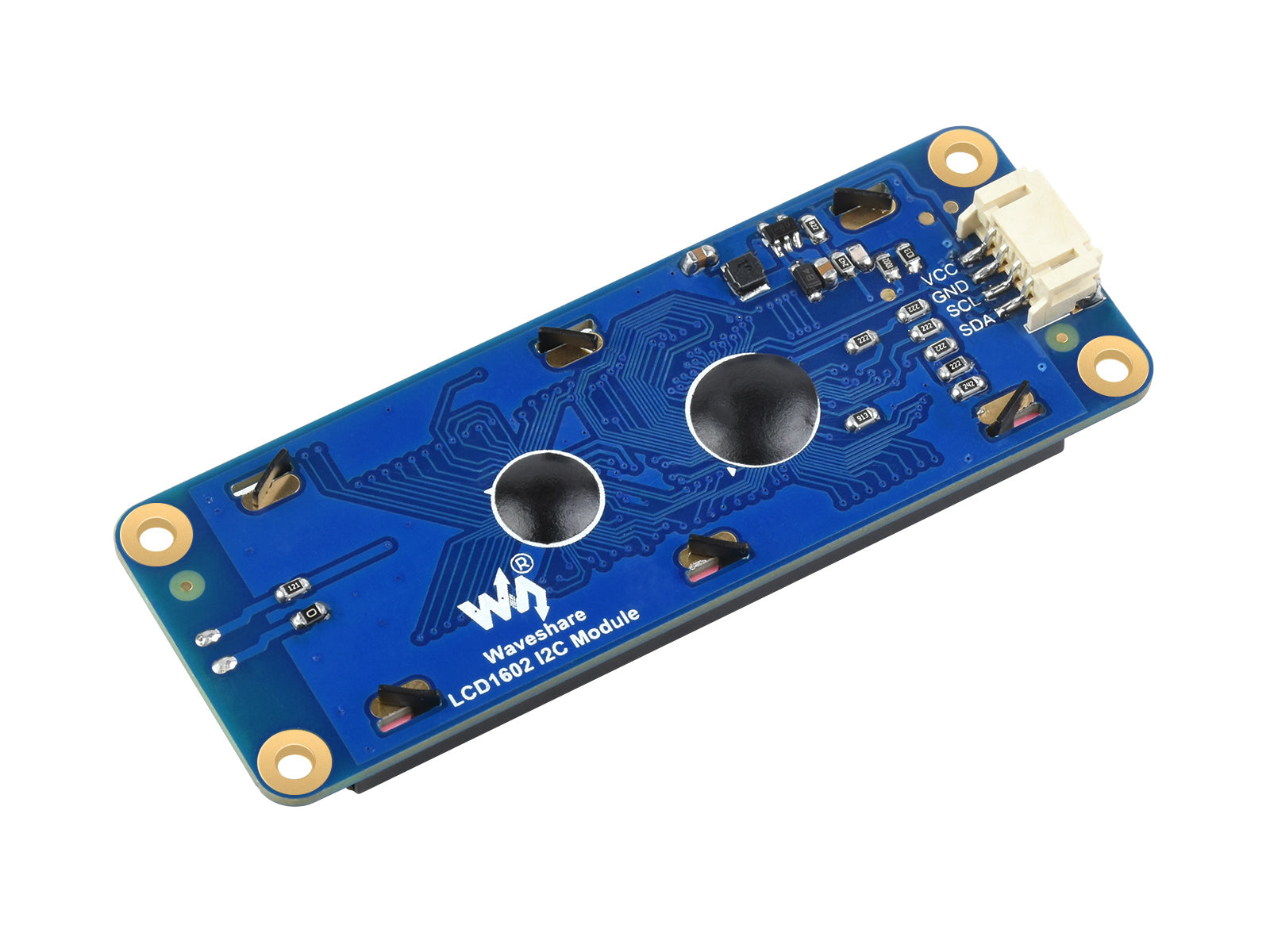

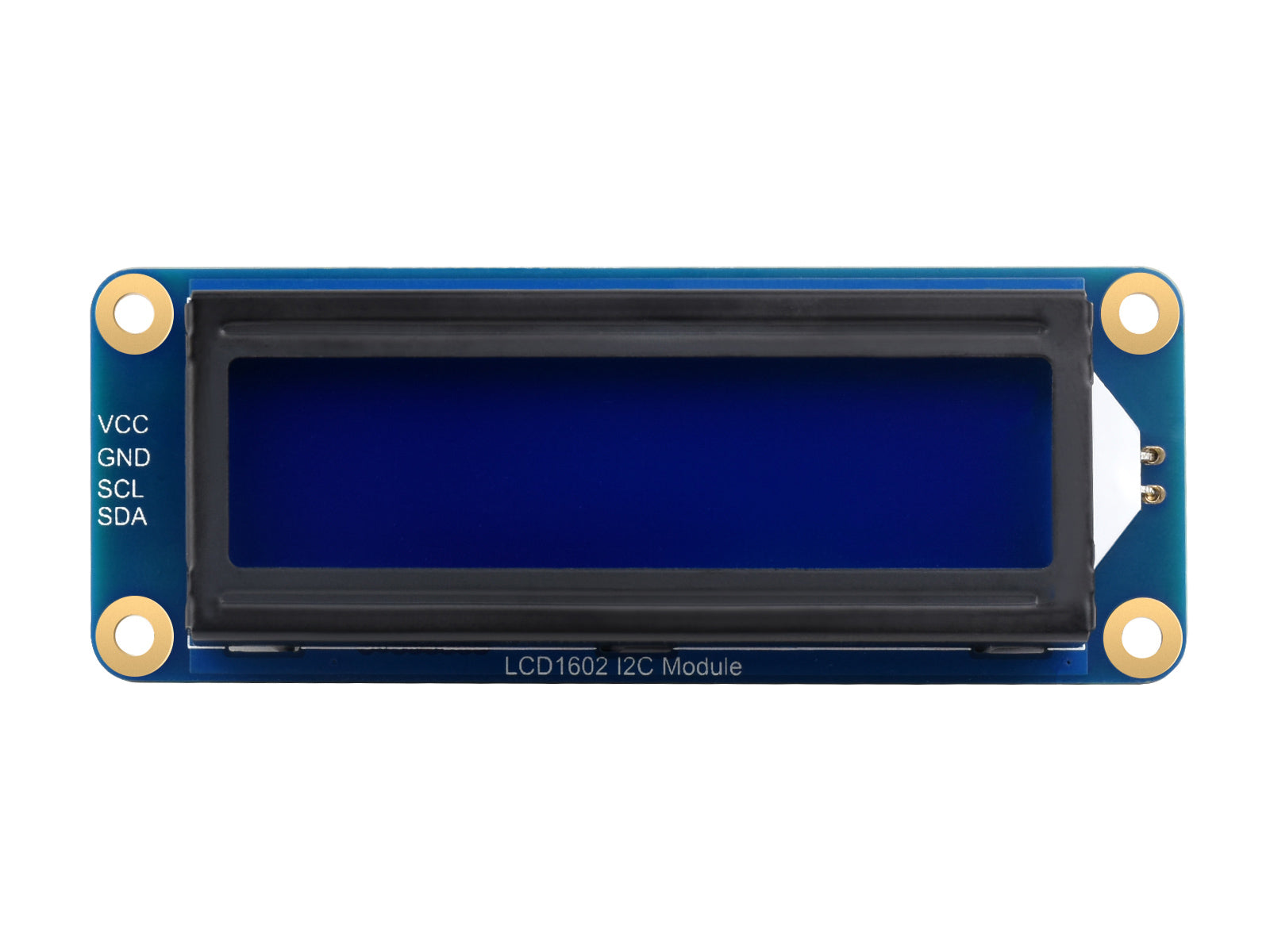

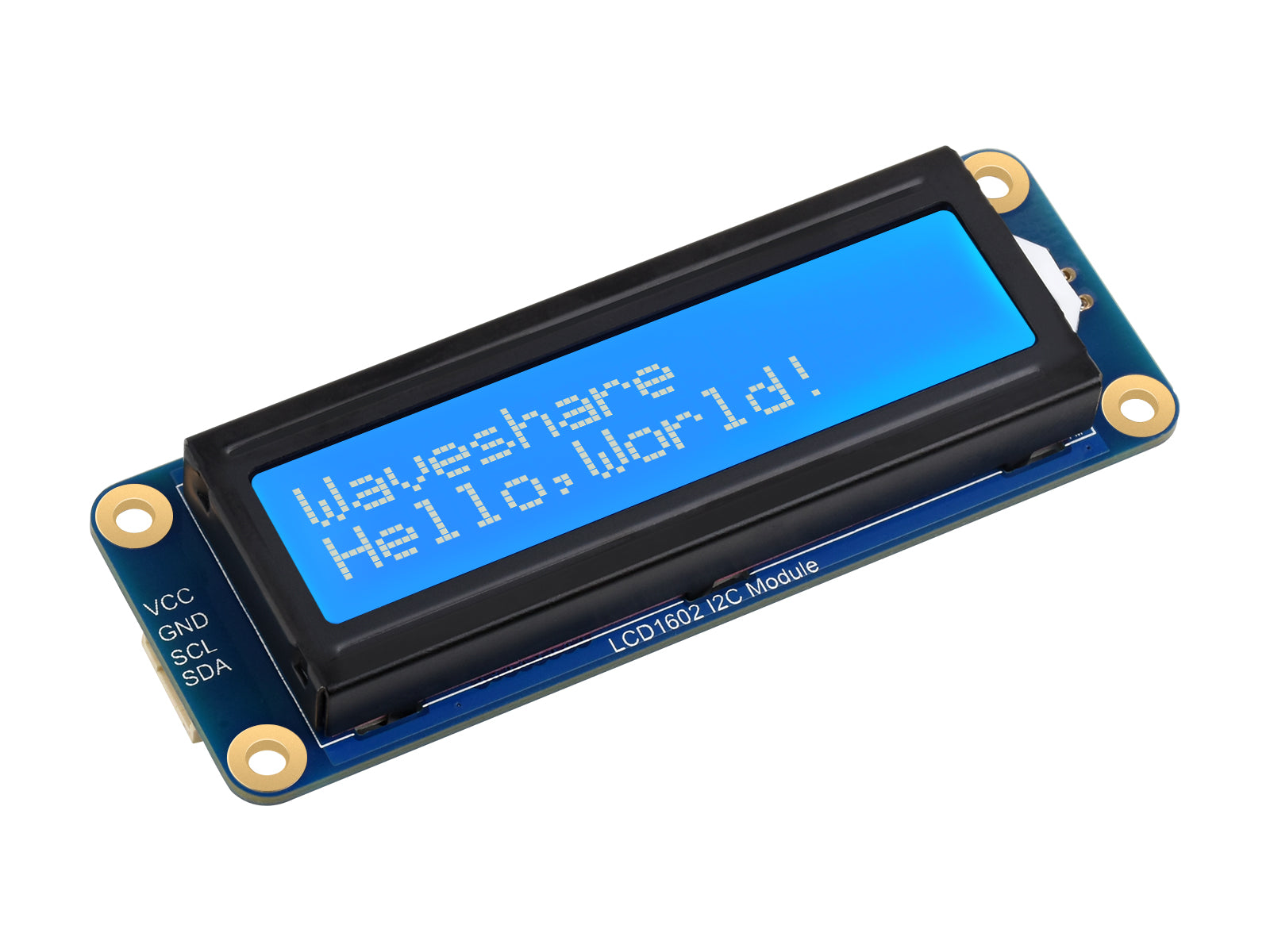

Product Show

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/LCD1602_I2C_Module

Lieferumfang

1. LCD1602 RGB Module x1
2. PH2.0 4PIN wire x1
