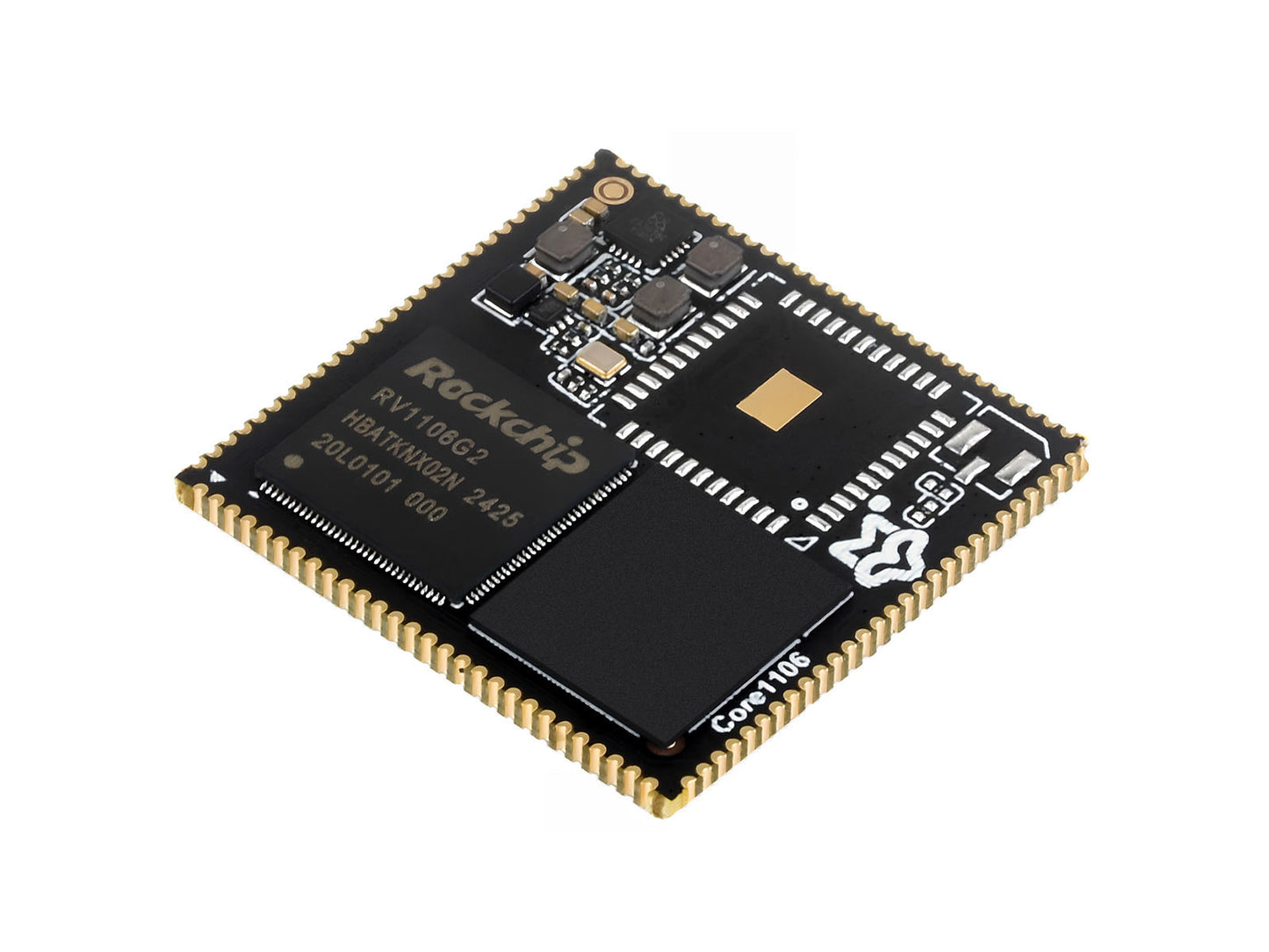

Luckfox Core1106 Core Board Based On Rockchip RV1106 Chip, 8GB eMMC, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

Core1106

Based on the Rockchip RV1106 chip

TheCore1106 is a core board based on the Rockchip RV1106 series chips, featuring high performance and high expandability, provides a convenient platform for developers to design their own hardware, enabling quick design verification or direct integration into products, thereby shortening the R&D cycle.Adapting various interfaces via castellated holes, such as MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet port, and SDIO, etc. which is suitable for a variety of application scenarios. Optional for wireless module, with two core options of RV1106G2 and RV1106G3 to meet different needs.

Version options

Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
• Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
• Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, which can save more than 50% bit rate of the conventional CBR mode, enabling high-definition video quality while efficiently utilizing storage space
• Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

WiFi 6 / Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Module, Providing Stable Connection And Efficient Transmission

* the WiFi 6 / Bluetooth module is optional.

Application Scenarios

Product Show

Development Resources

Complete software and hardware resources and an active community help secondary development

What's On Board

1. RV1106G3 / RV1106G2 Vision processor SoC with built-in ARM Cortex-A7 core
2. PMIC 3-ch power management chip
3. 8GB eMMC

4. WIFI/Bluetooth module 2.4G WiFi 6; BT5.2/BLE Bluetooth module (for wireless version only)
5. Antenna connectorIPEX 1.0 connector (for wireless version only)

Parameter comparison

Model	Core11060208	Core11061208	Core11060408	Core11061408
CPU	RV1106G2		RV1106G3
Processor	Cortex A7 @1.2GHz
NPU	0.5TOPS, supports int4, int8, int16		1TOPS, supports int4, int8, int16
ISP	Supports input 5M@30fps
Video encoding	Hardware encoding, supports MJPEG, H264, H265
Memory	128MB DDR3L		256MB DDR3L
Display interface	Parallel RGB 18-bit × 1
Camera interface	MIPI CSI 2-lane × 2 or MIPI CSI 4-lane × 1
Microphone	Analog differential MIC interface × 2
Audio output	LINEOUT × 1
USB	USB 2.0 Host/Device
WIFI/Bluetooth	/	2.4 GHz WIFI 6 and Bluetooth 5.2/BLE	/	2.4 GHz WIFI 6 and Bluetooth 5.2/BLE
Ethernet port	10/100M Ethernet controller and embedded PHY
Default storage	eMMC5.1 (8GB)
Other resources	I2S × 3, I2C × 5, SPI × 2, SDIO × 2, ADC × 2, UART × 6, PWM × 12
Dimensions	30 × 30 (mm)
Castellated holes	112 Pin

* Some pin resources are multiplexed, please refer to wiki for detailed pin definitions.

outline dimensions

Certificate of Authorization

Resources & Services

Wiki:https://wiki.luckfox.com/Core1106

Luckfox Pico Product Selection

PRODUCT	Main chip	Memory	NPU	ISP	Default Storage	FEATURES
Luckfox Pico Mini A	RV1103G1	64MB	0.5TOPS, supports int4, int8 and int16	Input 4M @30fps (Max)	TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Mini B					SPI NAND FLASH (128MB)
Luckfox Pico					TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Plus					SPI NAND FLASH (128MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.
Luckfox Pico Pro	RV1106G2	128MB		Input 5M @30fps (Max)	SPI NAND FLASH (256MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
Luckfox Pico Ultra B					EMMC(8GB)	Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Luckfox Pico Ultra BW						Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Core11060208						Onboard eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Core11061208						Onboard WiFi and eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Luckfox Pico Pi B						Onboard 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi B W						Onboard Wi-Fi module, 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Max	RV1106G3	256MB	1TOPS, supports int4, int8 and int16	Input 8M @15fps (Max)	SPI NAND FLASH (256MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
Luckfox Pico Ultra					EMMC(8GB)	Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Luckfox Pico Ultra W						Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Core11060408						Onboard eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Core11061408						Onboard WiFi and eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Luckfox Pico Pi A						Onboard 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi A W						Onboard Wi-Fi module, 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi Zero						Onboard Wi-Fi module, Type-C port, 4-lane MIPI CSI, GPIO, SMD microphone, speaker header, RTC battery header, etc.
Luckfox Pico 86 Panel	RV1106G2/RV1106G3	128MB/256MB	0.5TOPS/1TOPS	Input 5M@30fps (Max)	EMMC (8GB)	Equipped with a 720 × 720 IPS capacitive touch screen, optional Wi Fi Bluetooth module, onboard Type-C port, Network port, RS485 terminal, 2-channel relay, speaker, microphone, RTC battery interface, etc.
