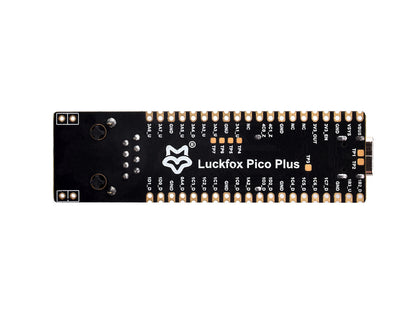

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port

Specifications

Processor	Cortex A7@1.2GHz + RISC-V
NPU	0.5TOPS, supports int4, int8 and int16
ISP	Input 4M @30fps (Max)
Memory	64MB DDR2
USB	USB 2.0 Host/Device
Camera	MIPI CSI 2-lane
GPIO	25 × GPIO pins
Ethernet port	10/100M Ethernet controller and embedded PHY
Default Storage	SPI NAND FLASH (128MB)

Pinheader options

Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
• Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
• Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
• Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
• Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
• Integrated with built-in POR, audio codec and MAC PHY

Easier to develop

Integrates TF card slot, camera interface and Ethernet port

SLC NAND FLASH

For a better user experience

Application Example

Suitable for more application examples

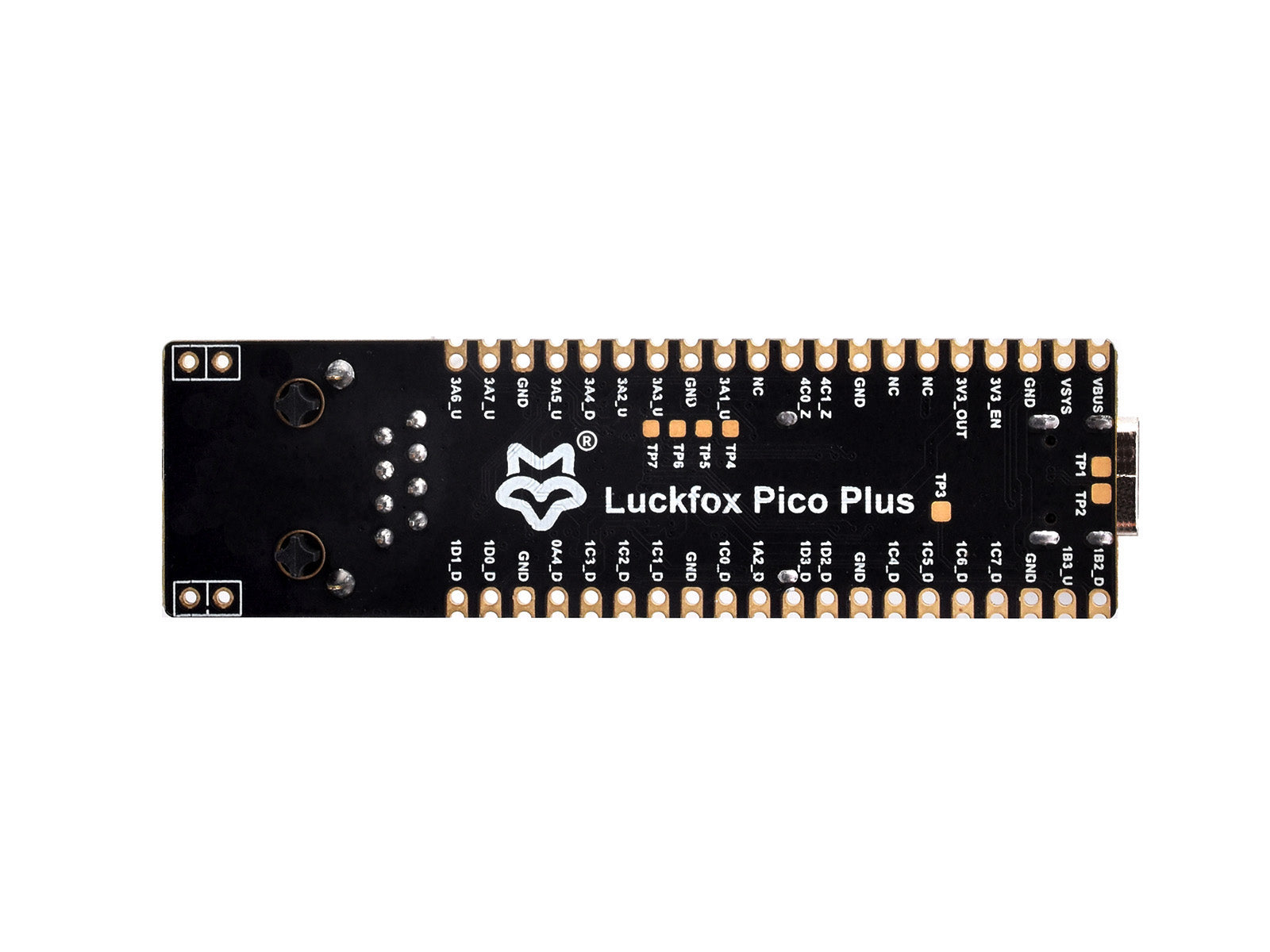

Pin definition

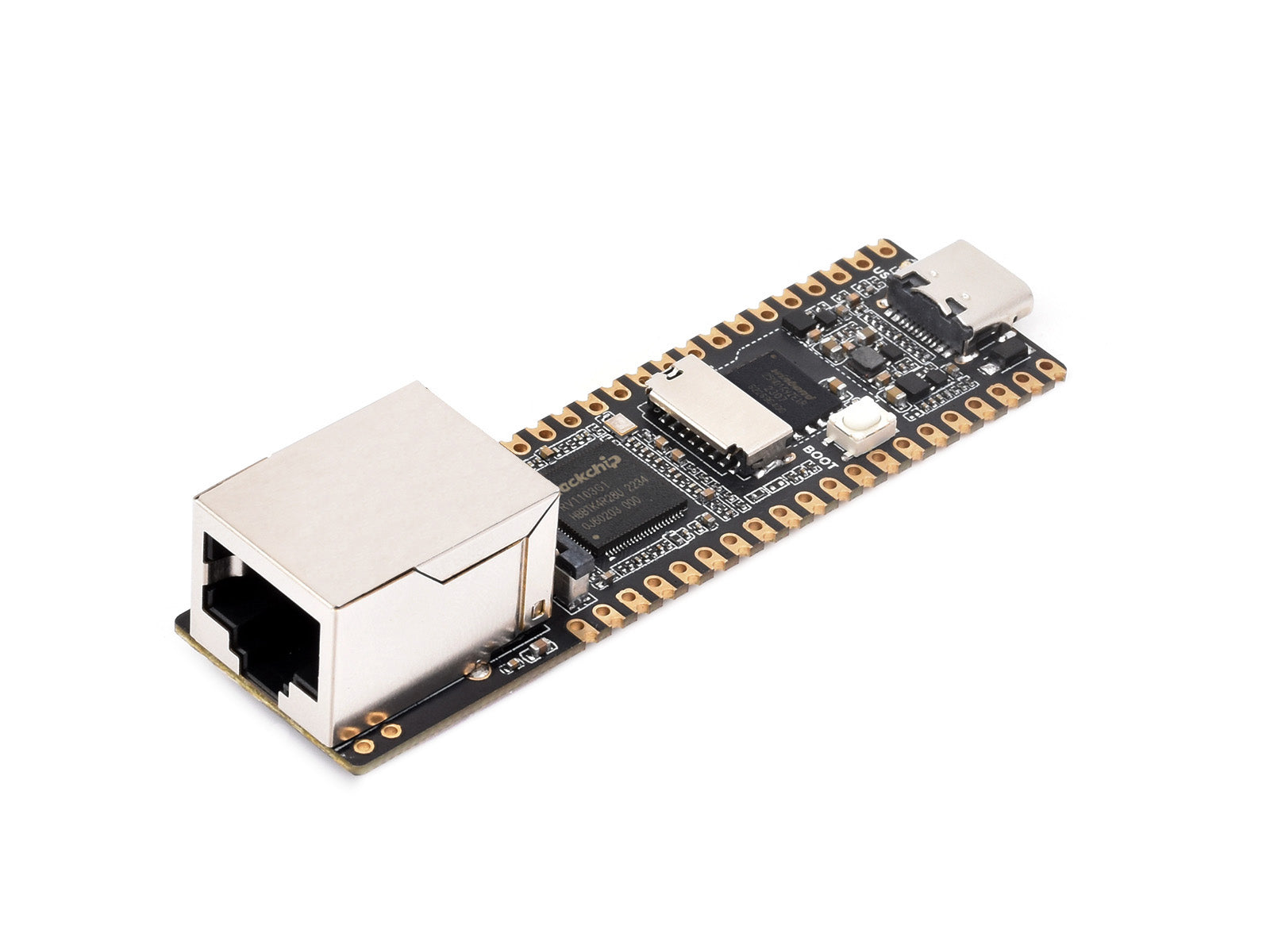

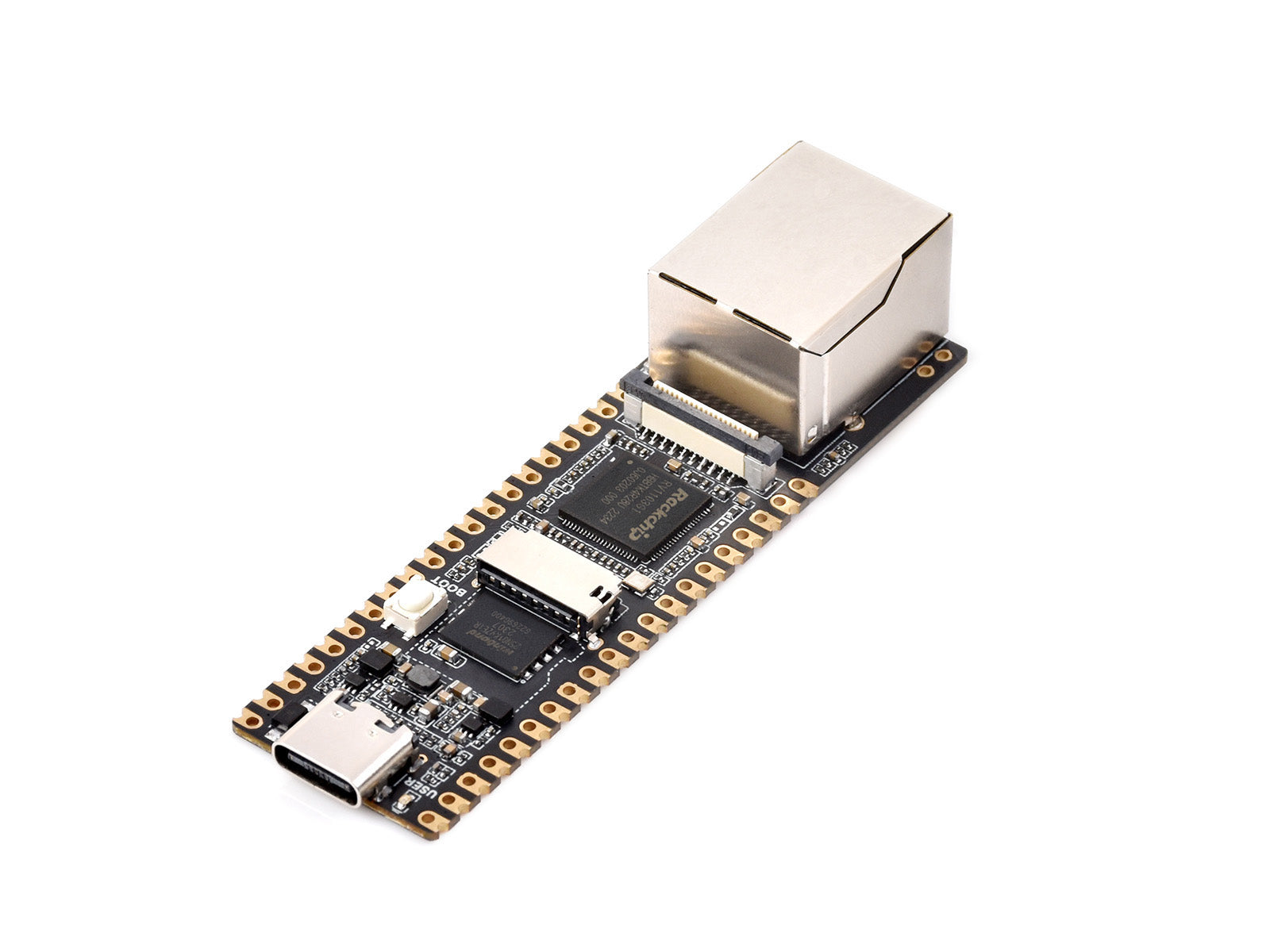

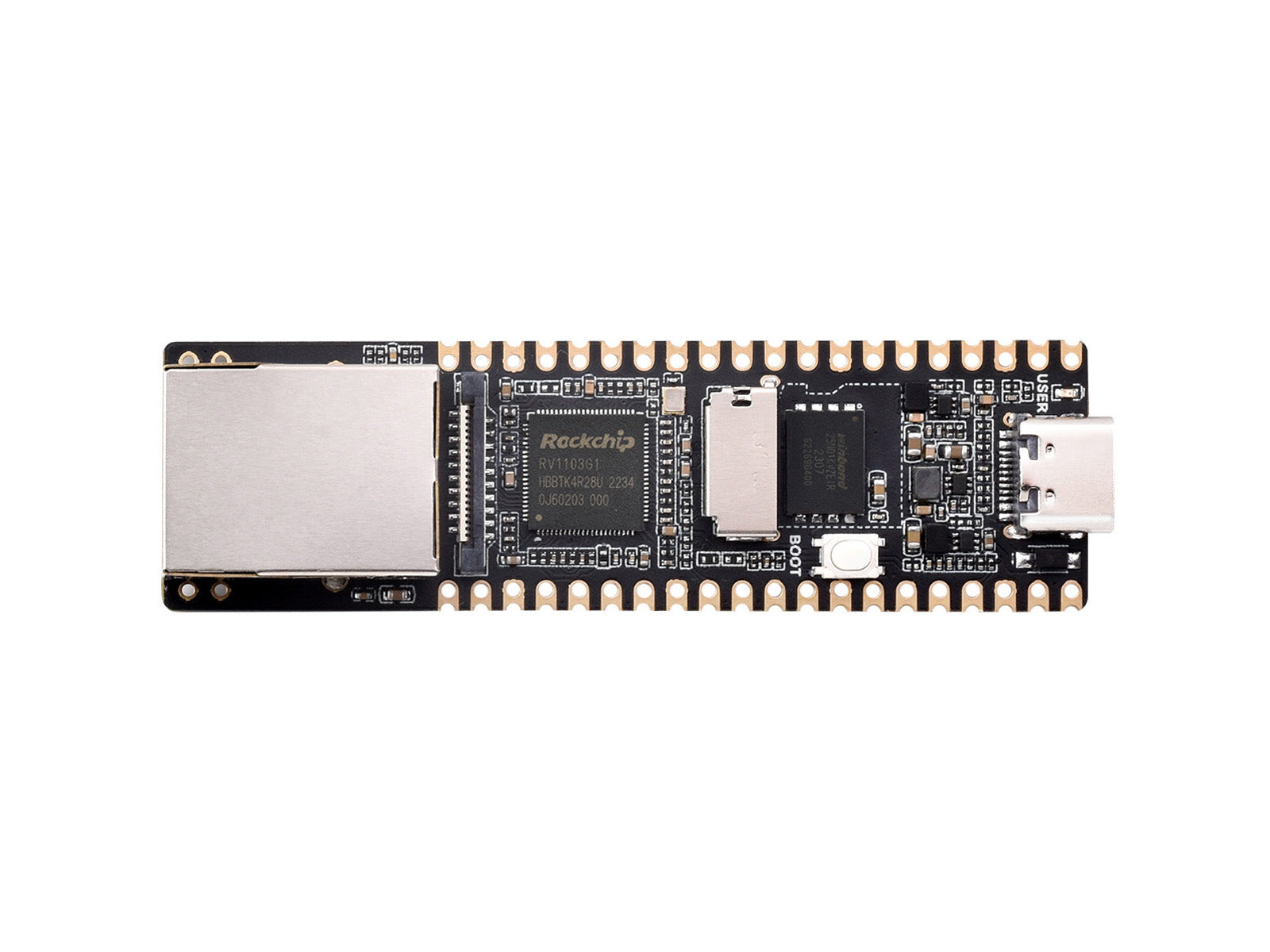

What's On Board

1. USB Type-C connector for power supply and program burning
2. ACT-LED
3. TF card slot
4. BOOT button Press it when powering on to enter download mode
5. W25N01KV 128MB SLC NAND FLASH
6. RV1103 Vision processor SoC with built-in ARM Cortex-A7 core
7. CSI camera interface MIPI CSI 2-lane

8. RJ45 Ethernet port
9. GPIO header
10. USB test pads TP1: USB_NTP2: USB_P
11. USB detection test pad
12. Microphone test pads TP4: LINEOUTTP5: MIC1PTP6: MIC0PTP7: MICBIAS

Product Show

outline dimensions

Luckfox Pico Product Selection

PRODUCT	Main chip	Memory	NPU	ISP	Default Storage	FEATURES
Luckfox Pico Mini A	RV1103G1	64MB	0.5TOPS, supports int4, int8 and int16	Input 4M @30fps (Max)	TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Mini B					SPI NAND FLASH (128MB)
Luckfox Pico					TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Plus					SPI NAND FLASH (128MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.
Luckfox Pico Pro	RV1106G2	128MB		Input 5M @30fps (Max)	SPI NAND FLASH (256MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
Luckfox Pico Ultra B					EMMC(8GB)	Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Luckfox Pico Ultra BW						Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Core11060208						Onboard eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Core11061208						Onboard WiFi and eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Luckfox Pico Pi B						Onboard 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi B W						Onboard Wi-Fi module, 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Max	RV1106G3	256MB	1TOPS, supports int4, int8 and int16	Input 8M @15fps (Max)	SPI NAND FLASH (256MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
Luckfox Pico Ultra					EMMC(8GB)	Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Luckfox Pico Ultra W						Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Core11060408						Onboard eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Core11061408						Onboard WiFi and eMMC, adapting various interfaces via castellated holes, such as USB, PHY, LINEOUT audio output, 2-ch MIC audio inputs, 2-ch 2-lane MIPI CSI, RGB, RTC, etc.
Luckfox Pico Pi A						Onboard 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi A W						Onboard Wi-Fi module, 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.
Luckfox Pico Pi Zero						Onboard Wi-Fi module, Type-C port, 4-lane MIPI CSI, GPIO, SMD microphone, speaker header, RTC battery header, etc.
Luckfox Pico 86 Panel	RV1106G2/RV1106G3	128MB/256MB	0.5TOPS/1TOPS	Input 5M@30fps (Max)	EMMC (8GB)	Equipped with a 720 × 720 IPS capacitive touch screen, optional Wi Fi Bluetooth module, onboard Type-C port, Network port, RS485 terminal, 2-channel relay, speaker, microphone, RTC battery interface, etc.
